User Manual for Pentax 6.5x21 U-Series Papilio II Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 6.5x21 U-Series Papilio II Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 6.5x21 U-Series Papilio II Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

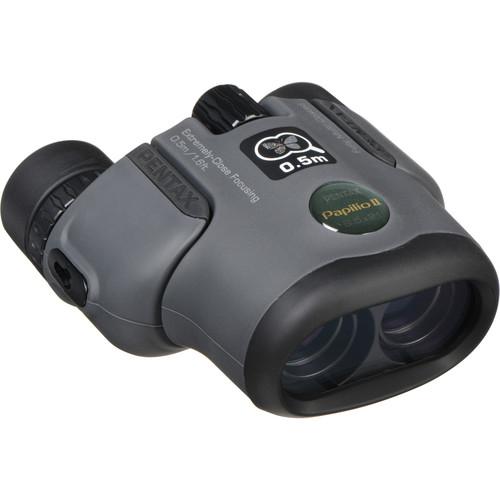

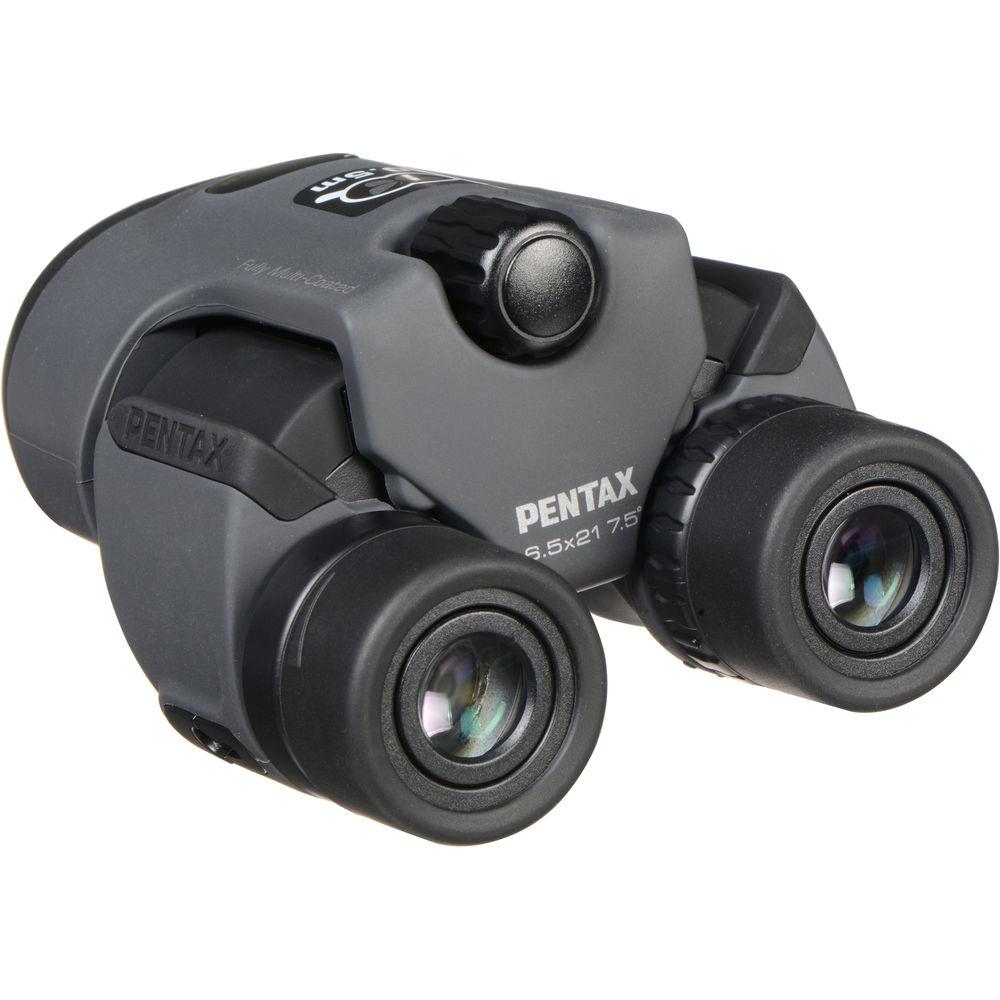

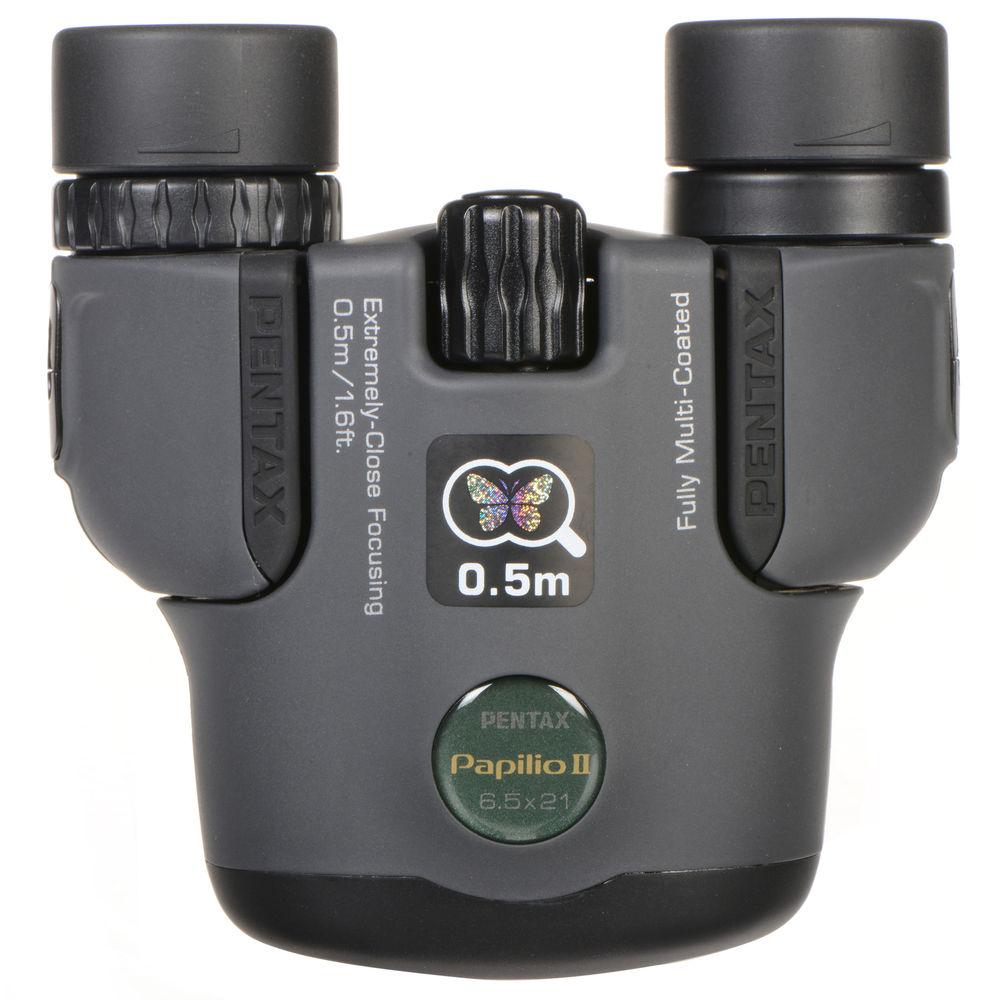

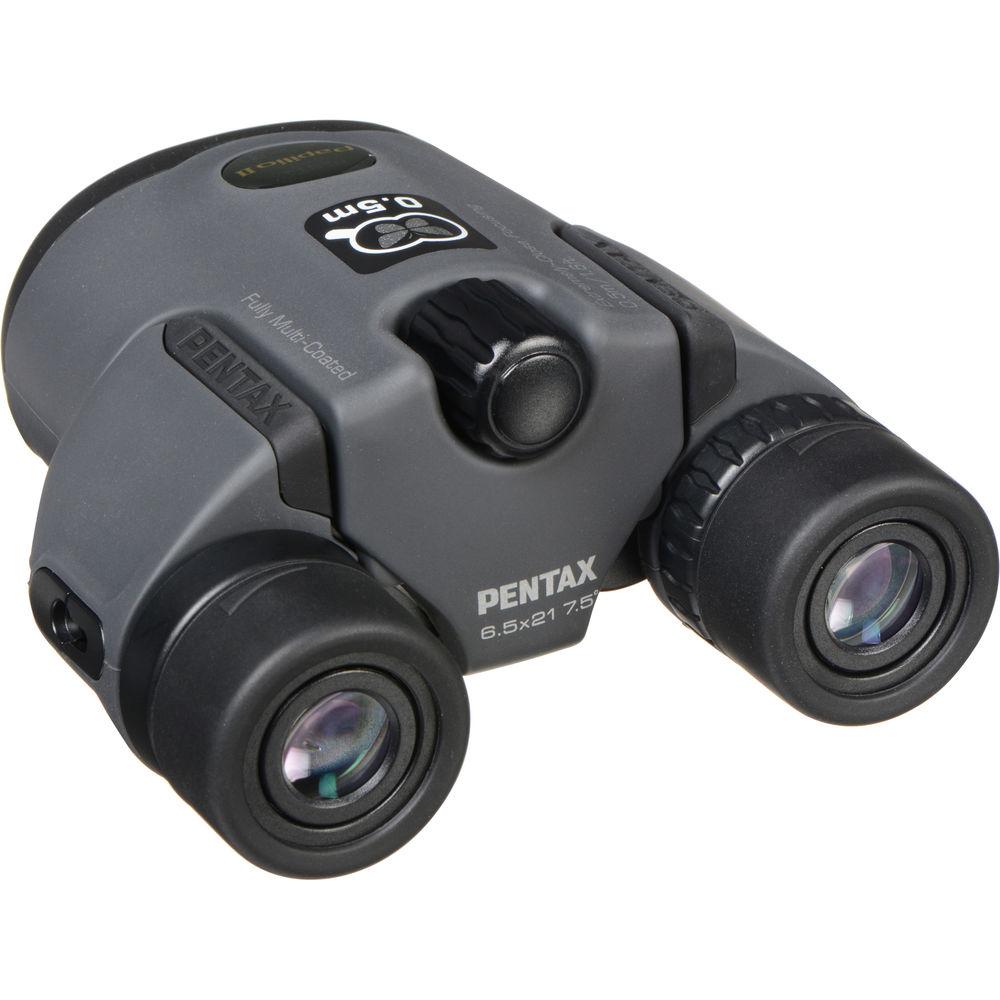

Product description Infographic: Pentax U Series Binoculars Read More yfyyrbxfaqayfttwxxbretyezasbvfdb The compact and lightweight 6.5x21 U-Series Papilio II Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a 49° apparent angle of view. The optical elements are also fully multi-coated to provide a high transmission of light. With a 6.5x magnification and 21mm objectives, you obtain a notable magnification, insignificant image jitter due to unsteady hands, and a compact form factor. You can easily spot your targets with a 7.5° angular field of view and quickly bring them into focus with a center focus wheel. In addition to observing distant scenes, birds, and game, the minimum focus of 20" allows you to study in detail close objects like butterflies, animal footprints, marks, or landscape features. To reduce image jitter while observing distant objects or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. The binocular also features a 3.2mm exit pupil, a 15mm eye relief, and interpupillary distance and diopter adjustments.
The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eyeglasses wearers, the binocular offers twist-up rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers. - Optical Performance
-
- BAK4 Porro prisms
- Aspherical optical elements offer edge-to-edge image sharpness
- Fully multi-coated optics
- Angular field of view: 7.5°
- Minimum focus of 20"
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Single piece objectives' frame allows for a synchronized interpupillary adjustment
- Contoured body provides a comfortable grip
- Center focus knob offers an easy focusing
- Twist-up rubber eyecups

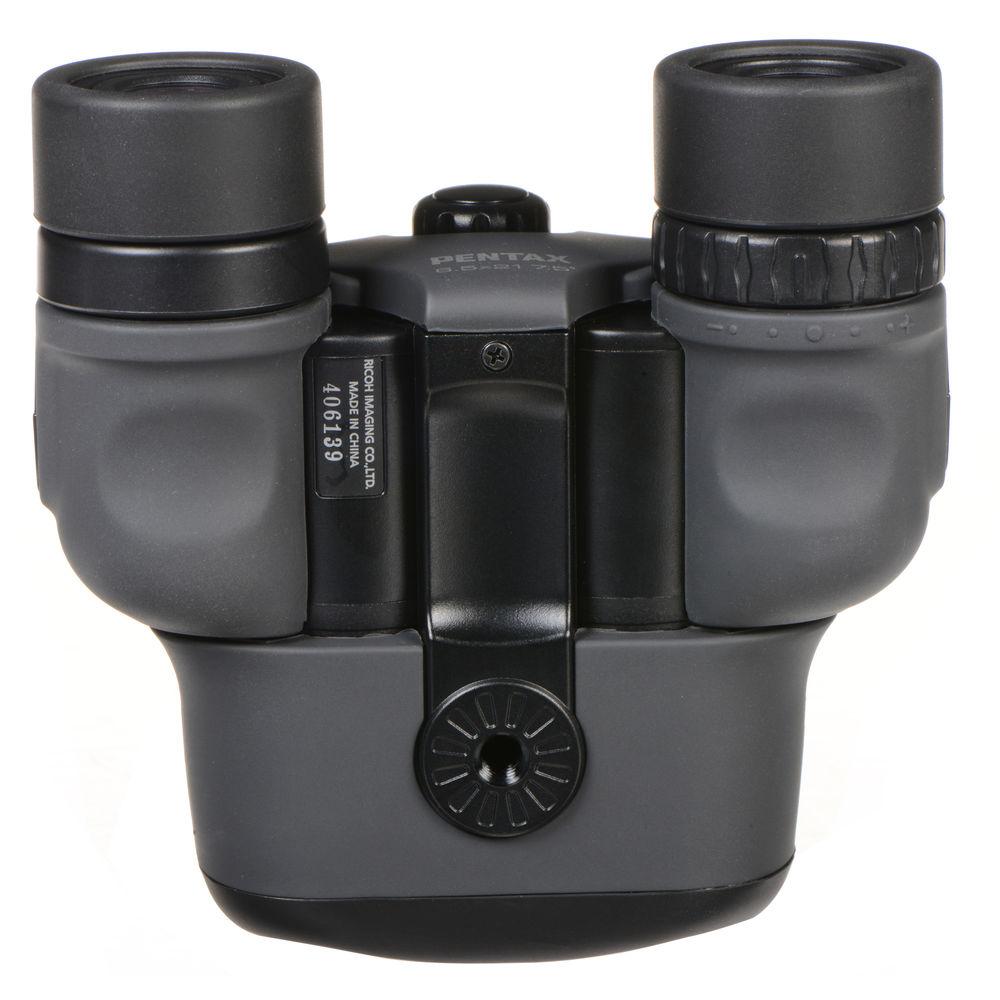

- Integrated 1/4"-20 tripod socket
UPC: 027075288911 In the Box Pentax 6.5x21 U-Series Papilio II Binocular - Eyepiece Covers
- Neck Strap

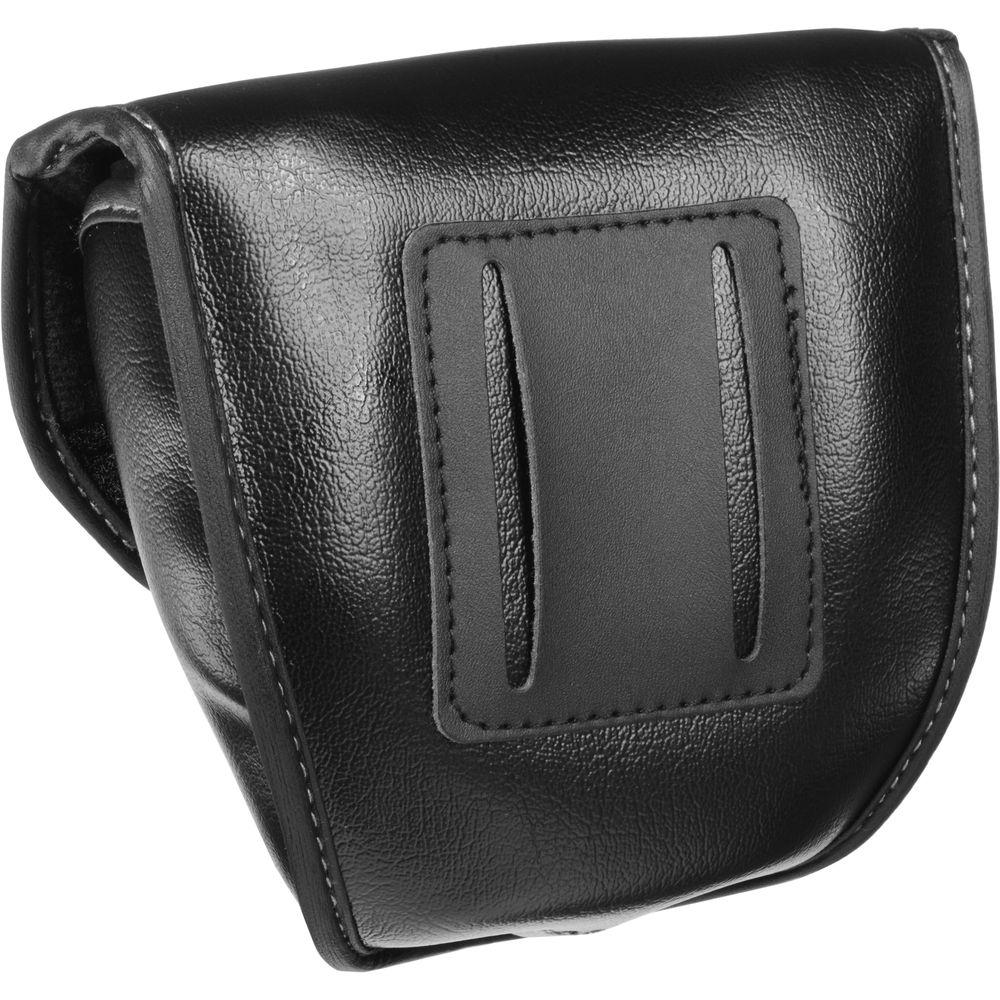

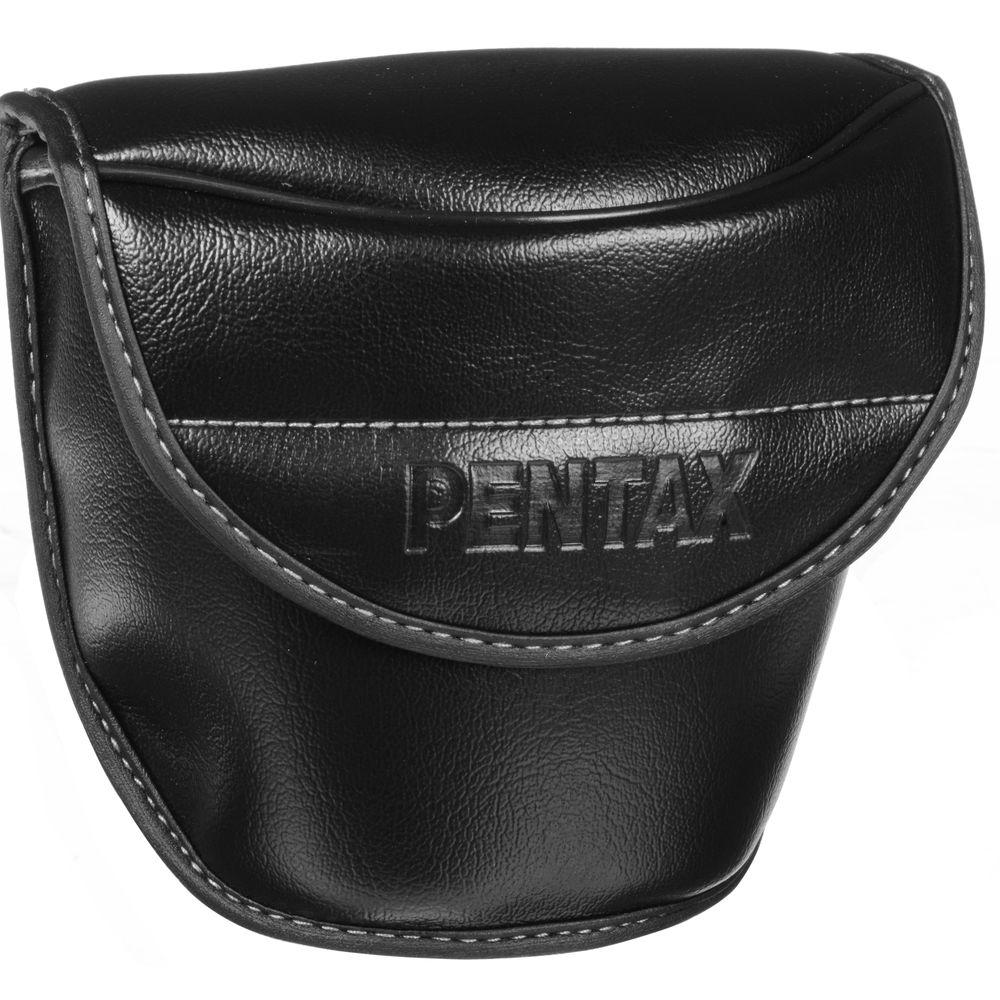

- Carrying Case
- Limited 25-Year Warranty
The B&H Binocular Buying Guide Christopher Witt 12/13/2018 Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 6.5x21 U-Series Papilio II Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax Papilio II Specs | Prism Type | Porro | | Magnification | 6.5 x | | Objective Lens Diameter | 21 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 1.6' / .5 m | | Exit Pupil Diameter | 3.2 mm | | Eye Relief | 15 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 4.5 x 4.4 x 2.1" / 11.4 x 11.2 x 5.3 cm | | Weight | 10.2 oz / 289.2 g | | | | Package Weight | 0.99 lb | | Box Dimensions (LxWxH) | 5.7 x 5.25 x 2.85" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
