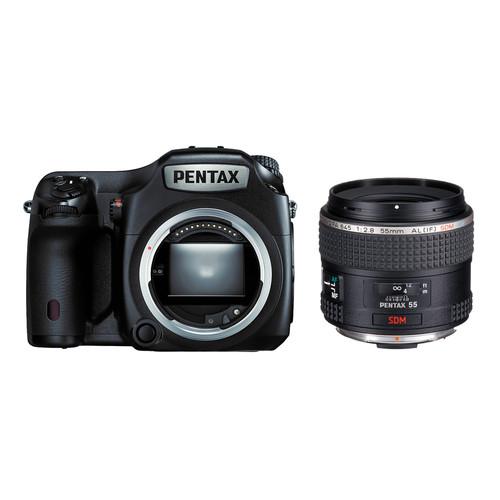

User Manual for Pentax 645Z Medium Format DSLR Camera with 55mm Lens Kit

• Product category: Medium Format Cameras Pentax
• Brand: Pentax
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pentax Medium Format Cameras

Product description

• Pentax 645Z Medium Format DSLR Camera (Body Only) The 645Z Medium Format DSLR Camera (Body Only) from Pentax features a 43.8 x 32.8 mm CMOS sensor with 51.4 effective megapixels. The sensor is designed without an anti-aliasing filter to maximize sharpness and details. RAW files can be recorded at 14-bit and saved using either the proprietary PEF format or Adobe's DNG format. An ISO range from 100-204,800 and high S/N ratio provides low noise, low light capability, and the Prime III image processor lends itself to fast image capture with a maximum of 3 fps continuous shooting. The SAFOX II autofocus module utilizes 27 autofocus points including 25 cross-type sensors and 3 AF sensors dedicated for low light focusing. The new Real Time Scene Analysis System features an 86,000 pixel RGB light-metering sensor for enhanced accuracy of exposure, white balance, and auto-focusing.Full HD 1080 60i/30p/24p video capture is supported in the H.264 format with a dedicated button for instant switchover from stills to video. An external microphone jack enables high quality audio recording with manual sound level control and monitoring. An HDMI port outputs HD images to HDTVs and a USB 3.0 jack enables fast image transfer to your computer. Interval recording for time-lapse videos is supported with an output of UHD 4K resolution.A 3.2", 1037k-dot, tilting, air-gapless, LCD monitor enables live view composition and playback viewing from a various angles and a trapezoid-shaped glass prism viewfinder with Kepler telescope-type eyepiece unit provides traditional eye-level composition. The design of the viewfinder also helps to achieve the relatively compact size of this medium format camera. The 645Z is extremely durable with an aluminum alloy chassis, magnesium alloy shell, and 76 specific weather seals to keep out moisture and dust. It is a camera designed for field as well as studio and can operate in temperatures from 14-104°F. The camera body also features a deep set ergonomic grip, ideal for hand-held shooting, easy-to-access buttons, and a top-plate, sub-LCD screen that is angled up for easier visibility of camera information. A hot shoe mount is supported, and in addition to the tripod socket on the camera's base, a second tripod socket is located on the side of the camera for convenient and stable tripod shooting in the vertical position. Two SD slots are provided for versatile image storage and both Flucards and Eye-Fi cards are compatible for wireless image transfer. A free plug-in is available for seamless tethered shooting support in conjunction with Adobe Photoshop Lightroom, along with the USB 3.0 output for fast performance.The 645Z is compatible with the new FA autofocus lenses as well as older 645 lenses and with Pentax 67 medium format lenses when used with an adapter.
  51.4 MP CMOS Sensor
  • The 645Z offers a 43.8 x 32.8 mm 51.4MP CMOS sensor, which is ideal for ultra-high resolution imaging, large printing applications, and cropping flexibility. Compared to a CCD sensor, a CMOS sensor provides higher ISO sensitivity, expanded uses for live view, faster continuous shooting, and improved movie recording capabilities.
  Anti-Aliasing Filter-Less Design
  • The optical, low-pass, anti-aliasing filter found in most CMOS sensors has been removed from the 645Z design to maximize image sharpness and fine details.
  RAW Capture
  • RAW files can be recorded at 14-bit and saved using either the proprietary PEF format or Adobe's DNG format for greater post-production control and flexibility.
  Prime III Image Processor
  • The 645Z offers a fast frame rate of 3.0 fps, quick image processing to rapidly review images, and swift image transfer with USB 3.0 computer connection.
  ISO 100 to 204800
  • A sensitivity range from ISO 100 to 204800 along with enhanced noise reduction capabilities enables effective low-light capture.
  Full HD 1080 Video Capture
  • The 645Z supports full HD movie capture in the H.264 format at 60i, 30p and 24p, including the ability to switch from still image to video recording with the flip of a dedicated switch. Equipped with a built-in stereo microphone and a terminal for external microphone connection, the user can also adjust the audio recording level manually and visually monitor sound levels during recording.
  Interval Shooting with 4K Output
  • In-camera time lapse sequences can also be recorded using the built-in intervalometer, allowing up to 2000 shots to be recorded with 2 second to 24 hour delays, and output as 4K (3840 x 2160) files.
  3.2" 1,037k-dot Tilting Air-Gapless LCD
  • A 3.2", 1,037k-dot, air-gapless, LCD monitor is available and features a tilting design (-35° down and +125° upward) to benefit use from high or low viewing positions. An electronic level gauge can be utilized with either the viewfinder or LCD monitor during shooting, and when working in live view, a variety of grid overlays and manual focus peaking can be used for greater focusing accuracy.
  Pentaprism Viewfinder
  • A large, trapezoidal-shaped, glass pentaprism with Kepler telescope-type eyepiece enables bright and clear eye-level finding with 98% frame coverage.
  SAFOX II Autofocus Module
  • The SAFOX II autofocus module maximizes 27 AF sensors and a vast light sensitivity range of -3EV to +18EV. The new focus module includes 25 cross sensors and three AF sensors dedicated to low light focusing.
  Real Time Scene Analysis with 86,000 Pixel Sensor
  • The new Real Time Scene Analysis System features an 86,000 pixel RGB light-metering sensor and improved algorithms that further enhance accuracy of exposure, white balance, and auto-focusing.
  Multi-Pattern Auto WB system
  • A Multi-Pattern Auto WB system can be used to intelligently adjust white balance settings when mixed lighting is prevalent. For example, if both flash and ambient lighting are utilized, different white balance settings are used within the different regions of an image to more accurately portray overall color balance.
  Durable, Weather-Sealed Form Factor
  • Offering a compact build for a medium format camera, the 645Z provides an ergonomic grip, large buttons, and 76 specific weather-seals to protect the camera from moisture, sand, and dust. It is capable of shooting in temperatures ranging from 14-104°F, and its aluminum alloy chassis and magnesium alloy body are durable for years of service in studio or on location.
  Dual Memory Card Slot and FLU Card Compatibility
  • Dual slot SD/SDHC/SDXC memory card support ensures fast and reliable storage for high resolution image files, simultaneously saving in multiple formats, assigning images to different cards based on their original format, or easily holding one memory card in reserve. In addition to standard SD cards, the 645Z is compatible with Eye-Fi and Flucards for wireless image transfer and with the Pentax Flucard remote camera control from a compatible smart devise.
  Lens Compatibility
  • The 645Z is compatible with new D FA autofocus lenses as well as older 645 lenses as well as Pentax 67 lenses via an optional adapter.
  Additional Features
  • • Customizable RAW/Fx button for direct access to a common shooting settings.
    • An HDMI port outputs high definition images, video and sound to HDTVs.
    • USB 3.0 output for high speed data transmission.
    • Mirror dampening hardware minimizes the effect of camera shake and noise levels during the image capture process.
    • A second tripod socket on the camera's side enables convenient and stable vertical tripod-mounted shooting.
    • The sub LCD on the camera's top plate is angled for better visibility of camera setting information.
    • HDR (High Dynamic Range) shooting mode with RAW-format data filing.
    • A free Pentax Tethered Capture Plug-In is available for tethered in shooting conjunction with Adobe Photoshop Lightroom and its associated mobile apps. The camera must be updated to firmware version 1.21 or later in order to support tethered shooting with this plug-in.
  UPC: 027075275867
• Pentax Pentax-D FA 645 55mm f/2.8 AL[IF] SDM AW Lens New camera, new lens: this Pentax-D FA 645 55mm f/2.8 AL[IF] SDM AW Lens is the first model of the Pentax-D FA 645 lens series created for the Pentax 645D digital medium-format camera. With a focal length that's equivalent to a 43.5mm standard lens (in 35mm), it features optics optimized for digital photography to assure exceptional performance, and also provides an image circle covering the image area of existing 645-format film SLR cameras. It has dependable, dust-proof, weather-resistant construction for active outdoor photography. This lens features a Supersonic Direct-drive Motor (SDM) autofocus drive and Quick-Shift for instant autofocus/manual focus switching, Aero Bright coating to help prevent flare and ghost images, and it's Pentax's first 645 system lens to incorporate a rounded diaphragm for improved bokeh (the aesthetic quality of the blur in the out-of-focus areas of an image).
  State-of-the-Art Optics
  • Incorporating high-performance, hybrid aspherical optical element in its optics, this new standard lens (focal length equivalent to 43.5mm in the 35mm format) offers exceptional image-resolving power with outstanding brightness levels even at the edges, while compensating various aberrations to a minimum. All lens characteristics are optimized for digital photography: for instance, flare and ghost images are minimized by applying exclusive lens coatings to optical elements and employing anti-reflection materials for the interior of the lens barrel.
  Versatile Standard Lens
  • When mounted on the PENTAX 645D camera body, this standard lens offers a focal length which produces an angle of view close to that of the human eye. As the result, it can be used for many different kinds of subjects and applications, including landscapes and portraits.
  Dustproof, Weather-Resistant Construction
  • Seven special seals make this lens dustproof and weather-resistant. This lens coupled with the Pentax 645D camera body provides a durable, reliable digital SLR camera that performs superbly, even in rain, mist, or locations prone to water splashes and spray. The "AW" (All Weather) designation in the lens name testifies to the weather-resistant construction and it is rated to operate in temperatures from 14-104ºF (-10 to 40ºC).
  Aero Bright Coating Dramatically Improves Image Description in Backlight
  • The Pentax original Aero Bright coating on this lens delivers brilliant, high-quality images by preventing flare and ghost images more effectively. This exclusive coating effectively reduces lens reflectance and greatly increases light transmittance by forming a silica aerogel layer with uniform pores on the surface of optical element.
  Rounded Diaphragm to Produce a Beautiful Bokeh
  • The first Pentax medium-format interchangeable lens to feature a completely rounded diaphragm, it creates a natural, beautiful "bokeh" (out-of-focus rendition), while minimizing the streaking effect of point light sources.
  Smooth, Quiet SDM Autofocus
  • The SDM (Supersonic Direct-drive Motor) autofocus mechanism operates smoothly and quietly using the supersonic motor installed inside the lens barrel.
  SP Coating Blocks Dust and Dirt
  • The front surface of the lens is treated with Pentax's SP (Special Protect) coating, which applies a fluorine compound to the lens surface through a vapor deposition process. This SP coating effectively repels dust, water and grease, and also makes it easy to wipe off fingerprints and cosmetics.
  Advanced Focus Options
  • Quick-Shift Focus system instantly switches to manual focus operation, after the subject is captured in focus by the AF system.
  UPC: 027075166059

• Pentax-D FA 645 55mm f/2.8 AL[IF] SDM AW Lens

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pentax 645Z Medium Format DSLR Camera (Body Only)

  Camera Type	TTL autofocus, auto-exposure medium format digital SLR camera
  Sensor	43.8 x 32.8 mm CMOS
  Color Depth	JPEG: 8 bits/channel RAW: 14 bits/channel
  Effective Pixels	51.4MP
  Total Pixels	52.99MP
  File Formats	Stills: RAW (PEF/DNG), TIFF, JPEG (Exif 2.30), DCF2.0 compliant Video: MPEG-4 AVC/H.264 (MOV) *Motion JPEG (AVI) for Interval Movie Record
  Resolution	JPEG: L (51M: 8256 x 6192), M (36M: 6912 x 5184), S (21M: 5376 x 4032), XS (3M: 1920 x 1440) RAW: L (51M: 8256 x 6192) TIFF: L (51M: 8256 x 6192)
  Image Quality	JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous recording available RAW: PEF, DNG
  Video Resolution	Full HD: (1920x1080, 60i/50i/30p/25p/24p) HD: (1280x720, 60p/50p/30p/25p/24p)
  Video Recording Time	Up to 25 minutes
  Dust Removal	Image sensor cleaning using ultrasonic vibrations "DR II" with the Dust Alert function
  Lens Mount	PENTAX 645AF2 mount with AF coupler, lens information contacts, and power contacts (stainless steel)
  Lenses	PENTAX 645AF2, 645AF and 645A mount lenses PENTAX 67 medium format lenses useable with adapter SDM function: Yes
  Image Stabilization	Lens-shift type (when using SR system lens)
  Metering System	TTL open aperture metering using 86K pixel RGB sensor
  Metering Range	EV -1 to 21 (ISO 100 at 55mm f/2.8)
  Metering Modes	Multi-segment metering, Center-weighted metering, Spot metering
  Exposure Compensation	±5 EV (1/3 EV steps or 1/2 EV steps)
  AE Lock	Button type (timer-control: two times the meter operating time set in Custom Setting), Continuous as long as the shutter release button is depressed halfway
  Exposure Bracketing	2, 3, or 5 frames, Available with Continuous, Self-timer, or Remote Control
  ISO Sensitivity	Auto, 100 to 204,800 (EV steps can be set to 1EV, 1/2EV, or 1/3EV)
  White Balance	Auto, Multi Auto, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight Color, N: Daylight White, W: Cool White, L: Warm White), Tungsten, Flash, CTE Manual mode(s): Manual (up to 3 settings can be saved), Color Temperature (up to 3 settings can be saved), Copying the white balance settings of a captured image possible.
  Shutter Type	Electronically controlled, vertical-run, focal plane shutter
  Shutter Speeds	Auto: 1/4000 to 30 sec. Manual: 1/4000 to 30 sec. (1/3 EV steps or 1/2 EV steps) Bulb
  Exposure Modes	Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb, Flash X-sync Speed, USER1, USER2, USER3
  Drive Mode	Single Frame, Continuous (H, L), Self-timer (12 sec., 2sec.), Remote Control (immediately, 3 sec., continuous), Multi-exposure (available with Continuous, Self-timer or Remote Control), Interval Shooting, Interval Composite
  Self Timer	Yes - 12 seconds, 2 seconds
  Remote Control	Yes - infrared (0 seconds, 3 seconds, continuous), cable switch
  Burst Rate	3 fps, JPEG ( L: ★★★ at Continuous H): up to 30 frames, RAW: up to 10 frames, TIFF: up to 12 frames
  Focus System	SAFOX II TTL phase-matching autofocus with 27 AF points (25 cross type focus points in the center)
  AF Modes	Single AF (AF.S), Continuous AF (AF.C), Manual, Focus operation customizable
  Focus Area	Spot, Select, Expanded Area AF (S, M, L), Zone Select, Auto (27 AF Points)
  Brightness	EV -3 to 18 (ISO 100, at normal temperature)
  Viewfinder Type	Kepler-telescopic, trapezoid prism finder
  Viewfinder Coverage	Approximately 98%
  Viewfinder Magnification	0.62x (55mm f/2.8 at infinity); 0.85x (75mm f/2.8 at infinity)
  Focusing Screen	Standard: Interchangeable Natural-Bright-Matte focusing screen
  Diopter Adjustment	-3.5 m to + 2.0 m-1
  Depth of Field Preview	Optical (diaphragm stop-down), Digital
  Eye-Relief Length	Approximately 21 mm (from view window) Approximately 24.1 mm (from center of lens)
  LCD Monitor	3.2" 1037k-Dot Tiltable TFT Color LCD
  Electronic Level	Displayed in viewfinder and LCD panel (horizontal direction only); displayed on LCD monitor (horizontal direction and vertical direction)
  Live View	TTL using CMOS image sensor
  Live View Field of View	100%
  Live View Autofocus	Contrast detection AF (Face Detection, Tracking, Multiple AF Points, Select, Spot Focus Peaking: On/Off
  External Flash	Hotshoe (P-TTL), high speed sync and wireless with PENTAX dedicated flash, X-Sync Socket
  Flash Modes	Flash On, Flash On+Red-eye Reduction, Slow-speed Sync, Slow-speed Sync+Red-eye, P-TTL, Trailing Curtain Sync, contrast-control-sync, high-speed sync, wireless sync (available with a dedicated external flash)
  Flash Exposure Compensation	-2 to +1 EV (1/2 steps)
  Flash Synch Speeds	1/125 sec
  Storage Media	SD, SDHC*, SDXC* memory card, Eye-Fi card, FLUCARD (*UHS-I compatible) Dual Card Slot: Sequential save, Save to Both Dual save, Separate RAW/JPG, Copying images between slots possible
  Interfaces	Connection Ports: USB 3.0 (micro B), external power supply terminal, cable switch terminal, X-sync socket, HDMI output terminal (Type D), stereo microphone input terminal (USB Connection: MSC/PTP) Video out: HD (via HDMI), NTSC, PAL
  Computer System Requirements	Windows: Windows 8.1 (32 bit/64 bit) / Windows 8 (32 bit/64 bit) / Windows 7 (32 bit/64 bit) / Windows Vista (32 bit/64 bit), Intel Core 2 Quad or higher, 4GB or more Mac: Mac OS X 10.9 /10.8 / 10.7 / 10.6, Intel Core 2 Quad or higher, 4GB or more
  Power Supply	Rechargeable Li-Ion battery D-LI90 AC adapter available: AC Adapter Kit K-AC132 (Optional)
  Material of Construction	Magnesium alloy shell over aluminum chassis
  Weather Resistant	Yes - 76 special seals
  Operating Temperature	14 to 104°F / -10 to 40°C
  Dimensions	6.1 x 4.6 x 4.8" / 15.5 x 11.7 x 12.2 cm (excluding protrusions)
  Weight	54.7 oz / 1.55 kg (including battery and memory card)

  Box Dimensions (LxWxH)	10.0 x 9.291 x 8.583"

• Pentax Pentax-D FA 645 55mm f/2.8 AL[IF] SDM AW Lens

  Focal Length	55mm
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Pentax 645
  Angle of View	65 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 71 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
