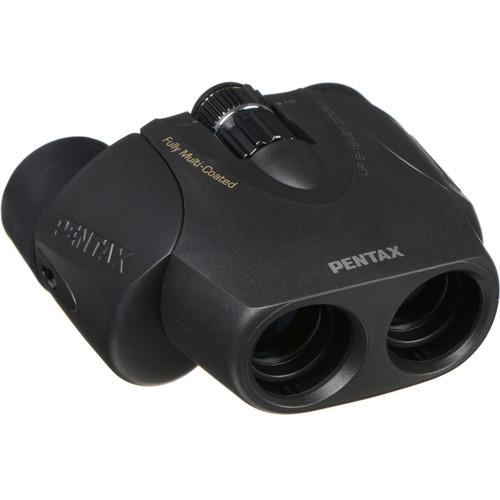

User Manual for Pentax 8-16x21 U-Series UP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 8-16x21 U-Series UP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
|
User manual for the Pentax 8-16x21 U-Series UP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The compact and lightweight black 8-16x21 U-Series UP Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a wide angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 8-16x range of magnification and 21mm objectives, you obtain a wide zooming range and a compact form factor. You can easily spot your targets with a 5° angular field of view at 8x magnification and quickly zoom in on them with the optical zoom. To reduce image jitter at high zoom factors or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. In addition to observing distant scenes, birds and game, the minimum focus of 9.9' allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.6-1.3mm exit pupil range, a 14-11mm eye relief range, an interpupillary and a diopter adjustments.
The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers sliding rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers. - Optical Performance
-
- Optical zoom range: 8-16x
- BAK4 Porro prisms
- Aspherical optical elements offer edge-to-edge image sharpness
- Fully multicoated optics
- Angular field of view range: 5-3°
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Single piece objectives' frame allows for a synchronized interpupillary adjustment
- Contoured body provides a comfortable grip
- Center focus knob offers an easy focusing
- Sliding rubber eyecups
- 1/4"-20 tripod socket
UPC: 027075288881 In the Box Pentax 8-16x21 U-Series UP Binocular (Black) - 2 x Eyepiece Covers
- Neck Strap
- Carry Case
- Limited 25-Year Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Infographic: Pentax U Series Binoculars Staff Writer 10/28/2015 Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8-16x21 U-Series UP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax UP Specs | Prism Type | Porro | | Magnification | 8 to 16x | | Objective Lens Diameter | 21 mm | | Angle of View | 8x: 5° (Actual)
16x: 3° (Actual) | | Field of View | 16x: 157.5' @ 1000 yd / 52.5 m @ 1000 m | | Minimum Focus Distance | 63.8' / 19.4 m | | Exit Pupil Diameter | 8x: 2.6 mm
16x: 1.3 mm | | Eye Relief | 8x: 14 mm
16x: 11 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 4.4 x 4.4 x 2.1" / 11.1 x 11.1 x 5.3 cm | | Weight | 10.9 oz / 309 g | | | | Package Weight | 1.125 lb | | Box Dimensions (LxWxH) | 5.7 x 5.7 x 3.1" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
