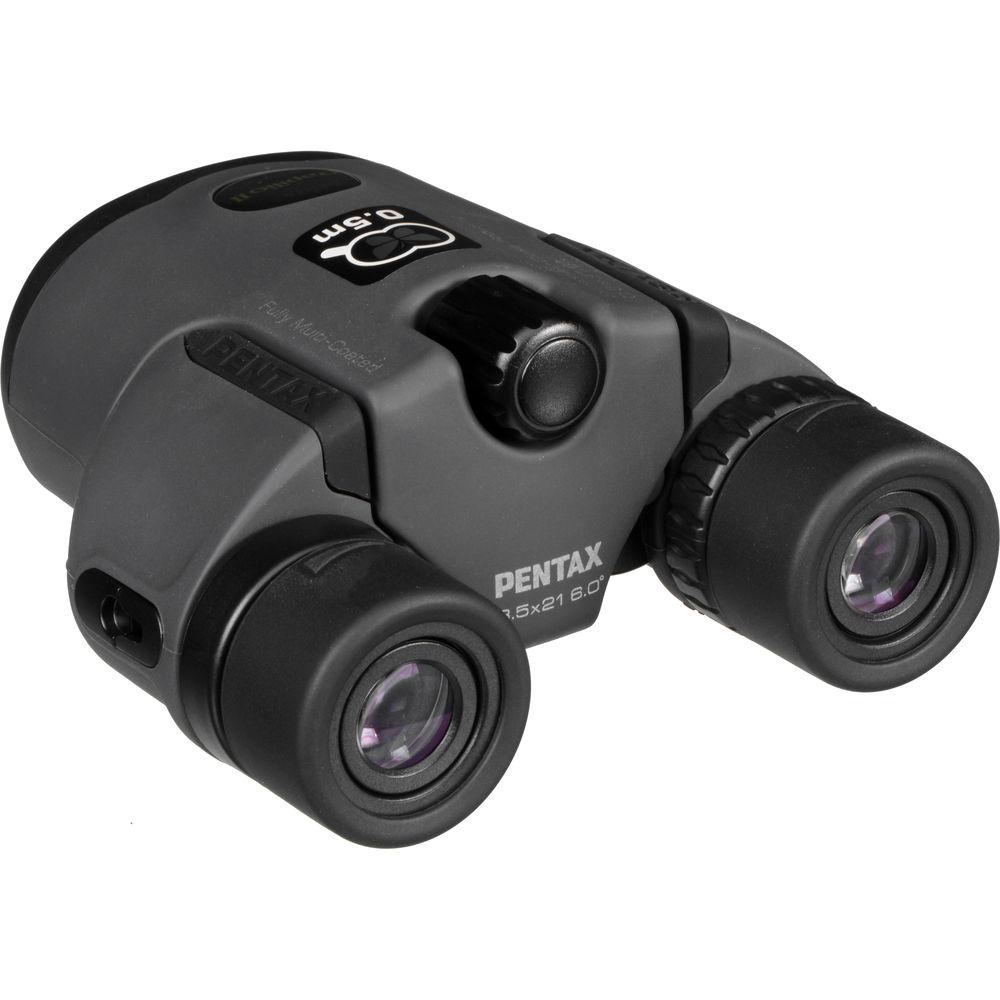

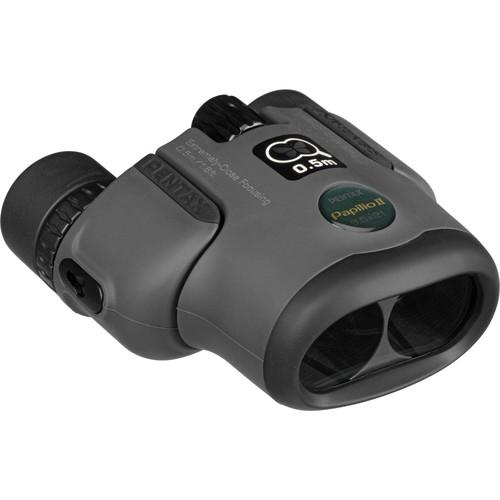

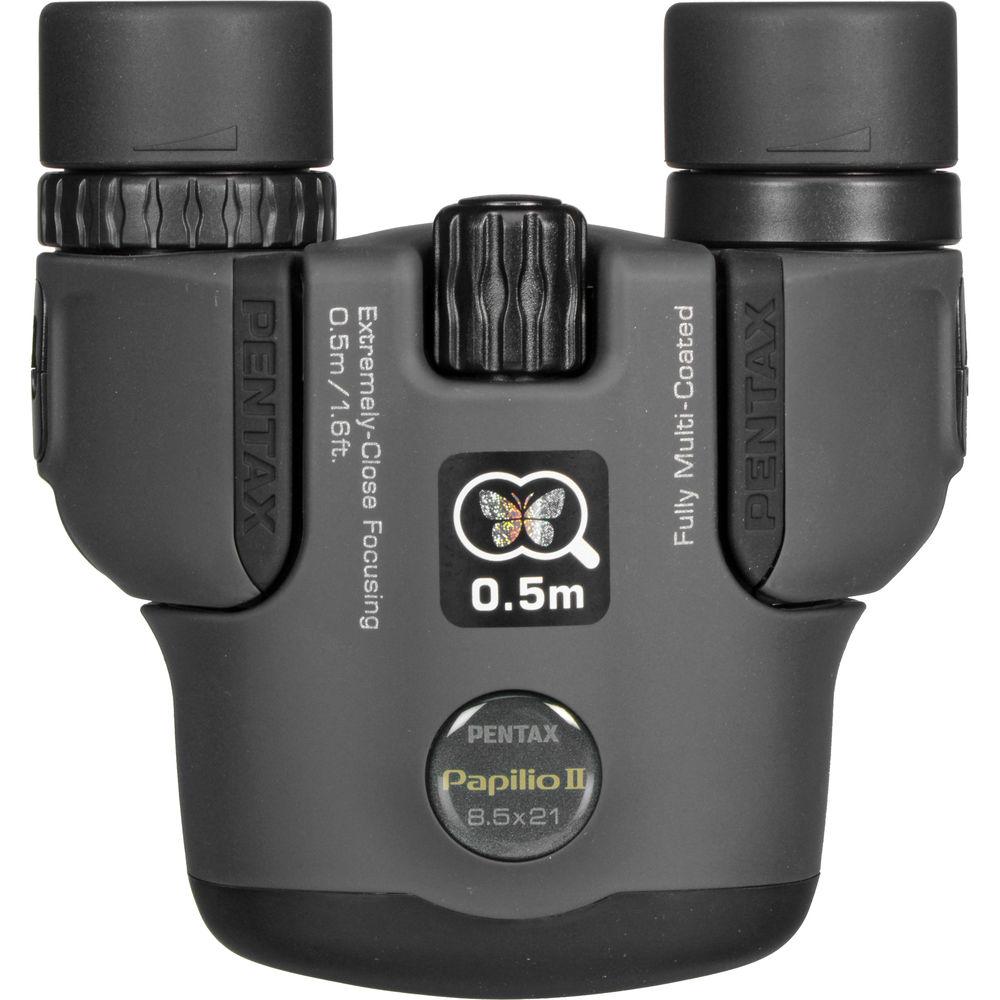

Product description Infographic: Pentax U Series Binoculars Read More The compact and lightweight 8.5x21 U-Series Papilio II Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a 51° apparent angle of view. The optical elements are also fully multi-coated to provide a high transmission of light. With a 8.5x magnification and 21mm objectives, you obtain a notable magnification, insignificant image jitter due to unsteady hands, and a compact form factor. You can easily spot your targets with a wide 6° angular field of view and quickly bring them into focus with a center focus wheel. In addition to observing distant scenes, birds, and game, the minimum focus of 20" allows you to study in detail close objects like butterflies, animal footprints, marks, or landscape features. To reduce image jitter while observing distant objects or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. The binocular also features a 2.5mm exit pupil, a 15mm eye relief, and interpupillary distance and diopter adjustments.
The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eyeglasses wearers, the binocular offers twist-up rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers. - Optical Performance
-
- BAK4 Porro prisms
- Aspherical optical elements offer edge-to-edge image sharpness
- Fully multi-coated optics
- Angular field of view: 6°
- Minimum focus of 20"
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Single piece objectives' frame allows for a synchronized interpupillary adjustment
- Contoured body provides a comfortable grip
- Center focus knob offers an easy focusing
- Twist-up rubber eyecups
- Integrated 1/4"-20 tripod socket
UPC: 027075288928 In the Box Pentax 8.5x21 U-Series Papilio II Binocular - Eyepiece Covers
- Neck Strap
- Carrying Case
- Limited 25-Year Warranty
The B&H Binocular Buying Guide Christopher Witt 12/13/2018 Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8.5x21 U-Series Papilio II Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 62002 Specs | Prism Type | Porro | | Magnification | 8.5 x | | Objective Lens Diameter | 21 mm | | Angle of View | 6° (Actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 1.6' / .5 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 15 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 4.6 x 4.3 x 2.1" / 11.6 x 11.0 x 5.3 cm | | Weight | 10.2 oz / 289.2 g | | | | Package Weight | 1.005 lb | | Box Dimensions (LxWxH) | 5.65 x 5.25 x 2.85" |
