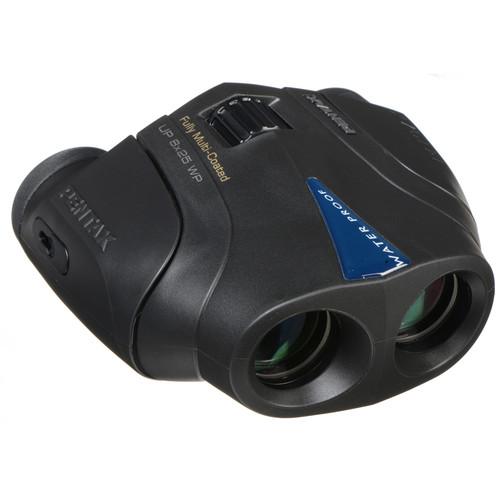

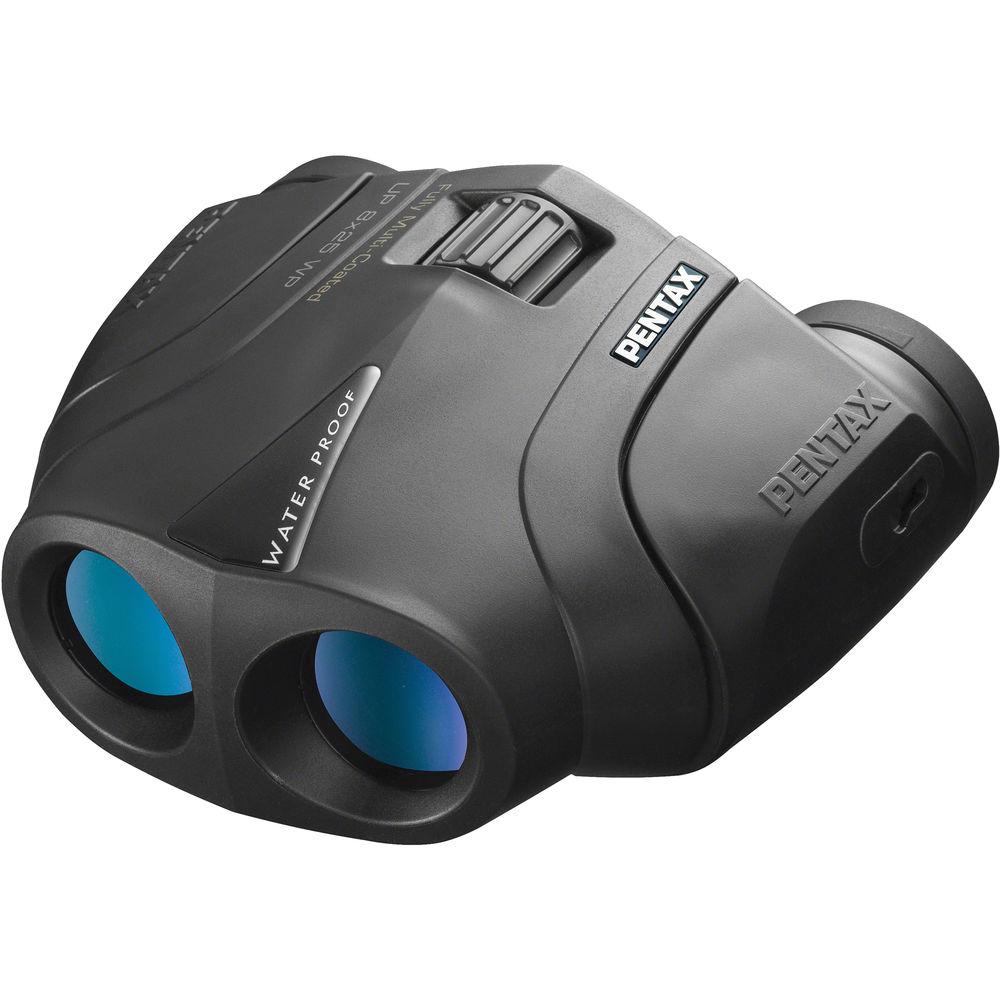

User Manual for Pentax 8x25 U-Series UP WP Compact Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 8x25 U-Series UP WP Compact
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 8x25 U-Series UP WP Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description Infographic: Pentax U Series Binoculars Read More Pentax's highly portable and functional 8x25 U-Series UP WP Compact Binocular employs an innovative unibody design that locks the objective lenses into the body with the eyepieces set on a synchronized dual-axis mechanism that ensures they stay symmetrical in relation to the center axis of the optic when adjusting the interpupillary distance. The 25mm objective lenses are fully multicoated to reduce reflection and maximize light transmission to produce the brightest images possible. Aspherical lens elements virtually eliminate distortion, especially around the edges, and corrects for lens astigmatism which can prevent sharp focusing.Designed for easy carrying and stowing, the binocular features a lightweight fiberglass reinforced polycarbonate housing that is corrosion and impact resistant. The housing material is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature variations can cause, which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions. - Optical Performance
-
- 8x magnification
- 25mm objective lenses
- BAK4 porro-prism optical design
- Aspherical lens elements reduce distortion at the edges and corrects for lens astigmatism which can prevent sharp focusing
- Anti-reflection fully multicoated optics
- 325.5' field of view at 1000 yards
- 50° angle of view
- Use and Handling
-

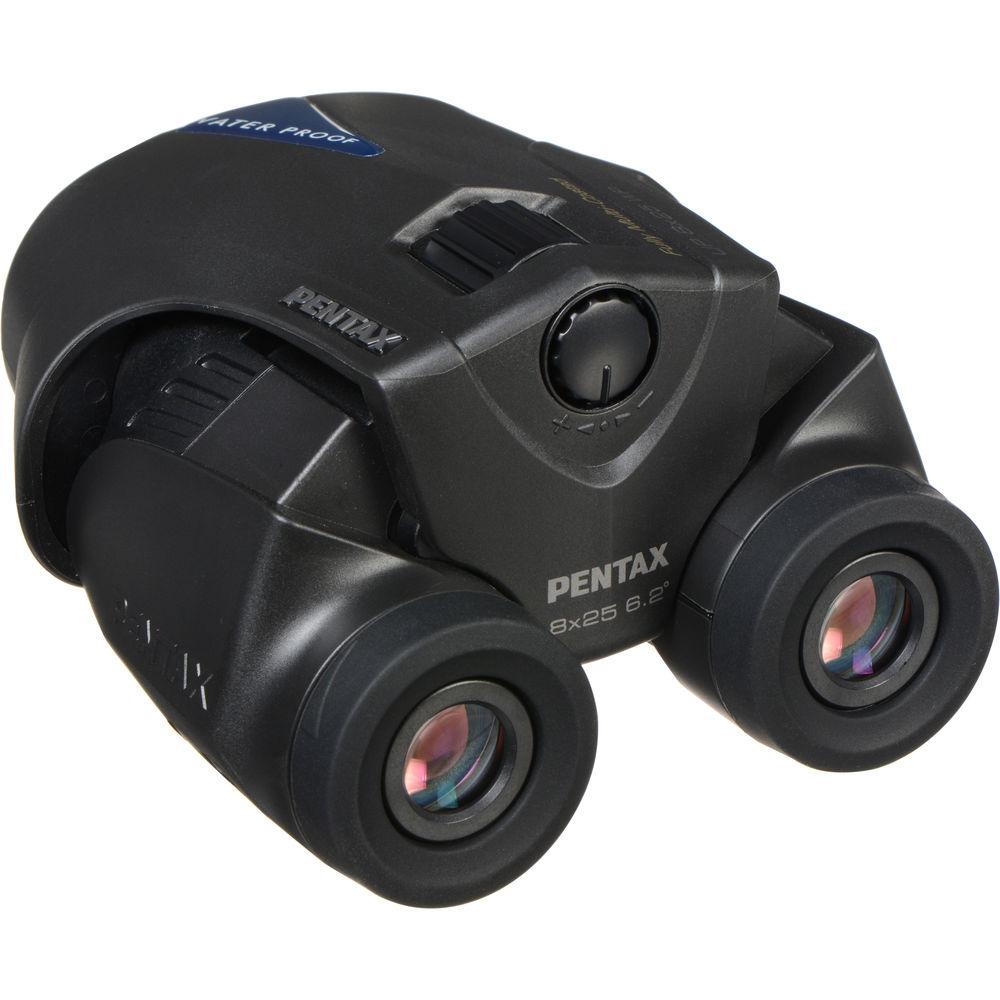

- Dual-axis synchronized eyepiece adjustment ensures symmetrical placement when changing interpupillary distances

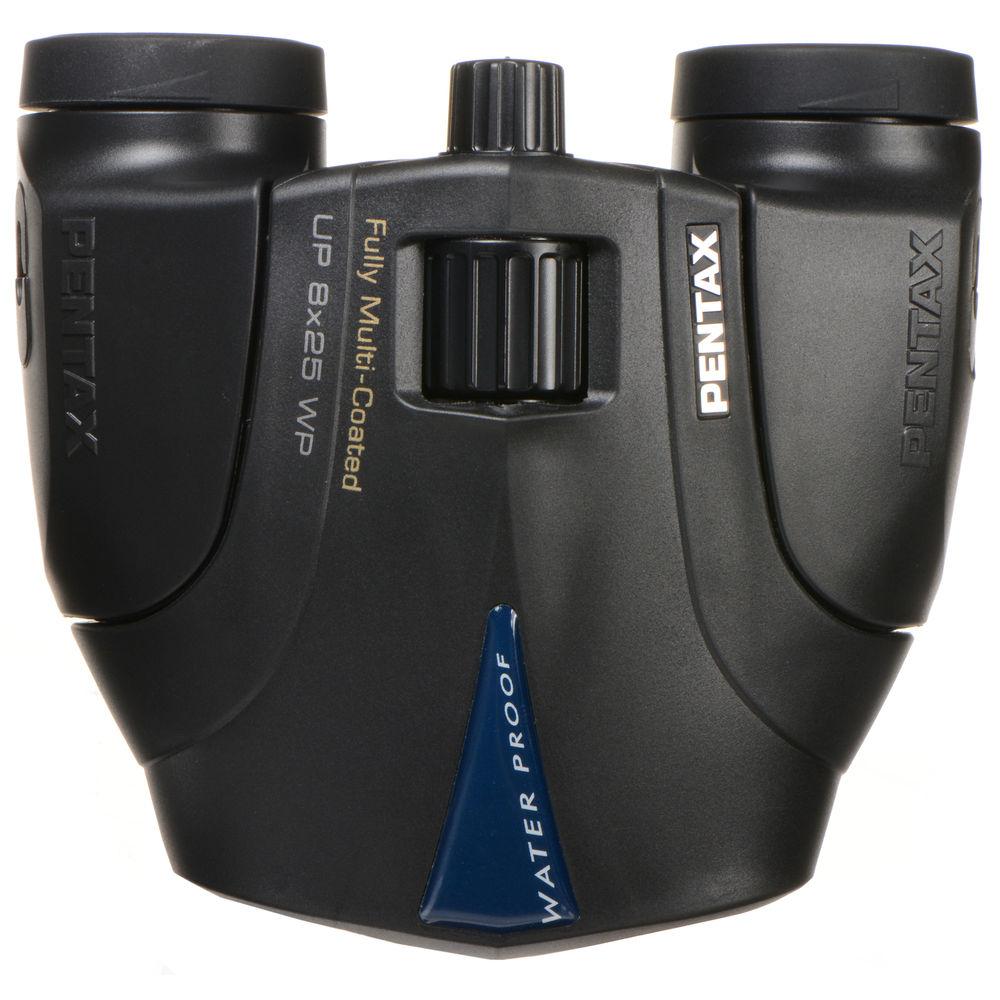

- Knurled center focus wheel

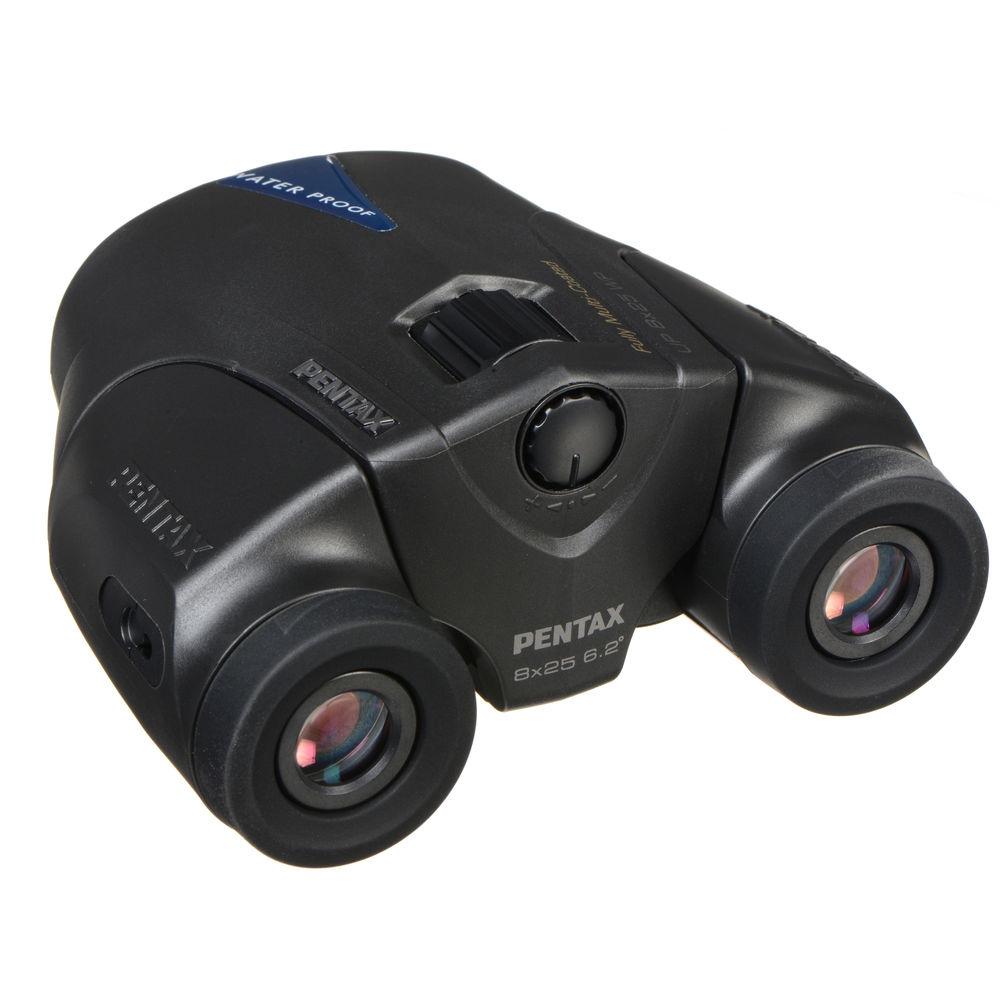

- Twist-up eyecups for use with or without eye wear
- 15mm eye relief, 3.1mm exit pupil

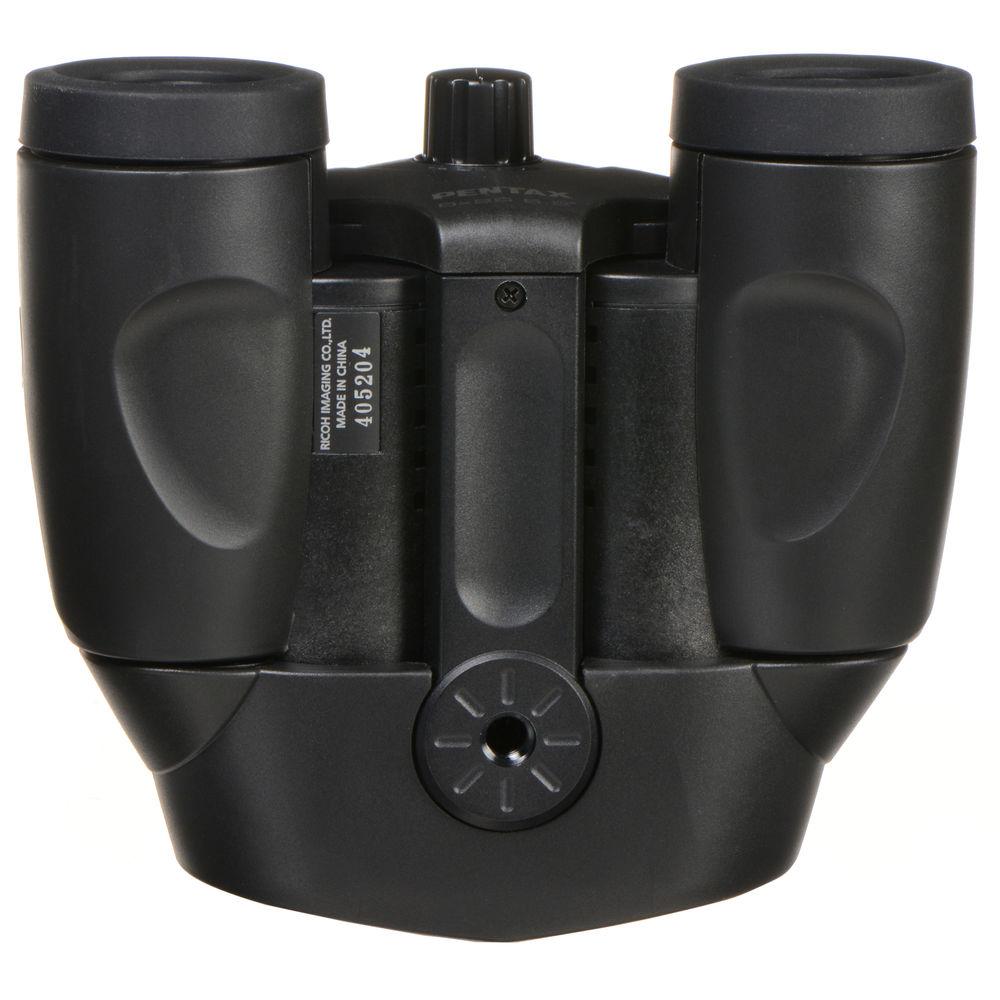

- Standard 1/4"-20 tripod mount
- Construction Details
-
- Lightweight fiberglass reinforced polycarbonate housing
- Housing is corrosion, temperature and impact-resistant
- Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals

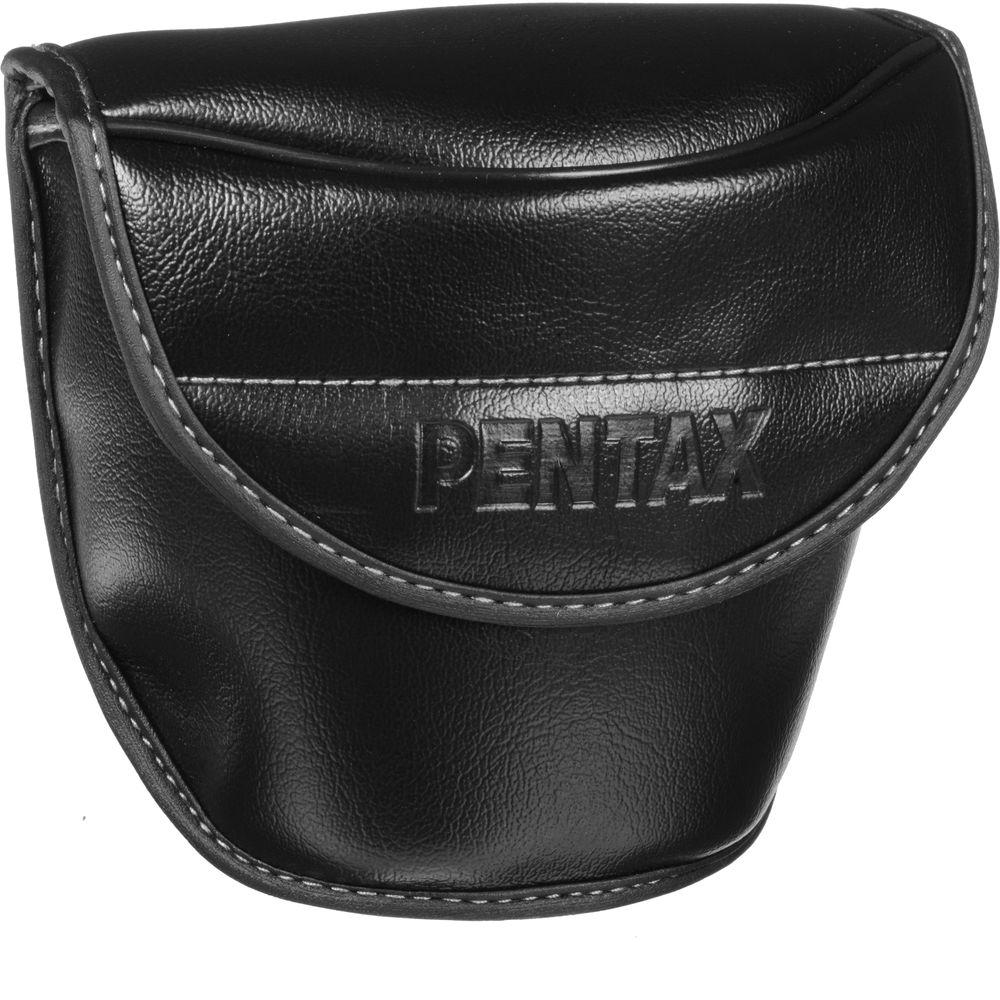

UPC: 027075288867 In the Box Pentax 8x25 U-Series UP WP Compact Binocular Neck Strap Carrying Case 2 x Eyepiece Caps Limited Lifetime Warranty The B&H Binocular Buying Guide Christopher Witt 12/13/2018 Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8x25 U-Series UP WP Compact Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax UP WP Specs | Prism Type | Porro | | Magnification | 8x | | Objective Lens Diameter | 25 mm | | Angle of View | 6.2° (Actual) | | Field of View | 325.5' @ 1000 yd / 108.5 m @ 1000 m | | Minimum Focus Distance | 6.2' / 1.9 m | | Exit Pupil Diameter | 3.1 mm | | Eye Relief | 15 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 4.6 x 4.3 x 2.7" / 11.7 x 10.9 x 6.9 cm | | Weight | 12.3 oz / 348.7 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 5.8 x 5.7 x 3.2" |
