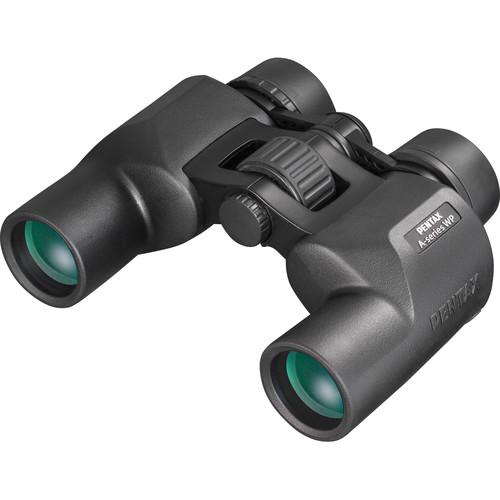

User Manual for Pentax 8x30 A-Series AP WP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 8x30 A-Series AP WP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
|
User manual for the Pentax 8x30 A-Series AP WP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The Pentax 8x30 A-Series AP WP Binocular delivers bright clear images without being over sized or cumbersome owing to its anti-reflection fully multicoated 30mm objectives which maximize light transmission to produce the brightest views possible. Utilizing traditional porro prisms produce scenes with a rich depth of view over similarly sized roof prisms with the added benefit of a larger surface area to give it a comfortable feel in the hand.In order to cut weight, the housing is made of corrosion and impact-resistant fiberglass reinforced polycarbonate polymer. The material is also temperature-resistant allowing for its use in extreme climates while reducing expansion and contraction wide temperature swings can cause which can make the optical components move out of collimation over time. Its optical tubes are nitrogen-filled and O-ring sealed so they can are submersible to 3.3', as well as fogproof in all weather conditions. - Optical Performance
-
- 8x magnification
- 30mm objective lenses
- BAK4 porro prisms
- Anti-reflection fully multicoated optics
- 367.5' field of view at 1000 yards
- 56° angle of view
- Use and Handling
-
- Closed bridge configuration
- Knurled center focusing wheel
- Twist-up eyecups for use with or without eye wear
- 17.2mm eye relief, 3.8mm exit pupil
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight fiberglass reinforced polycarbonate housing
- Housing is corrosion, temperature and impact-resistant
- Nitrogen-filled for fogproof performance, submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals
UPC: 027075288768 In the Box Pentax 8x30 A-Series AP WP Binocular Neck Strap Carrying Case with Strap 2 x Objective Lens Caps 2 x Eyepiece Caps Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 feaeqbzwsfrstycefxvseuwz A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8x30 A-Series AP WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax AP WP Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 36 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.5' @ 1000 yd / 122.5 m @ 1000 m | | Minimum Focus Distance | 81.7' / 24.9 m | | Exit Pupil Diameter | 3.8 mm | | Eye Relief | 17.2 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.2 x 4.7 x 2.2" / 15.8 x 11.9 x 5.6 cm | | Weight | 16.2 oz / 459.3 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.0 x 5.9 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
