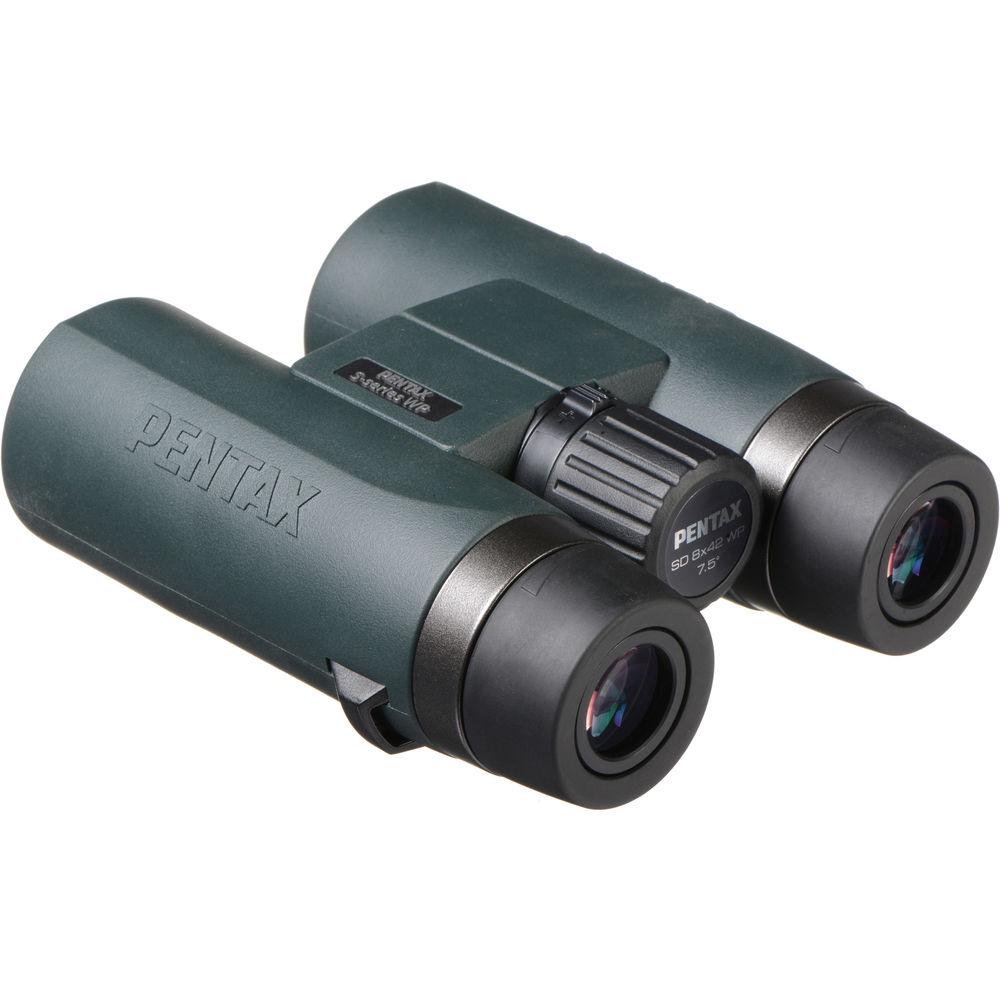

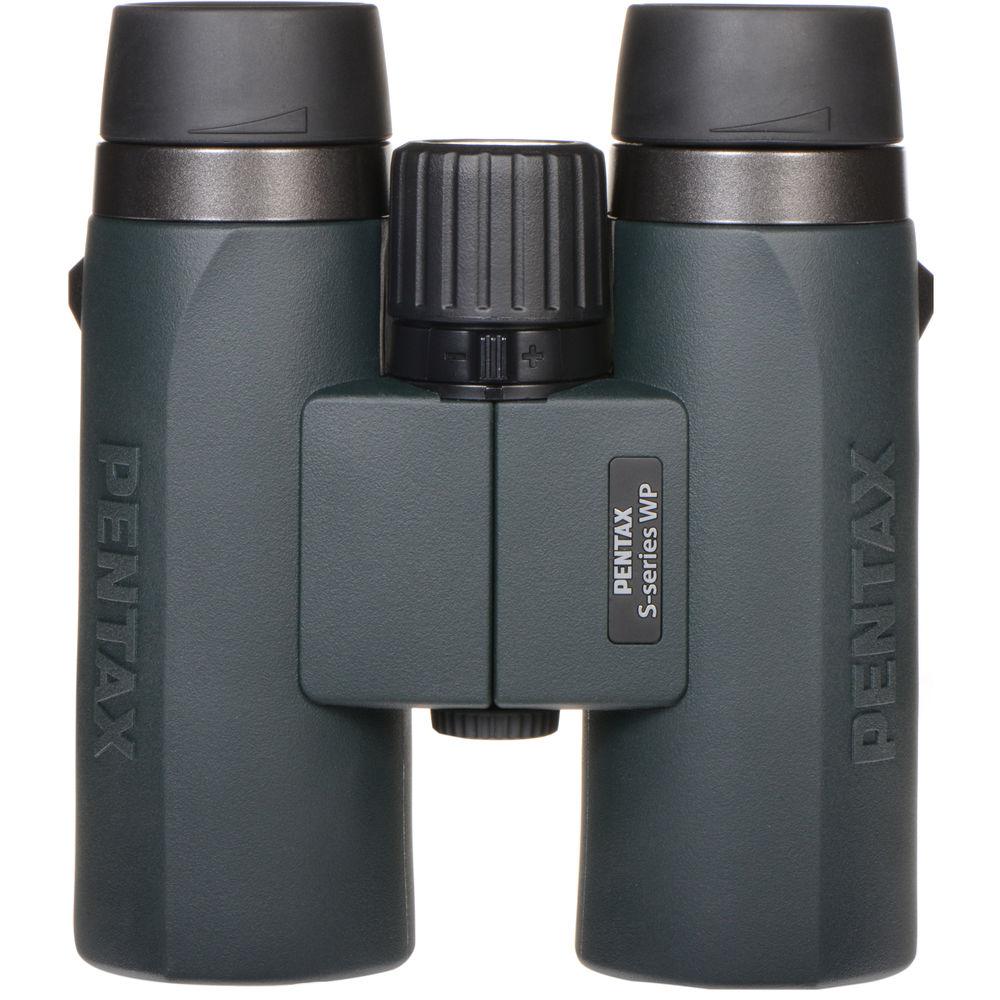

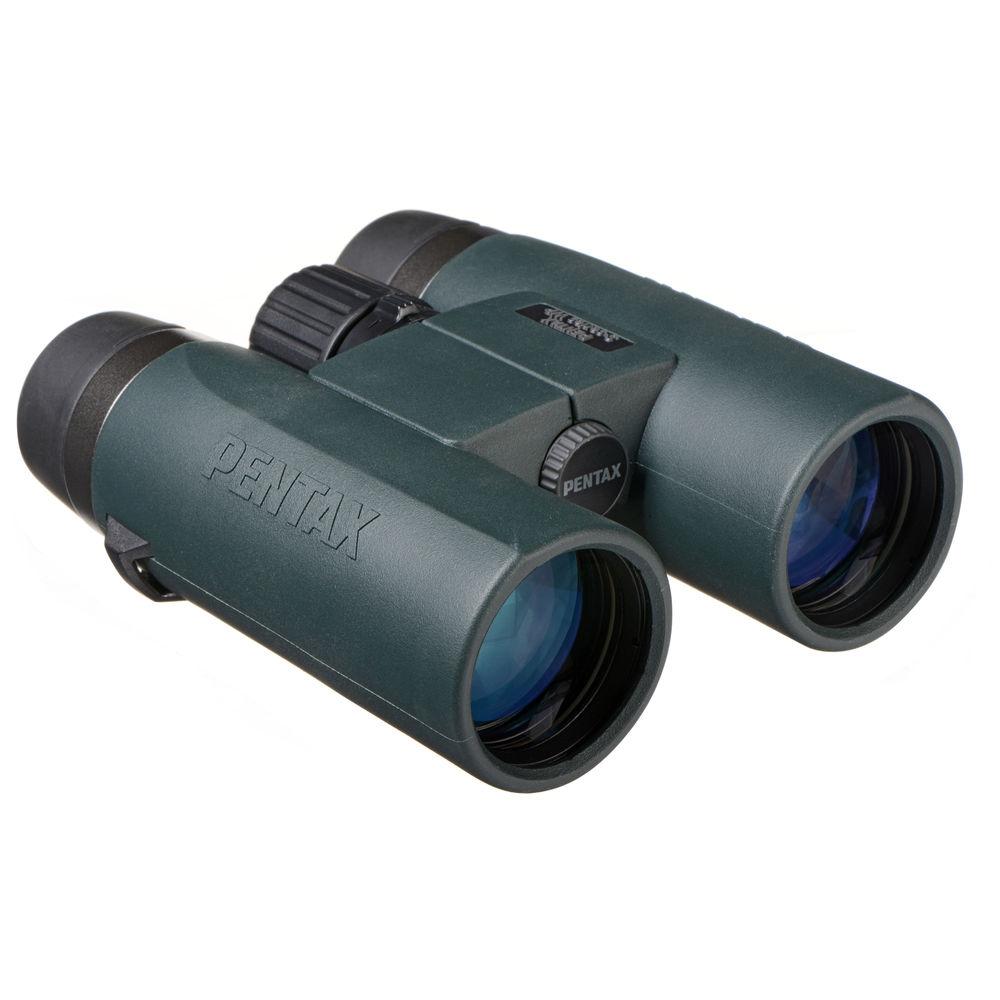

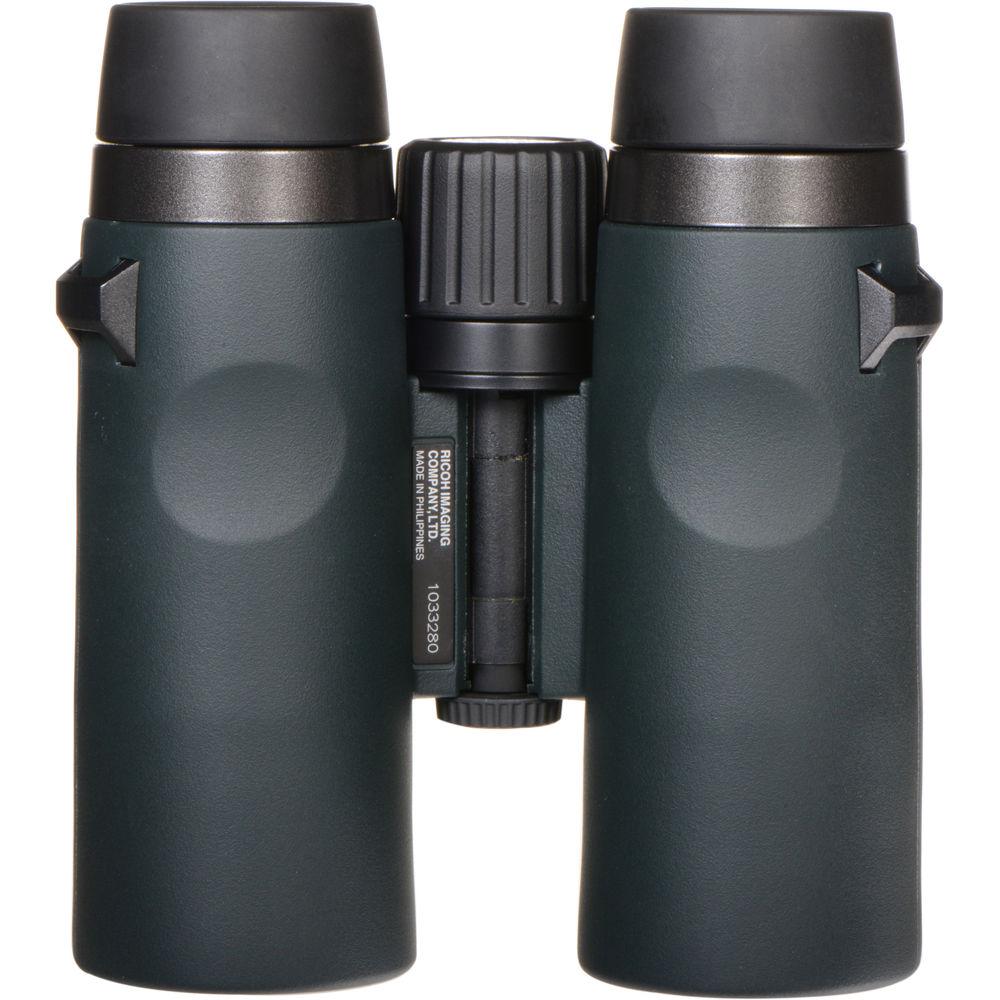

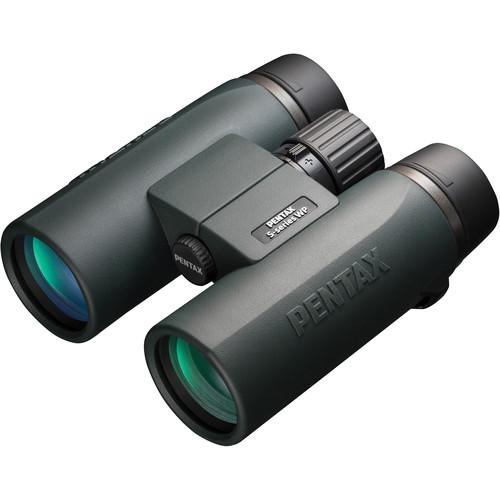

User Manual for Pentax 8x42 S-Series SD WP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 8x42 S-Series SD WP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 8x42 S-Series SD WP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Pentax designed the 8x42 S-Series SD WP Binocular for a lifetime of rugged outdoor use in all weather and lighting conditions. The 42mm objectives are fully multicoated to reduce reflection and maximize light transmission through the entire optical path. Its roof prisms are phase-corrected to correct for chromatic aberrations ensuring bright and clear high-contrast images with true color rendition even in low-light. Its general purpose 8x magnification brings subjects close while maintaining a wide 60° angle of view to preserve situational awareness.Complementing the optical performance are construction details made for the trail. The optical tubes are nitrogen-filled and O-ring sealed for fogproof performance and to make them submersible to as much as 3.3'. The binocular sports a generous 21mm eye relief and its twist-up eyecups ensure comfortable viewing with or without eye wear. Protective coatings on the exterior lens surfaces repel water, dirt, and oil to keep them clean for unobstructed viewing. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- BAK4 roof prism optical path
- Phase-corrected prism coatings virtually eliminate chromatic aberrations for increased contrast and true color rendition
- Anti-reflection fully multicoated optics
- 393.8' field of view at 1000 yards
- 60° angle of view
- Use and Handling
-
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 21mm eye relief, 5.2mm exit pupil
- Twist-up eyecups for use with our without eye wear
- Tripod mountable with optional adapter
- Construction
-
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Dust/water/grease repellent coatings keeps the optical surfaces clean

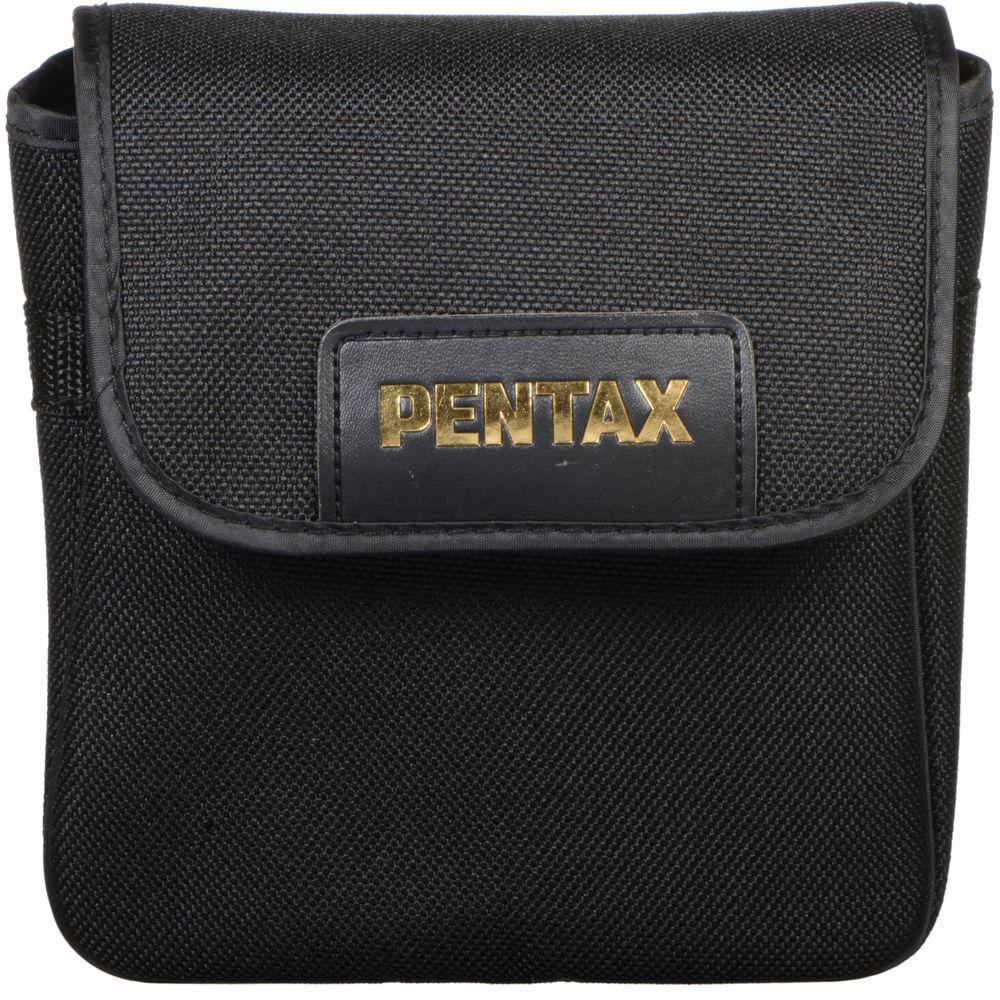

UPC: 027075288591 In the Box Pentax 8x42 S-Series SD WP Binocular Neck Strap Carrying Case with Strap 2 x Objective Lens Caps 2 x Eyepiece Caps Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8x42 S-Series SD WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax SD WP Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 53.6' / 16.3 m | | Exit Pupil Diameter | 5.2 mm | | Eye Relief | 21 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.8 x 5.3 x 2.0" / 14.7 x 13.5 x 5.1 cm | | Weight | 22.5 oz / 637.9 g | | | | Package Weight | 1.865 lb | | Box Dimensions (LxWxH) | 6.95 x 6.65 x 2.85" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
