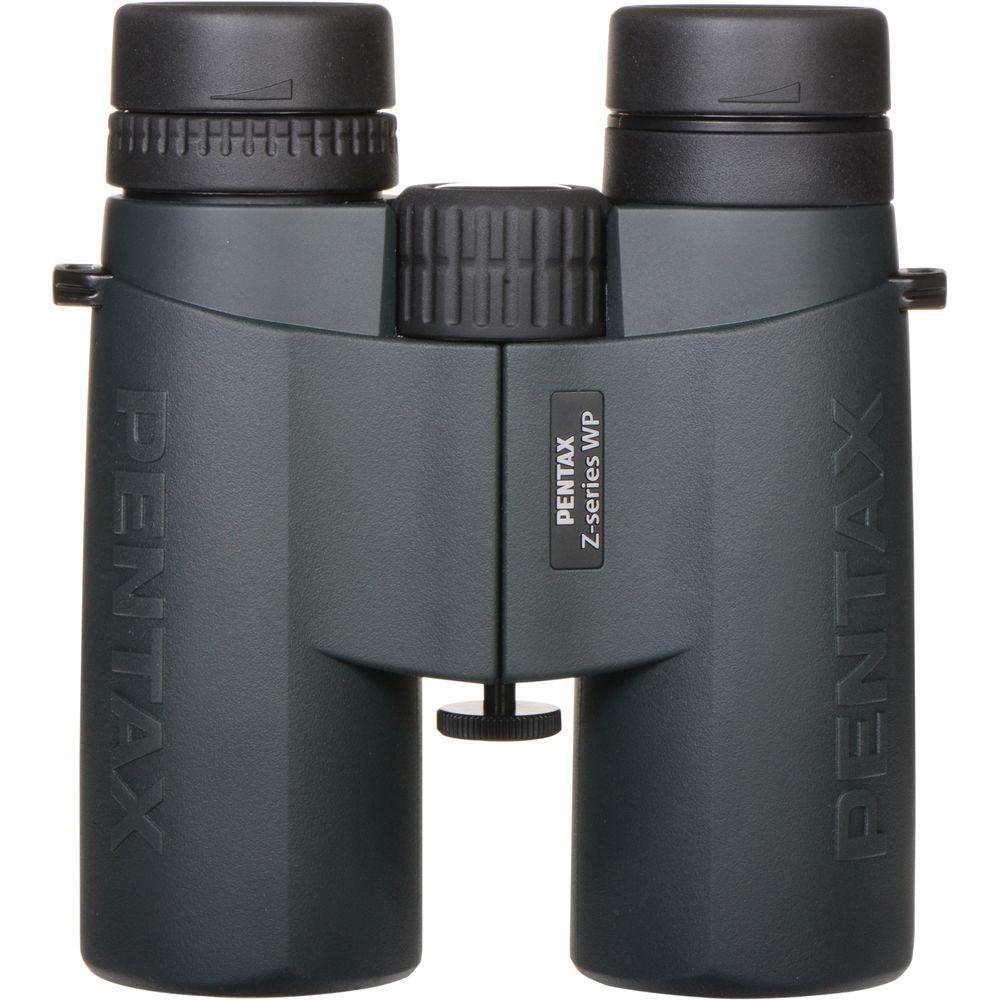

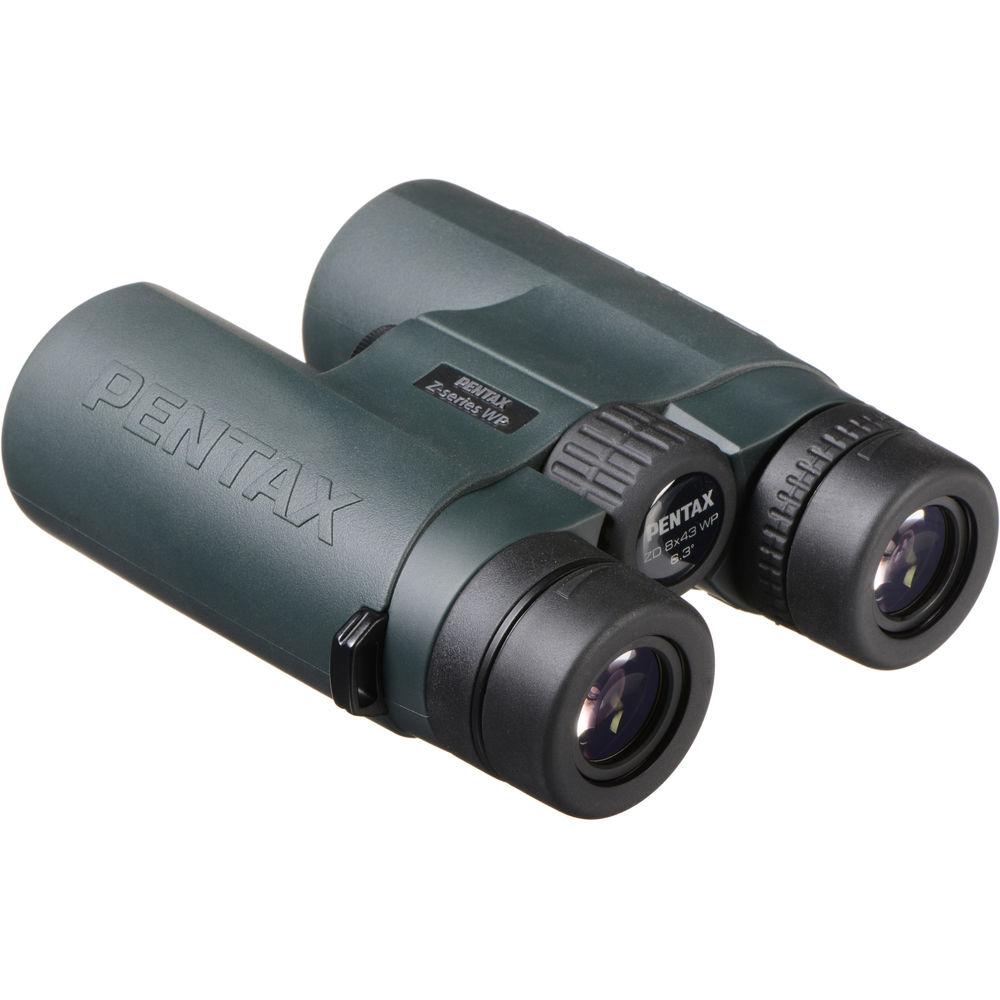

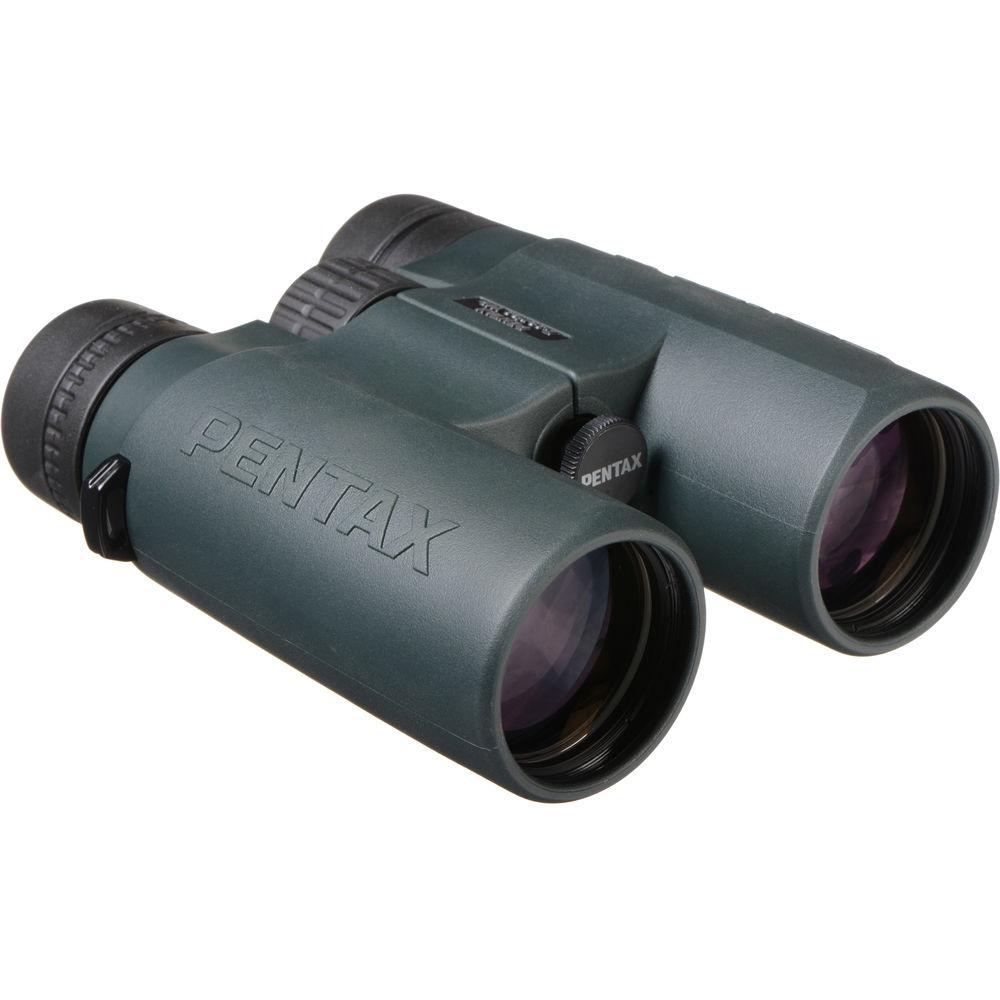

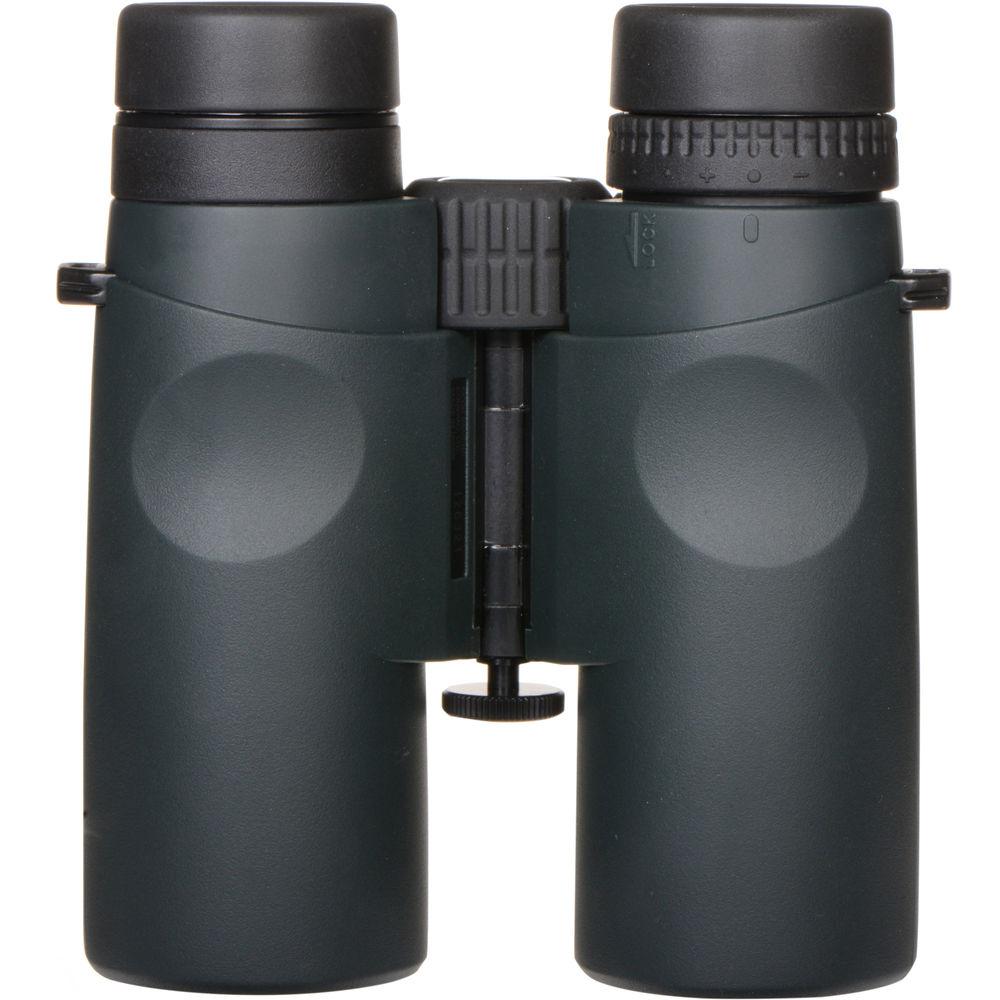

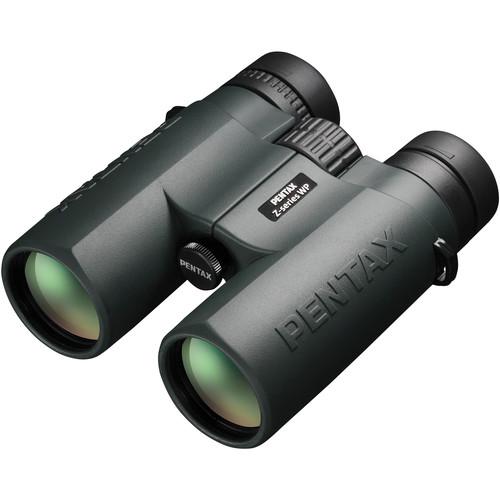

User Manual for Pentax 8x43 Z-Series ZD WP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 8x43 Z-Series ZD WP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 8x43 Z-Series ZD WP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for nature enthusiasts and bird watchers, the Pentax 8x43 Z-Series ZD WP Binocular features multiple optical technologies to improve the image quality and ensure accurate colors in all weather and lighting conditions.The image-enhancement starts with hybrid aspherical lens elements that eliminate distortion around the edges of the lens for clear edge-to-edge views and corrects lens astigmatism that can prevent the ability to bring subjects into sharp focus. Anti-reflection fully multicoated optics maximize light transmission through the entire optical path to make views appear bright and crisp, especially in low light. Finally, the BAK4 roof prisms are phase-corrected to enhance contrast and further correct chromatic aberration. These technologies work together to produce bright and clear high-contrast images with accurate colors and virtually no distortion.Complementing the optical performance is a housing that is built for a lifetime of rugged outdoor use. The chassis is made of a lightweight and durable magnesium alloy with a rubberized armor that protects against impacts while providing a slip-resistant grip. The optical tubes are nitrogen filled for fogproof performance and O-ring sealed to make the binocular submersible to as much as 3.3'. An protective external lens coating helps to repel dust, water, and oil to ensure obstruction-free viewing. For longer glassing sessions, they are tripod mountable with an optional adapter. - Optical Performance
-
- 8x magnification
- 43mm objective lenses
- BAK4 Roof prism optical path
- Anti-reflection fully multicoated optics
- Phase corrected prisms produce high-contrast images with true color rendition
- Hybrid aspherical lens elements correct for spherical aberrations to reduce distortion at the edges of the lens and corrects for astigmatism that can prevent sharp focusing
- 331' field of view at 1000 yards
- 50° angle of view
- Use and Handling
-
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 22mm eye relief, 5.4mm exit pupil
- Twist-up eyecups for use with or without eye wear
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight and durable magnesium alloy housing
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Nitrogen-filled, fogproof and submersible to 3.3' (1m)
- Internal focusing system helps to maintain waterproof seals
- Dust/water/grease repellent coatings keeps the optical surfaces clean

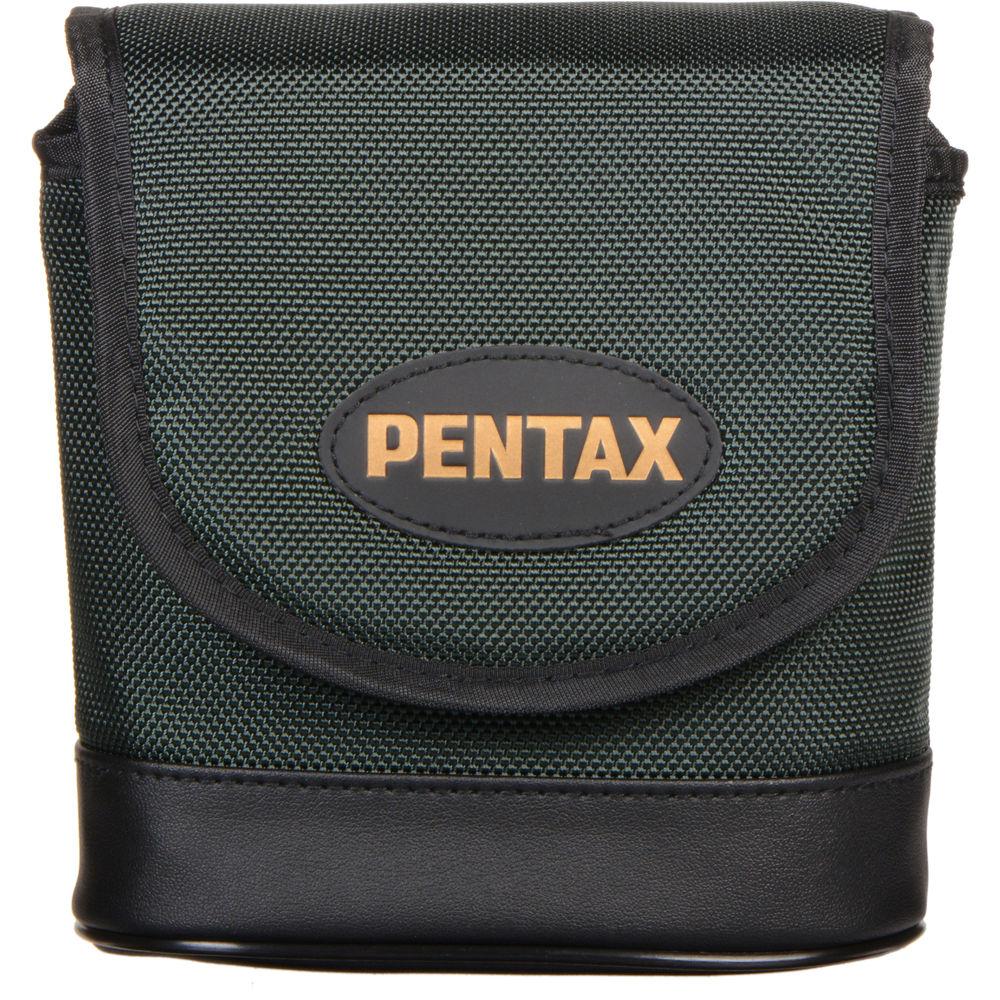

UPC: 027075288553 In the Box Pentax 8x43 Z-Series ZD WP Binocular Neck Strap Carrying Case with Strap 2 x Objective Lens Caps 2 x Eyepiece Caps Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 8x43 Z-Series ZD WP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax ZD WP Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 43 mm | | Angle of View | 6.3° (Actual) | | Field of View | 330.7' @ 1000 yd / 110.2 m @ 1000 m | | Minimum Focus Distance | 42.7" / 1.1 m | | Exit Pupil Diameter | 5.4 mm | | Eye Relief | 22 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.7 x 5.0 x 2.0" / 14.5 x 12.7 x 5.1 cm | | Weight | 24.5 oz / 694.6 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 6.8 x 6.2 x 2.7" |
