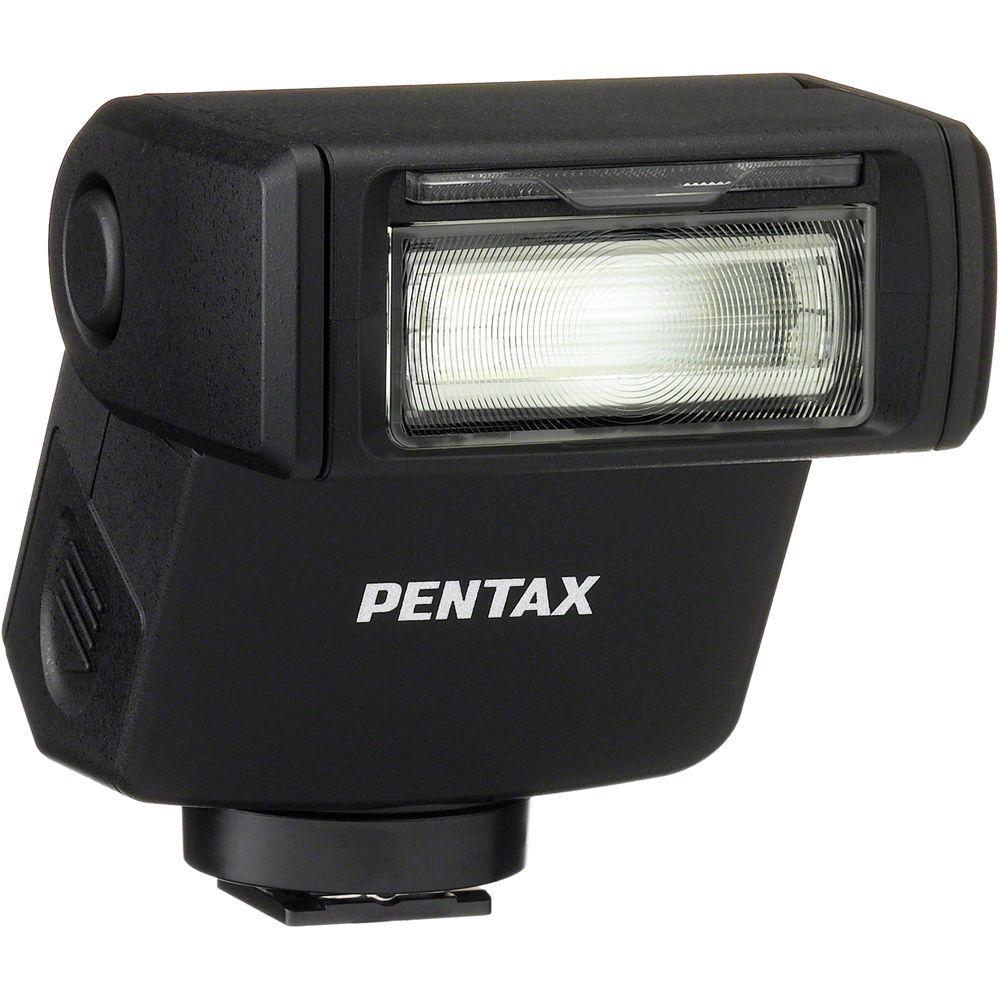

User Manual for Pentax AF201FG Flash Click to enlarge the picture
Contents of the user manual for the Pentax AF201FG Flash
- Product category: On Camera Flashes Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax On Camera Flashes
 |
User manual for the Pentax AF201FG Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

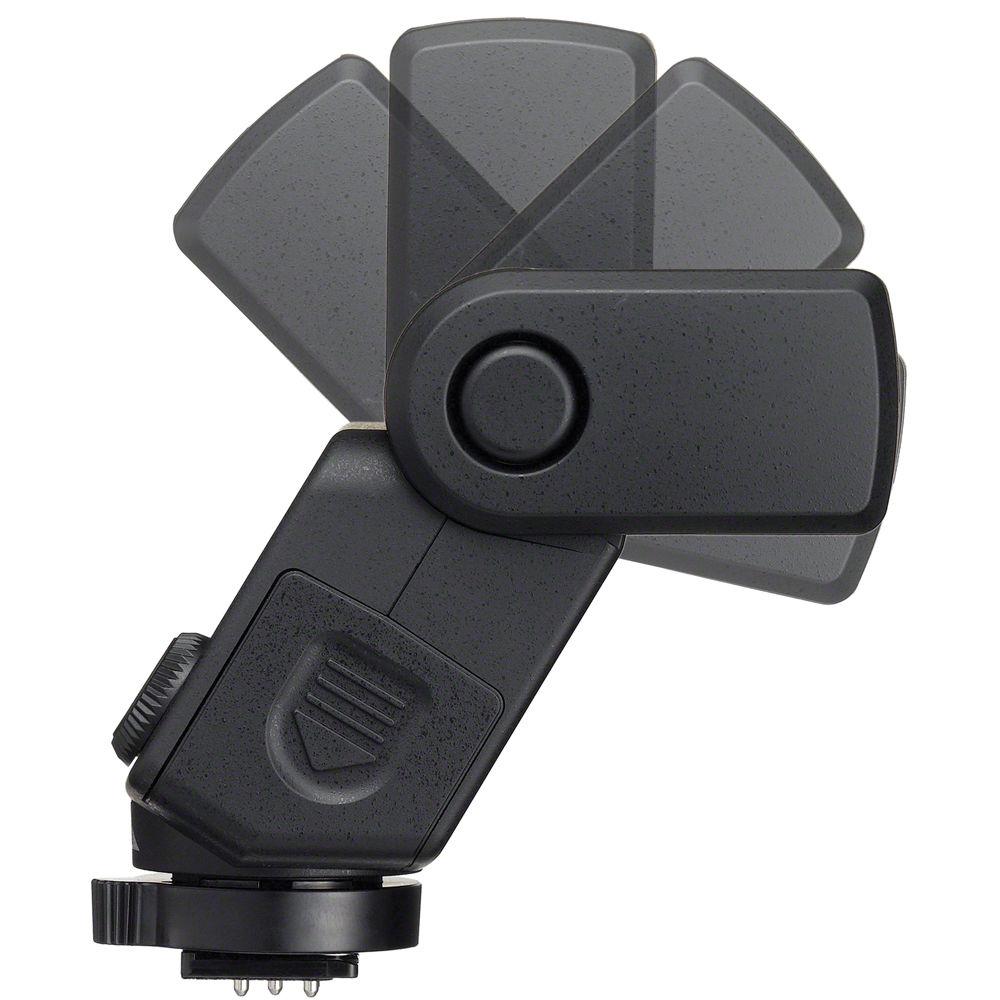

Product description Add a little bit of light to nearly any scene thanks to Pentax's All Weather construction of the Pentax AF201FG Flash. This compact unit is compatible with Pentax's P-TTL system for automatic flash exposure and it has a guide number of 66' at ISO 100 and the 19mm setting when used with APS-C DSLRs. A built-in pull-out wide-angle panel is featured on the flash for expanding coverage to a 13mm lens. Also, it tilts from -10 to 135° for full bounce functionality.

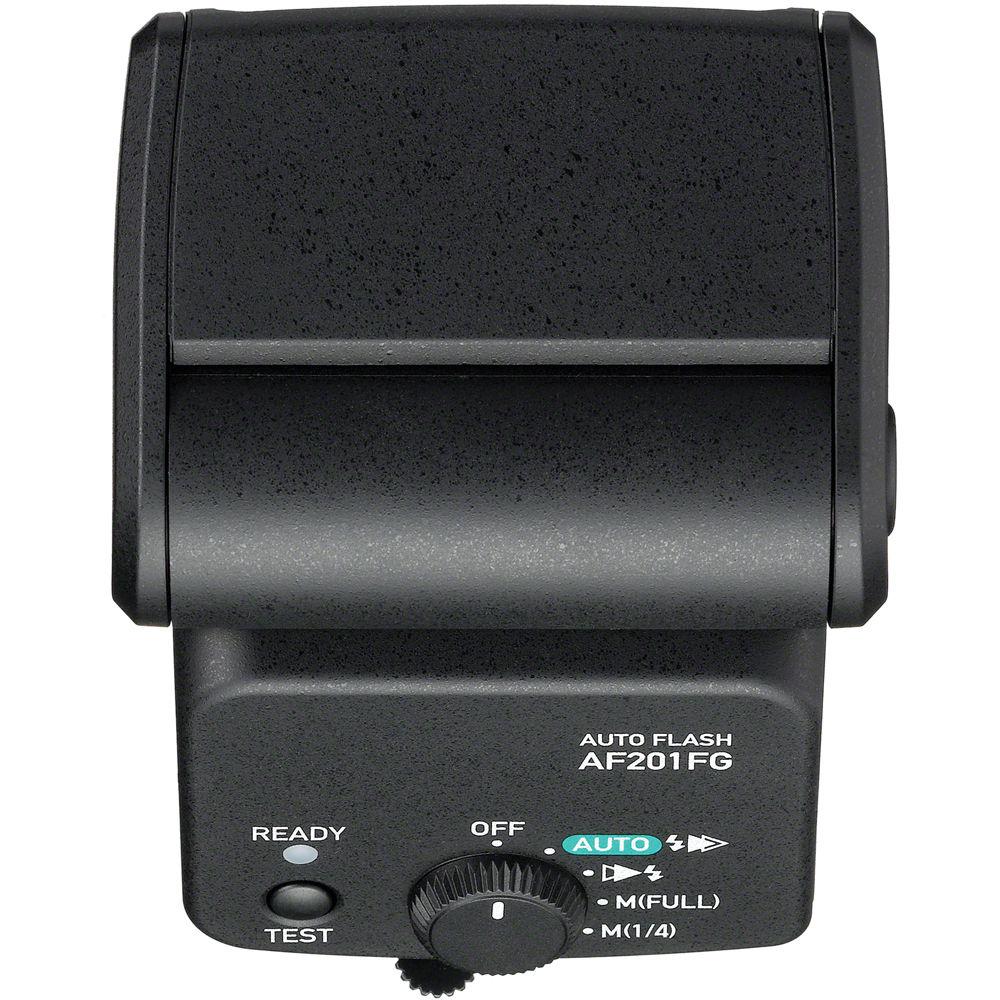

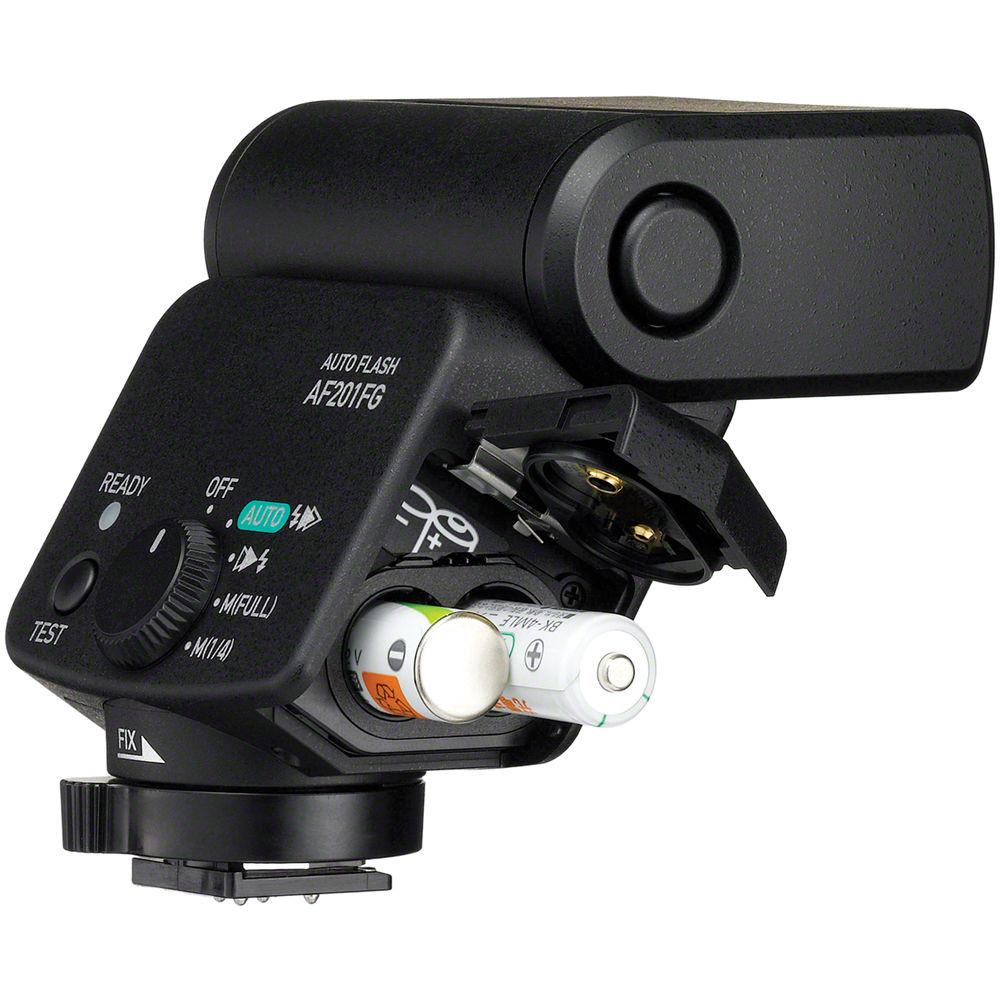

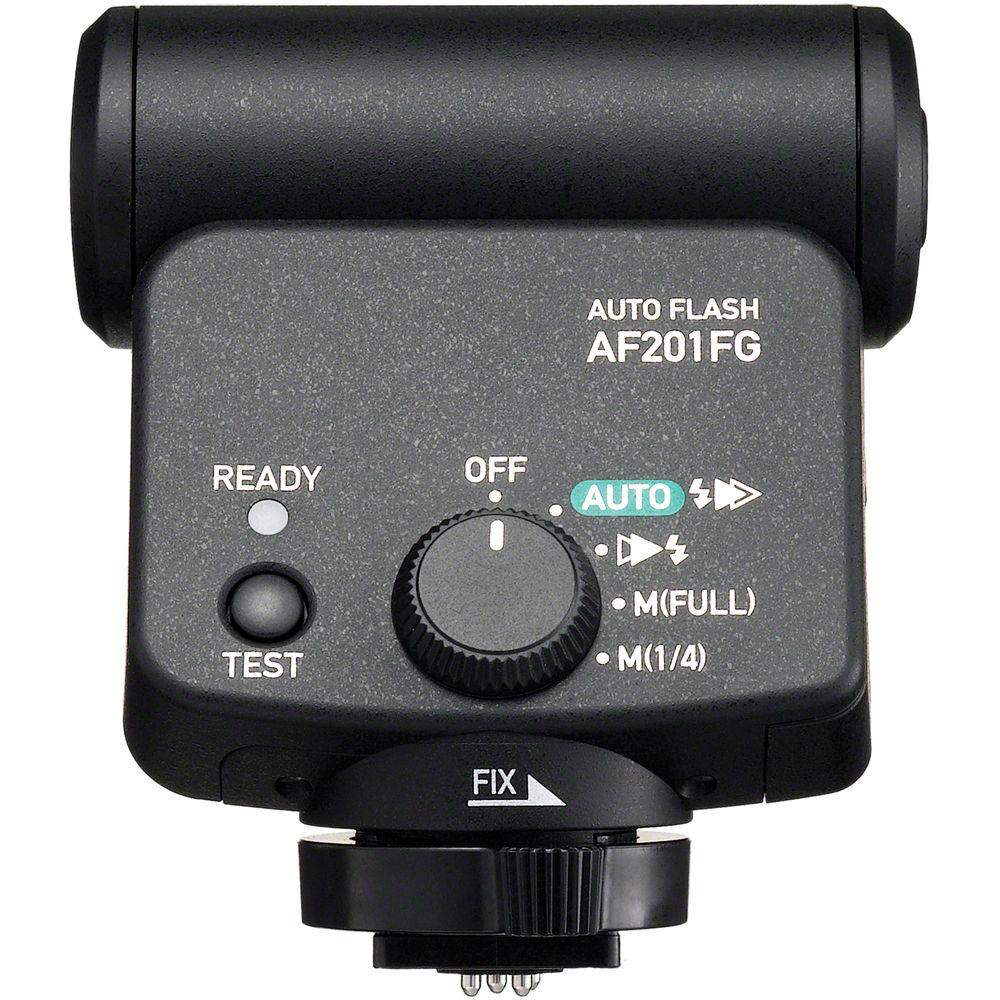

In addition to automatic control, the AF201FG has a dial on the back that enables the setting of manual power at 1/1 or 1/4. The flash also offers a recycle time of 4-7 seconds at full power and is compatible with first and second curtain sync modes. It runs on 2 AAA batteries and comes with a case. - Effective flash range of 2.3 to 26.2' at ISO 100 and f/2
- Works with red-eye reduction modes
- Auto power off after 3 minutes of non-operation
- Quick power on by pressing camera's shutter button halfway
- Battery life of 80-100 full-power flashes
UPC: 027075288973 In the Box Pentax AF201FG Flash O-AC149 Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax AF201FG Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax AF201FG Specs | Mount | Shoe | | Guide No. | 65.62' / 20 m ISO 100 at 19 mm Position | | Angle of Coverage | 53° Vertical
Wide-Angle Adapter: 85° Vertical
70° Horizontal
Wide-Angle Adapter: 98° Horizontal | | Vari-Power | Manual: 1/1 to 1/4 | | Bounce Head | -10 to +135° | | Swivel Head | None | | Coverage | 13 - 19 mm (APS-C Format) | | Distance Range | 2.30 to 26.25' (0.7 to 8 m) at f/2 | | Zoom Head | None | | Off-Camera Terminal | None | | Recycle Time | Approximately 4 to 7 Seconds | | Flash-Ready Indicator | Yes | | Slave Timing Modes | None | | Power Source | 2 x AAA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.6 x 2.9 x 1.2" / 65.0 x 72.5 x 31.0 mm | | Weight | 4.97 oz / 141 g without batteries | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.5 x 4.6 x 2.2" |
