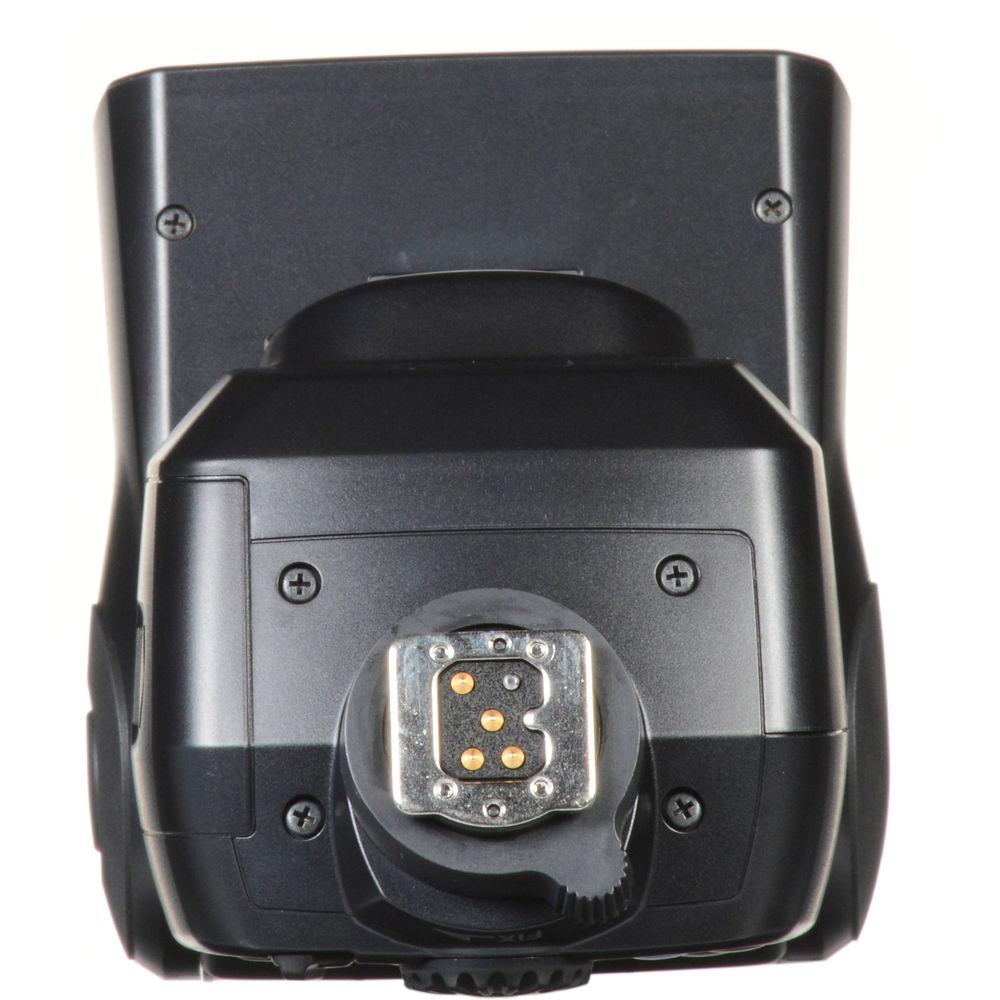

User Manual for Pentax AF540FGZ II Flash Click to enlarge the picture
Contents of the user manual for the Pentax AF540FGZ II Flash
- Product category: On Camera Flashes Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax On Camera Flashes
 |
User manual for the Pentax AF540FGZ II Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

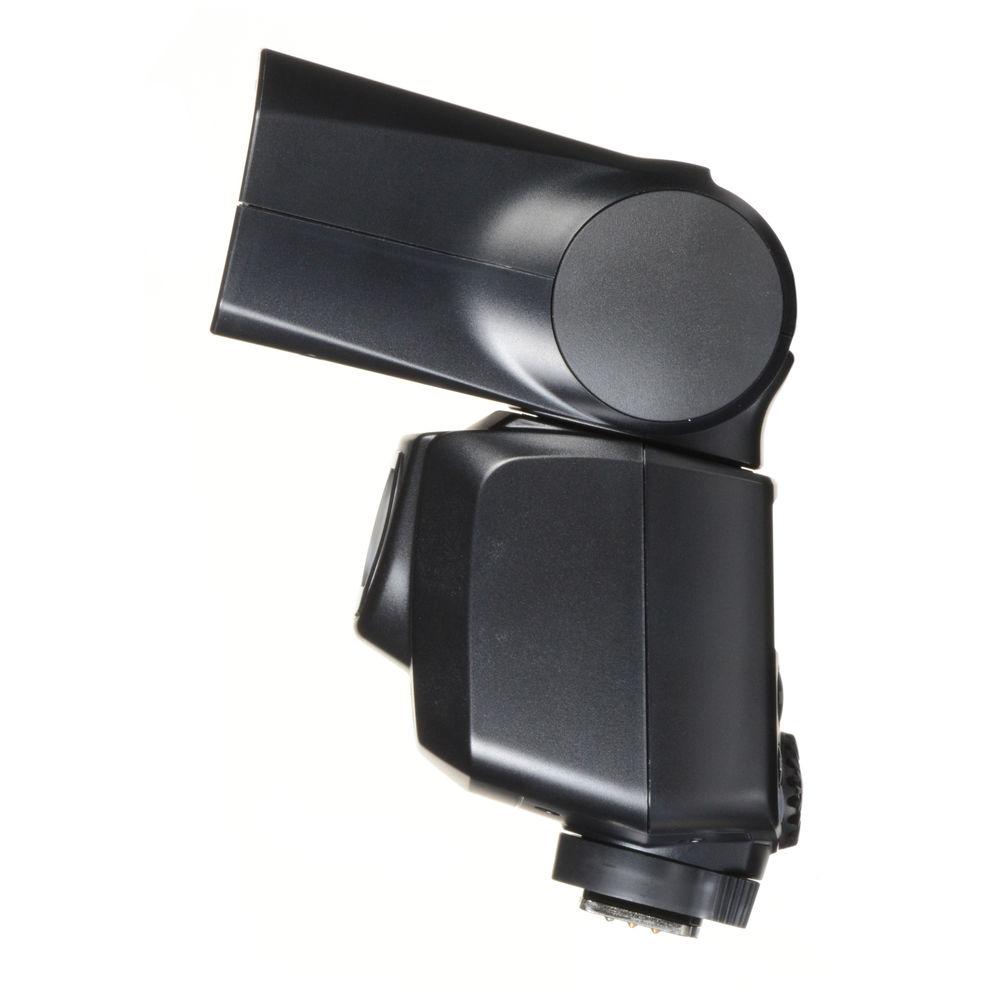

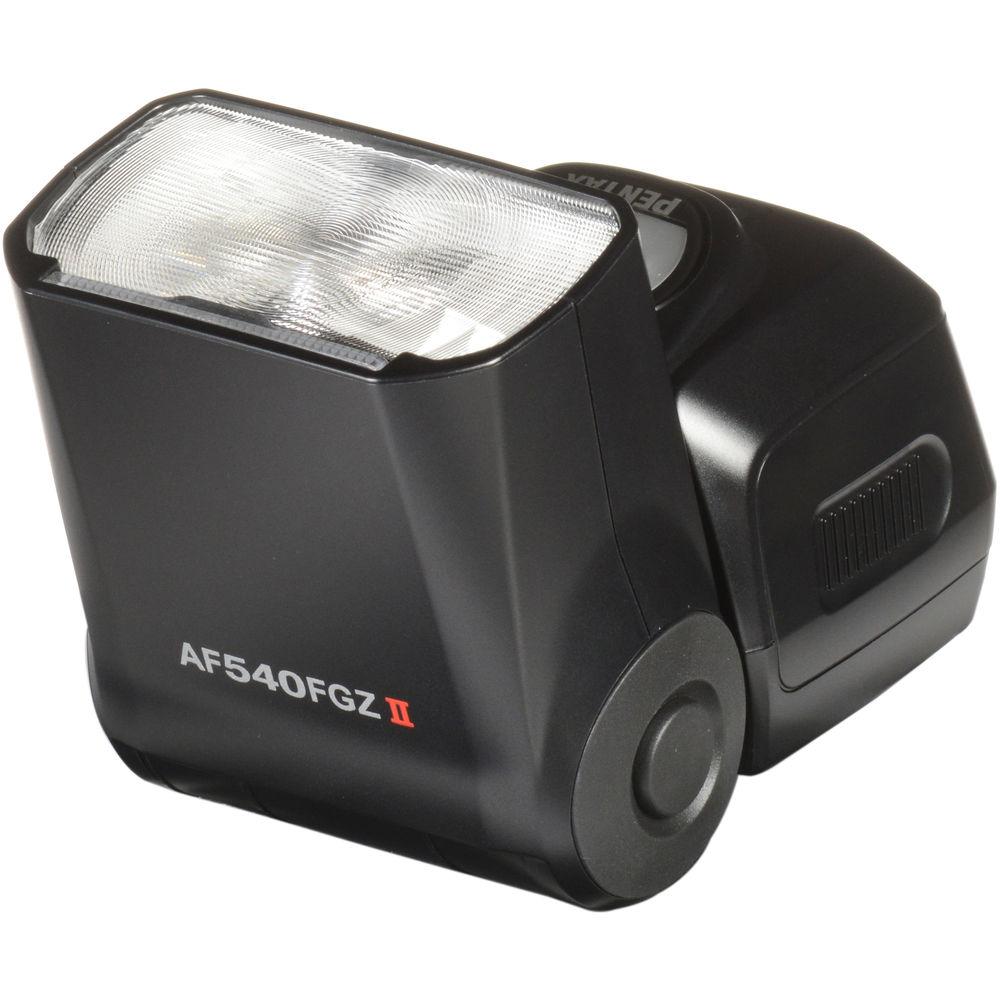

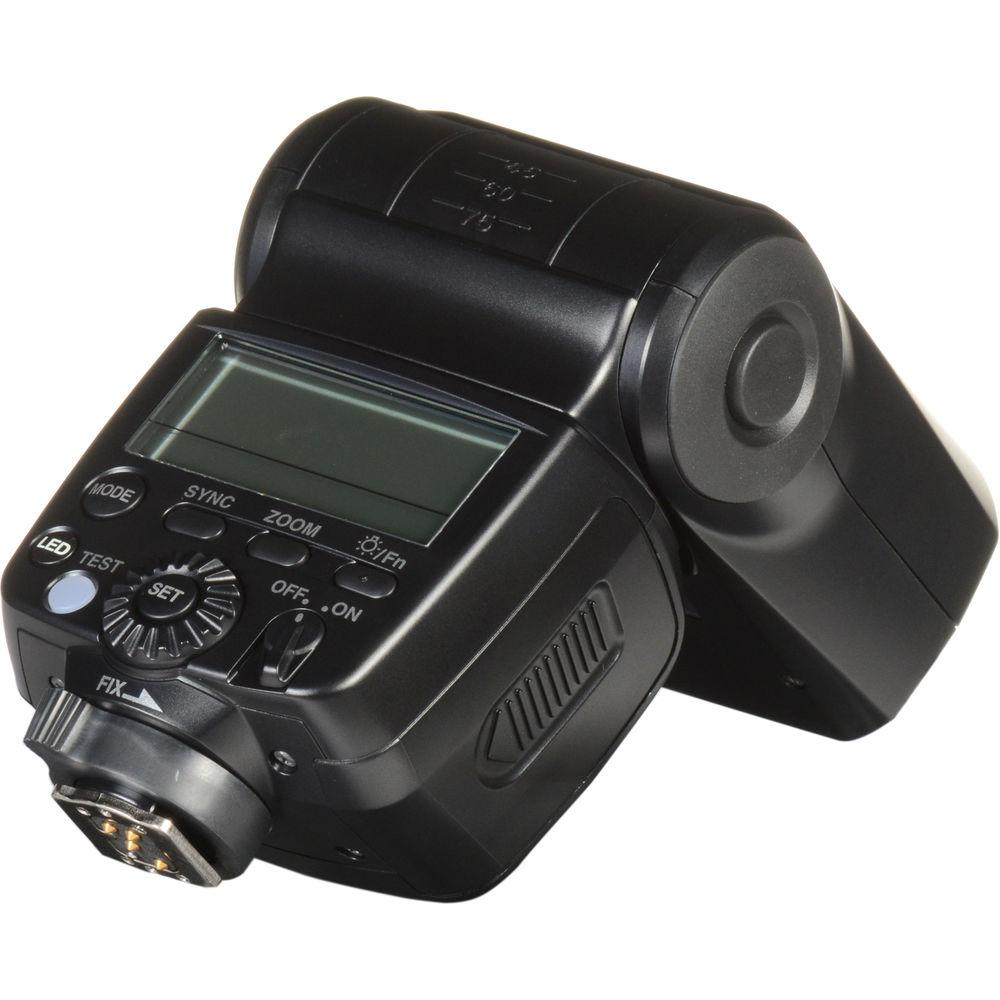

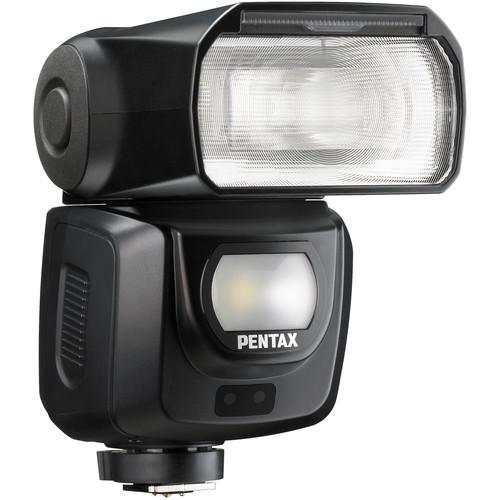

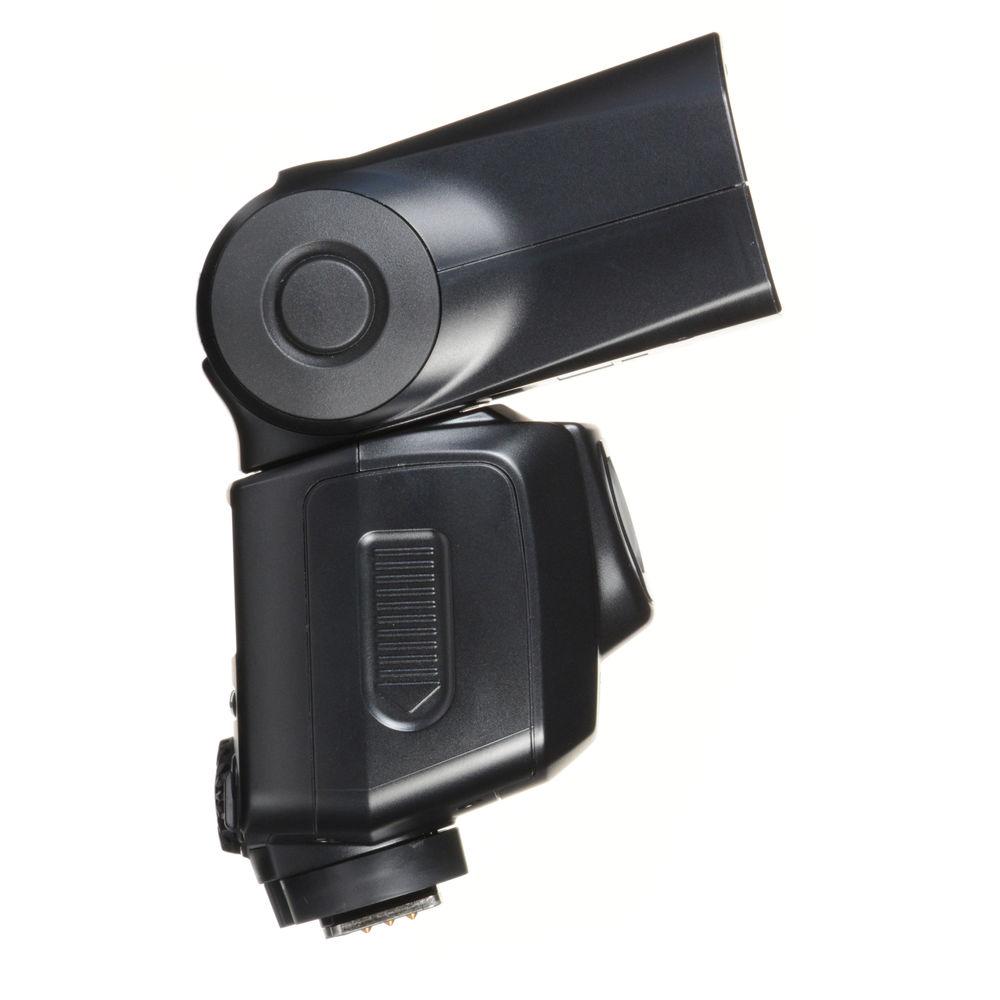

Product description Pentax Introduces Five K-Mount Limited Series Lenses and Updated Flashes Read More Complete your durable, rugged All Weather camera setup with the P-TTL capable AF540FGZ II Flash from Pentax which features 28 seals, including the hot shoe, that enable a reliable weather-resistant digital imaging system. This unit has a guide number of 177' at ISO 100 and 85mm along with a 35mm equivalent zoom range of 24-85mm, though the auto zoom function is compatible with smaller format Q-series mirrorless cameras, APS-C DSLRs, and medium format 645-series digital cameras. Also, with the use of a built-in diffusion panel the coverage can be extended to 20mm. Another benefit of this flash is tilt from -10 to 90° and rotation 135° to the left and 180° to the right for complete bounce functionality.
The AF540FGZ II has wireless master and slave TTL capabilities with access to 4 channels. It utilizes an optical pulse to transmit information and trigger flash units up to 13.1' away. Also, this unit can be set as a master, control, or slave unit and has access to a contrast control sync setting that enables the adjustment of the output of multiple flashes from a single unit.

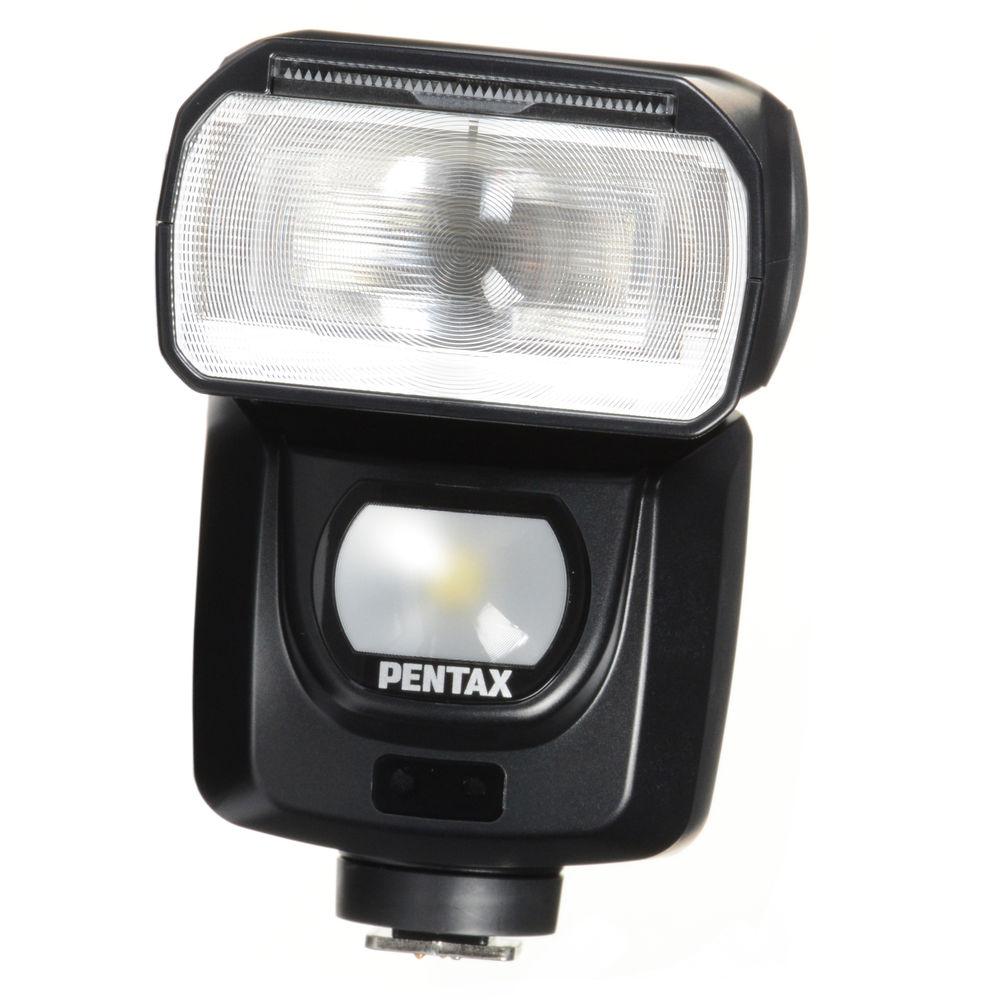

An added feature for this flash is a constant LED light with 5 output settings for use during video, as an AF assist light, or as simply another light for your subject. Other settings include a multi-flash mode for stroboscopic photography as well as slow, high-speed, first and second curtain sync. Additionally, the AF540FGZ II runs on 4 AA batteries with a recycle time of 2.6-26.2 seconds and it comes with a case and stand. - Creative control modes include first-curtain sync, second-curtain sync, high-speed sync, and contrast control
- Rotates from 180° right to 135° left with a lock at 0° and click stops
Right: 180°, 150°, 120°, 90°, 60°, and 30°
Left: 135°, 90°, 60°, and 30° - Tilts from +90° to -10° with stops at +90°, +75°, +60°, 45°, 30°, 0°, and -10°
- Recycle time: NiMH/3 sec - Alkaline & Lithium/5 sec
- Flash head automatically controls zoom from 24mm-85mm (full-frame) with compatible cameras and autofocus lenses
- Wide-angle panel pulls out of flash head to expand coverage to a 20mm angle of view in full-frame format
- Multi-flash mode for up to 100 flashes
- Effective range of 2.6-26.2'
- AF-assist beam for focusing under low light or low-contrast conditions
- Daylight balanced flash for use outside without the need for gels or filters
- Auto power off after 3 minutes of non-operation or after 1 hour while in wireless mode

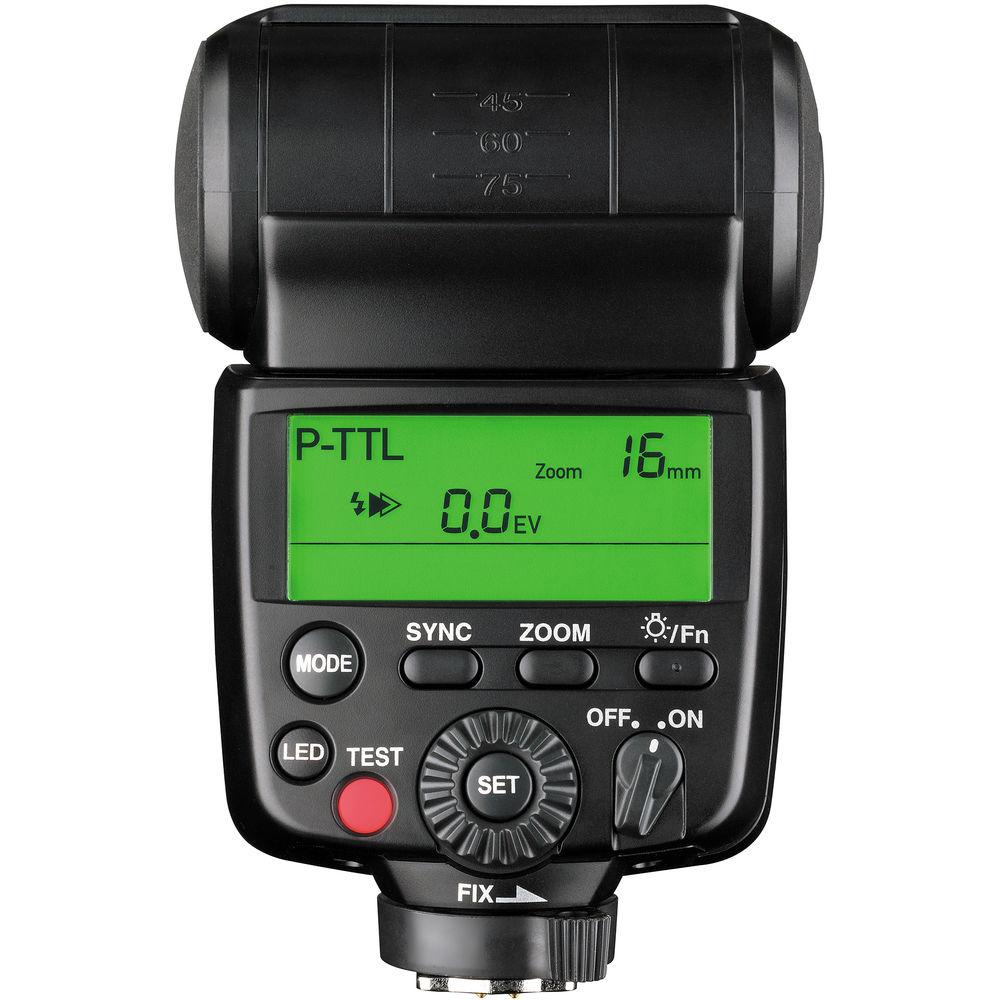

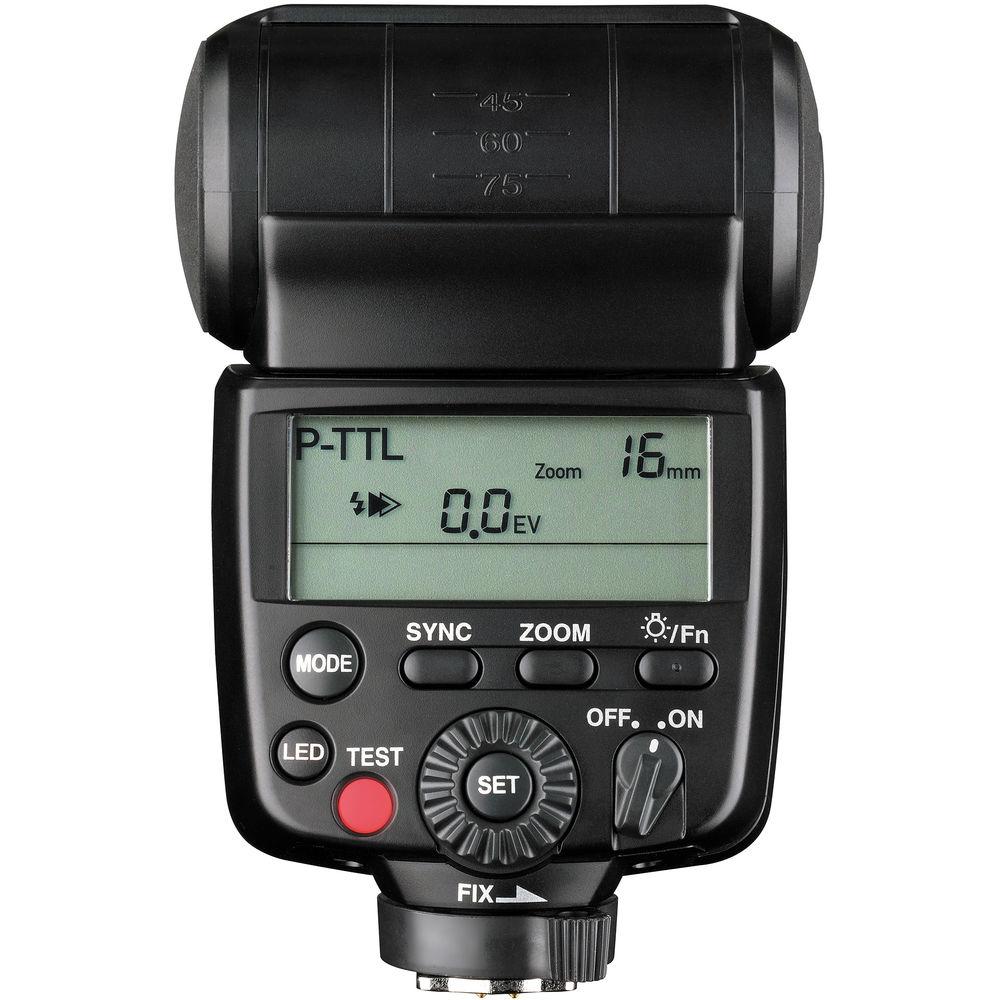

- LCD panel is backlit for use in poor lighting conditions
- Runs on 4 alkaline, lithium, or Ni-MH AA batteries
UPC: 027075233010 In the Box Pentax AF540FGZ II Flash Flash Case O-AC141 Flash Stand for AF360FGZ II/AD540FGZ II Flashes Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax AF540FGZ II Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax AF540FGZ II Specs | Mount | Shoe | | Guide No. | 177.17' / 54 m ISO 100 | | Angle of Coverage | 31° - 78° Horizontal
Wide-Angle Adapter: 98° Horizontal
23° - 60° Vertical
Wide-Angle Adapter: 85° Vertical | | Vari-Power | 1/1 to 1/256 | | Bounce Head | +90 to -10° | | Swivel Head | 315° | | Coverage | 20 - 85 mm (Full Frame) | | Distance Range | 2.62 to 26.25' (0.8 to 8.0 m) at f/5.6 | | Zoom Head | Full Frame: 24 - 85 mm | | Recycle Time | Approximately 3 to 5 Seconds | | Flash Duration | 1/1200 to 1/20000 sec | | Flash-Ready Indicator | Yes | | Compensation | -4 EV to +2 EV (in 1/3 and 1/2 EV steps) | | Wireless Operation | Method: Optical Pulse
Distance: Up to 13.12' / 4.0 m | | Wireless Communication Channels | 4 Channels | | Power Source | 4 x AA Alkaline, Lithium, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.0 x 4.4 x 4.3" / 76.2 x 111.8 x 109.2 mm | | Weight | 12.35 oz / 350.12 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 8.0 x 4.1 x 2.4" |
