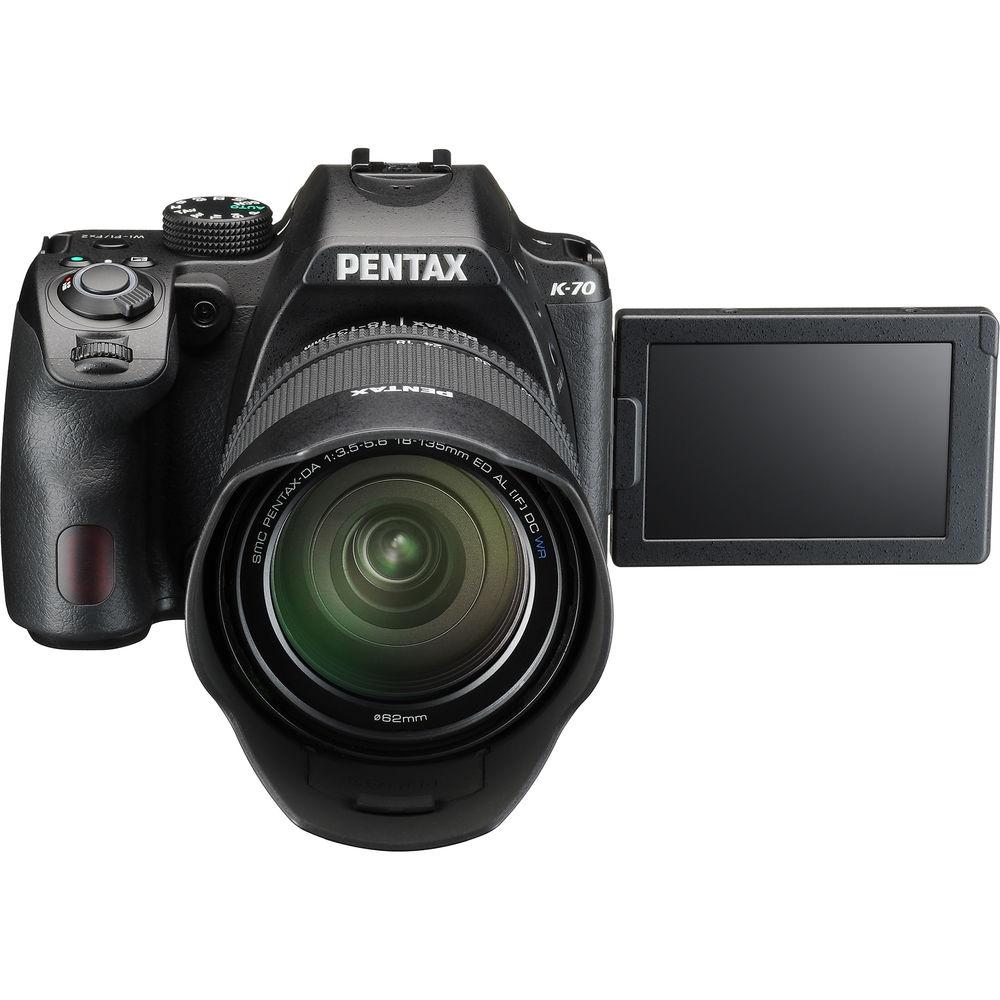

Pentax K-70 DSLR Camera with 18-135mm

User Manual for Pentax K-70 DSLR Camera with 18-135mm Lens

• Product category: DSLR Cameras Pentax
• Brand: Pentax
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pentax DSLR Cameras

Product description

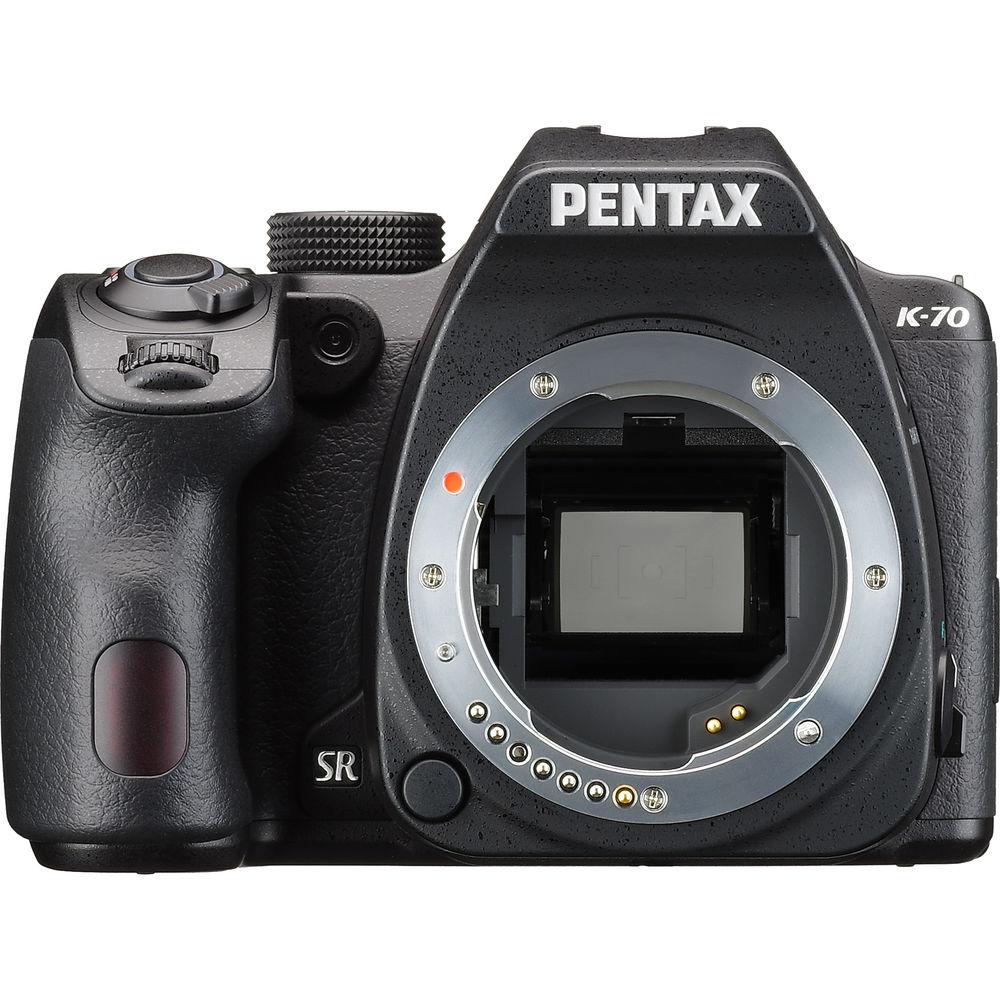

24.24MP APS-C CMOS Sensor and PRIME MII Image Processor
• A 24.24MP APS-C CMOS sensor pairs with the PRIME MII image processor to realize clean, high-resolution still image quality, a sensitivity range of ISO 100-204800, and the ability to record Full HD 1080p video. The processor and sensor combination also affords a range of continuous shooting capabilities, including a 6 fps shooting rate for up to 40 consecutive JPEGs, 10 raw/DNG frames, or 8 raw+JPEG exposures.

Selectable Anti-Aliasing Filter
• A unique and innovative mechanism allows you to toggle an anti-aliasing filter effect either on or off, providing support for both the high-resolution abilities of a filter-less design as well as advanced moiré protection. With the filter in the Off position, the camera is more prone to acquiring maximum sharpness, resolution, and detail from an image for the highest attainable image quality. When the filter position is set to either Type1 or Type2, an anti-aliasing simulator applies microscopic vibrations to the image sensor unit during exposure; working to create the same effect as an optical anti-aliasing filter. Having both options available extends the camera's versatility and allows personalized selection of the benefits best-suited to individual applications. Additionally, AA filter simulation settings can also be bracketed for times when the likelihood of moiré is unknown.

Sensor-Shift Type Shake Reduction and Pixel Shift Resolution
• In-camera sensor-shift type Shake Reduction (SR) works to minimize the appearance of camera shake for sharper handheld shooting with any mounted lens. This is ideal for working in low-light conditions or with longer lenses and, since the image stabilization is located within the body, both past, legacy lenses as well as current Pentax lenses receive the benefits of SR.

  The sensor-shift image stabilization goes on to benefit other camera functions, including the AA Filter Simulator function as well as Pixel Shift Resolution and Diffraction Correction. Pixel Shift Resolution technology composites sequentially recorded stills while shifting the image sensor in one pixel increments in each direction after each exposure in order to increase the effective resolving power, reduce noise, and achieve a more refined color palette. This mode is further enhanced with Motion Correction, which makes it possible to photograph moving subjects without artifacting or ghosting while still reaping the high-resolution benefits of Pixel Shift Resolution. Similarly, a Diffraction Correction function minimizes the effects of diffraction and other aberrations common to working with smaller aperture sizes. This technology is possible due to the heightened processing capabilities of the PRIME MII engine, and can also be applied to imagery during in-camera raw file development.

SAFOX X Autofocus System
• The SAFOX X autofocus system employs 11 distinct phase-detection points, including 9 cross-type sensors in the center, to quickly and accurately acquire focus on subjects in a variety of lighting conditions down to -3 EV. Also benefitting autofocus performance, the 77-segment exposure metering sensor, light source sensor, and AF assist light help to further refine the focusing accuracy despite working in challenging situations.

  When shooting video or working in live view, a Hybrid AF system is employed that blends both on-sensor phase-detection and contrast-detection focusing methods for quick and accurate results. Face Detection, Tracking, and selectable AF points are also available for refined control, along with focus peaking to benefit manual focus operation.

Full HD 1080p Video and 4K Interval Recording

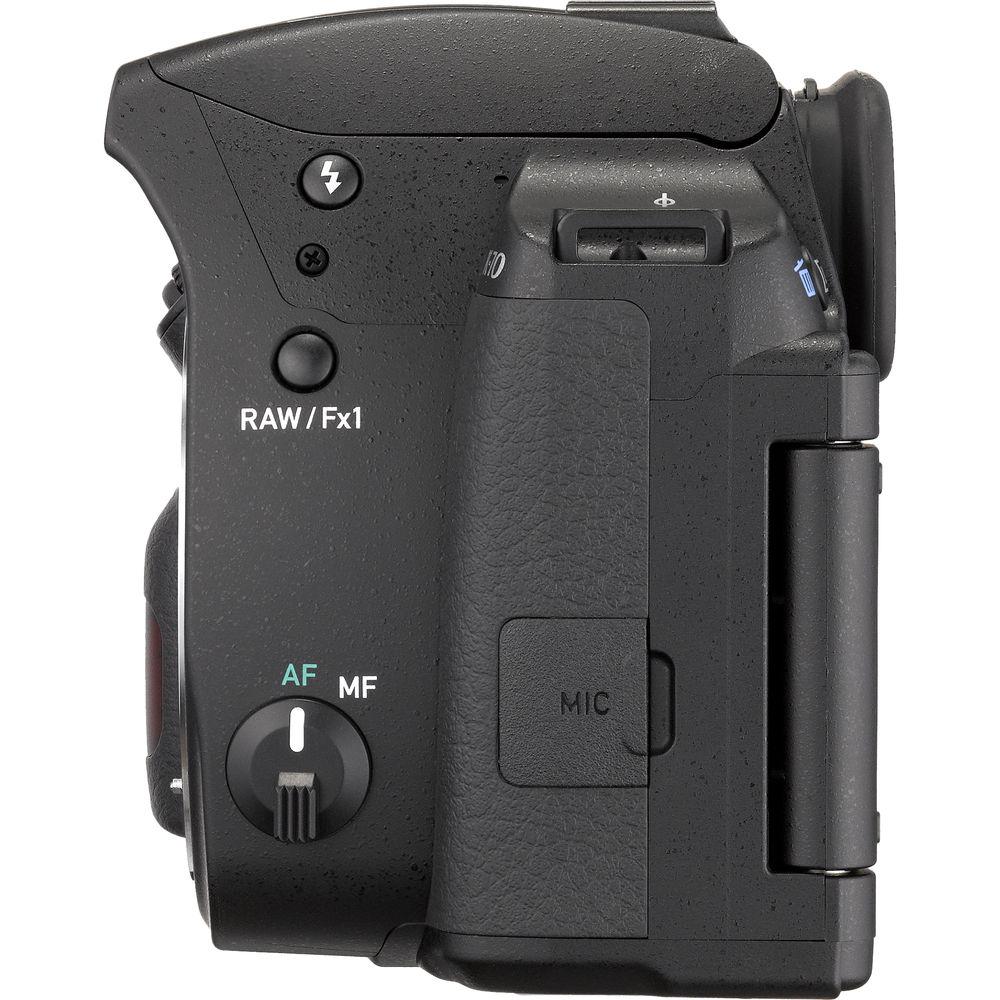

• Full HD 1920 x 1080 video recording is supported in multiple frame rates, including 60i, 50i, 30p, 25p, and 24p, in the high-quality H.264 format. HD 1280 x 720 video is also supported in 60p and 50p frame rates. Audio can be recorded along with video using the built-in stereo microphone or, additionally, a 3.5mm microphone terminal is available for use of an external mic.

  Beyond standard movie recording, an interval timer can also be used for making time-lapse sequences, which can be saved simply as stills or files can be recorded at 4K resolution (3840 x 2160) and compiled into a Motion JPEG file for seamless playback. The interval timer allows you to record up to 2,000 consecutive frames with an interval of 2 seconds to 24 hours between each frame, and a 2 second to 24 hour time delay available.

Body Design and Wi-Fi
• • The 3.0" 921k-dot LCD monitor features a vari-angle design to better facilitate working from high and low angles, and also can be closed with the screen facing inward for increased protection.
  • A unique Night Vision setting can be used to produce a red overlay on the LCD in order to maintain your night-adjusted vision when working in low-light conditions. Alternatively, an Outdoor View setting is also available to increase the brightness of the screen for greater visibility in sunlit conditions.
  • Aside from the LCD, a 0.95x pentaprism optical viewfinder is also available, and affords 100% frame coverage for accurate composing.
  • Durable body construction is both dust- and weather-resistant for use in trying conditions, as well as cold temperatures down to 14°F.
  • The focal plane shutter can achieve shutter speeds up to 1/6000 sec. and also supports making bulb exposures ranging from 10 sec. to 20 min.
  • A customizable control panel along with configurable function buttons, user modes, and presets allows you to setup the camera according to your specific shooting needs.
  • The included D-LI109 lithium-ion battery provides approximately 480 shots per charge.
  • Built-in Wi-Fi works in conjunction with the Image Sync app for wirelessly sharing imagery to a mobile device, as well as permitting remote camera control and live view capabilities from the smartphone or tablet.
  • The K-70 is compatible with the optional O-GPS1 GPS Module to permit geotagging image files as well as use of the AstroTracer function to benefit taking photographs of the nighttime sky.

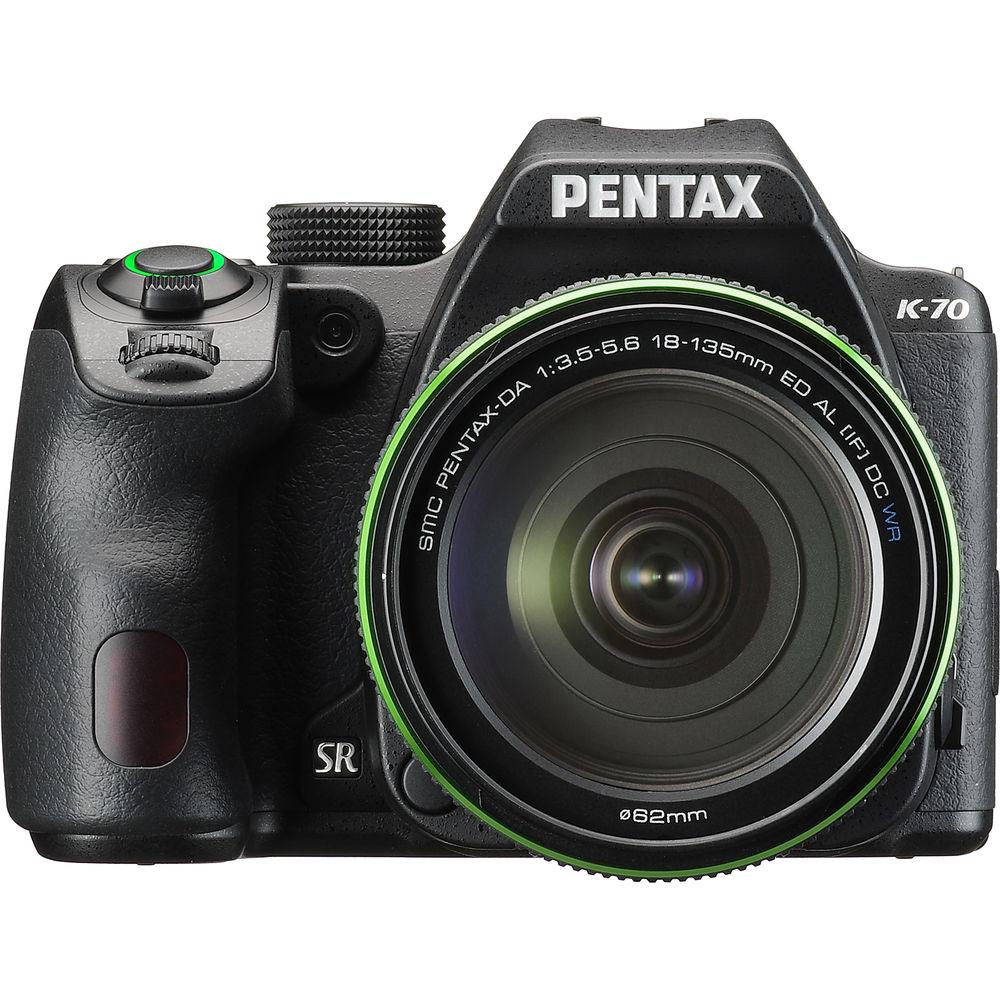

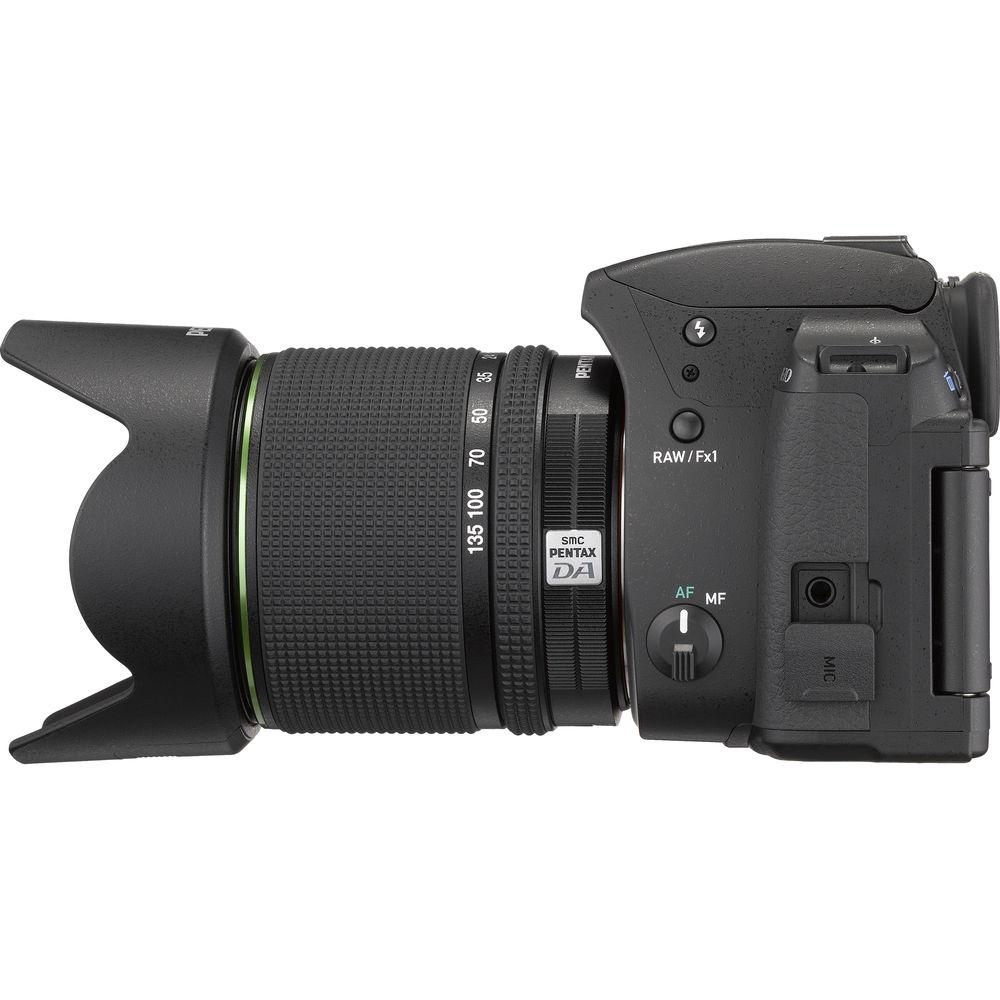

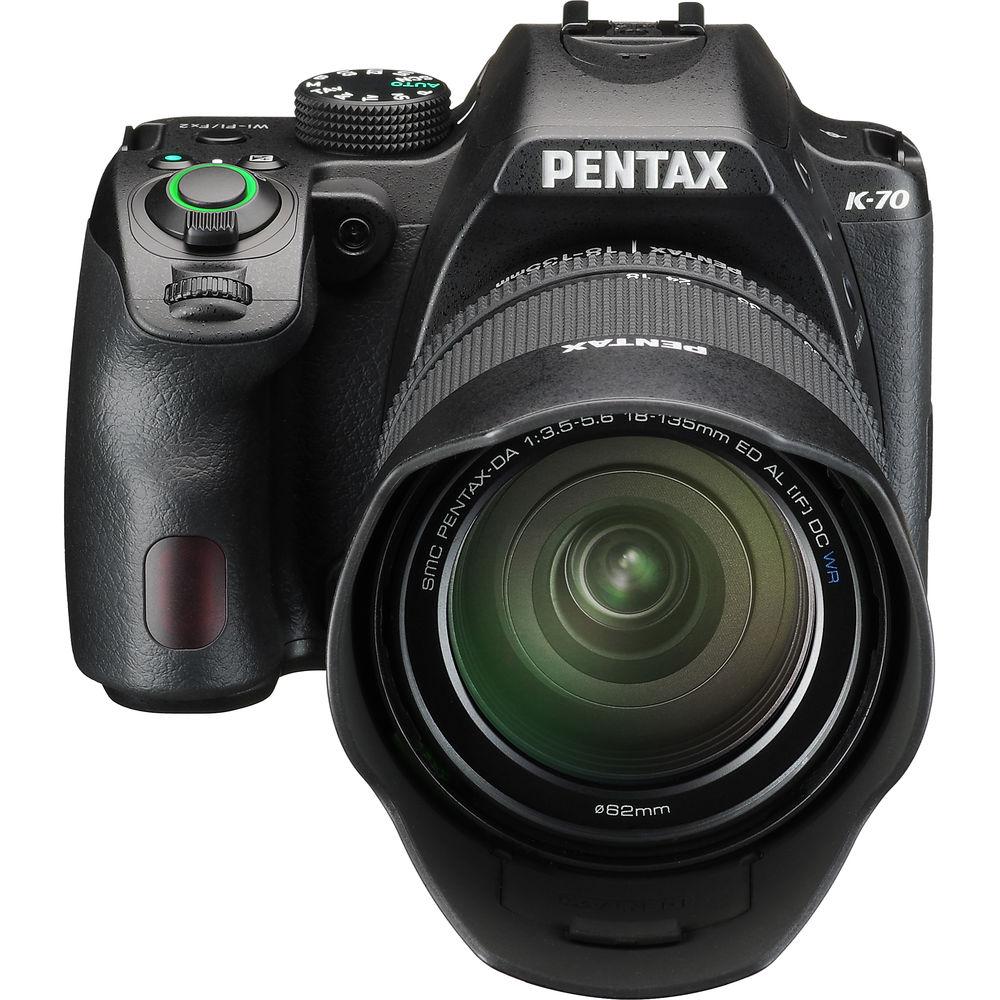

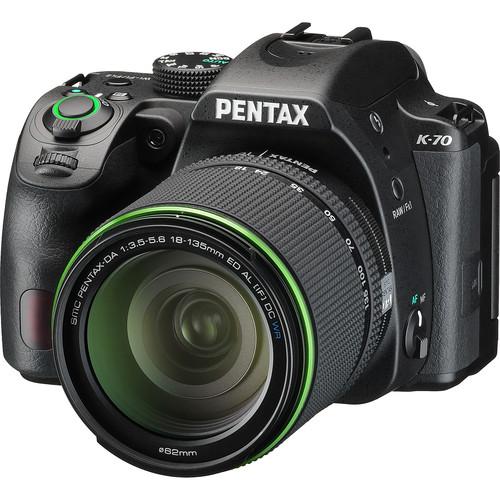

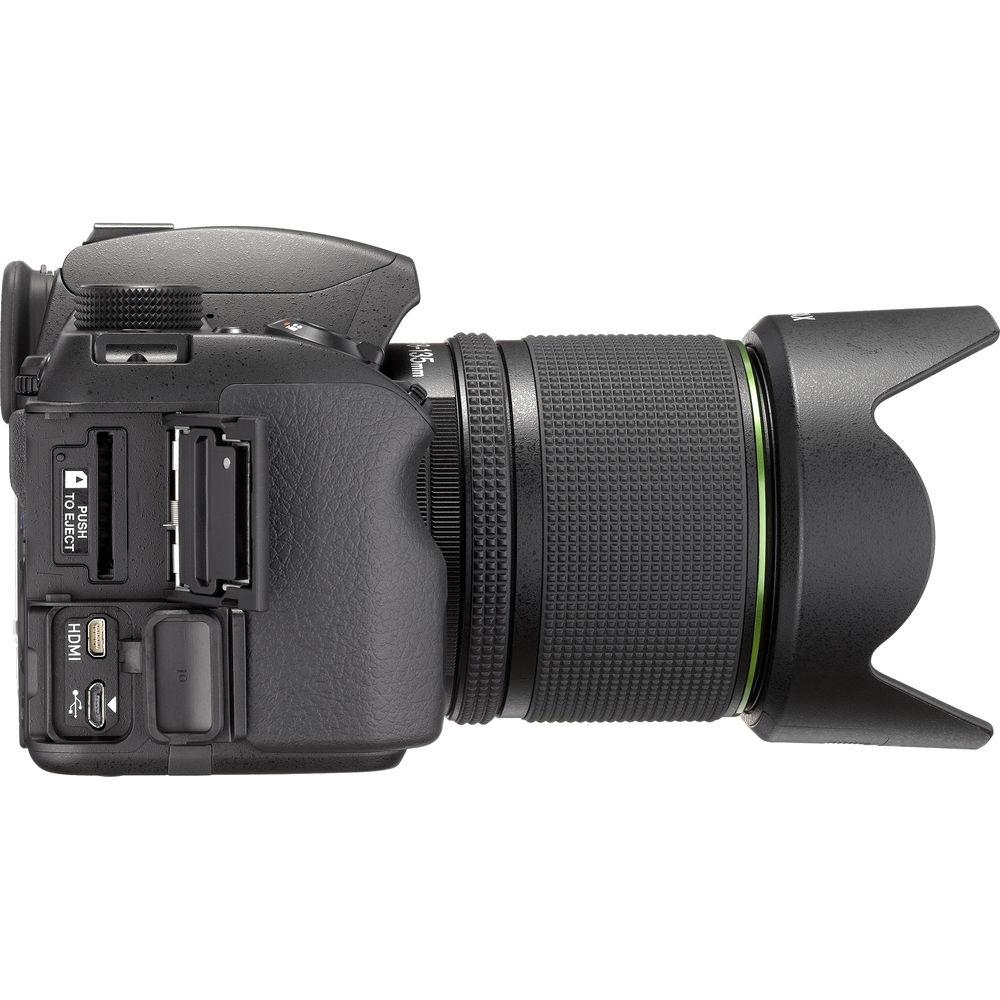

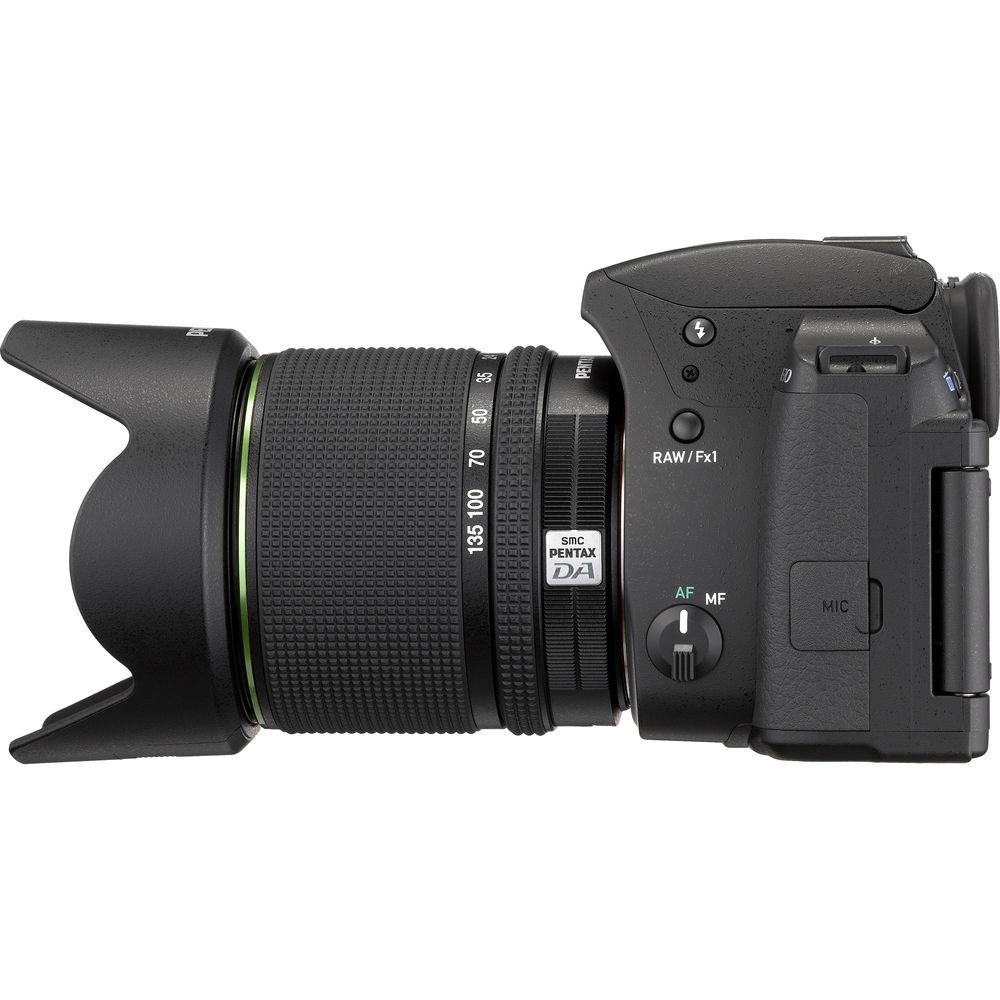

smc Pentax DA 18-135mm f/3.5-5.6 ED AL (IF) DC WR Lens
• The included zoom lens provides a 27.5-207mm equivalent focal length range to suit working in a wide variety of shooting scenarios. It features the same weather-resistant construction as the camera body to enable working in harsh environments and also has an SP coating to help repel dust, water, and grease on the front element. Its construction incorporates aspherical lens elements to help minimize spherical aberrations throughout the zoom range and also contribute to producing overall sharper, clearer imagery. Additionally, a Direct Current (DC) motor is utilized to provide quick, quiet, and smooth auto focusing that is well-suited to working with HD video recording.

Other Camera Features
• • Multiple exposure shooting is possible in composite mode with additive, average, and bright settings for 2 to 2000 individual exposures.
  • Native support is offered for both Pentax PEF and Adobe DNG 14-bit RAW file types. It is also possible to retrieve RAW data from JPEG files if still present in the camera's buffer memory.
  • Scene modes: Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest, Night Scene, Night Scene HDR, Night Snap, Food, Pet, Kids, Surf & Snow, Backlight Silhouette, Candlelight, Stage Lighting, and Museum.
  • Custom Image modes: Auto Select, Bright, Natural, Portrait, Landscape, Vibrant, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, and Cross Processing.
  • Digital Filters available during capture: Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, and Bold Monochrome.
  • Digital Filters available during playback: Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Water Color, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, and Monochrome.
  • Language support: English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, and Japanese.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Pentax K-70 Specs

Focal Length	18 to 135mm (35mm Equivalent Focal Length: 27.5 to 207mm)
Maximum Aperture	f/3.5 to 5.6
Minimum Aperture	f/22 to 38
Angle of View	76 Rating 98% users recommend this product to others. And what about you? This product has already been rated by 56 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
