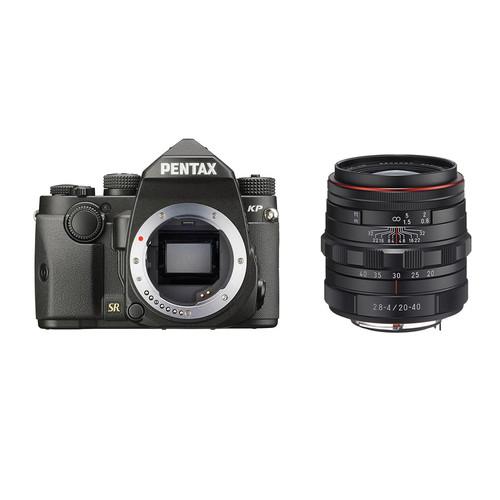

Pentax KP DSLR Camera with 20-40mm

User Manual for Pentax KP DSLR Camera with 20-40mm Lens Kit

• Product category: DSLR Cameras Pentax
• Brand: Pentax
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pentax DSLR Cameras

Product description

• Pentax KP DSLR Camera (Body Only, Black) Taking the stage as a modular and compact camera option in the Pentax lineup is the black KP DSLR with a unique smart function exchangeable grip that can be swapped as needed by the photographer. Beyond this, the KP was designed for outstanding low-light performance due to a newly developed 24.3MP APS-C CMOS sensor that eliminates its anti-aliasing filter and the PRIME IV Engine with an accelerator unit for processing. This enables it to reach sensitivities up to ISO 819200 with minimal noise as well as capture maximum sharpness at all times. A 5-axis in-body Shake Reduction II module further assists image quality by compensating for up to 5 stops of shutter speed during longer exposures as well as activating the Pixel Shift Resolution mode.

  Still imaging benefits from the use of a SAFOX 11 27-point AF sensor, which will help photographers lock onto their subjects quickly and accurately. This is sure to come in handy when shooting at the max speed of 7 fps. Also, the camera is equipped with a mechanical shutter of 1/6000 second and an electronic shutter that is able to reach 1/24000 second. Along with stills, the KP is capable of recording Full HD 1080p video at up to 30 fps and it has interval shooting capable of creating a 4K movie. The weather-sealed magnesium alloy body also sports built-in Wi-Fi along with a tilting 3.0" 921k-dot LCD monitor and a 0.95x optical viewfinder with 100% coverage.
  Smart Function Exchangeable Grip
  • Keep your camera as compact as possible or enhance the grip for working with large telephoto zooms with the exchangeable grip system of the KP DSLR. Three different grip sizes are available. The medium size is ideal for most standard lenses and situations while the small will shrink the camera down while using compact primes. The large grip provides a hefty, secure feeling that enhances control when using large, heavy lenses.
  24.3MP APS-C CMOS Sensor & PRIME IV Engine with Accelerator Unit
  • The KP delivers high-quality imagery through an advanced 24.3MP APS-C CMOS sensor that is designed to create detailed images with minimal noise at sensitivities up to ISO 819200. Guaranteeing maximum resolution, the sensor lacks an anti-aliasing, or optical low-pass, filter though this will cause a higher chance of aliasing and moire. For situations at risk of these artifacts, users can leverage an AA Filter Simulator function that slightly moves the sensor in order to mimic the effects of a physical filter.

    This sensor combines with the power of the PRIME IV 14-bit image processing engine with accelerator unit to create large images with ease and speed. Improving upon the past generation, the PRIME IV can deliver photographs at up to 7 fps in raw format for up to 8 frames. This processor also helps control numerous advanced features, including Pixel Shift Resolution and more.
  5-Axis In-Body Shake Reduction II
  • A staple of Pentax DSLRs, the KP is equipped with a 5-axis Shake Reduction II system that can counter the effects of camera shake by up to 5 stops. This larger system is optimized for the full-frame sensor and can account for yaw, pitch, and roll as well as vertical and horizontal motion of the camera. Also, due to the stabilization being incorporated into the KP's body, it functions with every K-mount lens.
    Pentax takes advantage of the sensor's available movement in order to develop additional features, such as the Pixel Shift Resolution setting. This mode shifts the sensor in order to capture full color data on each pixel by compositing four shots. This grants exceptional clarity, lowers noise, and boosts the effective resolution. Additionally, the KP has a motion correction setting that allows this function to be used even when shooting handheld.

    Another capability is an Image Composition Assist function, which allows you to shift the sensor up/down and left/right as well as slightly rotate it. This lets users easily adjust their composition without needing to move their camera and can be useful for delicately balanced tripod work.
  SAFOX 11 AF System
  • Making sure you can lock on to subjects quickly and accurately is the SAFOX 11 AF system. This phase-detection TTL autofocus method offers 27 points, with 25 cross-type points in the center for improved accuracy. It is also able to work in low-light conditions as dim as -3 EV and the camera offers a dedicated LED AF assist light.
  Full HD 1080p Video Recording & 4K Interval Movie
  • In addition to standard stills capture, the KP is capable of Full HD video at up to 30p or 60i using H.264 compression. This enables photographers to add high-resolution motion capture to their arsenal without needing to carry another camera. Also, when shooting in HD 720p, users can shoot at up to 60p. Additionally, the camera is NTSC/PAL switchable and it is equipped with a microphone jack for high-quality audio support. Interval shooting is available with a movie mode to automatically create time-lapse videos at up to 4K resolution.
  Weather- and Dust-Resistant Body
  • Durability has always been one of Pentax's strong suits, and the KP is no exception with a magnesium alloy body that is tough and lightweight. Also, the KP is sealed to ensure no rain or dust will take your camera out of commission. The camera is designed to handle freezing temperatures as well, with a rating down to 14°F. This durability is maintained when the optional battery grip is in use, as the grip is also sealed in numerous places.
  Other Camera Features
  • • Mechanical shutter with a max speed of 1/6000 second along with an electronic shutter mode capable of reaching 1/24000 second.
    • Built-in Wi-Fi connectivity allows users to directly connect to the camera using a mobile device for image transfer and remote camera control.
    • Aperture and shutter speed priority mode (TAv) allows you to manually select aperture and shutter speed while leaving ISO selection to the camera.
    • Interval shooting is available in multiple modes for up to 2000 shots in intervals of 2 seconds to 24 hours.
    • Built-in flash with guide number of 19.7' at ISO 100 with coverage for 28mm lens.
    • Optical viewfinder with 0.95x magnification and 100% coverage.
    UPC: 027075298804
  • Pentax HD Pentax DA 20-40mm f/2.8-4 ED Limited DC WR Lens (Black) The black HD Pentax DA 20-40mm f/2.8-4 ED Limited DC WR Lens from Pentax is a high performance standard length zoom lens for K-mount APS-C cameras. Its 35mm focal length equivalency is 30.5-61.5mm providing a versatile and practical range for wide-angle to standard length shooting. It is the first zoom lens in the Pentax Limited Series line and brings with it a durable, weather-sealed body, HD lens coating and an optical design consisting of one ED element and one super-low dispersion element.The f/2.8-4 maximum aperture enables effective low light shooting and, at the wide-angle end, control over its shallow depth of field for images that place sharp focus on the subject with a pleasing out of focus background. An in-lens direct current (DC) focus motor provides smooth and quiet autofocus action and its Quick-Shift Focus System enables rapid shift from autofocus to manual focus mode.The lens barrel and the included hood are made from high-grade aluminum alloy, distance and depth of field scales are clearly marked on the barrel and a smooth rotating, knurled ring provides manual focus control. SP (Super Protect) coating on the front and rear lens elements repels dust, water and grease to help maintain peak performance.
    30.5 to 61.5mm Focal Length Equivalency and f/2.8 Maximum Aperture
    • With its 2x zoom coverage of 20-40mm, this lens offers focal length coverage from 30.5 to 61.5mm in the 35mm format when mounted on a PENTAX K-series DSLR. This covers a practical set of frequently used focal lengths and is ideal as a versatile everyday lens. Its maximum aperture of f/2.8 at the wide-angle end of the zoom is effective in low light and provides shallow depth of field focus.
    HD Lens Coating
    • This lens has been treated with the PENTAX-developed HD coating, a high grade, multi-layer coating that reduces unwanted reflection, allowing the user to capture high-contrast images free of flare and ghosting.
    DC Autofocus Motor
    • Shoot discreetly with in-lens, direct current (DC) Auto Focus motor operation for smooth & quiet performance.
    Quick-Shift Focus System
    • The Quick-Shift Focus System allows instant switching from autofocus to manual focus operation.
    Weather-Resistant Construction and Durable Aluminum Barrel
    • With seven special seals to prevent intrusion of water, moisture and dust, this is the first lens of the "Limited" series to feature the PENTAX-original weather-resistant construction. With a handsome and durable aluminum alloy barrel and weather-sealing, this lens is able to perform in almost any shooting condition.
    SP Lens Coating
    • The PENTAX SP (Super Protect) coating on the front and rear lens elements repels dust, water and grease to keep your lens clean and your images sharp.
    Optical Design
    • The ED (Extra-low Dispersion) glass and a super-low dispersion glass element in this lens' optics deliver clear, high resolution imagery with edge-to-edge sharpness, throughout the entire zoom range.
    Rounded Diaphragm Blades
    • Enhanced with a rounded nine-blade diaphragm at the wide apertures for optimal optical performance and gorgeous bokeh effects.
    UPC: 027075274747
  In the Box
  • KP DSLR Camera (Body Only, Black) euarcvwrevxesfevrbxsszdtxvffdyfrtac
  • O-GP167 Grip Kit (Small)
  • O-GP1671 Grip Kit (Medium)
  • O-GP1672 Grip Kit (Large)
  • Rechargeable Li-Ion Battery D-Li109 for The KR Digital SLR Camera
  • D-BC109 Battery Charger
  • AC Cord for K7 Digital SLR Camera
  • O-ST162 Camera Strap
  • Eyecup FR for K7 Digital SLR Camera (replacement)
  • Hotshoe Cover FK
  • KII Body Mount Cap
  • 2 x Triangular Ring
  • Protective Cover
  • Battery Grip Terminal Cover
  • S-SW167 Software (CD-ROM)
  • Limited 1-Year Warranty
  • HD Pentax DA 20-40mm f/2.8-4 ED Limited DC WR Lens (Black)
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Pentax KP DSLR Camera (Body Only, Black)

  Lens Mount	Pentax K
  Camera Format	APS-C (1.5x Crop Factor)
  Pixels	Actual: 24.96 Megapixel Effective: 24.32 Megapixel
  Maximum Resolution	6016 x 4000
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	23.5 x 15.6 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 100 to 819200
  Shutter Speed	Electronic Front Curtain Shutter 1/24000 to 30 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Sensitivity Priority, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 20 EV
  White Balance	Auto, CTE, Cloudy, Daylight, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Multi Auto WB, Shade, Tungsten
  Continuous Shooting	Up to 7 fps at 24 MP for up to 28 Exposures (JPEG Format) Up to 7 fps at 24 MP for up to 8 Exposures Up to 3 fps at 24 MP for up to 70 Exposures (JPEG Format) Up to 3 fps at 24 MP for up to 15 Exposures Up to 0.8 fps at 24 MP for up to 100 Exposures (JPEG Format) Up to 0.8 fps at 24 MP for up to 100 Exposures
  Interval Recording	Yes
  Self Timer	12-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p/50i/59.94i HD (1280 x 720) at 50p/59.94p
  Recording Limit	Up to 25 Minutes for Full HD (1920 x 1080)
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 27 (25 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	20.5 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.95x
  Diopter Adjustment	-2.5 to +1.5 m
  Monitor Size	3"
  Monitor Resolution	921,000 Dot
  Monitor Type	Tilting LCD

  Built-in Flash	Yes
  Flash Modes	Auto, Auto/Red-Eye Reduction, Flash On, Flash On w/ Red-Eye Reduction, Manual, Second-Curtain Sync, Slow Sync, Wireless
  Guide Number	19.69' / 6 m at ISO 100 (28 mm Position)
  Maximum Sync Speed	1/180 Second
  Flash Compensation	-2 to +1 EV (1/3 EV Steps)
  Dedicated Flash System	P-TTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, USB 2.0 Micro-B
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x D-LI190 Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.2 x 4.0 x 3.0" / 13.2 x 10.2 x 7.6 cm
  Weight	1.41 lb / 639.56 g (Body Only)

  Box Dimensions (LxWxH)	8.2 x 6.5 x 5.1"

• Pentax HD Pentax DA 20-40mm f/2.8-4 ED Limited DC WR Lens (Black)

  Focal Length	20 to 40mm (35mm Equivalent Focal Length: 30.5 to 61.5mm)
  Maximum Aperture	f/2.8 to 4
  Minimum Aperture	f/22 to 32
  Lens Mount	Pentax K
  Format Compatibility	APS-C
  Angle of View	70 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 06 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
