User Manual for Pentax O-GPS1 GPS Module Click to enlarge the picture
Contents of the user manual for the Pentax O-GPS1 GPS Module
- Product category: GPS/Geotagging Accessories Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax GPS/Geotagging Accessories
|
User manual for the Pentax O-GPS1 GPS Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

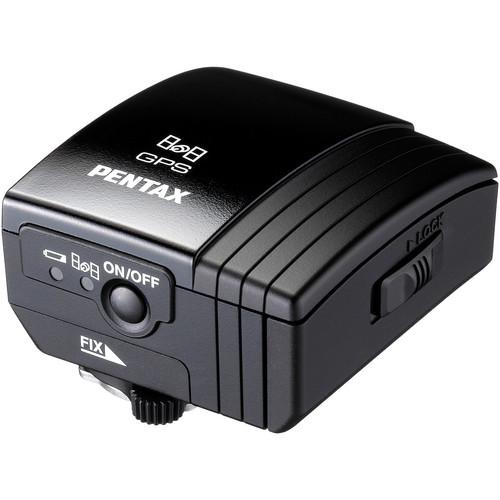

Product description The Pentax O-GPS1 GPS Module is designed for geotagging with compatible Pentax digital cameras, including the K-5, K-r, K-3 and the 645D. Powered by just 1 'AAA' battery, the GPS unit tracks latitude, longitude, altitude, time, and direction. This information provides not only GPS info for storing and tracking your photos and videos, but GPS information you can use for hiking, boating, and other outings. - Geotag your images for location information on popular photo-sharing websites
- Chart the progress of a hike, bike, or boating outing with interval position tracking
- A separate, but efficient power source will not drain your camera's battery
- Supports terrestrial-based WAAS for highly accurate positioning
- Electronic Compass function assists while hiking or camping
UPC: 027075189003 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax O-GPS1 GPS Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 39012 Specs | Type | Hotshoe mounted accessory GPS unit | | Supported Cameras | K-5, K-r, K-3, and 645D | | GPS Accuracy | 32.8' / 10 m RMS | | Data Format | NMEA-0183 | | Miscellaneous | Recorded info: Lat, Lon, Alt, Time (UTC), Direction GPS receiver: 50 channel tracking, Supports SBAS (WAAS/EGNOS/MSAS) Acquisition time: 40 seconds (cold), 5 seconds (hot) Positioning interval: 1 second Geodesics: World Geodetic System (WGS 84) Electronic compass: Accuracy: +/-5°, Positioning interval: 8x; Reference direction: True north | | Power Supply | 1 x 'AAA' battery (lithium NiMH, alkaline) | | Battery Life | Approx 12 h (normal temp) with lithium (9 h, 0°) Approx 7 h (normal temp) with NiMH (5 h, 0°) Approx 7 h (normal temp) with alkaline (4 h, 0°) | | Dimensions | 1.9 x 1.3 x 2.3" / 4.8 x 3. x 5.8cm | | Weight | 1.8 oz / 0.05 kg (Without Battery)
2.2 oz / 0.06 kg (With Battery) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.8 x 4.8 x 1.6" |
