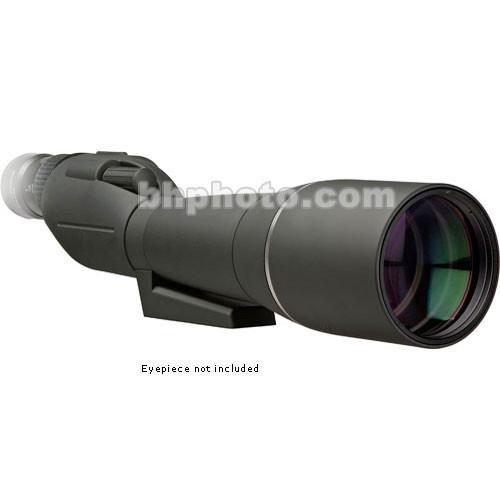

User Manual for Pentax PF-100ED 4.0" 100mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Pentax PF-100ED 4.0" 100mm Spotting Scope
- Product category: Spotting Scopes Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Spotting Scopes
|
User manual for the Pentax PF-100ED 4.0" 100mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Pentax only manufactures ultra-premium spotting scopes, available in either compact 65m, full sized 80mm or gargantuan 100mm diameter front objectives. These allow high magnifications in all sorts of light, thanks to their large-diameter exit pupils. After all, magnification specifications for a scope aren't very meaningful if you can only use them in the brightest of conditions. These scopes use 1.25" diameter eyepieces, which allow less compacting of the light shaft produced by the objective lens and thus a larger image with superior depth perception. This is terribly important, for in addition to the brilliant offerings from Pentax themselves it also means you can use the best of astronomy eyepieces from elite telescope manufacturers such as Meade, Celestron and of course the venerable Tele Vues. The PF-100ED has a focal length of 630mm, so if you're using conventional 1.25" eyepieces you divide 630mm by the focal length of your eyepiece to determine the effective magnification. The Pentax ED scopes function brilliantly in many conditions of light and climate, and are remarkably light thanks to their metallic alloy housing. Pentax's scopes are available in either a straight viewing or angled viewing depending upon your needs. This is a personal preference which cannot easily be defined for you until firsthand experience, but the conventional thinking is that the scopes with straight viewing are simpler for locating your subject. Amongst the very short list of premium spotting scopes, the PF-100ED is included with the view-through case. This valuable accessory is quite nearly a necessity, and is not included but rather an expensive additional option with the European-made ultrapremium units. Note: Click Here for Available Eyepiecesrwwsvfqzvtrqxvwrdedbdwaecbxdtczca - Porro prism design with Pentax's trademark Super MultiCoated optics
- Bright, powerful 630mm f/6.3 apochromatic refractor design
- JIS Class 6 waterproof & fogproof construction
- Six available Pentax eyepieces; American standard 1.25" (31.7mm) thread diameter allows usage of other brand telescope eyepieces
- Variable eye relief optimizes the image projection distance for your vision - up to 20mm
- Rotating tripod mount with detented click stops
- Pentax "Worry Free" Warranty
- Pentax will repair or replace this spotting scope to the original purchaser (even if damaged by fault) for a charge of $19.95. This warranty does not cover cosmetic damage, theft or loss. Replacement may be with comparable model at Pentax's discretion if the original model is no longer available.
UPC: 027075063464 In the Box Pentax PF-100ED 4.0"/100mm Spotting Scope (Requires Eyepiece) Front & Rear Caps View-Through Case Pentax "Worry Free" Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax PF-100ED 4.0" 100mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 70940 Specs | Objective Lens Diameter | 100mm | | Minimum Focus Distance | 28.0' (8.5 m) | | Weatherproofing | Waterproof & fogproof | | Dimensions | 20.0 x 5.3 x 4.6" (510 x 134 x 117mm) WxHxD | | Weight | 5.82 lb (2640 g) | | | | Package Weight | 10.415 lb | | Box Dimensions (LxWxH) | 24.9 x 9.7 x 9.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
