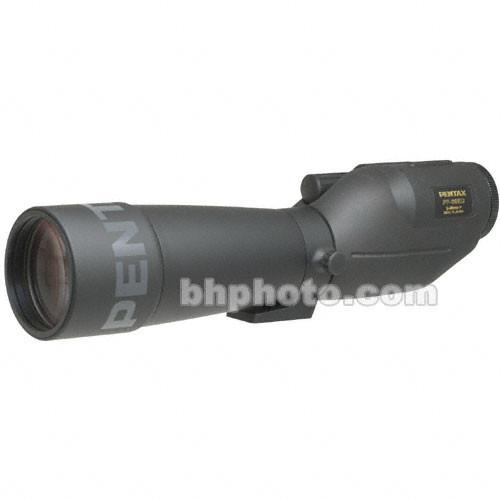

User Manual for Pentax PF-80ED 80mm Spotting Scope Click to enlarge the picture
Contents of the user manual for the Pentax PF-80ED 80mm Spotting Scope
- Product category: Spotting Scopes Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Spotting Scopes
|
User manual for the Pentax PF-80ED 80mm Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More scvyfqbbtyuyeey The Pentax PF-80ED Spotting Scope is a large and terribly impressive optical performer, with a brilliant 80mm objective lens and the ability to accept any 1.25" astronomy eyepiece as well as 82mm filters at the front of the objective. It is 100% water and fogproof, with durable rubber armor over an all-metal housing that's got a rotating tripod collar with detented stops every 45°. The fully multi-coated optics feature Pentax's well-regarded SMC multi-coating process, and an element of extra-low dispersion (ED) glass helps provide razor-sharp edge delineation to high-contrast subjects.The PF-80ED's 1.25"-diameter eyepiece specification allows less compacting of the light shaft produced by the objective lens and thus a larger final image with superior depth perception. Any great 1.25" eyepiece can be used, from Pentax themselves to elite telescope manufacturers' eyepieces such as Meade, Celestron, Vixen, and, of course, Tele Vue. The PF-80ED has a focal length of 500mm.The PF-80ED is among the very short list of premium spotting scopes that includes a view-through case as standard equipment. This valuable accessory is quite nearly a necessity and is not included but rather an expensive additional option with the European-made units.Pentax supplies this scope with the Pentax USA's "Worry-Free" Warranty; Pentax will repair or replace this spotting scope to the original purchaser (even if damaged by fault) for a small shipping charge. - A superb large-class spotting scope with straight viewing
- JIS Class 6 100% water and fogproof construction
- Pentax's SMC multi-coatings applied to every optical surface
- An extra-low dispersion (ED) glass element to provide ideal color correction and contrast
- Accepts 1.25" astronomy eyepieces
- Rotating tripod collar with detented click stops
- Retractable hood shields objective from stray light or moisture
- Includes a view-through case
- Pentax USA "Worry-Free" warranty
UPC: 027075048744 In the Box Pentax PF-80ED 80mm Spotting Scope (Straight Viewing, Requires Eyepiece) Push-On 82mm Objective Cap f/ PF-80ED-A & PF-80ED (Replacement) scvyfqbbtyuyeey Push-On Rear Cap (Replacement) View-Through Case f/ PF-80-ED Limited 25-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax PF-80ED 80mm Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax PF-80ED Specs | | | Objective Lens Diameter | 80 mm | | Minimum Focus Distance | 19.0' / 5.8 m | | | | Fogproof | Yes | | Water Resistance | Waterproof | | | | Dimensions | L: 15.6 x H: 4.7 x W: 3.9" / L: 396.0 x H: 119.0 x W: 99.0 mm | | Weight | 3.1 lb / 1400.0 g | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 21.89 x 5.433 x 5.118" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
