User Manual for Pentax SMC 8-24mm Zoom Eyepiece Click to enlarge the picture
Contents of the user manual for the Pentax SMC 8-24mm Zoom Eyepiece
- Product category: Eyepieces Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Eyepieces
|
User manual for the Pentax SMC 8-24mm Zoom Eyepiece contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

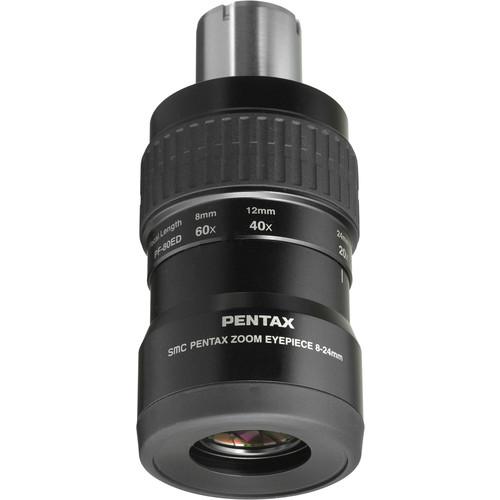

Product description Constructed with high-refraction, low-dispersion, multi-coated lanthanum glass optics, the SMC 8-24mm Zoom Eyepiece fits all Pentax spotting scopes for terrestrial viewing, and can also be used with telescopes with 1.25" focusers. It offers generous 18-22mm eye relief for comfortable viewing and an apparent angle of view as wide as 60°. Built to Japanese Industrial Standards Class 4, it is weather resistant. - Compatibility
-
- Pentax PF-100ED, PF-80EDA, PF-80ED, PR-80EDA, PR-65EDA, PF-65ED(A)II spotting scopes
- Optical Performance
-
- Apparent angle of view 38-60°
- Long 18/22mm eye relief accommodates eyewear
- Magnification: 26-78x with 100mm scope, 21-63x/20-60x/20-61x with 80mm scopes, 16-46x/16-48x with 65mm scopes
- Construction Details
-
- USA Standard 1.25" eyepiece threading diameter
- Waterproof & fogproof (JIS Class 4-rated)
- Multi-layer coated optics
- High-refraction, low dispersion lanthanum glass
- Accepts conventional 1.25" diameter filters for astronomical and terrestrial applications
UPC: 027075048737 In the Box Pentax SMC 8-24mm Zoom Eyepiece (1.25") - Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax SMC 8-24mm Zoom Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 70509 Specs | Magnification | With PF-100ED Scopes: 26 to 78x
With PF-80EDA Scopes: 21 to 63x
With PF-80ED Scopes: 20 to 60x
With PR-80EDA Scopes: 20 to 61x
With PR-65EDA Scopes: 16 to 46x
With PF-65ED(A)II Scopes: 16 to 48x | | Angle of View | With PF-100ED Scopes: 1.5 to 0.8° (Actual)
With PF-80EDA Scopes: 1.8 to 0.9° (Actual)
With PF-80ED Scopes: 1.9 to 1° (Actual)
With PR-80EDA Scopes: 1.9 to 1° (Actual)
With PR-65EDA Scopes: 2.4 to 1.3° (Actual)
With PF-65ED(A)II Scopes: 2.4 to 1.2° (Actual)
38 to 60° (Apparent) | | Field of View | With PF-100ED Scopes: 78 to 42' @ 1000 yd / 26 to 14 m @ 1000 m
With PF-80EDA Scopes: 93 to 49' @ 1000 yd / 31 to 16.5 m @ 1000 m
With PF-80ED Scopes: 99 to 51' @ 1000 yd / 33 to 17 m @ 1000 m
With PR-80EDA Scopes: 99 to 54' @ 1000 yd / 33 to 18 m @ 1000 m
With PR-65EDA, PF-65ED(AII Scopes: 120 to 63' @ 1000 yd / 40 to 21 m @ 1000 m | | Exit Pupil Diameter | With PF-100ED Scopes: 3.9 to 1.3 mm
With PF-80EDA Scopes: 3.8 to 1.3 mm
With PF-80ED Scopes: 4 to 1.3 mm
With PR-80EDA Scopes: 4 to 1.3 mm
With PR-65EDA Scopes: 4.1 to 1.4 mm
With PF-65ED(A)II Scopes: 4 to 1.4 mm | | Eye Relief | 18.0 to 22.0 mm | | Dimensions |
