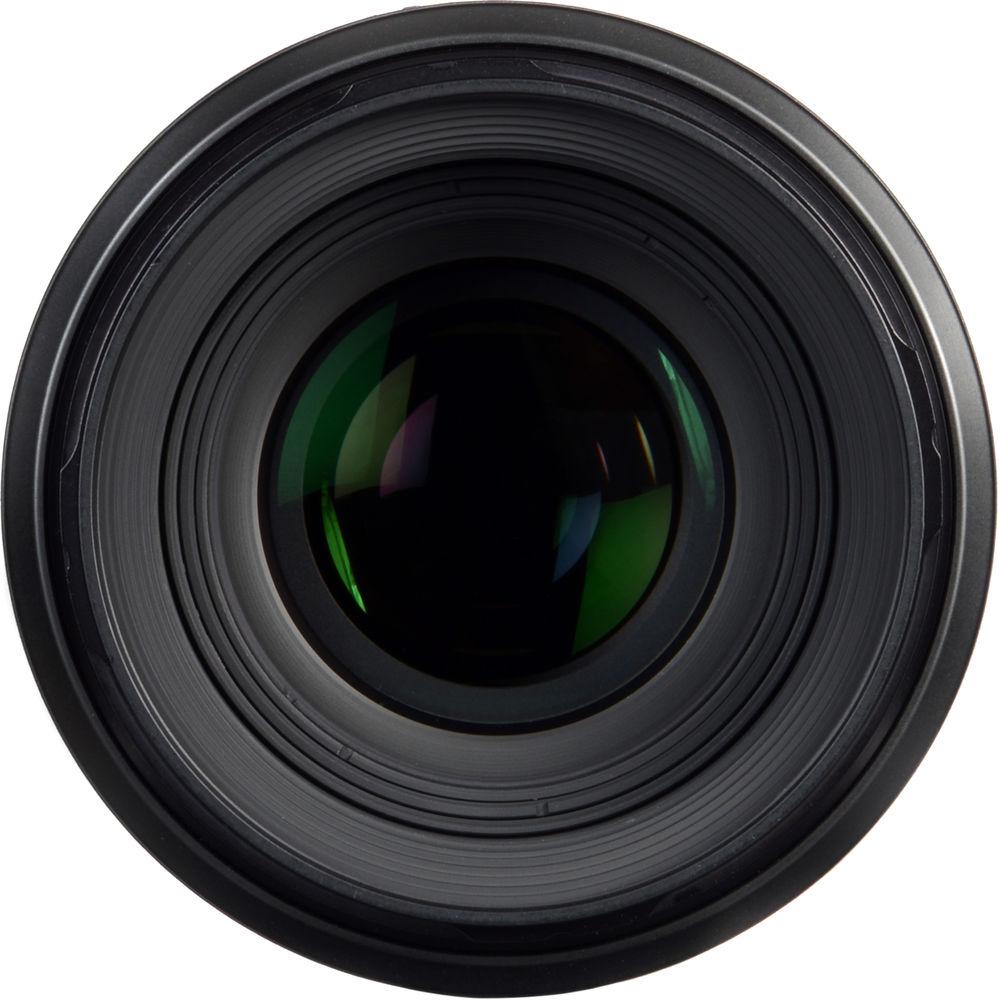

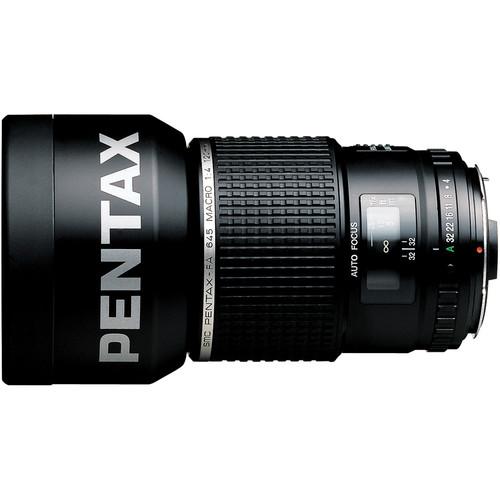

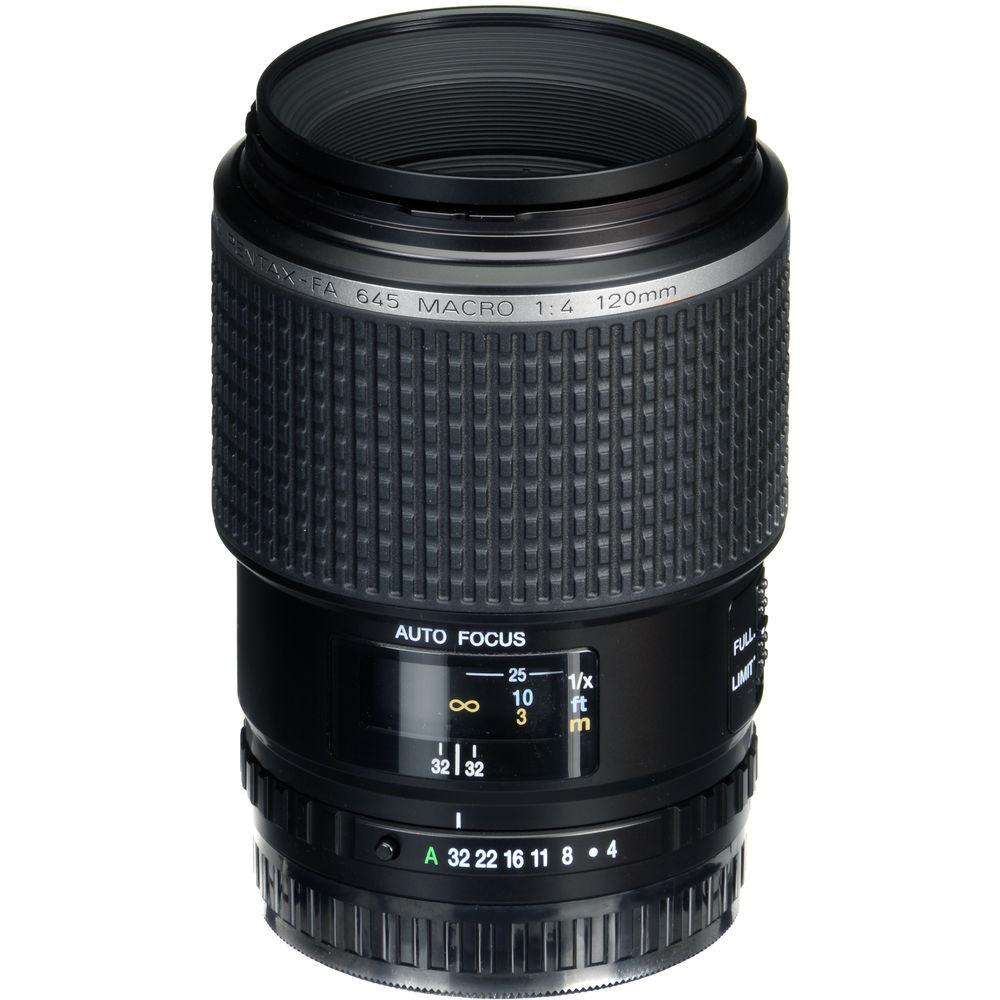

Product description The smc FA 645 120mm f/4 Macro Lens from Pentax is a medium format, manual and autofocusing, short telephoto/portrait prime lens that provides a 35mm equivalent focal length of 96mm when used on a Pentax 645D or 77mm on a film 645 camera. The super multi coating (SMC) significantly increases the amount of light transmission. The lens offers a 1:1 magnification ratio and focuses as close as 15.4". The focus limiter can be used to set the focusing distance range for increasing the speed of the autofocus. The maximum aperture of f/4 can be stopped down as far as f/32. The lens was developed using computer-assisted optical design technology for a high degree of precision. It uses a floating mechanism and an independently-moving aperture mechanism. It also features extra-low dispersion (ED) glass to correct for chromatic aberrations, helping to deliver sharp imagery with high contrast and clarity throughout the focusing range. - Medium format, autofocusing, short telephoto/portrait prime lens that provides a 35mm equivalent focal length of 96mm when used on a Pentax 645D or 77mm on a film 645 camera
- Treated with super multi coating (SMC) to significantly increase the amount of light transmission
- Magnification ratio of 1:1 (1x magnification)

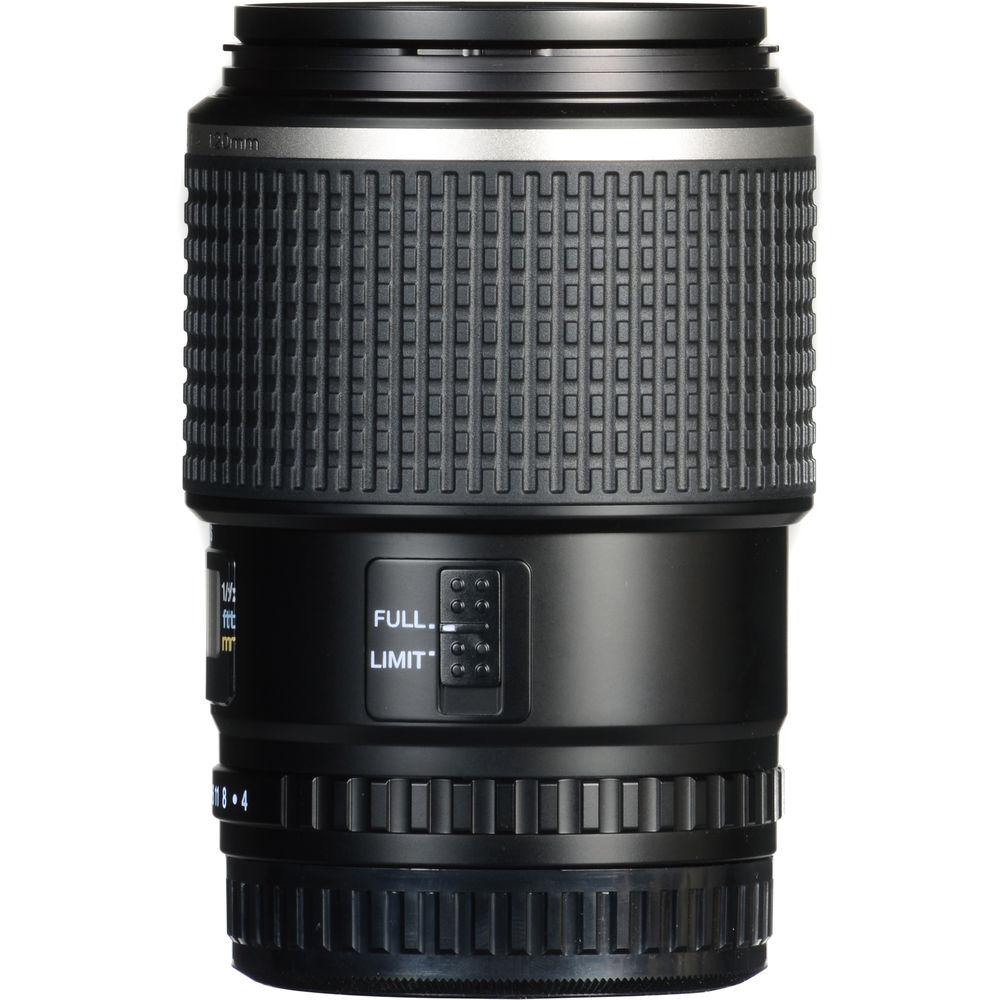

- Minimum focus distance of 15.4". The focus limiter can be used to set the focusing distance range for increasing the speed of the autofocus
- Maximum aperture of f/4 can be stopped down as far as f/32
- Uses a floating mechanism and an independently-moving aperture mechanism
- Features extra-low dispersion (ED) glass to correct for chromatic aberrations, helping to deliver sharp imagery with high contrast and clarity throughout the focusing range
- Developed using computer-assisted optical design technology for a high degree of precision
UPC: 027075046085 In the Box Pentax smc FA 645 120mm f/4 Macro Lens Front and Rear Caps Lens Hood Soft Lens Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax smc FA 645 120mm f 4 Macro Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 26735 Specs | Focal Length | 120 mm | | Aperture | Maximum: f/4
Minimum: f/32 | | Camera Mount | Pentax 645 | | Angle of View @ Infinity | 32.5° | | Minimum Focus Distance | 15.35" / 38.99 cm | | Area of Coverage | 415 x 560 mm | | Diaphragm Blades | 8 | | Optical Design | 9 Elements in 7 Groups | | Magnification | 1x | | Maximum Reproduction Ratio | 1:1 | | Autofocus | Yes | | Filter Thread | 67 mm | | Dimensions | Approx. 4.33 x 3.25" (110 x 82.5 mm) | | Weight | 1.54 lb / .7 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 6.299 x 5.276 x 5.039" |
