Pentax SMC XF 8.5mm Eyepiece

Search your instruction manual in PDF to download

User Manual for Pentax SMC XF 8.5mm Eyepiece

Click to enlarge the picture
Pentax SMC XF 8.5mm Eyepiece Contents of the user manual for the Pentax SMC XF 8.5mm Eyepiece
  • Product category: Eyepieces Pentax
  • Brand: Pentax
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pentax Eyepieces

User manual for the Pentax SMC XF 8.5mm Eyepiece contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pentax product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!



Product description

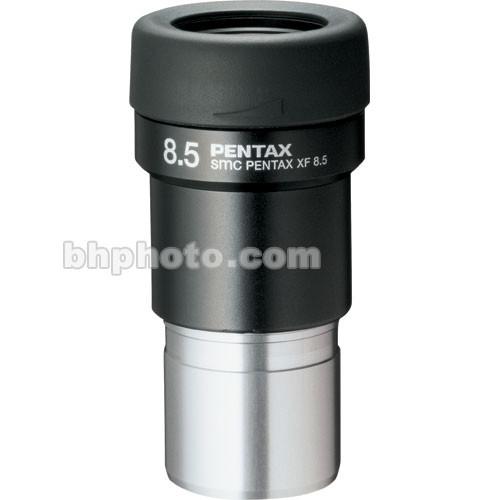

Featuring premium optical components, a wide 60° field of a view, and generous 18mm eye relief for comfortable glassing, the SMC XF 8.5mm Eyepiece is designed for use with Pentax 100mm, 80mm and 65mm spotting scopes. This 8.5mm focal length eyepiece yields 74x magnification with PF-100ED, 61x with PF-80EDA, 59x with PF-80ED, 57x with PR-80EDA, 44x with PR-65EDA, and 46x with PF-65EDA II. Extra-low dispersion lanthanum glass elements provide a balanced image with minimal aberrations, while fully multi-coated air-to-glass surfaces and partially coated laminated surfaces avoid reflection for optimal light transmission. A light-shielding diaphragm further reduces internal reflections for a bright, high-contrast image. The eyepiece is constructed to Japanese Industrial Standard Class 4 for water-resistance. It is not to be used underwater, but will easily withstand light rain or dew. Its diameter is the American standard of 1.25", so it can be used in other spotting scopes or telescopes, and it offers a 30.5mm adapter mounting thread under the removable eyecup.
    Compatibility
    • Pentax PF-100ED, PF-80EDA, PF-80ED, PR-80EDA, PR-65EDA, PF-65EDA II spotting scopes
      Optical Performance
      • Wide 60° field of view
      • Long 18mm eye relief accommodates eyewear
      • 74x magnification with PF-100ED, 61x with PF-80EDA, 59x with PF-80ED, 57x with PR-80EDA, 44x with PR-65EDA, and 46x with PF-65EDA II
      Construction
      • Extra-low dispersion lanthanum glass
      • Fully multi-coated glass-to-air air surfaces, partially coated laminated surfaces
      • Light-shielding diaphragm further reduces internal reflection
      • Weather-proof construction (JIS Class 4-rated)
      • 1.25" diameter
      • 30.5mm adapter thread under eyecup
    UPC: 027075087330 In the Box Pentax SMC XF 8.5mm Eyepiece (1.25")
  • Limited 25-Year Warranty
