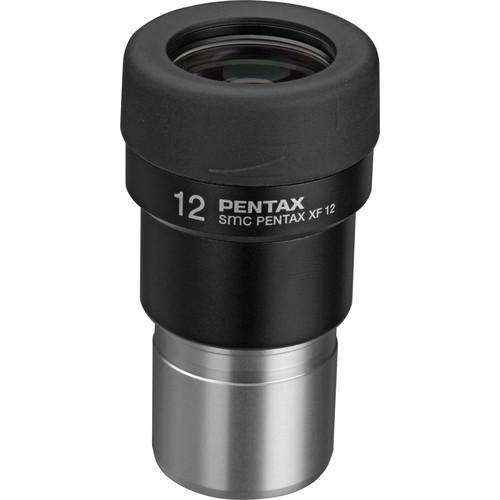

User Manual for Pentax SMC XF12 12mm Wide Angle Eyepiece Click to enlarge the picture
Contents of the user manual for the Pentax SMC XF12 12mm Wide Angle
- Product category: Eyepieces Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Eyepieces
|
User manual for the Pentax SMC XF12 12mm Wide Angle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description Featuring premium optical components, a wide 60° field of a view, and generous 18mm eye relief for comfortable glassing, the compact SMC XF 12mm Wide Angle Eyepiece is designed for use with Pentax 65mm, 80mm, and 100mm spotting scopes. This 12mm fixed focal length eyepiece yields 52x magnification with the PF-100ED, 43x with the PF-80EDA, 42x with the PF-80ED, and 32.5x with the PF-65EDA II and PF-65ED II. Extra-low dispersion lanthanum glass elements provide a balanced image with minimal aberrations, while fully multi-coated air-to-glass surfaces and partially coated laminated surfaces avoid reflection for optimal light transmission. A light-shielding diaphragm further reduces internal reflections for a bright, high-contrast image.The eyepiece is constructed to Japanese Industrial Standard Class 4 for water resistance. It is not to be used underwater, but will easily withstand light rain or dew. Its diameter is the American standard of 1.25", so it can be used in other scopes or telescope focusers, and it offers a 30.5mm adapter mounting thread under the removable eyecup. - Compatibility
-
- Pentax PF-100ED, PF-80EDA, PF-80ED, PF-65EDA II, PF-65ED II spotting scopes
- Optical Performance
-
- Wide 60° field of view
- Long 18mm eye relief accommodates eyewear
- 52x magnification with PF-100ED
- 43x magnification with PF-80EDA
- 42x magnification with PF-80ED
- 32.5x magnification with PF-65EDA II and PF-65ED II
- Construction
-
- Extra-low dispersion lanthanum glass
- Fully multi-coated on surfaces that come into contact with air
- Partially coated laminated surfaces
- Light-shielding diaphragm further reduces internal reflection
- Weatherproof construction (JIS Class 4-rated)
- 1.25" diameter
- 30.5mm adapter thread under eyecup
UPC: 027075087347 In the Box Pentax SMC XF12 12mm Wide Angle Eyepiece (1.25") - Limited 25-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax SMC XF12 12mm Wide Angle Eyepiece in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 70532 Specs | Magnification | With PF-100ED Scopes: 52x
With PF-80EDA Scopes: 43x
With PF-80ED Scopes: 42x
With PF-65EDA II and PF-65ED II Scopes: 32.5x | | Angle of View | 60° (Apparent) | | Field of View | With PF-100ED Scopes: 63' @ 1000 yd / 21 m @ 1000 m
With PF-80EDA Scopes: 72' @ 1000 yd / 24 m @ 1000 m
With PF-80ED Scopes: 78' @ 1000 yd / 26 m @ 1000 m
With PF-65EDA II, PF-65ED II Scopes: 96' @ 1000 yd / 32 m @ 1000 m | | Eye Relief | 18.0 mm | | Water Resistance | Water Resistant | | Dimensions |
