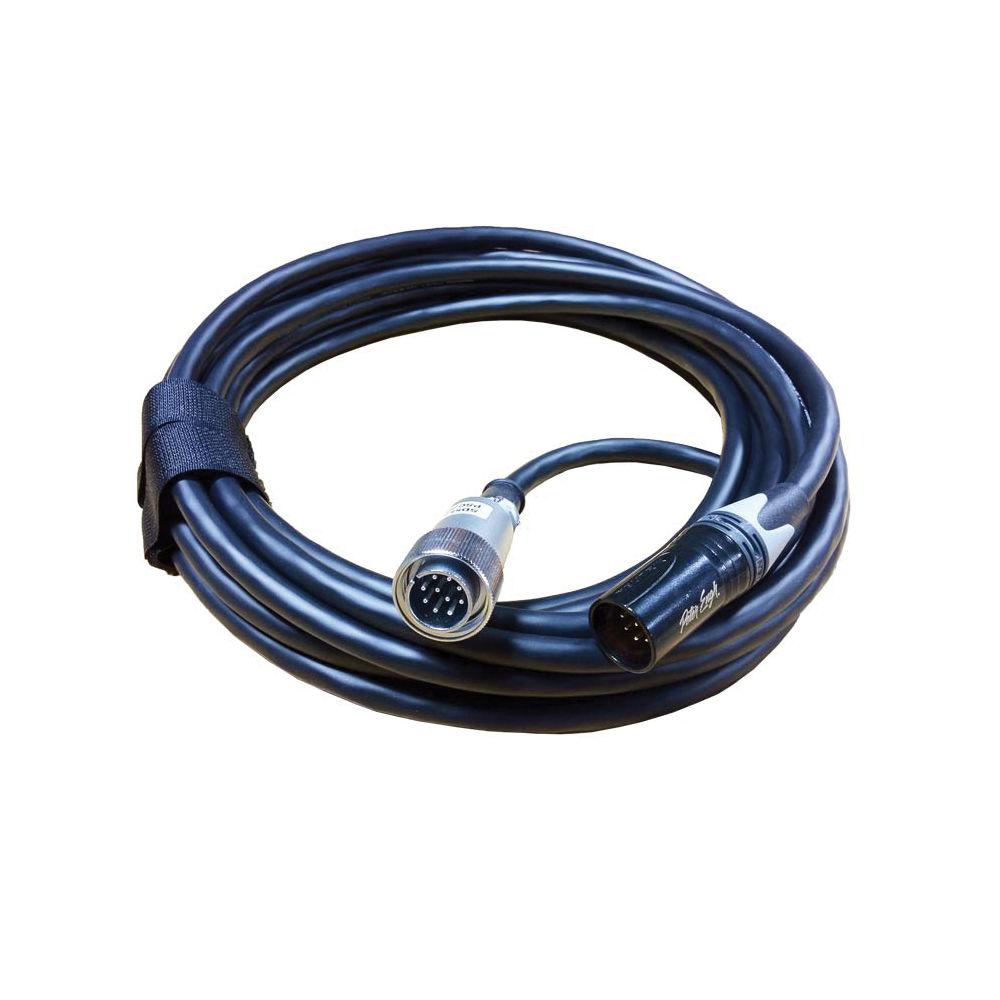

Product description The M3 7-Pin Quick Release 18' Cable Set - Hirose 10-Pin to Sony F5/55 Cameras from Peter Engh consists of two components that provide a quick release cable system for connecting a field mixer's Hirose 10-pin output (such as Sound Devices 664, 552, 442, etc.) to a camera's XLR inputs with a 7-pin connector "break point."

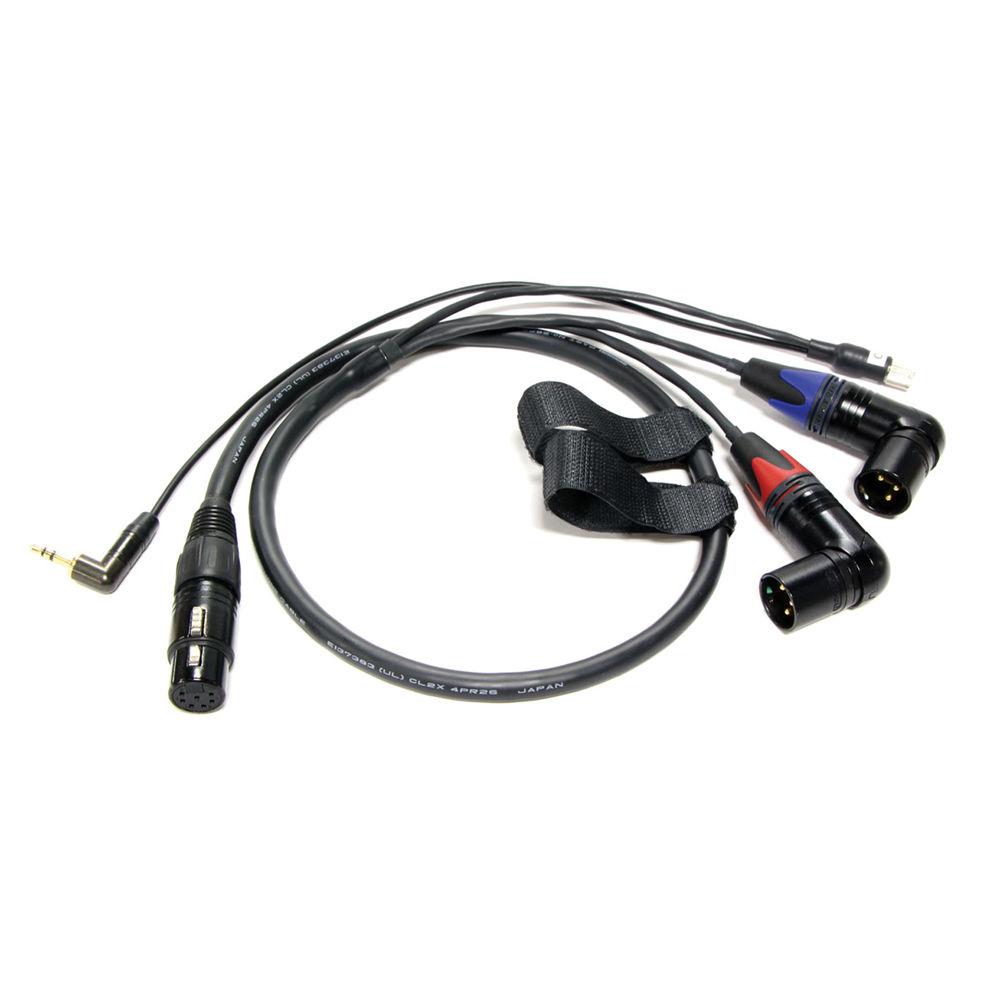

The mixer outs and return monitor are available via the 10-pin Hirose connector, while the camera inputs are two right-angle XLR male connectors. The attached 3.5mm TRS mini stereo jack plugs into the camera headphone jack to send playback audio to the audio mixer and also provides a receptacle for the camera person to plug their headphones in. - Neutrik 7-pin connections on Quick Release points for maximum durability and ease of use
- Allows for the addition of 7-pin extension cables to adapt to all setup challenges
- Ultra-tough, Mogami 2602 multi-core cable
- Neutrik XX Series XLR connectors
- Black cable, black connector shells with gold pins
In the Box Peter Engh M3 7-Pin Quick Release 18' Cable Set - Hirose 10-Pin to Sony F5/55 Cameras One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peter Engh M3 7-Pin Quick Release 18' Cable Set - Hirose 10-Pin to Sony F5 55 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeter Engh M3 Specs Length | Mixer End 18' (5.5 m) Camera End 33.5" (0.9 m) | Connectors | Mixer End 1 x 10-pin Hirose Male 1 x XLR 7-pin Male Camera End 2 x XLR 3-pin Right-Angle Male 1 x XLR 7-pin Female 1 x 1/8" (3.5 mm) stereo mini Male 1 x 1/8" (3.5 mm) stereo mini Female | | Package Weight | 3.0 lb | Box Dimensions (LxWxH) | 11.0 x 11.0 x 5.0" |
