User Manual for Peter Engh M3 7-Pin Quick Release 18' Cable Set - XLR to Sony F5 55 Cameras

Click to enlarge the picture
Peter Engh M3 7-Pin Quick Release 18 Contents of the user manual for the Peter Engh M3 7-Pin Quick Release
  • Product category: Portable Recorder Accessories Peter Engh
  • Brand: Peter Engh
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Peter Engh Portable Recorder Accessories

Peter Engh M3 7-Pin Quick Release 18 Peter Engh M3 7-Pin Quick Release 18
User manual for the Peter Engh M3 7-Pin Quick Release contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Peter Engh product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Peter Engh user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Peter Engh product will considerably shorten its lifespan!



Product description

The M3 7-Pin Quick Release 18' Cable Set - XLR to Sony F5/55 Cameras from Peter Engh consists of two components that provide a quick release cable system for connecting a field mixer's XLR outputs (Sound Devices 633, 302, MixPre-D, MixPre, Shure FP-33, Wendt X3, Fostex FM-3, FM-4, PSC DV Promix 6, and more) to a camera's XLR inputs using a 7-pin connector "break point."

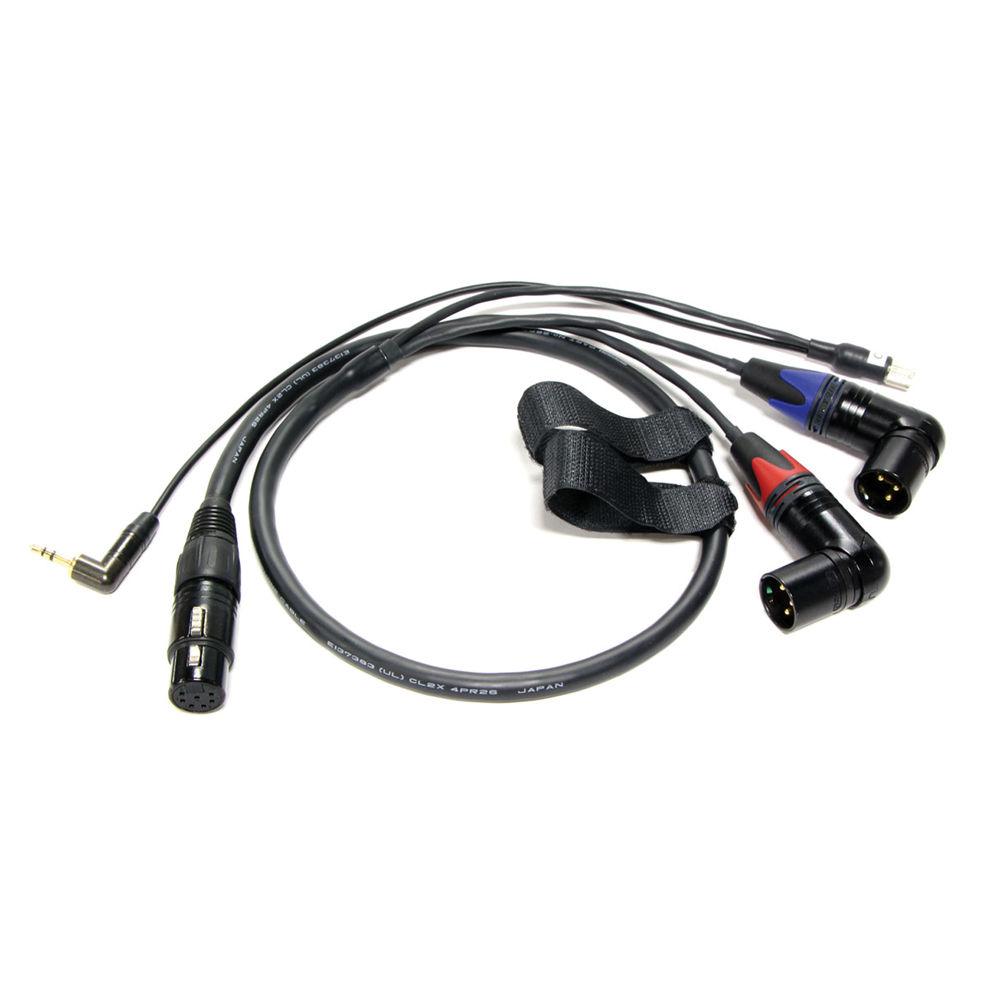

On the mixer end, two 3-pin XLR female connectors take the mixer outputs, while a return monitor is available via a 1/8" (3.5 mm) TRS mini stereo male. On the camera end, audio inputs are handled by two right-angle XLR male connectors. The attached 3.5 mm TRS mini stereo jack plugs into the camera headphone jack to send playback audio to the audio mixer and also provides a receptacle for the camera person to plug their headphones in.
  • Neutrik 7-pin connections on Quick Release points for maximum durability and ease of use
  • Allows for the addition of 7-pin extension cables to adapt to all setup challenges
  • Ultra-tough, Mogami 2602 multi-core cable
  • Neutrik XX Series XLR connectors
  • Black cable, black connector shells with gold pins
  • Handcrafted in USA
In the Box Peter Engh M3 7-Pin Quick Release 18' Cable Set - XLR to Sony F5/55 Cameras
