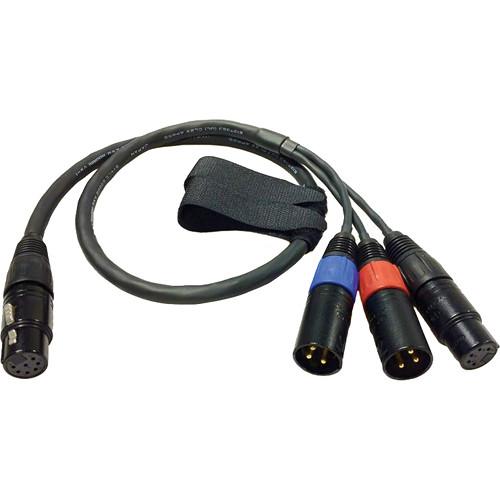

User Manual for Peter Engh M3 Quick Release Digital Camera End - XLR 7-F to Dual XLR 3-M, XLR 5-F Return Send Click to enlarge the picture
Contents of the user manual for the Peter Engh M3 Quick Release Digital
- Product category: Mixer Accessories Peter Engh
- Brand: Peter Engh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peter Engh Mixer Accessories
|
User manual for the Peter Engh M3 Quick Release Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peter Engh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peter Engh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peter Engh product will considerably shorten its lifespan!
|
Product description The M3 Quick Release Digital Camera End - XLR 7-F to Dual XLR 3-M, XLR 5-F Return Send from Peter Engh is a breakaway cable to connect the camera audio inputs to field mixer or recorder outputs using an XLR 7-pin connector "break point." The return monitor is available on an XLR 5-pin Female connector.
The camera end features two XLR 3-pin male connectors that terminate in an XLR 7-pin female connector. Sound monitoring for the camera operator needs to be made from the camera's headphone jack. - Neutrik 7-pin connections on Quick Release points for maximum durability and ease of use
- Allows for the addition of 7-pin extension cables to adapt to all setup challenges
- Ultra-tough, Mogami 2602 multi-core cable
- Neutrik XX Series XLR connectors
- Black cable, black connector shells with gold pins
In the Box Peter Engh M3 Quick Release Digital Camera End - XLR 7-F to Dual XLR 3-M, XLR 5-F Return Send (30.5") One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Peter Engh M3 Quick Release Digital Camera End - XLR 7-F to Dual XLR 3-M, XLR 5-F Return Send in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeter Engh PE-1024 Specs | Length | 30.5" (0.8 m) | | Connectors | 2 x XLR 3-pin Male
1 x XLR 7-pin Female
1 x XLR 5-pin Female | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.0 x 6.0 x 1.0" |
