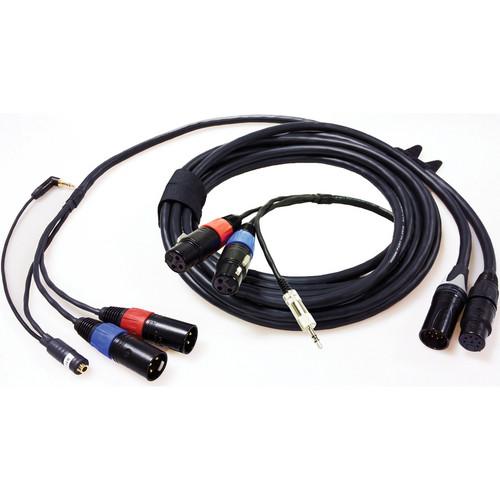

User Manual for Peter Engh PE-1000 M3 7-Pin Quick Release Cable Set Click to enlarge the picture
Contents of the user manual for the Peter Engh PE-1000 M3 7-Pin Quick
- Product category: Mixer Accessories Peter Engh
- Brand: Peter Engh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Peter Engh Mixer Accessories
|
User manual for the Peter Engh PE-1000 M3 7-Pin Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Peter Engh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Peter Engh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Peter Engh product will considerably shorten its lifespan!
|
Product description The Peter Engh PE-1000 M3 7-Pin Quick Release Cable Set is designed to connect field mixer or recorder outputs to camera inputs with a 7-pin connector break point. The cable system also sends a monitor return back to the mixer and most often a courtesy monitor tap for the cameraman. The available mixer ends and camera ends will accommodate almost every professional mixer, recorder, and camera.The Peter Engh M3 7-Pin Quick Release Cable Set is a complete and robust Breakaway cable system. Not only does the system account for sending and receiving audio from a field mixer to a camera, it also allows the integration of Lectrosonics wireless links, extension cables, and most notably the SPILTMON 3 three camera splitter. Each and every cable is meticulously handcrafted to high standards using high-quality components. - XLR-3 to standard camera set
- 18' (2) XLR-3F mixer end and 34" standard camera end
- For Sound Devices 302, MixPre, MixPre-D, Shure FP33, or other field mixer with (2) XLRF 3-pin connectors
- Neutrik 7-pin connections on Quick Release points for maximum durability and ease of use
- Mixer ends, recorder ends, and camera ends to interface with all the most popular equipments
- Allows for the addition of 7-pin extension cables to adapt to all setup challenges
- Allows for 3 camera shoots with transformer isolation, monitor returns, and ground lists with the SPLITMON 3
- Can go wireless with the addition of an RF-2X and RF-2R, 7-pin to Lectrosonics TX and RX
- Ultra-tough, Mogami 2602 multicore cable
- Neutrik XX and X Series XLR connectors
- Black cable, black connector shells with gold pins
- Most common Camera End works with a large variety of cameras
- 34" XLR-7F to (2) XLR 3-pin Male (L/R)
- Attached 3.5mm mini TRS Stereo jack plugs into the camera headphone jack to send playback audio to the audio mixer
- Has a receptacle for the cameraman to plug his headphones in
In the Box Peter Engh PE-1000 M3 7-Pin Quick Release Cable Set Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Peter Engh PE-1000 M3 7-Pin Quick Release Cable Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPeter Engh PE-1000 Specs | Mixer | Output: Via (2) XLR-3F L/R | | Monitor | Return Monitor: Via 3.5 mm TRS straight mini male
Return Monitor Send: 3.5 mm stereo TRS mini male, right angle | | Camera Input | 34" XLR-7F to 2 XLR 3-pin Male [L/R] | | Camera Operator | Listen: Female 3.5 mm Stereo Mini TRS tap | | Length | Mixer End: 18.0' / 5.5 m
Camera End: 34.5" / 87.6 cm | | Dimensions | 10.0 x 12.0 x 1.5" / 254.0 x 304.8 x 38.1 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.0 x 9.0 x 1.5" |
