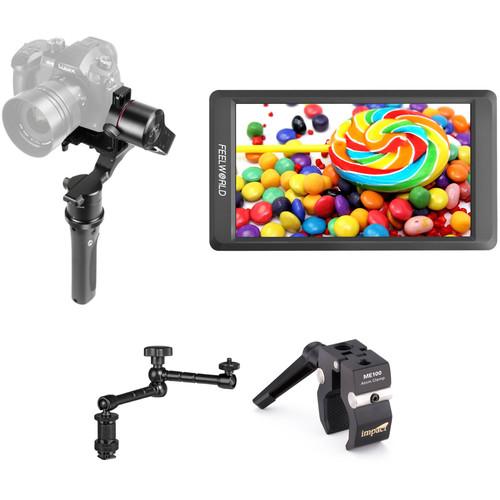

Product description The Pilotfly H2-45 3-Axis Handheld Gimbal Kit with 5.5" Monitor and Arm from B&H allows you to stabilize your mirrorless or DSLR camera while maintaining a watchful eye on your framing. While the H2-45 uses an offset rear motor for rear-screen visibility, this kit includes the FeelWorld FW550 monitor for a clearer view during situations when you can't see the screen. An articulating arm and clamp for securing the monitor to the camera or gimbal are included as well. See below for more information on the individual items included in this kit. - PFY H2-45 3-Axis Handheld Gimbal for Mirrorless and DSLR Cameras
- H2-45 Pilotfly Revolutionary New Gimbal
The H2-45 3-Axis Handheld Gimbal from Pilotfly features a distinctive design that shifts the roll axis 45° downward keeping the gimbal node out of the way of your camera's display. This three-axis gimbal is designed for a DSLR or mirrorless camera, boasting a payload capacity of up to 4.85 lb. The included handgrip features a 4-way joystick for controlling camera movement and integrates a battery lasting up to 26 hours. Three 1/4"-20 sockets mean not only is it great handheld, you can mount the gimbal on pretty much anything you could mount the camera itself on: sliders, extension poles, jibs, and more. - Supports camera payloads up to 4.85 lb
- 45° default angle to ensure camera display stays visible
- 4-way joystick to control panning and tilting
- Three integrated 1/4"-20 sockets for connecting to tripods, extensions poles, and other standard camera support equipment
- Works with separately available two-hand handle and BD-1 battery dock for extended operating time
- CNC aluminum construction and toolless assembly
- Full 360° yaw and roll control
- Roll axis 180° turnable to mount cameras with flip screen
- Supports motion time-lapse implementing all three axes
- Up to 26-hour battery life, depending on usage
- Control with iOS app or separately available Pilotfly Remote Control
- Bluetooth wireless interface
- Adaptive PID-algorithm for preventing vibrations at extreme angles
- ACC low-pass filter to improve stability
- Low-voltage protection for integrated battery
- Audible alerts for low voltage, mode change, and calibration
- iOS, macOS, Windows, and Linux support
- FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor
- H2-45 Pilotfly Revolutionary New Gimbal
Supporting resolutions up to DCI and UHD 4K, the FeelWorld F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor features a native display resolution of 1920 x 1080. It can display 1080p signals without scaling, while it scales higher and lower resolution content to fit the screen. The IPS screen allows for off-axis viewing of 80° up/down/left/right, and it features a brightness of 450 cd/m² with a contrast ratio of 1000:1. The monitor incorporates a dedicated HDMI input and dedicated HDMI output. The F550 packs many useful functions into its small size, including peaking, zoom, and 1:1-pixel mapping, anamorphic de-squeeze, frame lines, markers, and image flip. Rounding out the internal feature set are the exposure functions which include histogram, false color, and zebras. Included with the monitor are a Mini HDMI to HDMI cable, sunshade, shoe mount, and L-Series battery plate. - Monitoring Tools
-
- Histogram
- Audio level meters
- Focus peaking
- False color
- Zebras (0-100 IRE selectable)
- R/G/B-only and luma-only modes
- Over/underscan
- 4, 9 and 16x zoom
- Anamorphic de-squeeze
- Image flip
- Nine-grid zoom-in
- 1:1-pixel mapping
- Frame markers
UPC: 815206022783 - Pearstone 11" Articulating Arm
- H2-45 Pilotfly Revolutionary New Gimbal
The Pearstone 11" Articulating Arm is an arm used to mount small displays on prosumer and professional camcorders. The arm's unique design features a single-point locking mechanism, which gives the user maximum flexibility. Moving the display on multiple axes is quick and easy, allowing users to find the best possible viewing angle. In addition, the bottom verticle spacer piece is removeable to reveal a 1/4"-20 male screw, and the bottom shoe mount is removeable to reveal a 1/4"-20 female thread. The full length of this arm (tip-to-tip) measures 11", and the usable extension range (end-joint to end-joint) measures 8.3". - Maximum mounting flexibility
- Single point locking mechanism
- Fits on any standard shoe mount
UPC: 847628015005 - Impact Atom Clamp with Ratchet Handle
- H2-45 Pilotfly Revolutionary New Gimbal
The Impact Atom Clamp is a smaller version of the popular Impact Super Clamp. Weighing in at a mere 4.0 oz, the Atom Clamp can support a payload of over 15 lb. This, and the fact that it comes with 1/4"-20 and 3/8" female sockets, makes it ideal for use with most standard camera and grip accessories. It's ideal for small sets or tabletop photography. The Atom Clamp is made of lightweight aluminum and features a textured, non-slip jaw grip that is optimized to work with poles or flat objects. - Light and compact enough to carry around in your jacket pocket or camera bag
UPC: 847628540248 In the Box - H2-45 3-Axis Handheld Gimbal for Mirrorless and DSLR Cameras tsxxqvcyzzxdf
- Adapter Plate
- Universal AC Adapter
- USB Cable
- Mini Tripod
- Carrying Case
- FeelWorld - F550 5.5" IPS 1920 x 1080 Full HD 4K HDMI On-Camera LCD Monitor
- Pearstone - 11" Articulating Arm
- Impact - Atom Clamp with Ratchet Handle
Table of Contents
|
Upload User Manual
Have you got an user manual for the PFY H2-45 3-Axis Handheld Gimbal Kit with 5.5" Monitor and Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PFY H2-45 3-Axis Handheld Gimbal for Mirrorless and DSLR Cameras
| Number of Axes | 3-Axis | Rotation Range | Roll: 360
