User Manual for PFY H2 Professional Kit Click to enlarge the picture
Contents of the user manual for the PFY H2 Professional Kit
- Product category: See All Gimbal Stabilizers PFY
- Brand: PFY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PFY See All Gimbal Stabilizers
 |
User manual for the PFY H2 Professional Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PFY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PFY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PFY product will considerably shorten its lifespan!
|

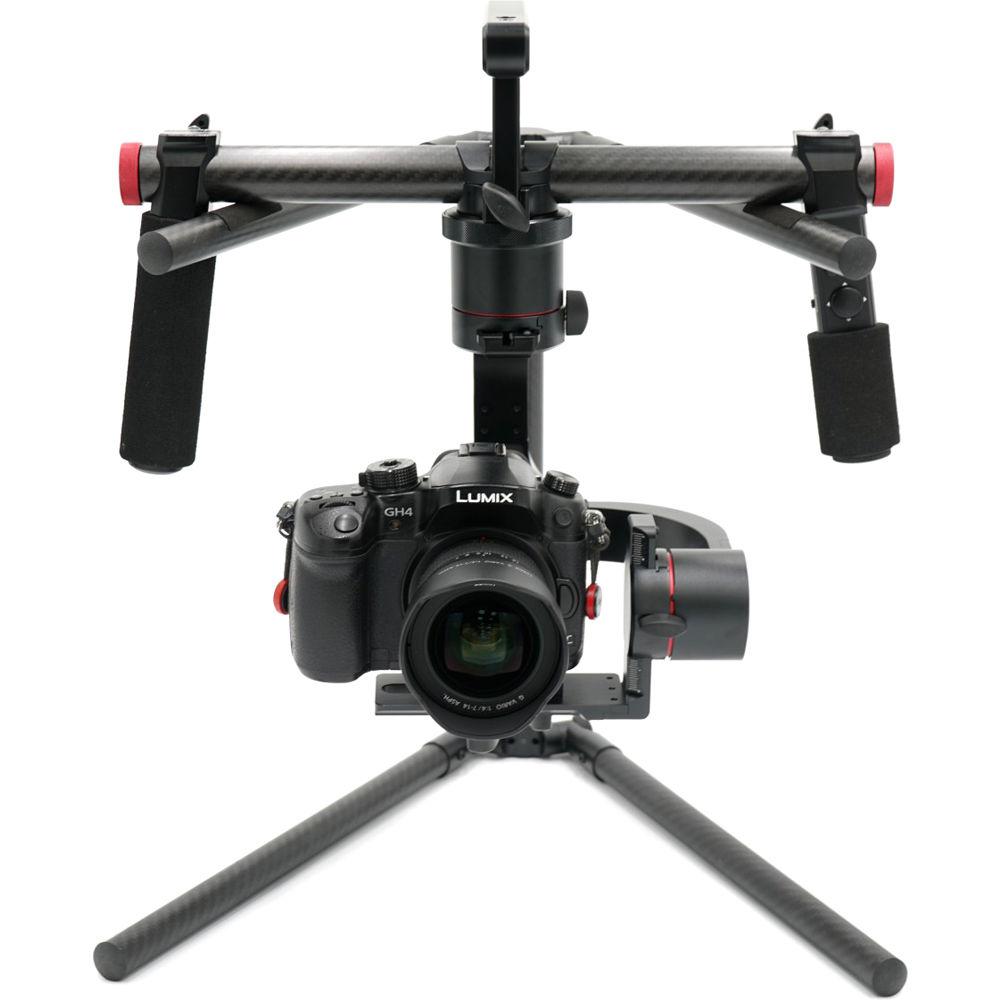

Product description The Pilotfly H2 Professional Kit includes the H2 3-Axis Handheld Gimbal Stabilizer, Two-Hand Holder, and Tuning Stand for T1 / H2 Gimbal.
Capture stabilized handheld video footage with the H2 3-Axis Handheld Gimbal Stabilizer. It supports mirrorless and DSLR cameras weighing up to 4.9 lb and delivers 3 axes of stabilization. The handle features an ergonomic design and a four-way joystick that provides for optimal motion control. A Li-Po battery is integrated into the handle that provides an operational runtime of up to 26 hours.
The Two-Hand Holder allows two-hand control with the Pilotfly H2 and Pilotfly T1 gimbal stabilizers. Made of carbon fiber and CNC aluminum and weighing only 1 lb, the Two-Hand Holder is a lightweight addition, and it provides a 4-way joystick for better control of pitch and yaw axes. The Tuning Stand is designed for use with T1 / H2 Gimbals. - H2 3-Axis Handheld Gimbal Stabilizer Capture stabilized handheld video footage with the H2 3-Axis Handheld Gimbal Stabilizer from Pilotfly. It supports mirrorless and DSLR cameras weighing up to 4.9 lb and delivers 3 axes of stabilization. The handle features an ergonomic design and a four-way joystick that provides for optimal motion control. A Li-Po battery is integrated into the handle that provides an operational runtime of up to 26 hours.
Using a 32-bit Alexmos controller with triple motor control units and two integrated IMU sensors, the H2 offers 360° of unrestricted panning, 220° of up tilt and 100° of down tilt, and 100° of left roll and 240° of right roll, all with 0.01 to 0.04° of control precision.
The camera mounting assembly of the H2 offers multiple points of adjustment to allow you to find the center of gravity for all axes. The camera adapter plate is also left/right adjustable to support different cameras. All adjustments are done without tools but rather using thumbscrews and push buttons.
The H2 also offers two 1/4"-20 threaded mounting holes on the sides (on one each side) for attaching accessories and one on the bottom for mounting on tripods, monopods, and other support devices.
The H2 also boasts superior construction, with the three axes made of CNC-machined aluminum alloy. - Key Features
-
- Capture smooth and stable shots with DSLRs and cameras up to 4.9 lb
- 32-bit Alexmos controller with triple-MCUs and dual IMU sensors
- High payload motors with integrated encoders
- 4-way joystick
- 360° of unrestricted panning
- 220° of up tilt and 100° of down tilt
- 100° of left roll and 240° of right roll
- Control precision of 0.01 to 0.04°
- Five pre-configured profiles (Follow Mode / Pitch Lock / Full Lock /Follow Roll / Home Move)
- Auto-Invert mode applicable to all profiles
- Adaptive PID-algorithm for preventing vibrations at big angles
- ACC low-pass filter for improved stability
- 26 hour runtime battery with low-voltage protection
- Accessory and tripod mounting threads
- Tool-less adjustment at multiple points for COG
- Quick-release plate included
- Detachable handle
- Status LED for power and battery level
- Integrated Bluetooth module allows for remote control with Android app

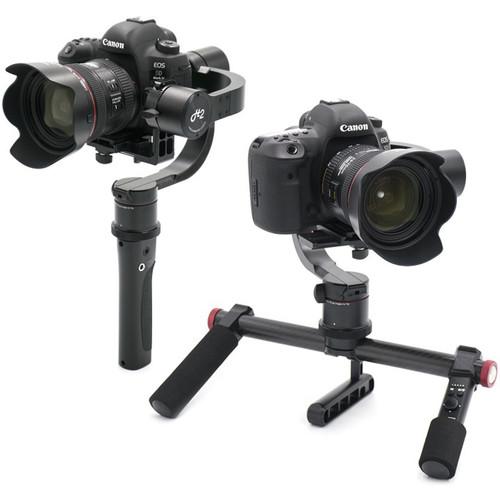

Two-Hand Holder for H2 and T1 Gimbal Stabilizers The Pilotfly Two-Hand Holder allows two-hand control with the Pilotfly H2 and T1 gimbal stabilizers. Made of carbon fiber and CNC Machined aluminum, and weighing just 1 lb, the Two-Hand Holder is a lightweight addition that provides a four-way joystick for better control of pitch and yaw axes.
The Two-Hand Holder attaches to your gimbal quickly without any tools, and operates wirelessly over Bluetooth 4.0. It's powered by four included batteries that insert into an integrated compartment, and comes with a four-bay charger for the batteries. The Two-Hand Holder also features a top handle with a 1/4"-20 threaded mounting hole where you can additionally attach a monitor or mic. - Key Features
-
- Allows for two-hand control with the Pilotfly H2 and T1 gimbal stabilizers
- 4-way joystick for pitch and yaw axes
- Underslung, Upright, and Briefcase modes
- Mode button for selecting profiles and initializing gyro calibration
- Top handle with 1/4"-20 threaded hole supporting monitors, microphones, and other accessories
- Tool-less attachment
- Operates over Bluetooth 4.0
- Powered by four included batteries
- Four-bay charger included
- Made of lightweight carbon fiber and CNC aluminum

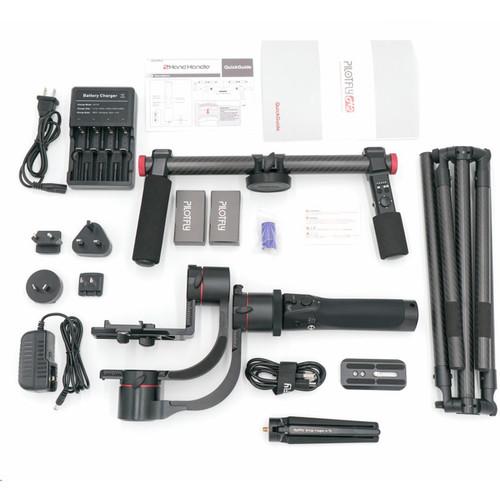

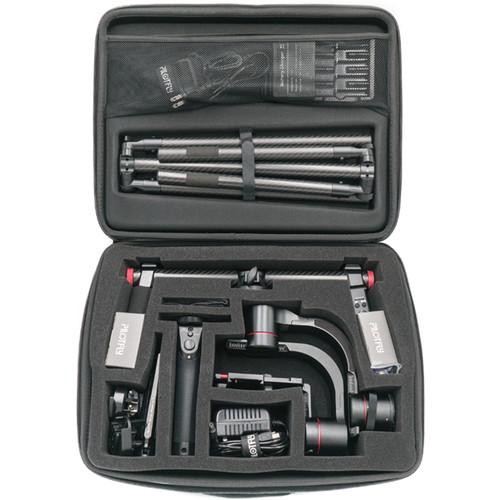

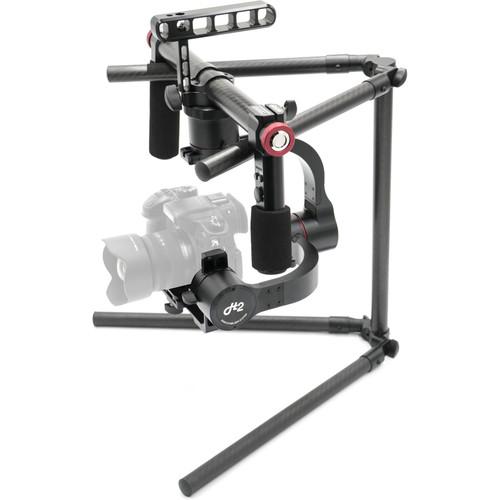

Tuning Stand Use the Pilotfly Tuning Stand to more easily balance your T1 or H2 gimbal (in 2-handed mode). It also functions as a stand for when you're taking a break during a shoot. The aluminum and carbon fiber design keeps the stand light yet rigid while the ability to fold the stand ensures that it's easy to pack away for storage and transport. In the Box Bundle Items H2 3-Axis Handheld Gimbal Stabilizer tfsryaxqwxfw - Universal Power Adapter (16.8V 1000mA / 100 to 240V)
- Quick Release Adapter Plate
Two-Hand Holder for H2 and T1 Gimbal Stabilizers - 18350 Li-Ion Battery for Bluetooth Module
Tuning Stand
Also Includes Setup and Troubleshoot PDF 99.3kbtfsryaxqwxfw Table of Contents
|
Upload User Manual
Have you got an user manual for the PFY H2 Professional Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - H2 3-Axis Handheld Gimbal Stabilizer
| | | Number of Axes | 3-Axis | | Rotation Range | Yaw (Pan): 360
