User Manual for PFY Maverick 3-Axis Handheld Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the PFY Maverick 3-Axis Handheld Gimbal Stabilizer
- Product category: Gimbal Stabilizers PFY
- Brand: PFY
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PFY Gimbal Stabilizers
 |
User manual for the PFY Maverick 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PFY product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PFY user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PFY product will considerably shorten its lifespan!
|
Product description - PFY - MAVERICK - NEW 3 Axis Gimbal for Mirrorless and DSLR Cameras
- Maverick - Tutorial 1- Hardware Introduction
- PILOTFLY (PFY) - Maverick - Tutorial 2- Function Introduction

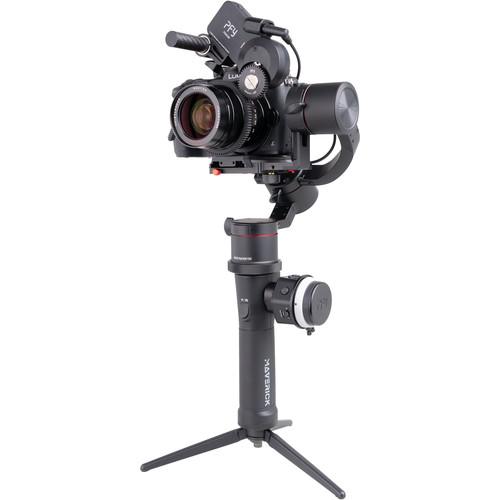

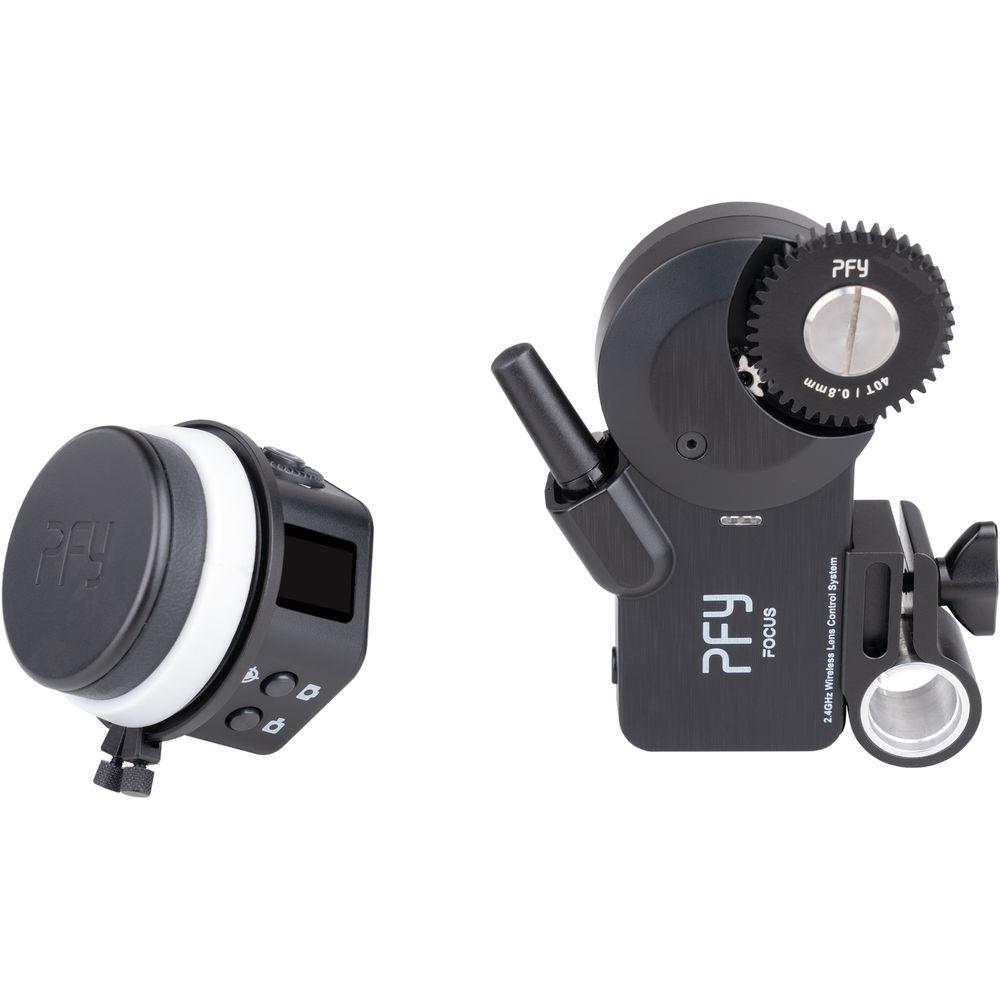

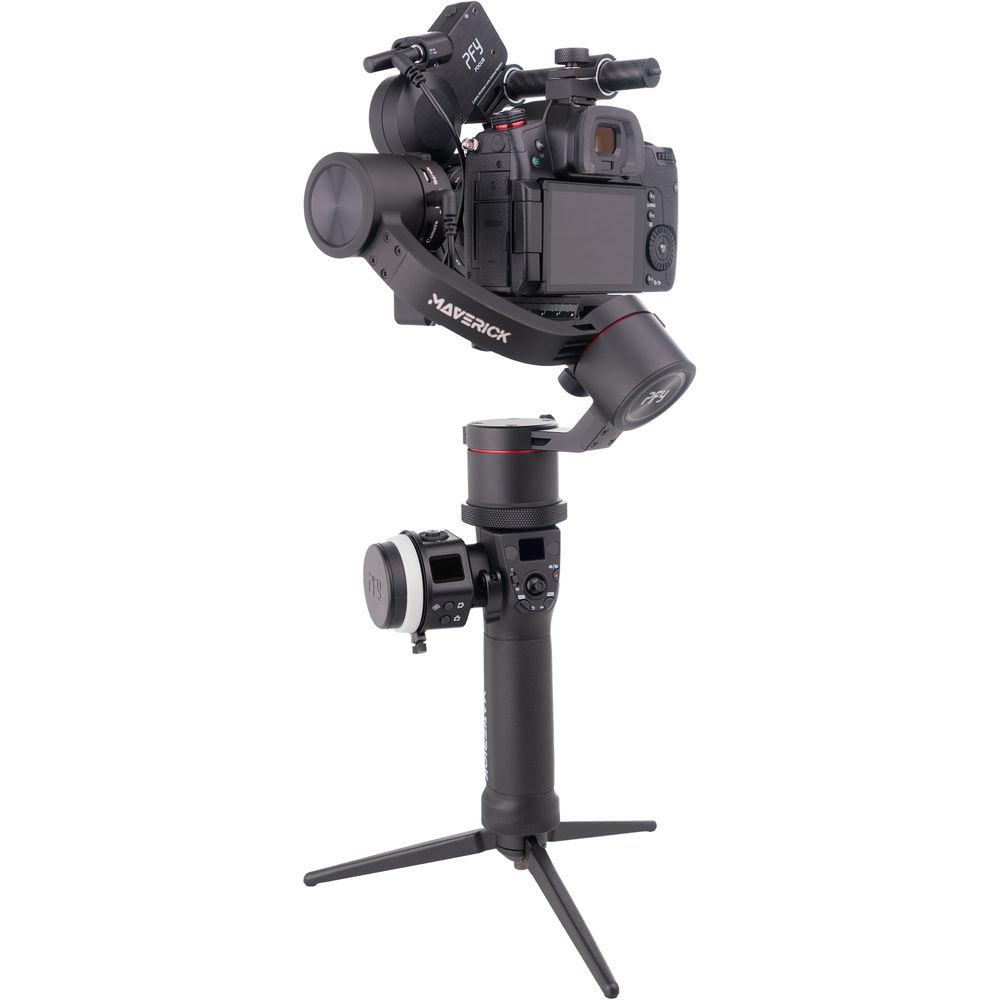

On the heels of their advanced H2-45 and Adventurer gimbals, Pilotfly GmbH has designed the Maverick 3-Axis Handheld Gimbal Stabilizer, under the brand name PFY, with a much higher 9 lb weight capacity while making it one of the lightest gimbals in its class, at only 2.2 lb with a battery included. In addition to several other new features, the Maverick comes complete with a cutting-edge follow focus system consisting of a 15mm rod-mount focus motor and a compact 2.4 GHz Wi-Fi-enabled transmitter.

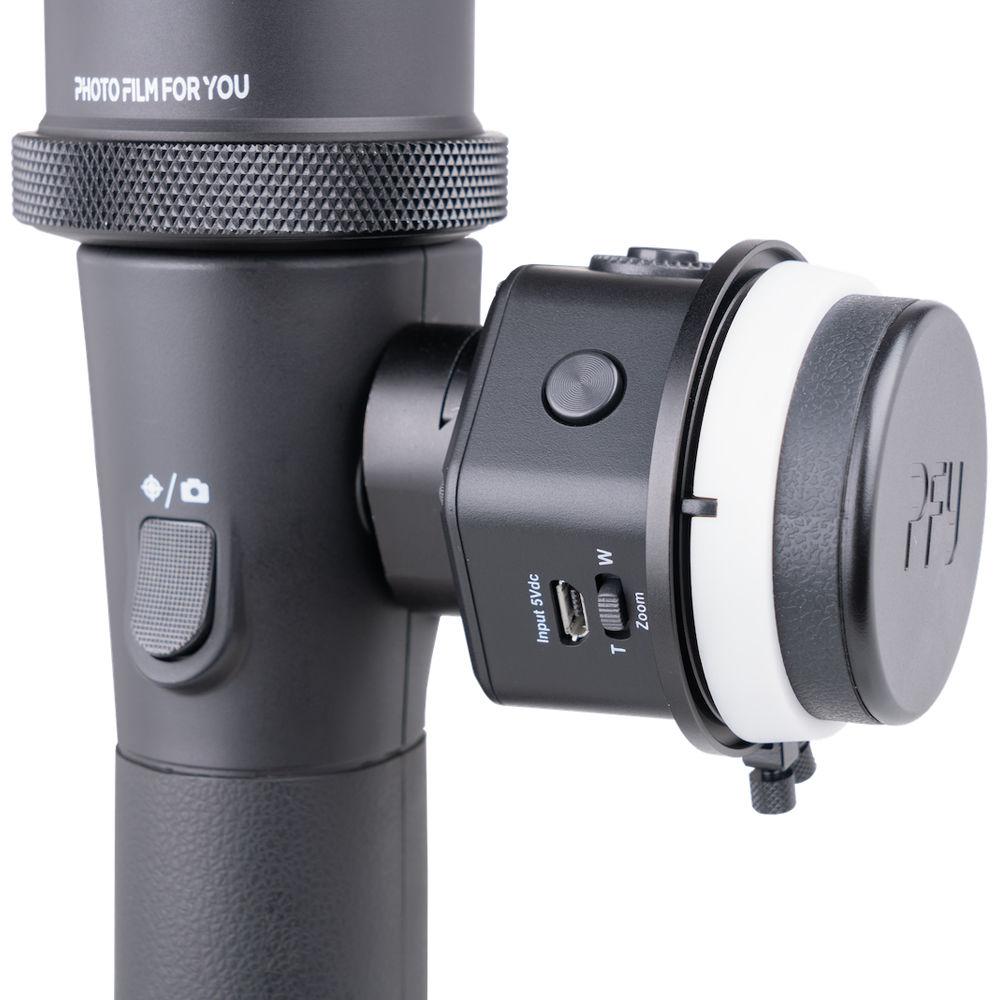

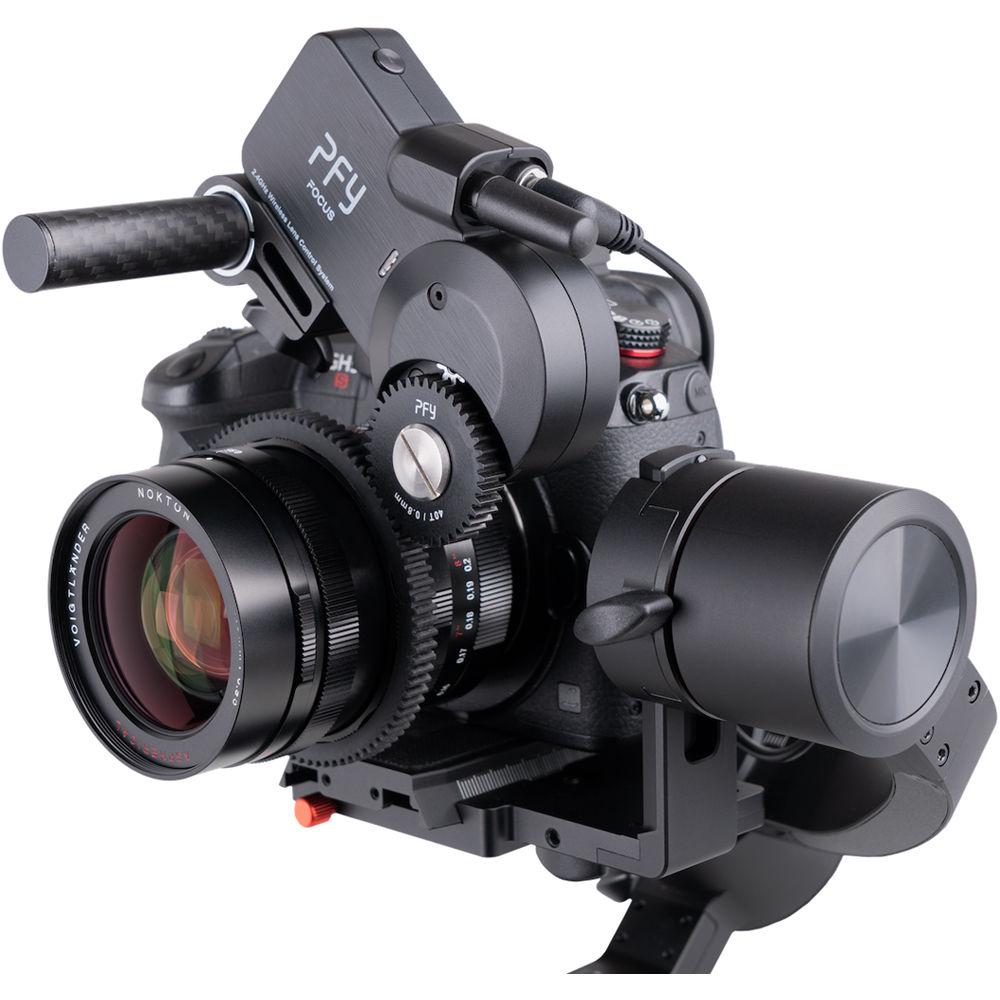

The transmitter can be mounted right on the side of the gimbal and used from there, or you can use it from up to 164' away to pull focus. The transmitter features an OLED screen that shows focus points A through D and displays status parameters. It includes a removable glow-in-the-dark marking disk where you can mark your focus points and see them in pretty much any lighting conditions. And it has buttons for remotely snapping photos, triggering record start/stop, and controlling zoom in/out on motorized lenses. The focus system has an integrated battery that provides a 10-hour runtime, which matches up closely to the Maverick's 12-hour runtime off an included removable battery.

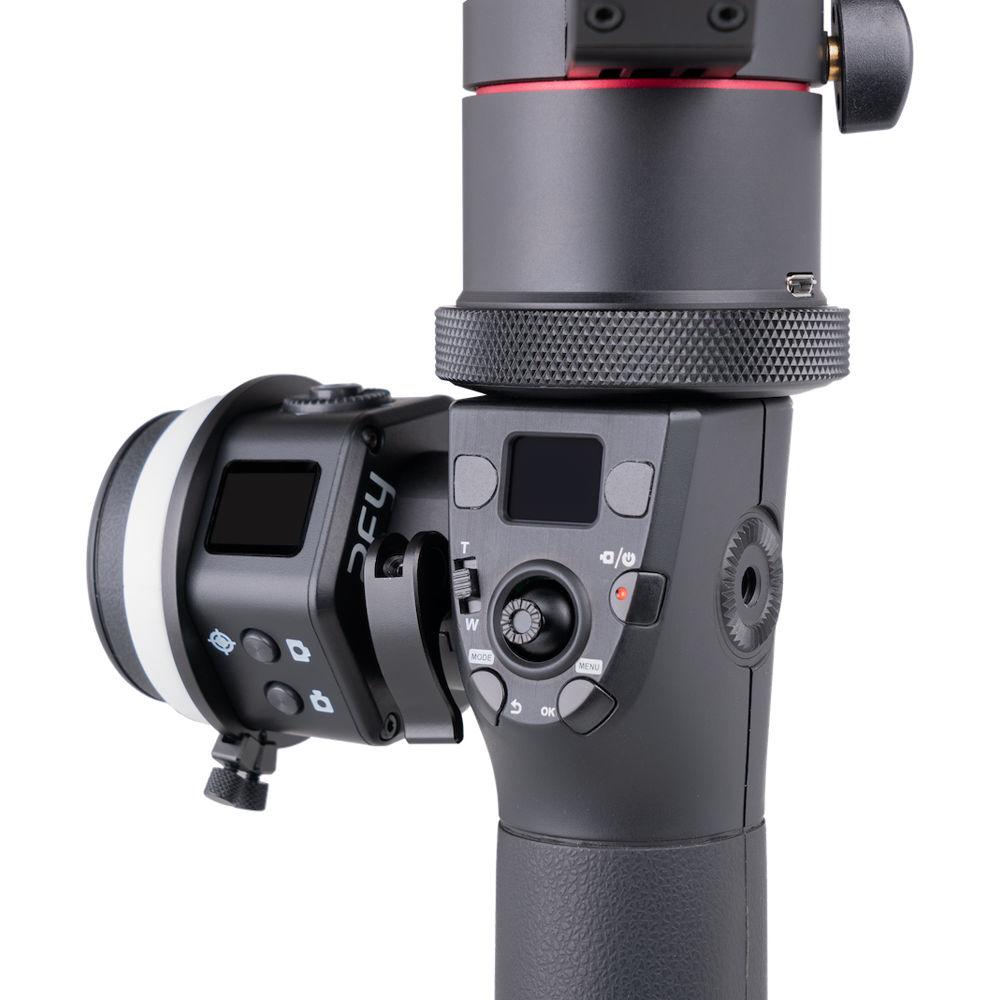

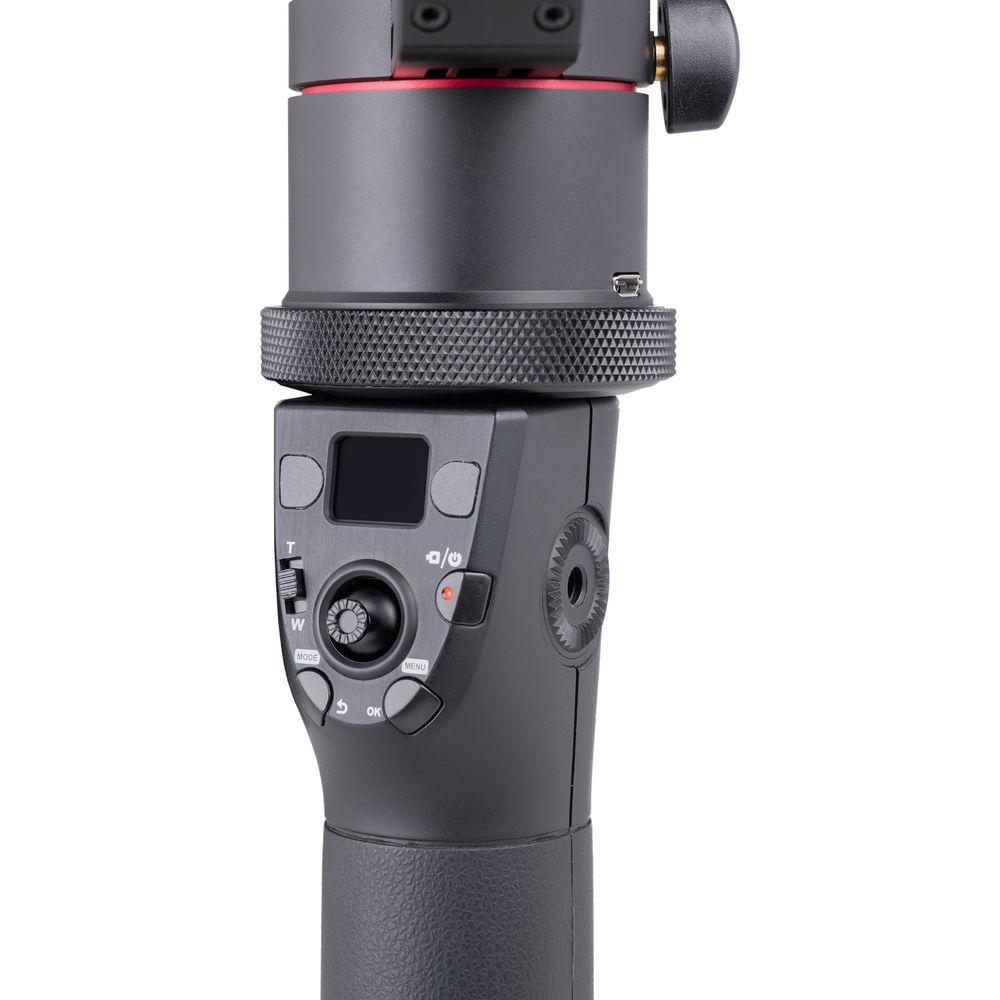

Pilotfly GmbH was one of the first to adopt an angled motor arm in their previous gimbals to provide a clear view of the camera LCD, and that's still the case with the Maverick. Other new features include increased motion accuracy through full 360° rotation on all three axes thanks to new 12-bit digital position encoders on each axis. Onboard controls include a high-precision 5-way joystick, an ergonomic zoom rocker, a record start/stop button, and a photo capture button. There's also an OLED screen on the handle. To change the gimbal's follow mode speed or joystick parameters, you no longer need to use a software but rather just use the onboard controls and OLED screen on the fly.

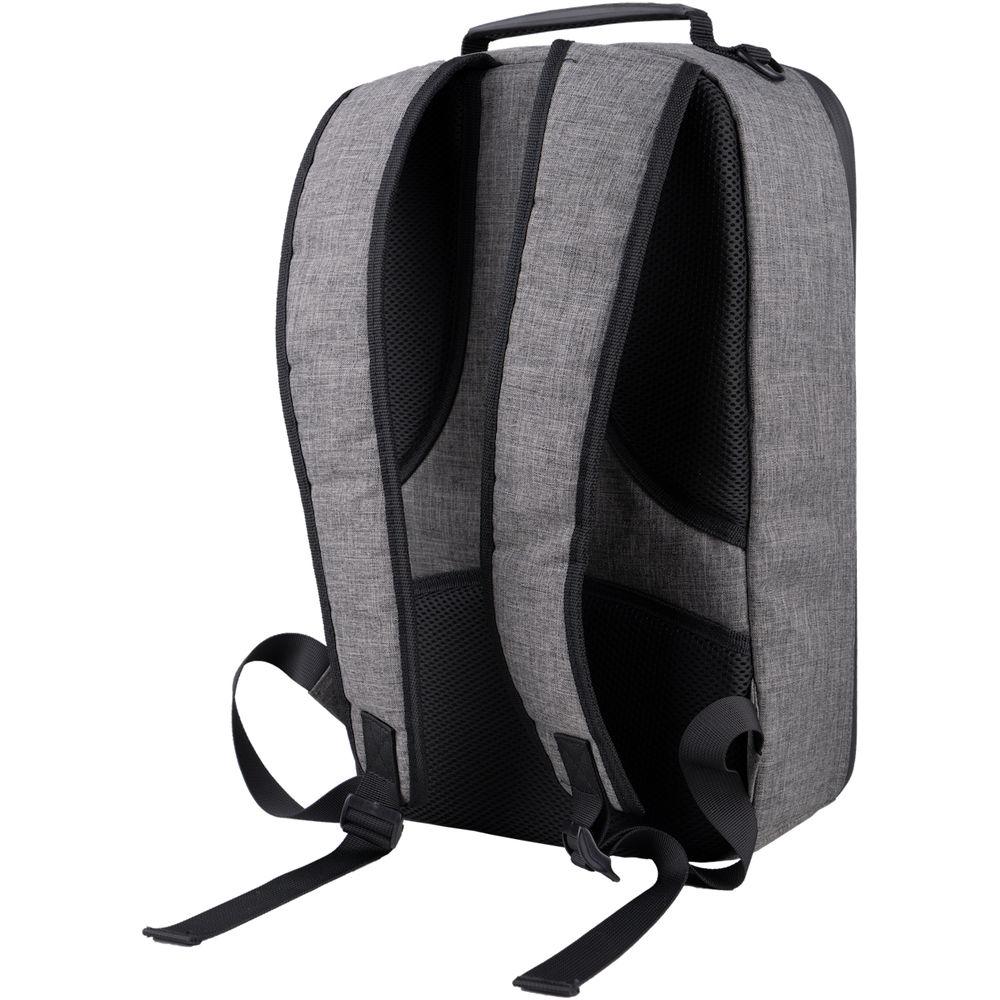

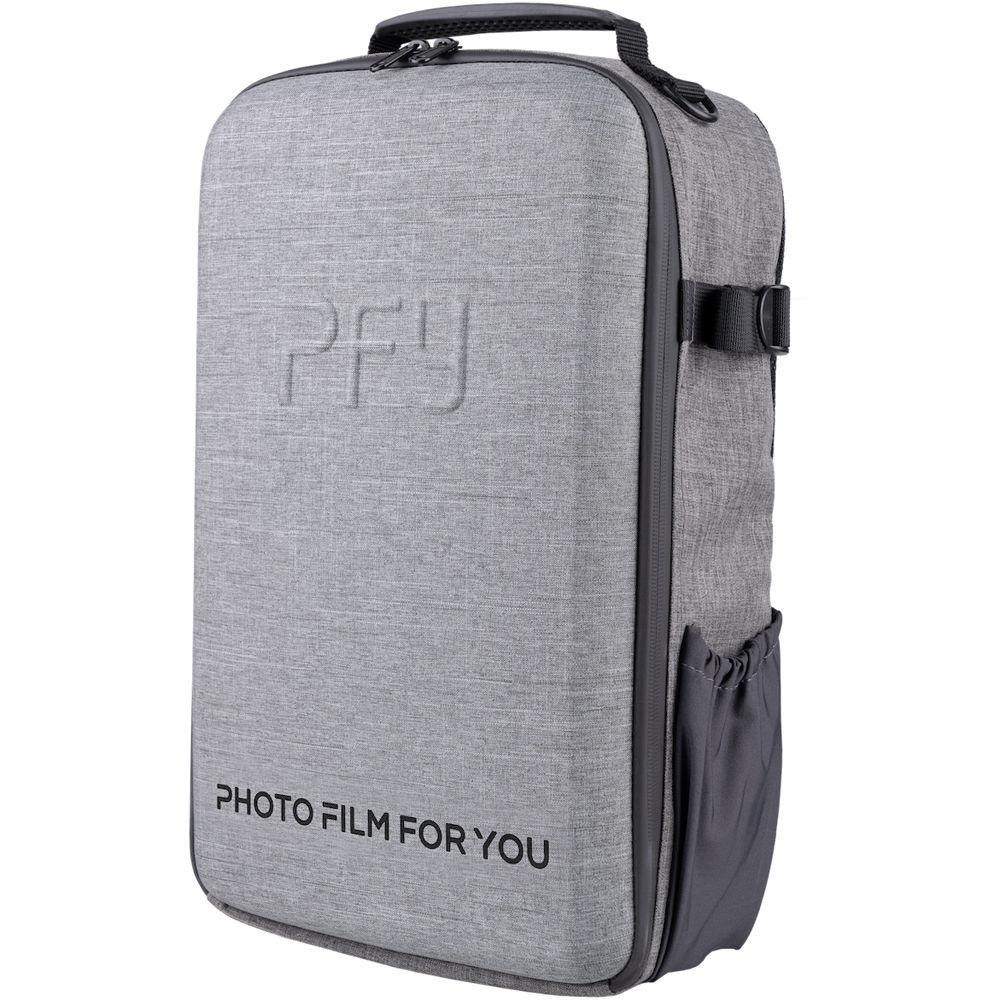

To let you carry everything securely, PFY includes a water-repellent backpack that fits the Maverick, follow focus, cables, chargers, batteries, and your camera. - Key Features
-
- 9 lb weight capacity
- Weighs only 2.2 lb with a battery included
- Rod-mount focus motor and 164' wireless follow focus transmitter with a glow-in-the-dark marking disk, start/stop record trigger and other controls, and an OLED screen that displays focus points A-D (the transmitter can also be used attached on the side of the gimbal)

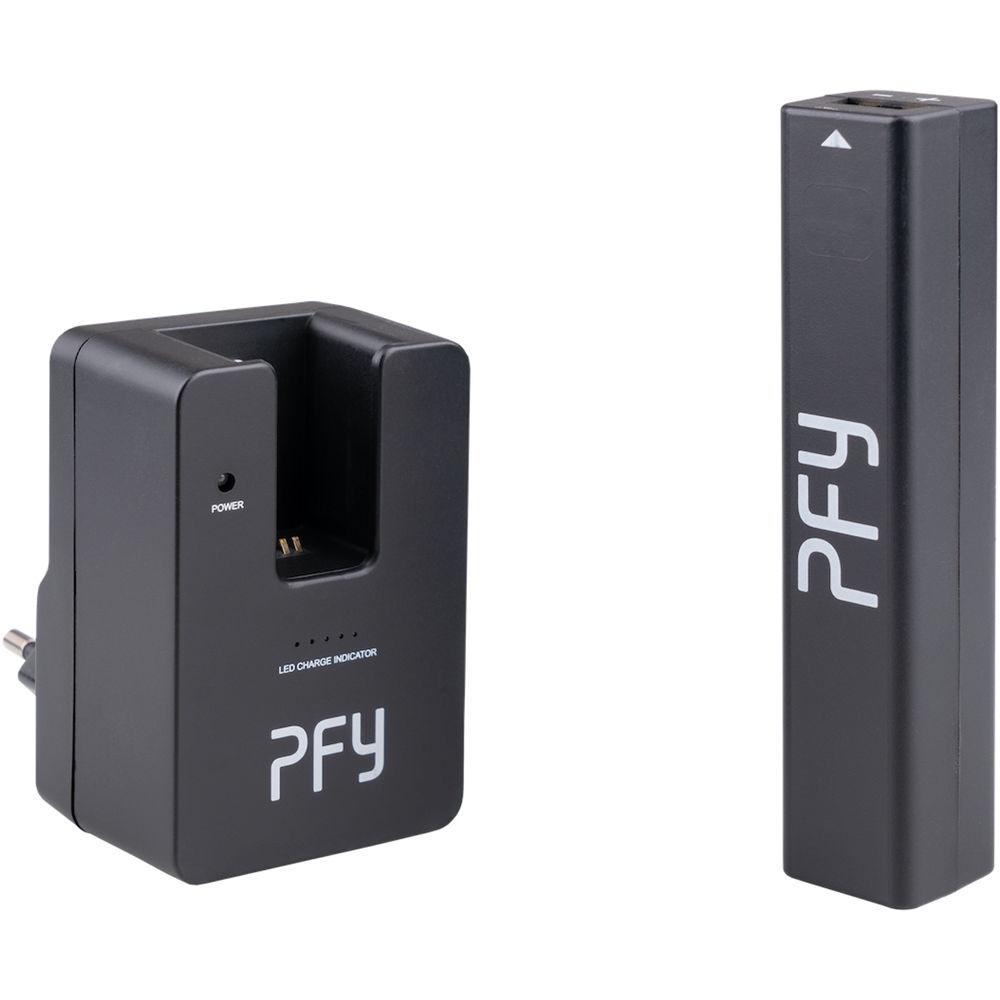

- 12-hour runtime off an interchangeable battery
- 360° pan, tilt, and roll rotation with increased motion accuracy thanks to 12-bit digital position encoders on each axis
- Angled motor arm
- High-precision 5-way joystick
- Ergonomic zoom rocker
- Record start/stop button
- Photo capture button
- OLED screen on the handle
- Onboard follow mode speed and joystick parameter adjustment
- Includes a water-repellent backpack that fits the Maverick, follow focus, cables, chargers, batteries, and your camera
UPC: 725984249602 In the Box PFY Maverick 3-Axis Handheld Gimbal Stabilizer Follow Focus Transmitter Follow Focus Motor Set of Power Cables Battery Mini Tripod Adapter Plate Camera Control Cable (Sony, Canon, Panasonic) Quick Release System for Handle 15mm Shoe Mount 15mm Carbon Fiber Rod Water-Repellent Backpack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PFY Maverick 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPFY Maverick Specs | Weight Capacity | 9 lb / 4 kg | | Rotation | Pan: 360°
Tilt: 360°
Roll: 360° | | Runtime | Gimbal: 12 Hours
Follow Focus Transmitter: 10 Hours | | Follow Focus Transmission | Up to 164' / 50 m over 2.4 GHz Wi-Fi | | Display Type | Gimbal Handle/Follow Focus Transmitter: OLED | | Material of Construction | Aluminum | | Weight | 2.2 lb / 1 kg (with Battery) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
