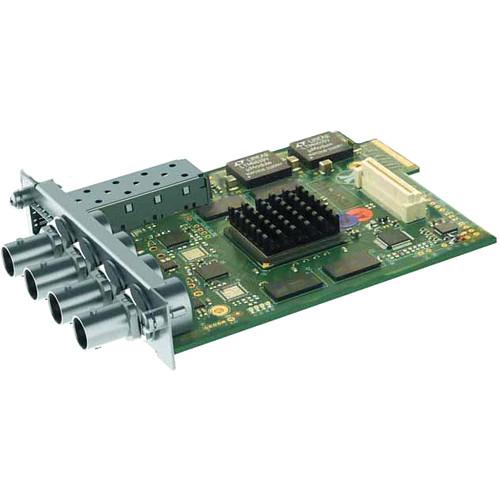

User Manual for PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments Click to enlarge the picture
Contents of the user manual for the PHABRIX Analyzer & Generator Module for
- Product category: Signal Measurement PHABRIX
- Brand: PHABRIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PHABRIX Signal Measurement
|
User manual for the PHABRIX Analyzer & Generator Module for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PHABRIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PHABRIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PHABRIX product will considerably shorten its lifespan!
|
Product description The Leader PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments allows a single connected SDI or an optical video signal to be monitored continuously, and allows the generation of a single SDI video test signal. The analyzer functionality allows 2 concurrently connected SD-SDI or HD-SDI inputs to be monitored in the form of a picture, vectorscope, and waveform monitor. 16 channels of embedded audio can also be monitored and the levels can be inspected.This module provides a single video/audio signal generator that can be set to any one of 32, 10-bit (12-bit with 3G-SDI & Advanced Formats PHRXO-3G; sold seperately) line-based, pathological, or zone plate test signals as well as user-defined test signals. Audio test signals include 17 fixed test tones (100 Hz to 20 kHz), variable test tones (1 Hz to 24 kHz in 1 Hz steps), intermittent tone, or white noise that can be applied in audio levels from 0 to -100 dB in 1 dB steps. - Compatible with the Rx2000, Rx1000, and Rx500 instruments
- Intermittent tone and white noise generation
In the Box PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PHABRIX Analyzer & Generator Module for Rx Series T&M Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPHABRIX PHRXM-AG Specs | Inputs | Analyzer SDI Input
Label: SDI ANA IN
Supported Standards: SD-SDI, HD-SDI
Connector: BNC
Input Return Loss: Better than 15 dB (5 to 1,485 MHz) and 10 dB (1,485 to 2,970 MHz)
Maximum Input Voltage: +/- 2 V
Analyzer Optical Input
Label: SDI ANA OUT for optical video / audio input
Specification: SMPTE 424M, 292M, and 259M
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG sold seperately) | | Output | Analyzer SDI Output
Label: SDI ANA out for loop through of SDI ANA in
Connector: BNC
Output Impedance 75Ω terminated
Generator SDI Outputs
Label: SDI GEN OUT for generator output
Supported Standards: SD-SDI or HD-SDI
Connector: 2 x BNC
Level: +/- 400 mV
Generator Optical
Label: OPTICAL GEN for optical video/audio output
Type: SFP Optical single RX/TX module (option PHRXM-OPTAG, sold separately)
Specifications: SMPTE 424M, 292M, and 259M | | Test Signals | Video
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, and BMP
Audio
Fixed tones: 17
Variable Tones: 1 Hz to 24 kHz in 1 Hz steps
Audio Levels: Variable 0 to -100 dB in 1 dB steps | | Compatible With | Rx2000, Rx1000, and Rx500 instruments |
