User Manual for PHABRIX Dolby E Analysis Option for Phabrix PHRXM-AE, AEE, AGE Module Click to enlarge the picture
Contents of the user manual for the PHABRIX Dolby E Analysis Option for
- Product category: Signal Measurement PHABRIX
- Brand: PHABRIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PHABRIX Signal Measurement
|
User manual for the PHABRIX Dolby E Analysis Option for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PHABRIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PHABRIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PHABRIX product will considerably shorten its lifespan!
|

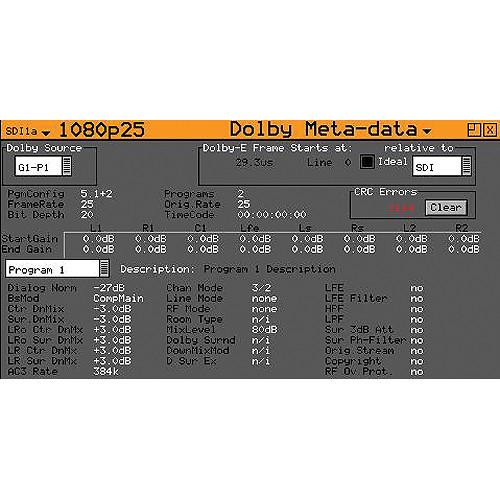

Product description The Leader Dolby E Analysis Option for Phabrix PHRXM-AE, AEE, AGE Module displays Dolby E metadata present in a selected audio stream and determines whether the Dolby-E packet is timed correctly on the SDI video stream. The Dolby-E may be monitored from any of the SDI input embedded audio channel pairs or the AES input. Peak audio levels metering is also displayed. Dolby E is an audio encoding and decoding technology that allows up to 8 channels of audio (mono, stereo, 5.1 or 7.1) for a primary program and optional ancillary programs. The 8 channels are compressed into a digital stream that can be transferred between compatible devices and stored on a standard stereo pair of audio tracks. The most elaborate mode in common use is Dolby 7.1 which uses all eight channels to provide surround sound. The Dolby E option enables checks to ensure that Dolby E has been created correctly and transferred transparently through the broadcast chain unaffected by routers/switchers, satellite links.The metadata screen carries primary information including signal source, Dolby E ‘guard band’ timing, CRC errors, program channel and metadata detail. Peak audio levels included in the Dolby-E meta data packet are displayed allowing the user to select the appropriate set of meters to display Dolby levels which will follow the selected Dolby E source. Logging for Dolby errors, timing, common metadata and program metadata can also be setup. Dolby E errors can be captured in the error log to allow analysis of the live data stream. - Used with Phabrix PHRXM-AE, AEE, AGE modules and RX2000, RX1000, RX500 instrument chassis
- Color coded intelligent metadata viewer
- Logging of CRC errors, guard band timing, common and program metadata
- Operates with all SD/HD and 3G video standards
