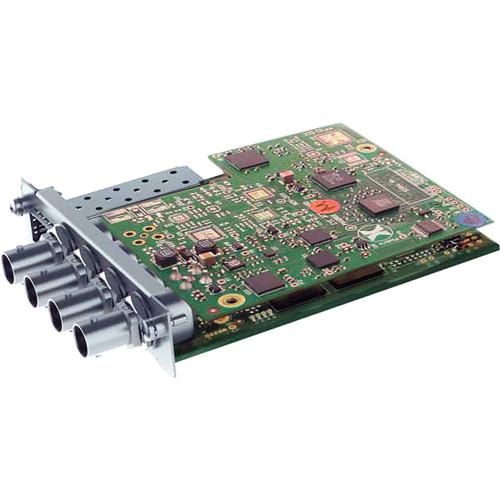

User Manual for PHABRIX PHRXM-AE Analyzer Module with Eye Jitter for Rx Series T&M Instruments Click to enlarge the picture
Contents of the user manual for the PHABRIX PHRXM-AE Analyzer Module with Eye
- Product category: Signal Measurement PHABRIX
- Brand: PHABRIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PHABRIX Signal Measurement
|
User manual for the PHABRIX PHRXM-AE Analyzer Module with Eye contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PHABRIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PHABRIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PHABRIX product will considerably shorten its lifespan!
|
Product description The PHABRIX PHRXM-AE Analyzer Module with Eye Jitter for Rx Series T&M Instruments from Leader allows a single connected SDI video signal to be monitored continuously and allows the generation of a single SDI video test signal.The analyzer functionality allows 2 connected SD-SDI and HD-SDI inputs to be monitored. The picture viewer gives confidence that the signal is present and is the right feed. The vectorscope allows the color hue, saturation, and phase of the signal to be checked along with the bandwidth of the chrominance in the signal.The waveform monitor allows the levels of the luminance and color components to be checked. The eye and jitter displays allow jitter in the selected input to be monitored. The audio meter allows 16 channels of embedded audio to be monitored and the levels can be inspected. - For use in Input Feed Confidence and Monitoring, and Video and Audio Level Checking
- Compatible with the Rx2000, Rx1000, and Rx500 instruments
In the Box PHABRIX PHRXM-AE Analyzer Module with Eye Jitter for Rx Series T&M Instruments Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PHABRIX PHRXM-AE Analyzer Module with Eye Jitter for Rx Series T&M Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPHABRIX PHRXM-AE Specs | | | Input | Analyzer SDI Label: IN1 and IN2 | | Supported Standards | SD-SDI or HD-SDI | | Connectors | BNC | | Input Impedance | 75 Ω terminated | | Input Return Loss | Better than 15 dB (5 to 1485 MHz) and 10 dB (1485 to 2970 MHz) | | | | Input | Analyzer Optical Label: OPTICAL A and B | | Type | SFP Optical Dual RX Module (Requires option PHRXM-OPTAA, sold separately) | | Format | SMPTE 424M, 292M, and 259M | | Maximum Input Voltage | +/- 2 V | | | | Output | Analyzer SDI Label: LP1 and LP2 for loop through of SDI IN1 and SD1 IN2 | | Connector | BNC | | Output Impedance | 75 Ω terminated | | | | Monitor | Picture Monitor
Aspect Ratio Control: 4:3 or 16:9 (HDMI display only)
Waveform Monitor
Waveform Types: YCbCr, Y, Cb, Cr, GBR, R, G or B
Line Selection: Specific lines or all lines
Audio Monitor: 16 displayed channels, -18 or -20 dB audio scale | | Vectorscope | Graticule: 75 or 100%
Scaling: x1, x2, x5, or x10
Line Selection: Specific lines or all lines | | Eye Pattern Characteristics | Number of Eyes: User selectable
Eye Color: Yellow, green, green + hotspots, blue, blue + hotspots
Histogram Display: Amplitude, time or amplitude + time
Jitter Filters: Timing, alignment, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz | | Jitter Filter | Timing, alignment, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz |
