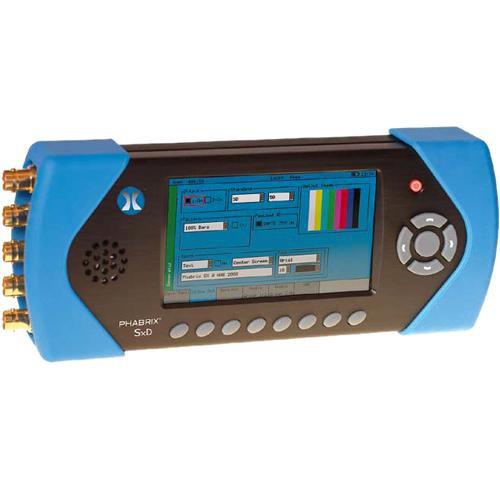

User Manual for PHABRIX SxD 3 in 1 Generator Analyzer Monitor with Dual Link Click to enlarge the picture
Contents of the user manual for the PHABRIX SxD 3 in 1 Generator
- Product category: Test Equipment PHABRIX
- Brand: PHABRIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PHABRIX Test Equipment
|
User manual for the PHABRIX SxD 3 in 1 Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PHABRIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PHABRIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PHABRIX product will considerably shorten its lifespan!
|
Product description The PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link from Leader is designed to meet the specific demands of both broadcast and manufacturing industries with dual-stream requirements. This unit supports 3G-SDI, HD-SDI, and SD-SDI, as well as dual-link support for (2) 1.485Gbps SDI streams. It is configured with a full range of static and animated test patterns. This solution is well suited for use in studio, OB, and lab environments. It supports auto bi-level, tri-level, and SDI genlock with cross lock capability. Combined audio features including support for 16 channels of embedded audio. Built-in USB and Ethernet connectivity allow for remote operation, or the device can be managed via its 4.3" 16:9 TFT monitor. The unit can be powered either from the internal battery or via the included mains adapter. - Three in one generator, analyzer, and monitor
- 3G-SDI, HD-SDI,SD-SDI, and dual-link
- High quality 16:9 picture monitor
- Text and logo identification
- 16 channel embedded audio
- Auto genlock BI/TRI/SDI cross lock
- 16 channel audio metering
- Ethernet-based remote operation
In the Box PHABRIX SxD 3 in 1 Generator/Analyzer/Monitor with Dual Link Carrying Case AC Power Supply Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the PHABRIX SxD 3 in 1 Generator Analyzer Monitor with Dual Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPHABRIX PHSXDL Specs | Video | VIDEO
SDI: 3G-SDI, HD-SDI, SD-SDI
Outputs: 2 x 75 Ohm BNC
Inputs: 2 x 75 Ohm BNC
Genlock: bi/tri/SDI with cross lock
Adjustable: timing 0 to 1 Frame
Text Identification: yes with font, color, point size
Logo Identification: yes
EDH: yes (SD-SDI) VIDEO TEST SIGNALS
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, BMP
Zone Plate: yes VIDEO INPUTS/OUTPUTS
Eye Bit Rates: 3Gbps,1.485Gbps, 270Mbps
Jitter SMPTE: specification filters
Jitter Thermometers: alignment, timing | | Audio | AUDIO
Internal Speaker: 0.5W
Audio DAC: 24 bit stereo
Headphone Socket: 3.5 mm with auto line out
Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 Channel Embedded Audio: yes
AES Output: 1 x 75 Ohm BNC
AES Input: 1 x 75 Ohm BNC AUDIO TEST SIGNAL
Fixed Tones: 17
Variable Tones: 1Hz to 24Khz in 1Hz steps
Intermittent Tone: yes
White Noise Generation: yes
Audio Levels Variable: 0 to -100dB in 1dB steps
Audio Phase Invert: yes | | Display | Display Resolution: 480 x 272 pixels auto scaling
Display Type: 16:9 24 bit color TFT
Display Size: 95 x 54 mm
Processing: all digital | | Power | AC power supply (universal)
3-hour lithium polymer integral battery supply | | Dimensions (HxWxD) | 3.62 x 8.86 x 1.65" (92 x 225 x 42mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 11.9 x 9.0 x 4.3" |
