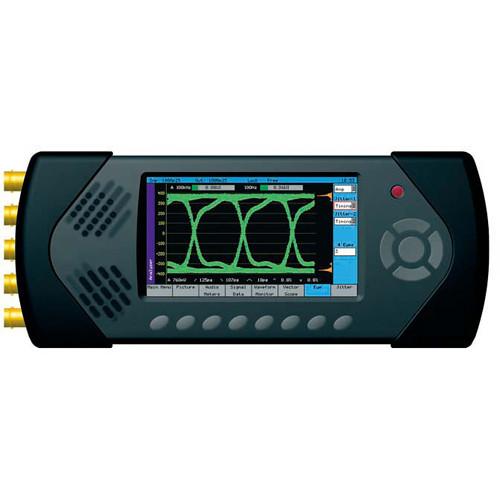

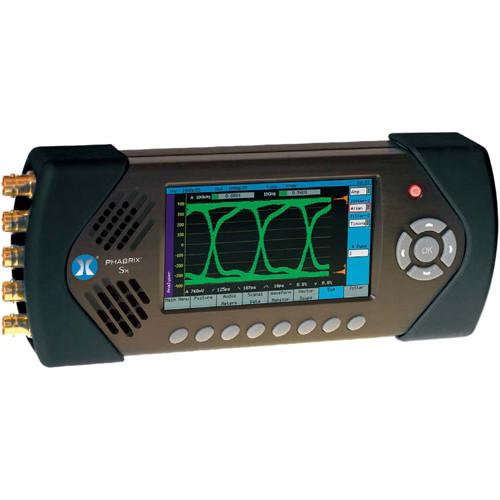

Product description The PHABRIX SxE 3 in 1 Generator/Analyzer/Monitor with Eye and Jitter from Leader is designed to meet the specific demands of both broadcast and manufacturing industries that require eye and jitter measurement. This unit produces eye patterns from a 3G signal, which is particularly significant for those users requiring a solution for testing high-end products in the 3G arena. Its 3G-SDI, HD-SDI, and SD-SDI eye display allow for highly detailed measurements. Jitter measurements are among the more important requirements in the design and operation of high-speed serial links and these can be obtained using the unit's thermometer display for go/no- go SMPTE compliance testing. Its interface and logical workflow allow you to quickly select from the numerous on-board toolsets. Feedback is interactive, clearly displaying eye and jitter waveforms with optional filter selection for timing and alignment measurements on its clear 4.3" 16:9 color TFT screen. - Three in one generator, analyzer, and monitor
- Eye and jitter measurements
- 3G-SDI, HD-SDI,SD-SDI, and AES
- High quality 16:9 picture monitor
- Text and logo identification
- 16 channel embedded audio
- Auto genlock BI/TRI/SDI cross lock
- 16 channel audio metering

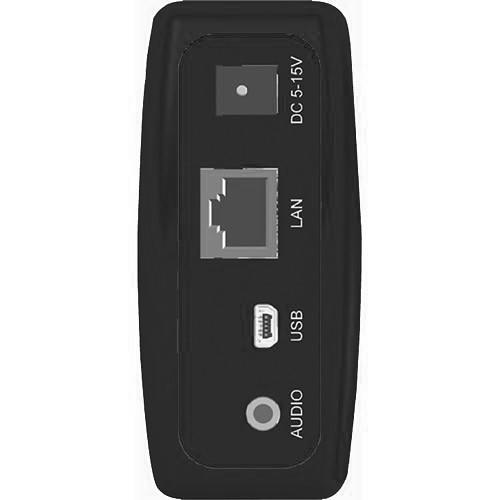

- Ethernet-based remote operation

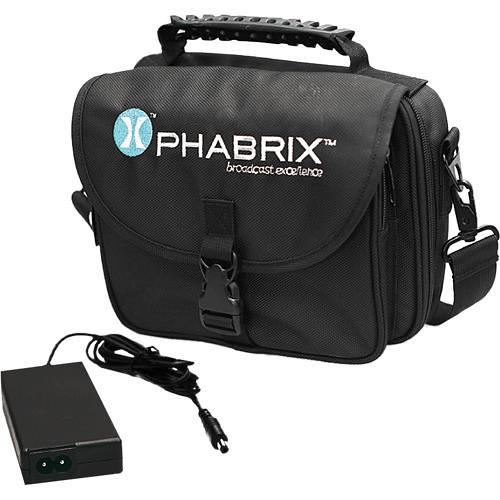

In the Box PHABRIX SxE 3 in 1 Generator/Analyzer/Monitor with Eye and Jitter Carrying Case AC Power Supply Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the PHABRIX SxE 3 in 1 Generator Analyzer Monitor with Eye and Jitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPHABRIX PHSXE Specs | Video | VIDEO
SDI: 3G-SDI, HD-SDI, SD-SDI

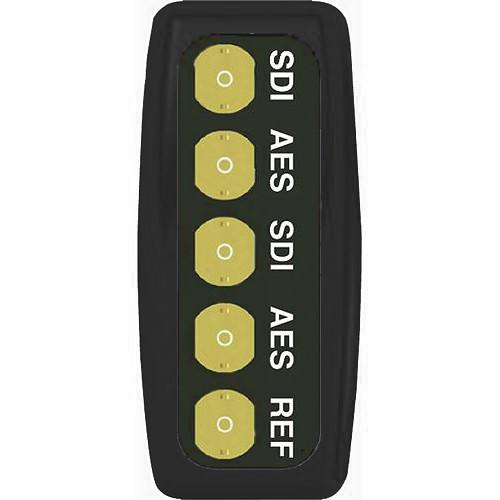

Outputs: 1 x 75 Ohm BNC
Inputs: 1 x 75 Ohm BNC
Genlock: bi/tri/SDI with cross lock
Adjustable: timing 0 to 1 Frame
Text Identification: yes with font, color, point size
Logo Identification: yes
EDH: yes (SD-SDI) VIDEO TEST SIGNALS
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, BMP
Zone Plate: yes VIDEO INPUTS/OUTPUTS
Eye Bit Rates: 3Gbps,1.485Gbps, 270Mbps
Jitter SMPTE: specification filters
Jitter Thermometers: alignment, timing | | Audio | AUDIO
Internal Speaker: 0.5W
Audio DAC: 24 bit stereo
Headphone Socket: 3.5 mm with auto line out
Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 Channel Embedded Audio: yes
AES Output: 1 x 75 Ohm BNC
AES Input: 1 x 75 Ohm BNC AUDIO TEST SIGNAL
Fixed Tones: 17
Variable Tones: 1Hz to 24Khz in 1Hz steps
Intermittent Tone: yes
White Noise Generation: yes
Audio Levels Variable: 0 to -100dB in 1dB steps
Audio Phase Invert: yes | | Display | Display Resolution: 480 x 272 pixels auto scaling
Display Type: 16:9 24 bit color TFT
Display Size: 95 x 54 mm
Processing: all digital | | Power | AC power supply (universal)
3-hour lithium polymer integral battery supply | | Dimensions (HxWxD) | 3.62 x 8.86 x 1.65" (92 x 225 x 42mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 4.75 lb | | Box Dimensions (LxWxH) | 11.9 x 8.9 x 4.1" |
