User Manual for Philips 231P4QUPEB 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Philips 231P4QUPEB 23" 16:9 IPS Monitor
- Product category: Computer Monitors Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Computer Monitors
 |
User manual for the Philips 231P4QUPEB 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More tcrzebqusx - The Philips USB Docking monitors

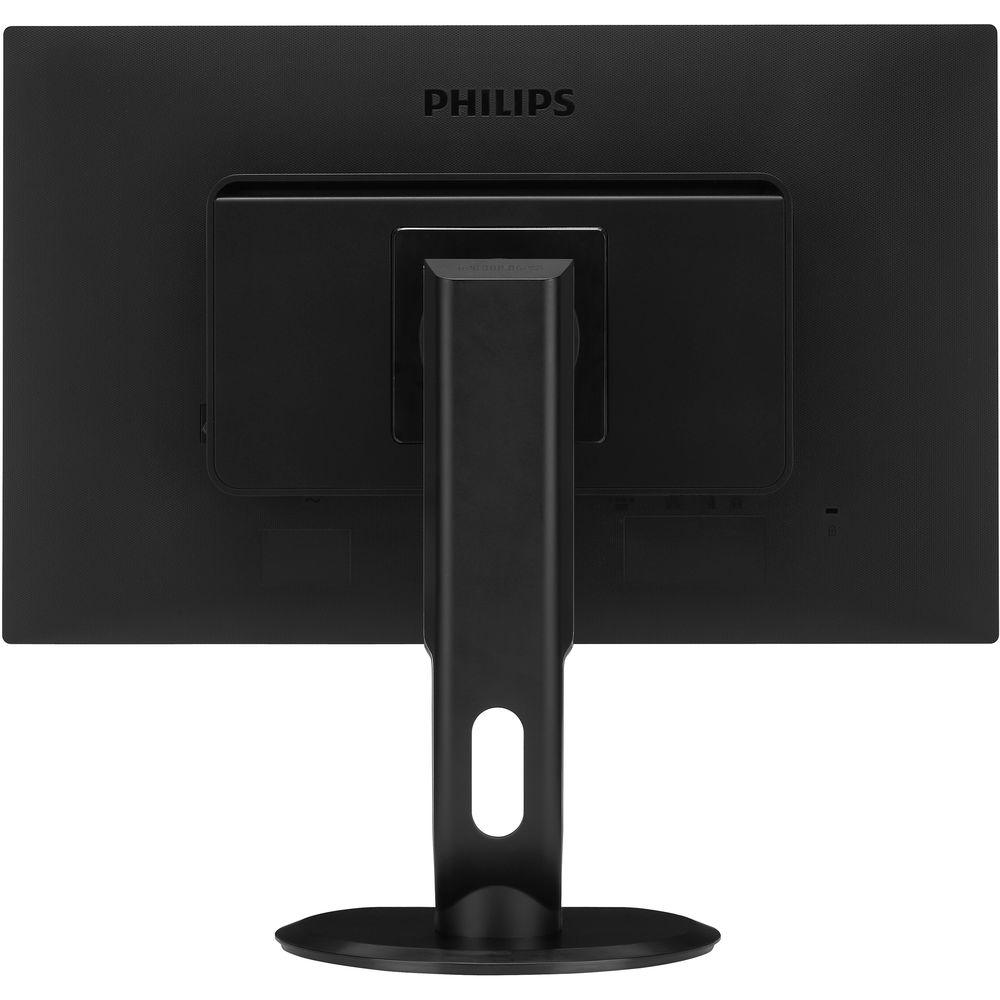

The 231P4QUPEB 23" 16:9 IPS Monitor from Philips features a Full HD resolution of 1920 x 1080 and an aspect ratio of 16:9, allowing you to enjoy crisp and clear pictures and videos at 1080p, without any letterboxing. Built with an IPS (In-Plane Switching) panel, it offers better viewing angles and color reproduction compared to TN (Twisted Nematic) panels. Supporting 16.7 million colors, the 231P4QUPEB has a static 1,000:1 contrast ratio that further enhances colors, providing you with darker blacks and brighter bright colors. This display also has a built-in USB hub consisting of one USB 2.0 and two USB 3.0 Type-A ports. Use these to connect peripherals such as keyboards, mice, and headsets. Additionally, you can use this display as a notebook dock as it grants extra USB ports, audio in and out, and Internet connectivity with just a single USB cable connection. Connect this monitor to your main system via VGA and tilt, pivot, and swivel it to your viewing preference. - Notebook Docking Display

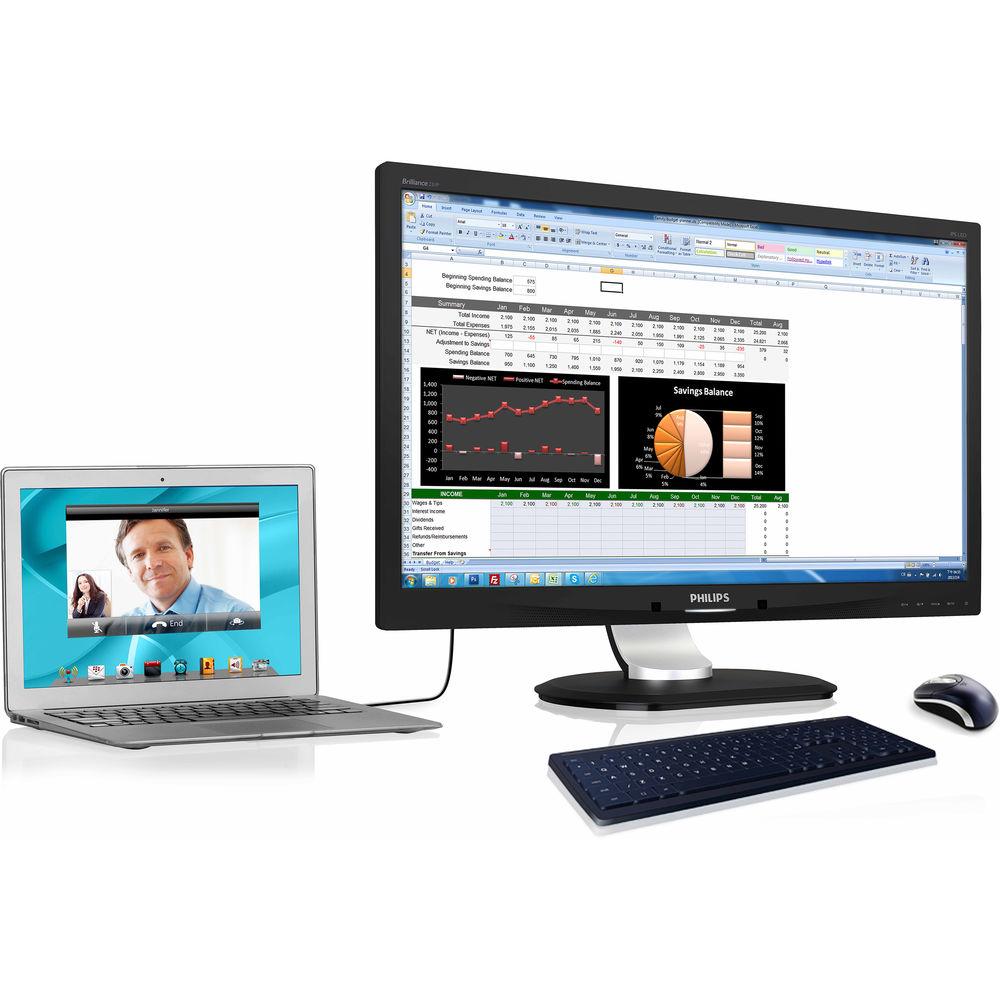

- This Philips display enables easy port replication for any notebook. With a built-in USB 3.0 hub, Ethernet, and stereo speakers, it enables you to transmit video, audio, and connect to the Internet with just a single USB cable connection. You can now expand your desktop using both your notebook and this display's real-estate without having to worry about cumbersome resolution adjustments or mess around with cables.
- SmartErgoBase

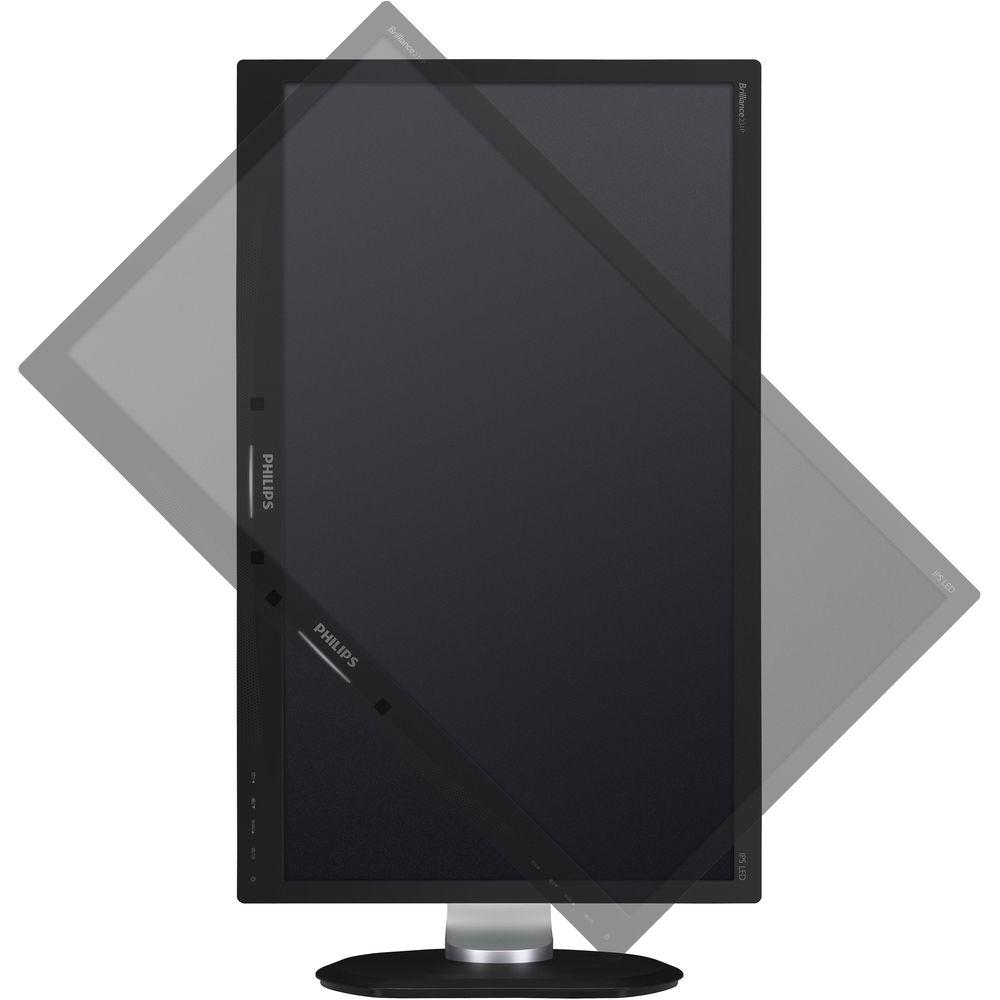

- This monitor base delivers ergonomic display comfort and provides cable management. The base's people-friendly height, swivel, tilt and rotation angle adjustments position the monitor for maximum comfort that can ease the physical strains of a long workday; cable management reduces cable clutter and keeps the workspace neat and professional.
- PowerSensor
- PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life.
UPC: 609585249226 In the Box Philips 231P4QUPEB 23" 16:9 IPS Monitor Power Cable USB Cable Limited 3-Year Warranty User Manual PDF 5.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips 231P4QUPEB 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips 231P4QUPEB Specs | | | Size | 23" | | Screen Area | 20 x 11.3" / 50.9 x 28.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 75 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 14 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.265 x 0.265 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x USB Type-A 2.0 Output
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-A (USB 3.1 Gen 1) Input
1 x VGA | | Built-In Speakers | Yes, 2 x 1.5 W | | Supported Languages | Korean
Portuguese
Russian
English
Spanish
Simplified Chinese
German
Italian
French | | | | Power Consumption | 0.5 W (Standby)
20.2 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 0 to 12,000' / 0 to 3658 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | TCO Certified, ENERGY STAR, RoHS, WEEE, EPEAT GOLD, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 130° (-65 to 65°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.5 x 20.3 x 8.7" / 54.7 x 51.5 x 22.0 mm (With Stand)
21.5 x 13.5 x 2.4" / 54.7 x 34.3 x 6.0 mm (Without Stand) | | Weight | 13.2 lb / 6 kg (With Stand)
8.6 lb / 3.9 kg (Without Stand) | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 23.7 x 15.7 x 10.3" |
