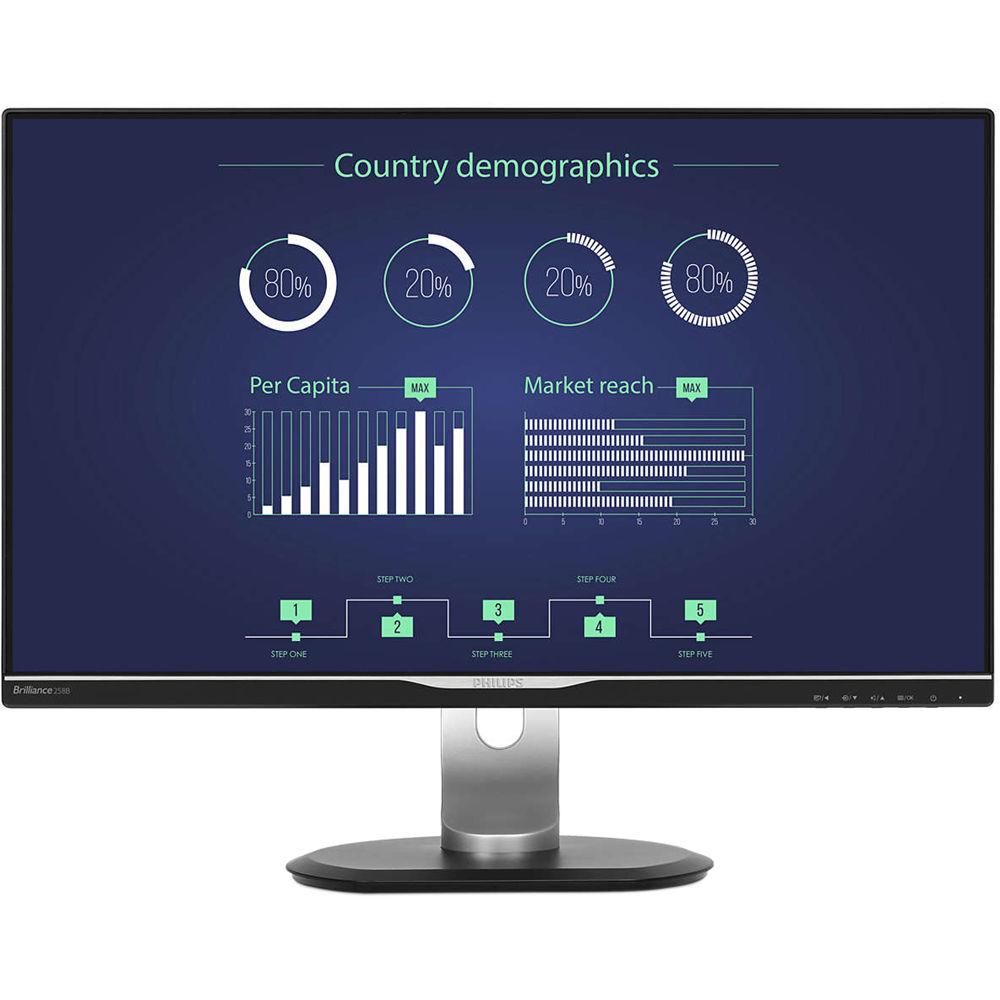

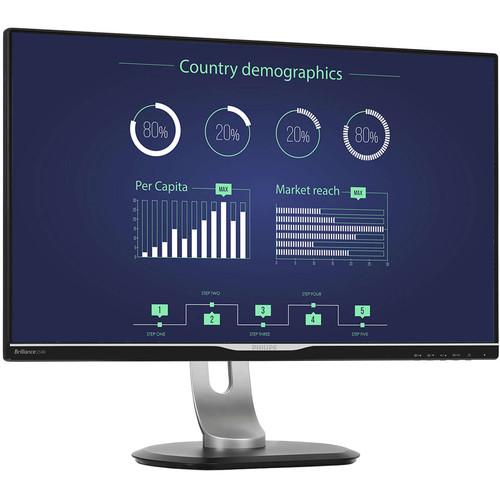

User Manual for Philips 258B6QUEB 25" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Philips 258B6QUEB 25" 16:9 IPS Monitor
- Product category: Computer Monitors Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Computer Monitors
 |
User manual for the Philips 258B6QUEB 25" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Connect and charge devices to the 258B6QUEB 25" 16:9 IPS Monitor from Phillips thanks to the built-in USB Type-C connector. This interface supports fast data and video transfers along with the ability to charge compatible USB Type-C devices.

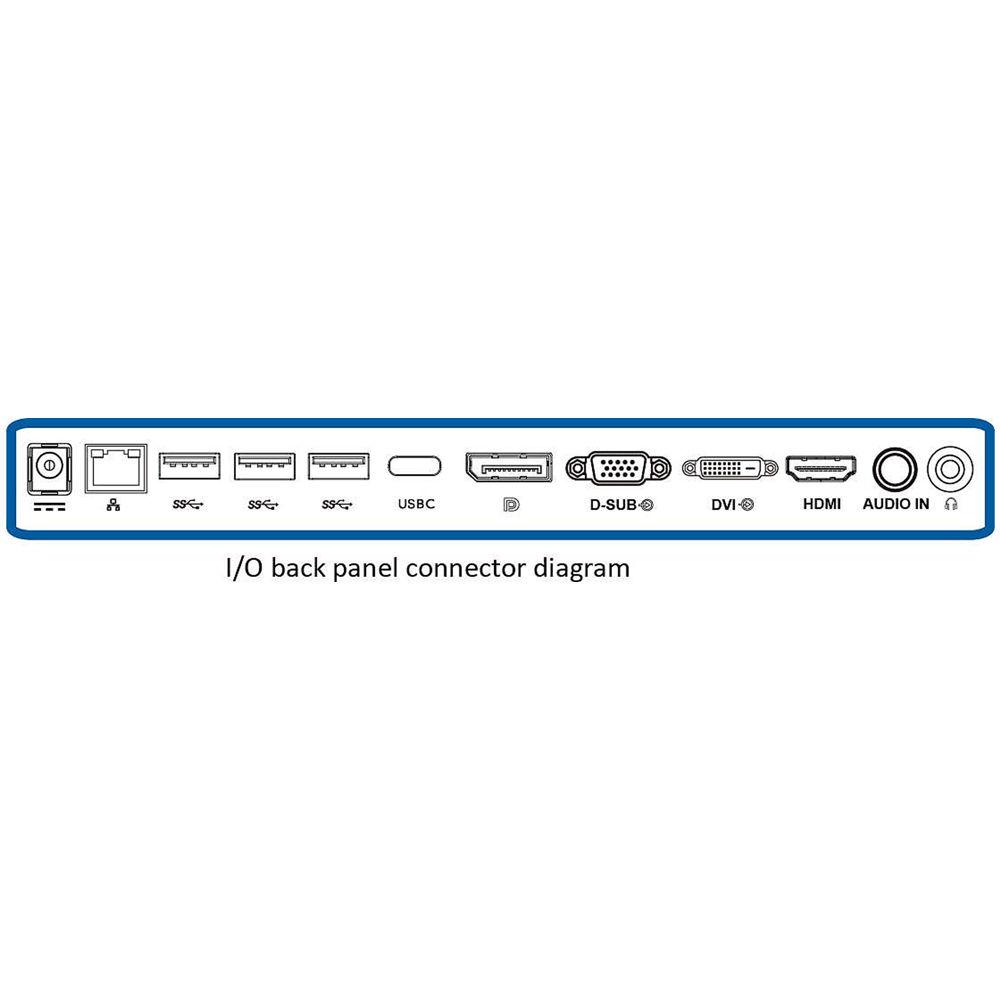

In addition to the USB Type-C interface, this monitor also comes equipped with VGA, DVI, DisplayPort, and HDMI inputs, making it easy to connect a variety of devices and computer configurations to this display. Once configured, the 258B6QUEB monitor features a 2560 x 1440 resolution, a 1000:1 contrast ratio, a 350 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors.
The monitor also features Phillips CrystalClear technology, making the display a viable solution for CAD-CAM projects, 3D graphic applications, and much more. SmartImage technology allows users to adjust the display to suit the content being viewed with various viewing modes including office, photo, movie, game, economy, and more. Furthermore, this display comes equipped with dual stereo speakers giving viewers the complete multimedia viewing experience. - Ultra-Narrow Border
- The this Philips display features ultra-narrow borders, which allow for minimal distractions and maximum viewing size. Especially suited for multi-display or tiling setups like gaming, graphic design and professional applications, the ultra-narrow border display gives you the feeling of using one large display.
- SmartErgoBase
- The SmartErgoBase is a monitor base that delivers ergonomic display comfort and provides cable management. The user-friendly height, swivel, tilt, and rotation angle adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long workday. In addition, cable management reduces cable clutter and keeps the workspace neat and professional.
- CrystalClear Images
- This Philips screen delivers CrystalClear, Quad HD 2560 x 1440 pixel images. Utilizing high performance panels with a high-density pixel count, enabled by high-bandwidth sources like DisplayPort, HDMI, and Dual link DVI, these new displays will make your images and graphics come alive. Whether you are a demanding professional requiring extremely detailed information for CAD-CAM solutions, using 3D graphic applications or a financial wizard working on huge spreadsheets, this Philips display supports CrystalClear images.
- IPS Technology

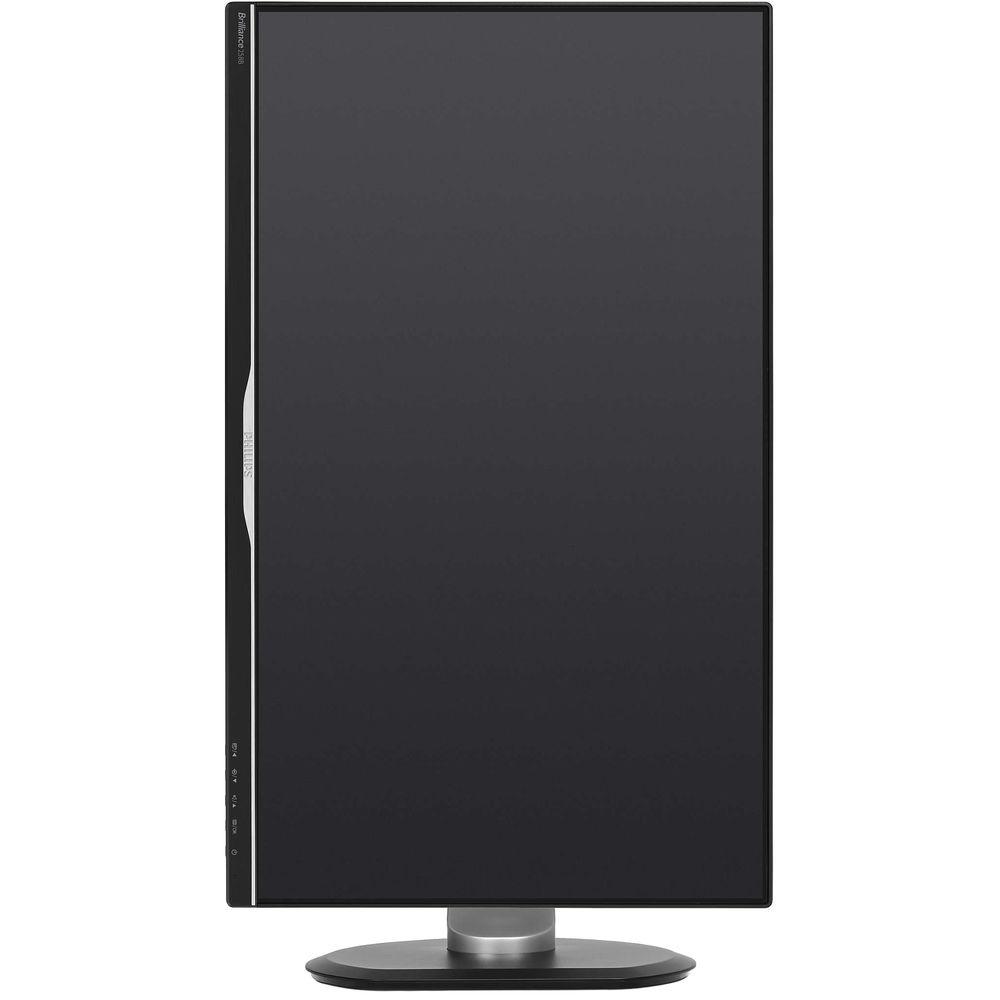

- IPS (In-Plane Switching) displays use advanced technology that gives you extra-wide viewing angles of 178°/178°, making it possible to view the display from almost any angle - even in 90° pivot mode. Unlike standard TN panels, IPS displays gives you crisp images with vivid colors, making it ideal not only for photos, films, and web browsing, but also for professional applications that demand color accuracy and consistent brightness at all times.
- Flicker-Free Technology
- Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing.
- SmartImage
- SmartImage is an exclusive Philips technology that analyses the content displayed on your screen and optimizes your display performance. This user-friendly interface allows you to select various modes, like office, photo, movie, game, economy, etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation, and sharpness of images and videos for enhanced display performance. The economy mode option offers you major power savings. All in real time at the touch of a single button.
- Built-In Stereo Speakers
- This Phillips display comes equipped with high-quality stereo speakers built right in to the monitor.
UPC: 609585249288 In the Box Philips 258B6QUEB 25" 16:9 IPS Monitor Stand VGA Cable DVI Cable Audio Cable Power Cable Limited 3-Year Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips 258B6QUEB 25" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips 258B6QUEB Specs | | | Size | 25" | | Screen Area | 21.77 x 12.25" / 552.96 x 311.04 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 118 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 20,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 56 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.216 x 0.216 mm | | | | Connectivity | 1 x VGA Input
1 x DVI-D Input
1 x DisplayPort Input
1 x HDMI Input
1 x USB Type-C Input
1 x 3.5 mm Input
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 2 W | | Supported Languages | Czech
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian | | | | Power Consumption | 23.7 W (Eco)
24.7 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | External | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 0 to 12,000' / 0.00 to 3657 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | CE, FCC, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 90° (-45 to 45°) | | Swivel Adjustment | 130° (-65 to 65°) | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 22.5 x 20.1 x 9.6" / 57.1 x 51.1 x 24.4 cm (With Stand)
22.5 x 13.5 x 2.2" / 57.1 x 34.3 x 5.6 cm (Without Stand) | | Weight | 15.43 lb / 7.00 kg (With Stand)
10.27 lb / 4.66 kg (Without Stand) | | | | Package Weight | 21.55 lb | | Box Dimensions (LxWxH) | 24.5 x 16.0 x 11.0" |
