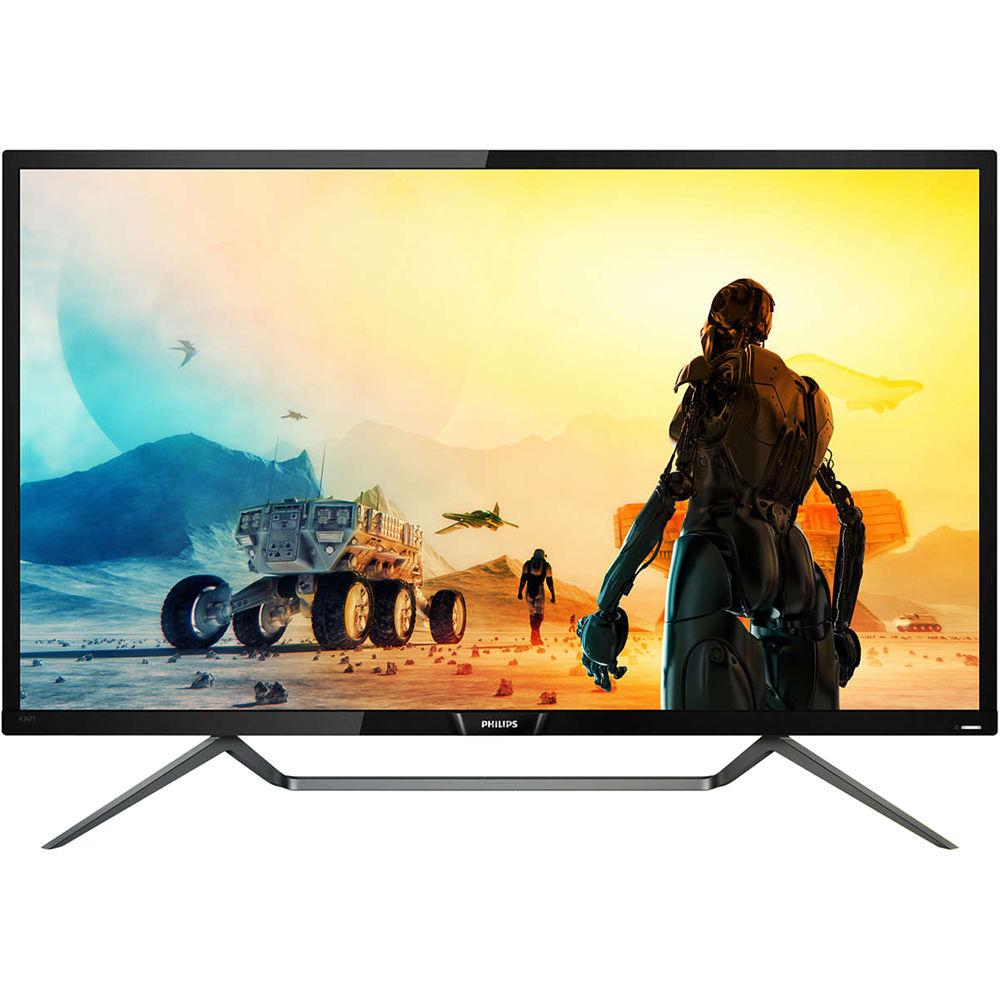

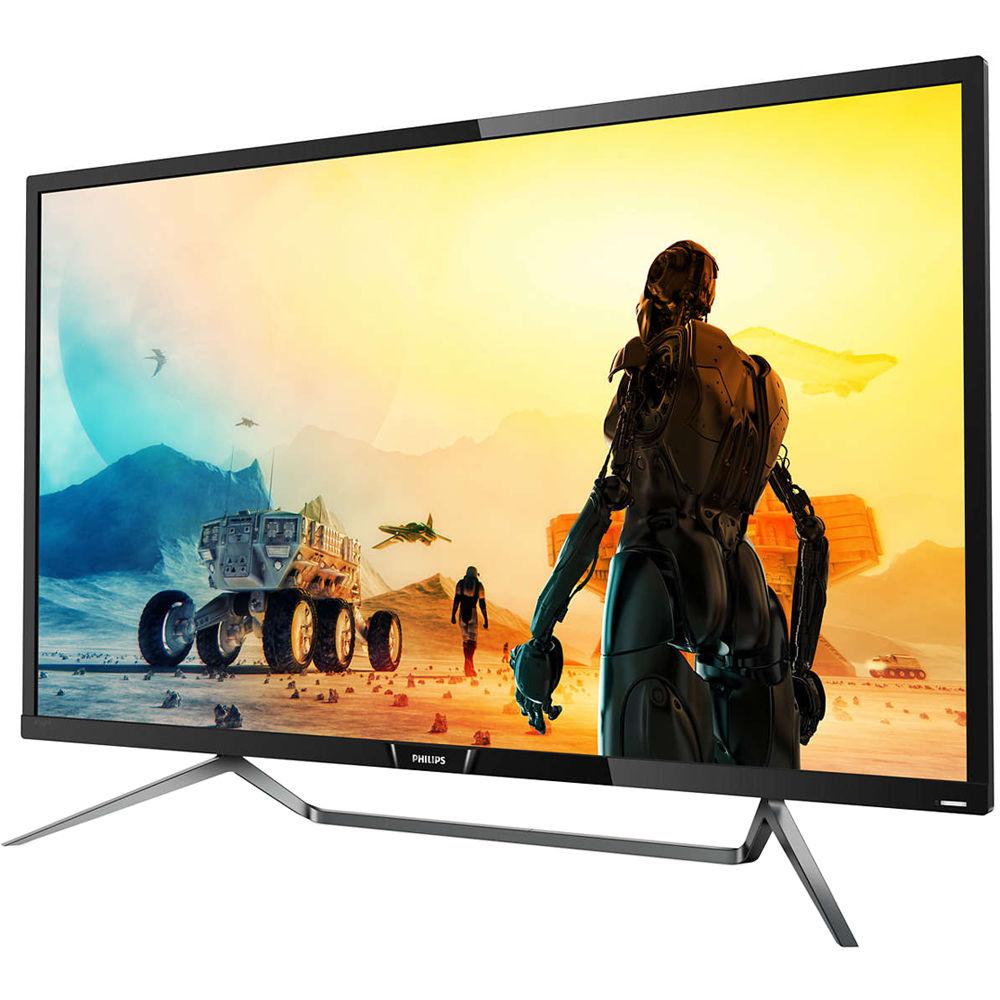

User Manual for Philips 436M6VBPAB 42.5" 16:9 4K FreeSync LCD Monitor Click to enlarge the picture
Contents of the user manual for the Philips 436M6VBPAB 42.5" 16:9 4K FreeSync
- Product category: Computer Monitors Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Computer Monitors
 |
User manual for the Philips 436M6VBPAB 42.5" 16:9 4K FreeSync contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

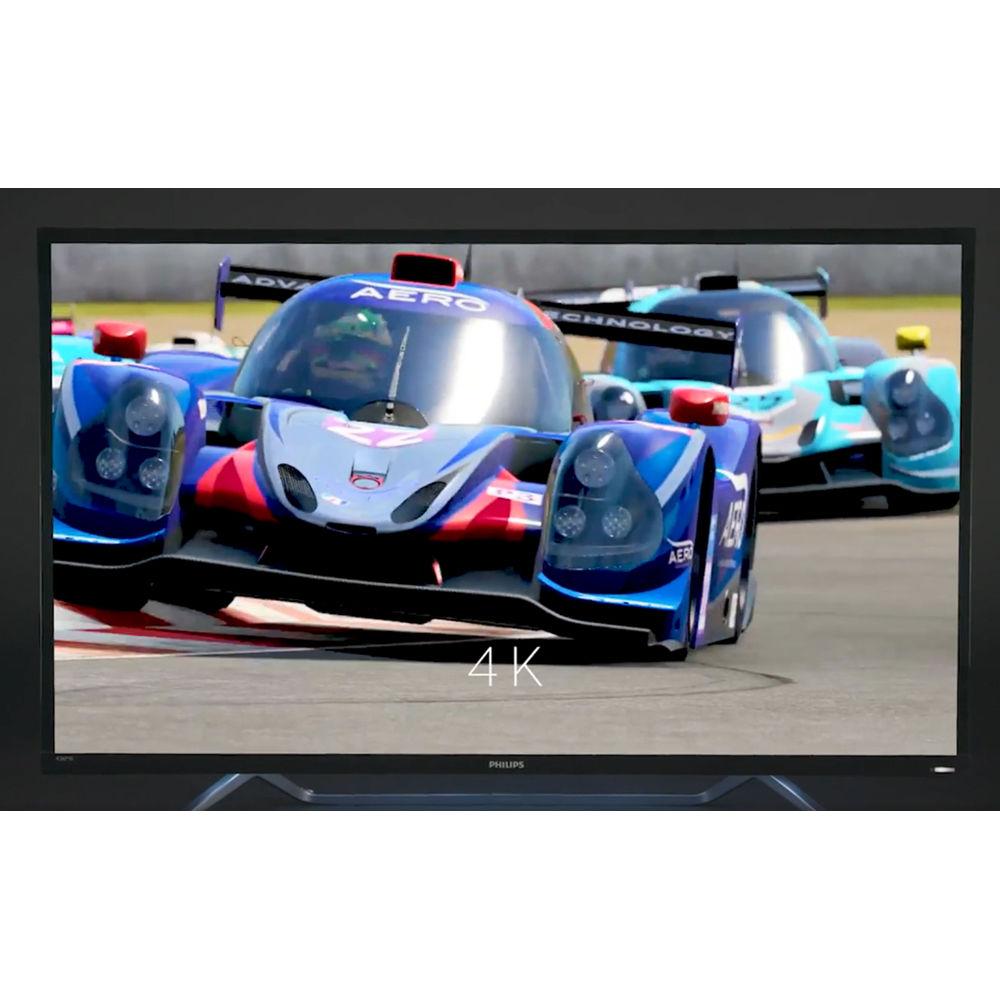

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 436M6VBPAB 42.5" 16:9 4K FreeSync LCD Monitor from Philips features an expansive display built with a Vertical Alignment panel and Quantum Dot technology that provides you with vivid colors. Specs-wise, it features a 3840 x 2160 4K UHD resolution, a 4000:1 static contrast ratio, a typical brightness rating of 720 cd/m² with a peak of 1000 cd/m², and supports up to 1.07 billion colors. Additionally, it has built-in bias lighting for enhanced contrast. For gamers, this display has low input lag and supports Adaptive Sync for a smoother gaming experience. Once connected via HDMI, DisplayPort, mini-DisplayPort, or even USB Type-C, this display can be tilted to best fit you viewing preferences. If needed, you can also install an optional VESA mount, stand, or arm - DisplayHDR 1000

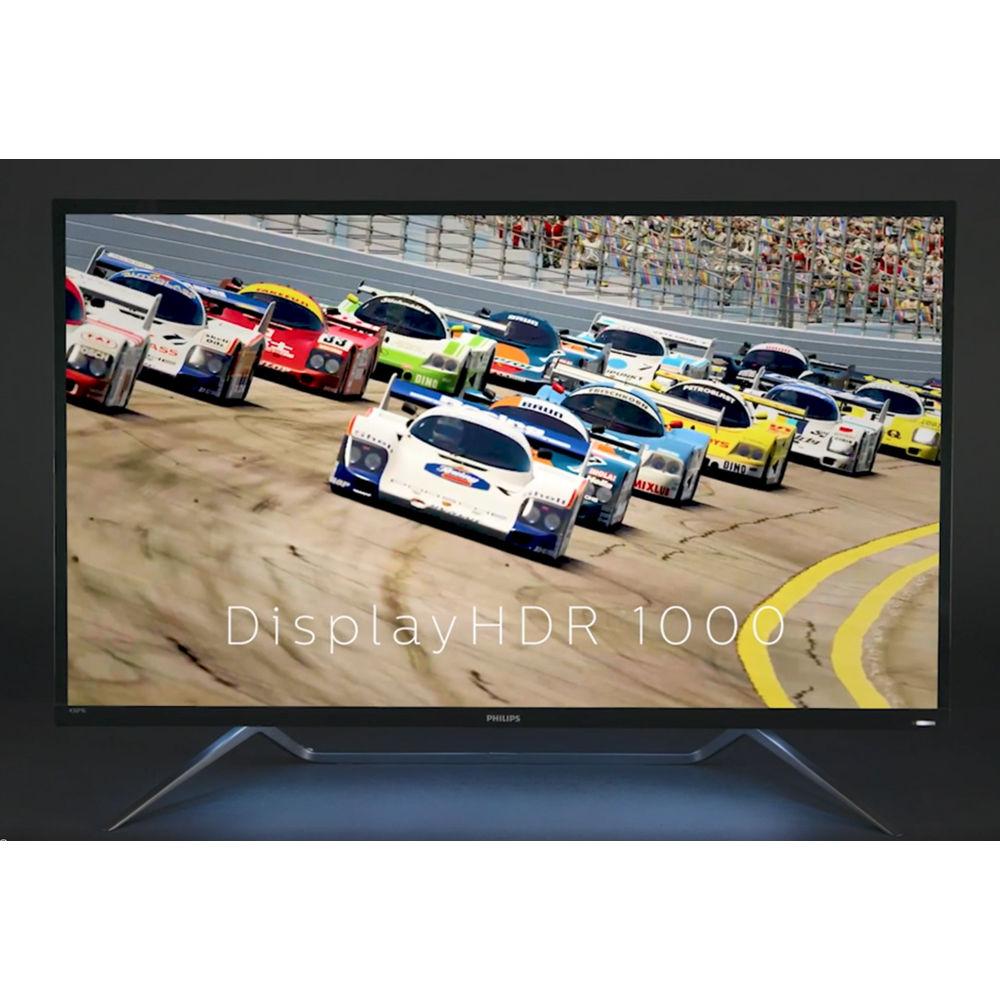

- This display is VESA DisplayHDR 1000 certified for a peak brightness of up to 1000 cd/m², enabling better contrast and vivid colors.
- Quantum Dot Technology
- Quantum Dot Technology is a semiconductor nanocrystal technology that precisely emits light to produce enhanced blues, greens, and reds. Displays with this will provide you with more vibrant and dynamic colors.

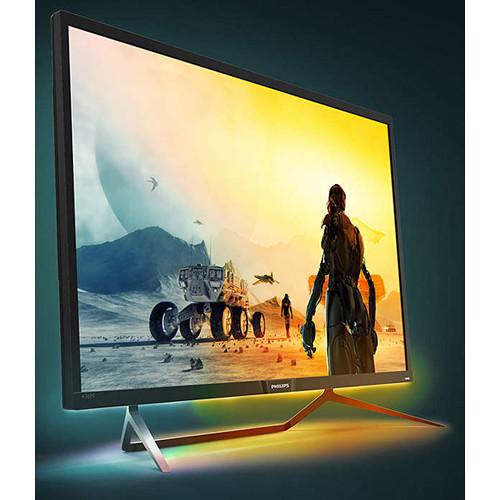

- Ambiglow
- Ambiglow is an ambient light installed at the bottom of the display, which creates and immersive halo of light that matches the image on your display. This is also known as bias-lighting, which can help improve contrast levels for better pictures.

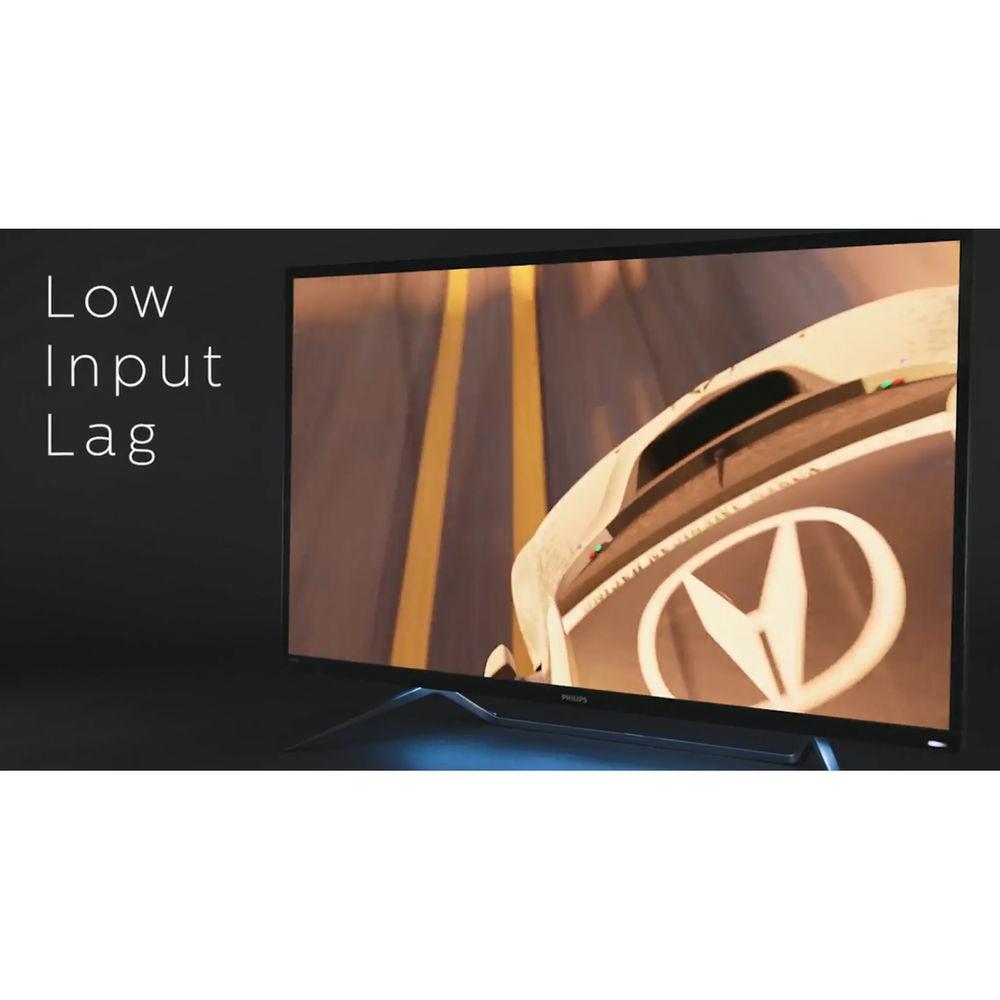

- Low Input Lag
- A low input lag provides you with a smoother experience, enabling movements onscreen to feel more responsive, especially helpful in fast-paced games.
- MultiView
- MultiView lets you connect two devices at the same time, so you can multitask as needed. Set up the displays side-by-side, or use its Picture-in-Picture mode for a smaller window.
- DTS Sound
- DTS Sound is an audio processing solution for optimized playback of music, movies, streaming content, and games. It also enables virtual surround sound for an immersive experience.

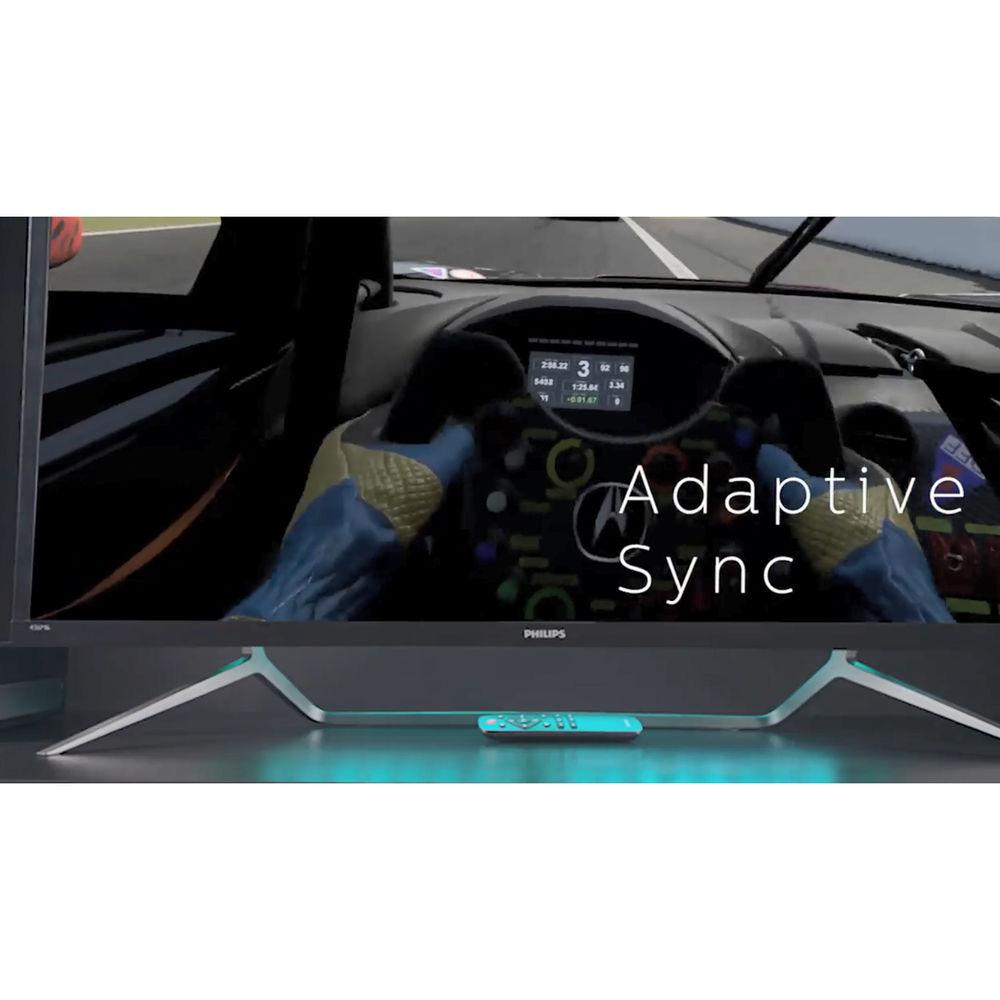

- Adaptive-Sync Technology
- Adaptive-Sync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting for a smoother gaming experience.
- USB Type-C Connection
- The USB 3.1 Type-C connection on this display can be used to connect peripherals or a dock, or even to a computer, so this display can be used as a second screen thanks to DP Alt mode.
UPC: 609585251649 In the Box Philips 436M6VBPAB 42.5" 16:9 4K FreeSync LCD Monitor Power Cable USB Type-C Cable USB Type-A to Type-C Cable HDMI Cable DisplayPort Cable Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips 436M6VBPAB 42.5" 16:9 4K FreeSync LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips 436M6VBPAB Specs | | | Size | 42.5" | | Screen Area | 37.05 x 20.84" / 941.18 x 529.42 mm | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 104 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 4000:1 | | Dynamic Contrast Ratio | 50,000,000:1 | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 160 kHz | | Vertical Frequency | 23 to 80 Hz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Color Gamut | 97.6% DCI-P3
145% sRGB
115% NTSC | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.245 x 0.245 mm | | | | Connectivity | 1 x HDMI 2.0
1 x DisplayPort 1.2
1 x Mini DisplayPort 1.2
1 x USB Type-C (USB 3.1 Gen 2)
2 x USB Type-A (USB 3.1 Gen 1) | | Built-In Speakers | Yes, 2 x 7 W | | | | Power Consumption | 62.69 W (Typical)

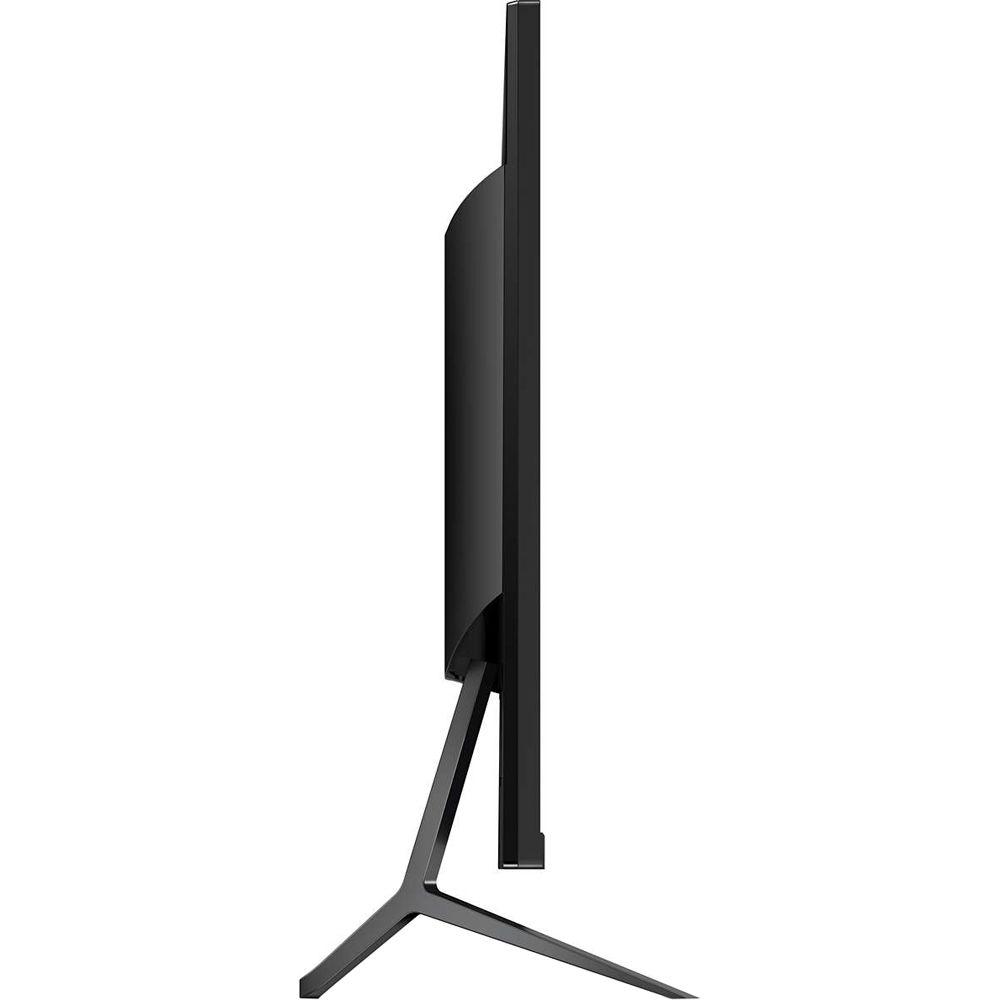

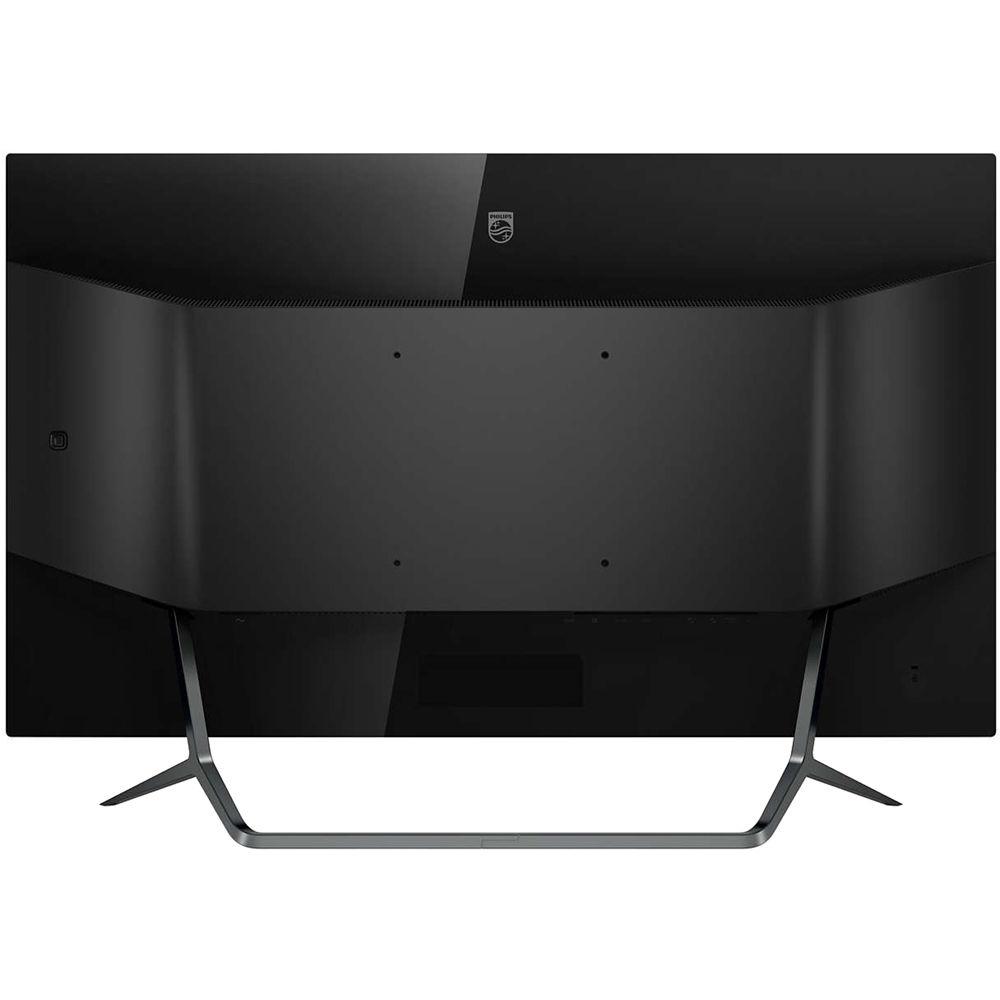

0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 12,000' / 3657 m | | Storage Altitude | 39,999' / 12,192 m | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 10° | | Mounting-Hole Pattern | 200 x 200 mm | | Lock Slot | Yes, Kensington | | Dimensions (W x H x D) | 38.4 x 26.0 x 10.4" / 976.0 x 661.0 x 264.0 mm (With Stand)
38.4 x 22.6 x 2.5" / 976.0 x 574.0 x 63.0 mm (Without Stand) | | Weight | 32.43 lb / 14.71 kg (With Stand)
30.78 lb / 13.96 kg (Without Stand) | | | | Package Weight | 45.95 lb | | Box Dimensions (LxWxH) | 43.0 x 30.0 x 13.0" |
