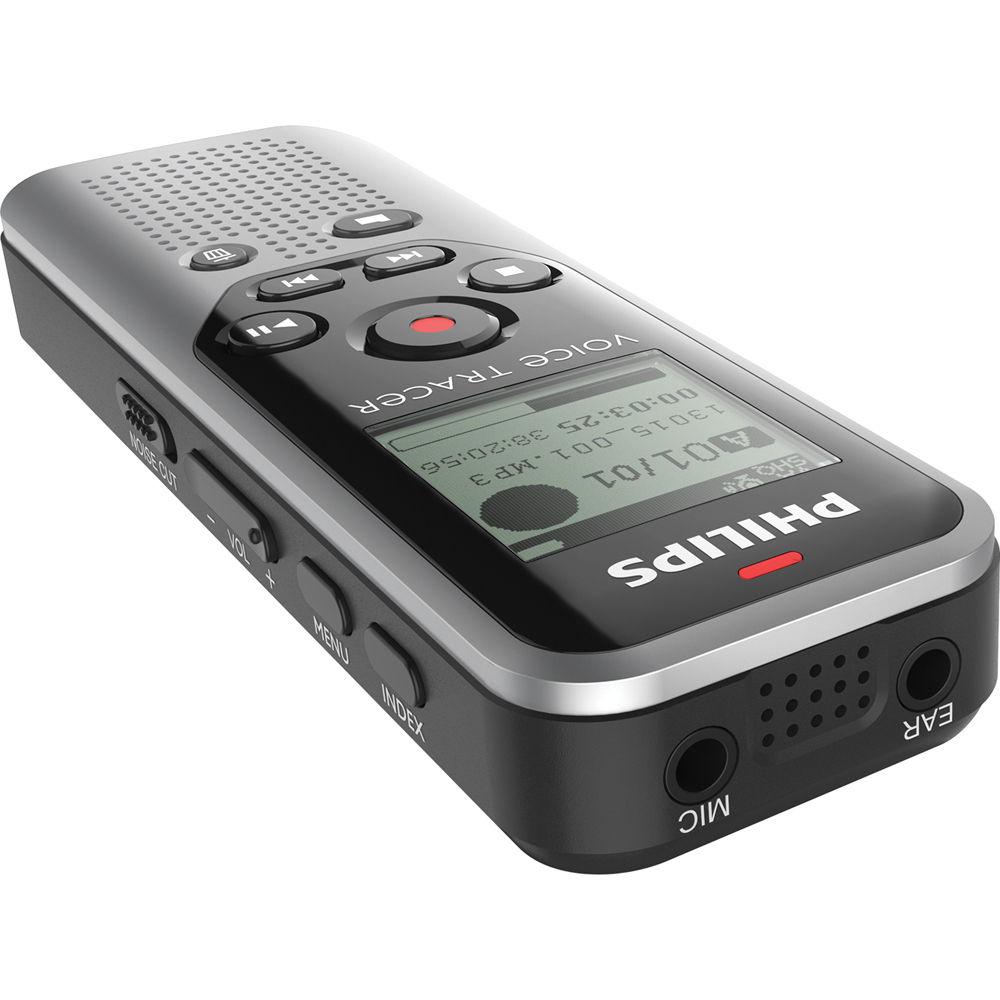

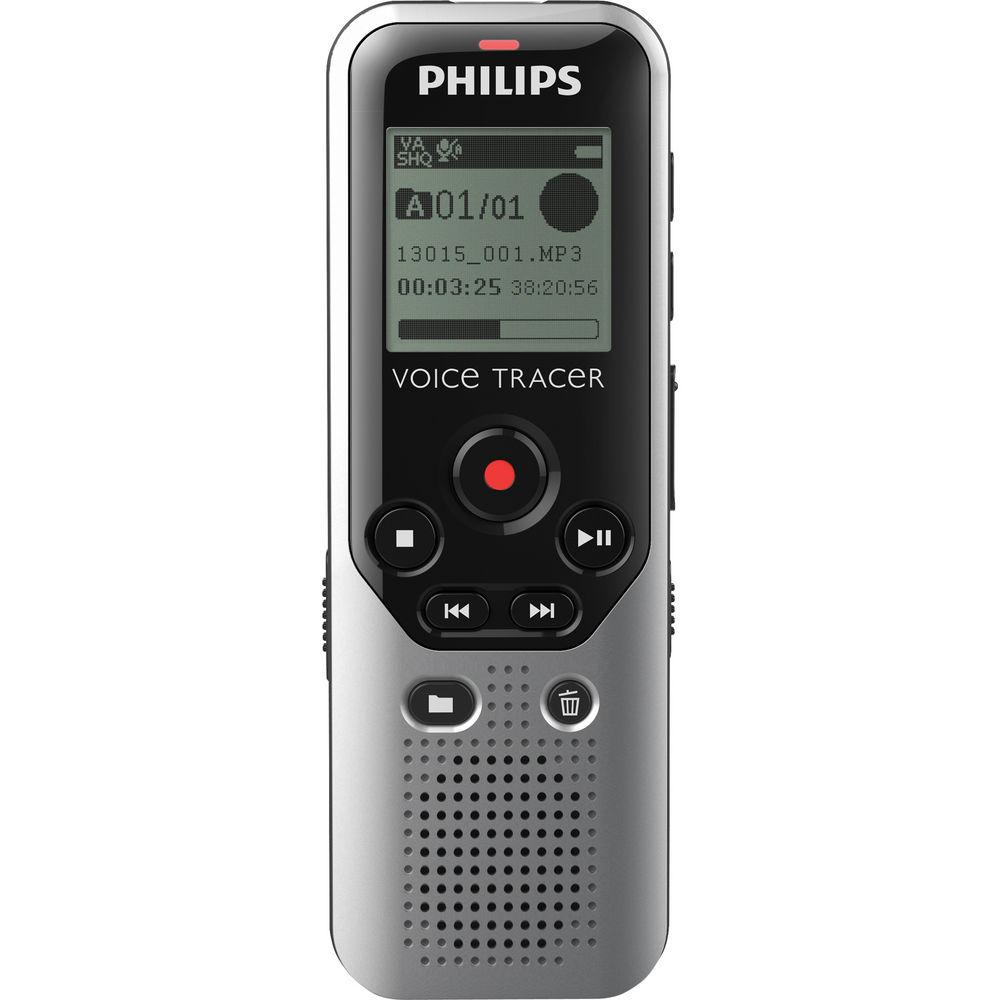

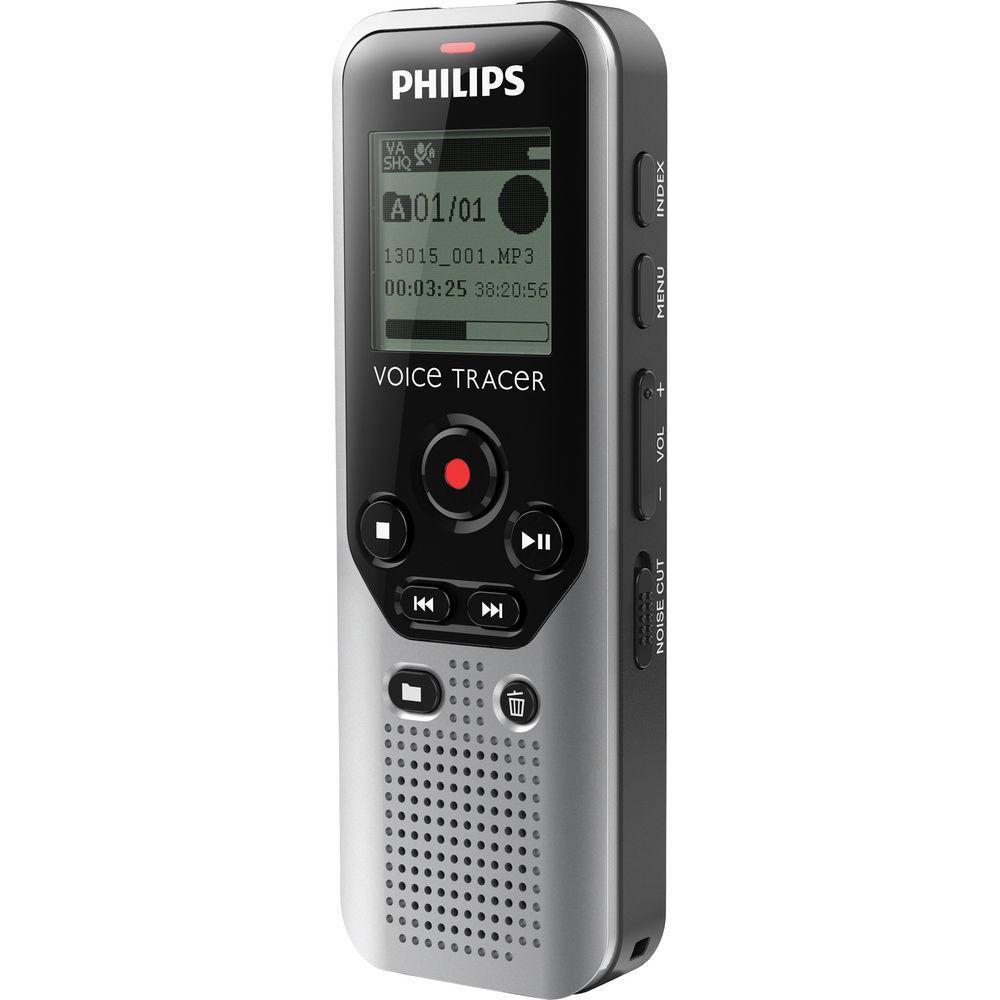

User Manual for Philips 4GB Voice Tracer 1200 Digital Recorder Click to enlarge the picture
Contents of the user manual for the Philips 4GB Voice Tracer 1200 Digital
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
 |
User manual for the Philips 4GB Voice Tracer 1200 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description The Philips 4GB Voice Tracer 1200 Digital Recorder lets you record notes and documents on-the-go. It supports both PCM and ADPCM (WAV) recording formats, which enables you to utilize a variety of bit-rates ranging from 32 to 384 kbps. The Voice Tracer 1200's other features include 4GB of built-in NAND flash memory, a microSD card slot that supports up to 32GB cards, a micro-USB 2.0 port for high-speed data transfers, a 3.5mm microphone input and a 3.5mm headphone output. For added convenience in the field, a built-in 110mW front speaker facilitates immediate playback of recent voice recordings. The Voice Tracer 1200 also supports hands-free operation thanks to voice-activated recording. When voice-activation is engaged, the device will automatically begin recording as soon as it detects a voice. When that voice stops, the recording stops. If the voice begins again, the recording will begin again until the feature is switched off. The Voice Tracer 1200 is equipped with an easy-to-read 1.3" backlit dot matrix display and instant one-touch recording that lets you start a recording even when the device is powered off. All you have to do is hold down the record button for a moment and when the unit turns on it will instantly start recording. Other features include a keypad lock that protects your files, noise reduction technology and support for up to 10 index marks per file. - Voice-Activation Function for Hands-Free Recording
- Voice-activated recording is a convenient feature for hands-free recording. When enabled, recording will start automatically when you start speaking. Recording stops automatically after you stop speaking and restarts automatically when you start speaking again.
- One-Touch Operation for Instant Recording
- Press and hold the record button for a moment to switch the Voice Tracer on and then start recording instantly.
- Backlit Display for Easy File Navigation
- The large 1.3" graphical dot matrix display lets you view all important file information at a glance, even in poor lighting conditions, thanks to the backlit display. It also supports multiple languages including English, French, German, Spanish, Italian, Russian, and Polish.
- Built-In 4GB Memory
- With 4GB of built-in NAND flash memory, your Voice Tracer is able to capture multiple days of continuous recording.
- MicroSD Memory Card Slot for Virtually Unlimited Recording
- An integrated microSD card slot affords virtually unlimited recording capacity with support for up to 32GB of additional memory
- Extra-Long Battery Life up to 42 Hours
- The two AAA batteries that are included with the recorder will last up to 42 hours for extra long recording sessions.
- Plug-&-Play
- Just plug the recorder into your computer for instant plug-and-play connectivity with either a Windows or Mac OS.
Other Features - Keypad lock for keeping your notes and recording safe
- Variable playback speeds afford faster navigation through recordings
- The recorder's 1-channel microphone is optimized for notes
- High/Low microphone sensitivity options
- Microphone 1/8" (3.5mm) line input mini-jack
- Headphone 1/8" (3.5mm) output mini-jack
- Real-time clock, timed recording function and remaining time display
- File lock provides protection from accidental file erasing
- Highlight important parts of your recordings with up to 10 index marks per file
- Each of the recorder's four built-in folders will hold up to 99 messages
- Supports noise reduction for clearer recordings
- USB mass storage class compliance ensures optimum compatibility
- Firmware upgradeable to ensure recorder is using the most up-to-date program version
- A-B repeat lets you automatically repeat playback of a certain file, folder or sequence

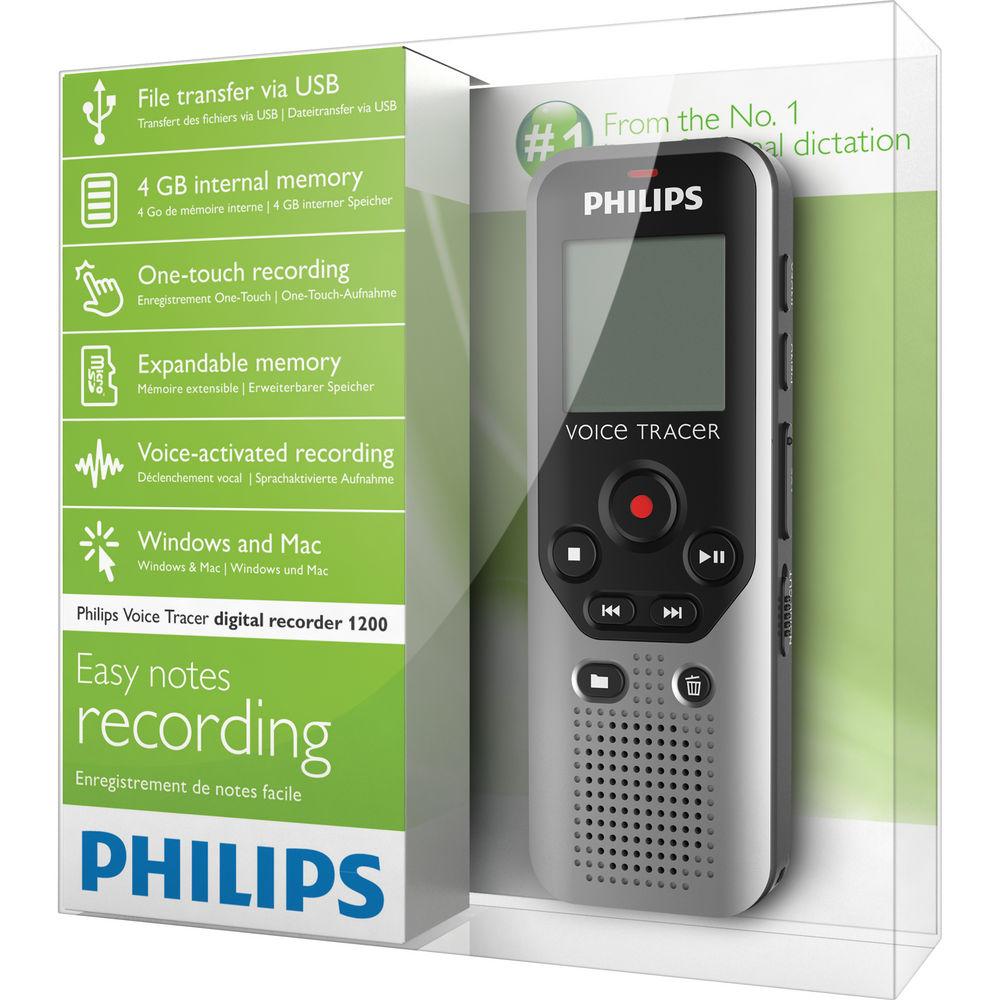

In the Box Philips 4GB Voice Tracer 1200 Digital Recorder 2 x AAA Batteries USB Cable 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips 4GB Voice Tracer 1200 Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips 1200 Specs | | | Type | Digital | | Mode | Mono | | Recording Format | ADPCM (WAV), PCM (WAV) | | Bit-Rate | 384 kbps
128 kbps
32 kbps | | Sample Rate | 24 kHz
8 kHz | | Recording Time | HQ Mono: 23 Hours
SP Mono: 68 Hours
LP Mono: 270 Hours | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Mono | | Microphone Sensitivity | High/Low | | Frequency Response | 750 Hz - 18 kHz @ 24 kHz Sample Rate / 384 kbps PCM (WAV)
750 Hz - 18 kHz @ 8 kHz Sample Rate / 128 kbps PCM (WAV)
750 Hz - 18 kHz @ 8 kHz Sample Rate / 32 kbps ADPCM (WAV) | | | | Playback Formats | WAV | | Speaker | Yes | | Speaker Size | 1.1" / 28 mm | | Power Output | 110 mW | | | | Display Size/Type | 1.3" LCD Backlit with 112 x 112 Resolution | | Indicators | Power, Low Battery, Recording, Voice Volume | | Erase Protect | Yes | | Message Folder | 99 (Maximum) | | On Screen Clock | Yes | | Safety Lock | Yes | | Search | Easy Search | | | | Battery Type | 2 x AAA | | Battery Life (approx.) | Recording: 42 Hours @ 8 kHz 32 Kbps ADPCM (WAV) | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 4 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Headphone Out
1/8" mini Female Microphone In | | USB | USB 2.0 (Micro-B) | | Operating System Support | Windows, macOS/OS X | | Dimensions (WxHxD) | 1.46 x 4.25 x .75" / 37 x 108 x 19 mm | | Weight | 1.73 oz / 49 g | | | | Package Weight | 0.36 lb | | Box Dimensions (LxWxH) | 5.4 x 5.3 x 1.4" |
