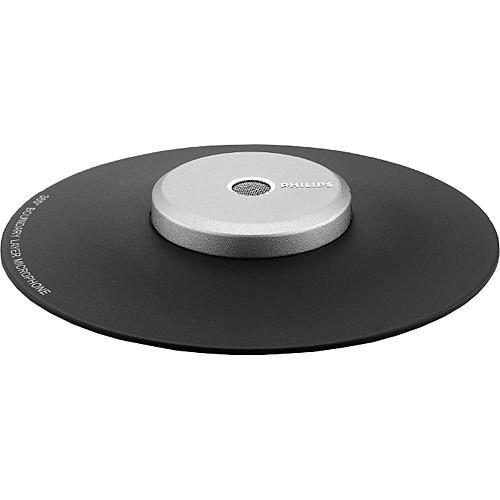

User Manual for Philips Conference Microphone 9172 Click to enlarge the picture
Contents of the user manual for the Philips Conference Microphone 9172
- Product category: Audio Conferencing Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Audio Conferencing
|
User manual for the Philips Conference Microphone 9172 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description Compatible with the Digital Pocket Memo Series, Philips Conference Microphone 9172 gathers sound in a 360° pattern for accurate recording of everyone in the room. With a low profile design and no need for a microphone stand, the Conference Microphone is discrete. That being said, the 9172 does allow for daisy chain connection of up to 6 microphones - ensuring that every speaker in the room will be covered. Cable storage is built into the base of the microphone, keeping tangled cords out of sight. - Supreme User-Friendliness
-
- No microphone stand required
- Fast and easy setup for hassle-free installation
- Crystal Clear Sound
-
- Sound pick-up from a 360° radius
- Boundary layer design utilizes the acoustic pressure of the surface
- Simply Smart
-
- Expandable through cascading
- Wire storage and length adaptation built into base
- Incorporates 50 Years of Experience
- Philips Speech Processing has designed professional dictation systems for more than 50 years. Based on this experience, as well as on customer requirements Philips has now created a microphone system that uses the effect of the acoustic pressure of the surface
- Configurable to Individual Needs
- The daisy chain feature of the boundary layer microphone allows the connection of up to 6 microphones to the recording device for larger tables
- 360 Degree Pickup
- The boundary layer microphone is non-directional. The design allows sound pick-up from a 360 degree radius, so that no important details are lost
- Easy Setup and Maintenance
- The conference microphone is easy to set up and put into operation. Unlike other systems, there is no microphone stand required; just placed it on the conference table. For maximum convenience, the cable storage is integrated into the base of the microphone
- Green Specifications
-
- Lead-free soldered product
- Compliant to 2002/95/EC (RoHS)
UPC: 037849980941 In the Box Philips Conference Microphone 9172 3.5-2.5mm Adapter Plug Analog Adapter Plug 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips Conference Microphone 9172 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips LFH9172/00 Specs | Design | Boundary layer microphone | | Type | Electret condenser microphone | | Impedance | Output impedance: approximately 2.2kOhm @ 1kHz | | Sensitivity | -38dBV | | Frequency Response | 30Hz-18kHz | | Power Supply Voltage | Phantom supply voltage: 1.5-5V, 0.5mA | | Connections | 3.5mm audio plug
3.5mm audio jack (for cascading) | | Cable Length | 6.5' (2m) | | Operating Temperature | 41-113°F (5-45°C)
10-90% humidity | | Dimensions | 5.1 x 5.1 x 0.7" (130 x 130 x 18mm) | | Weight | 3.8 oz (108g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.0 x 5.5 x 2.0" |
