User Manual for Philips DPM6700 PocketMemo Dictation and Transcription Set Click to enlarge the picture
Contents of the user manual for the Philips DPM6700 PocketMemo Dictation and Transcription
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
 |
User manual for the Philips DPM6700 PocketMemo Dictation and Transcription contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

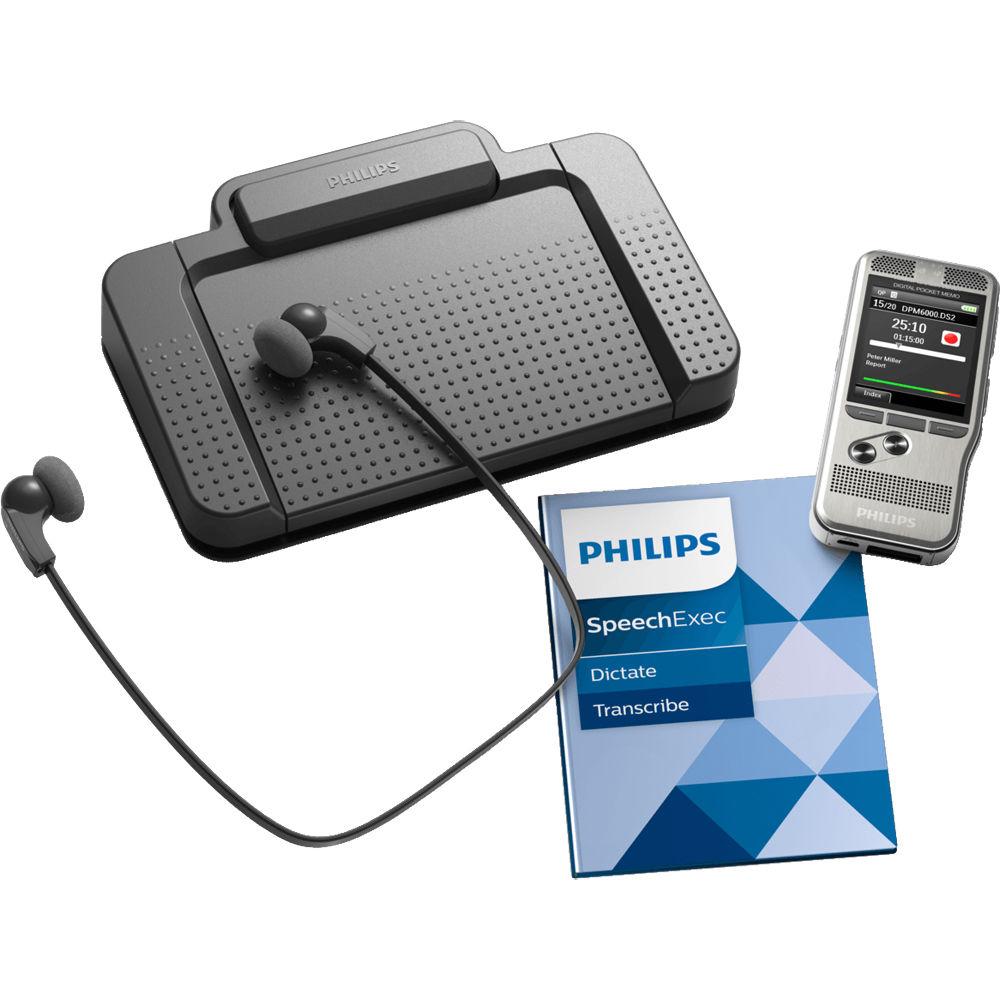

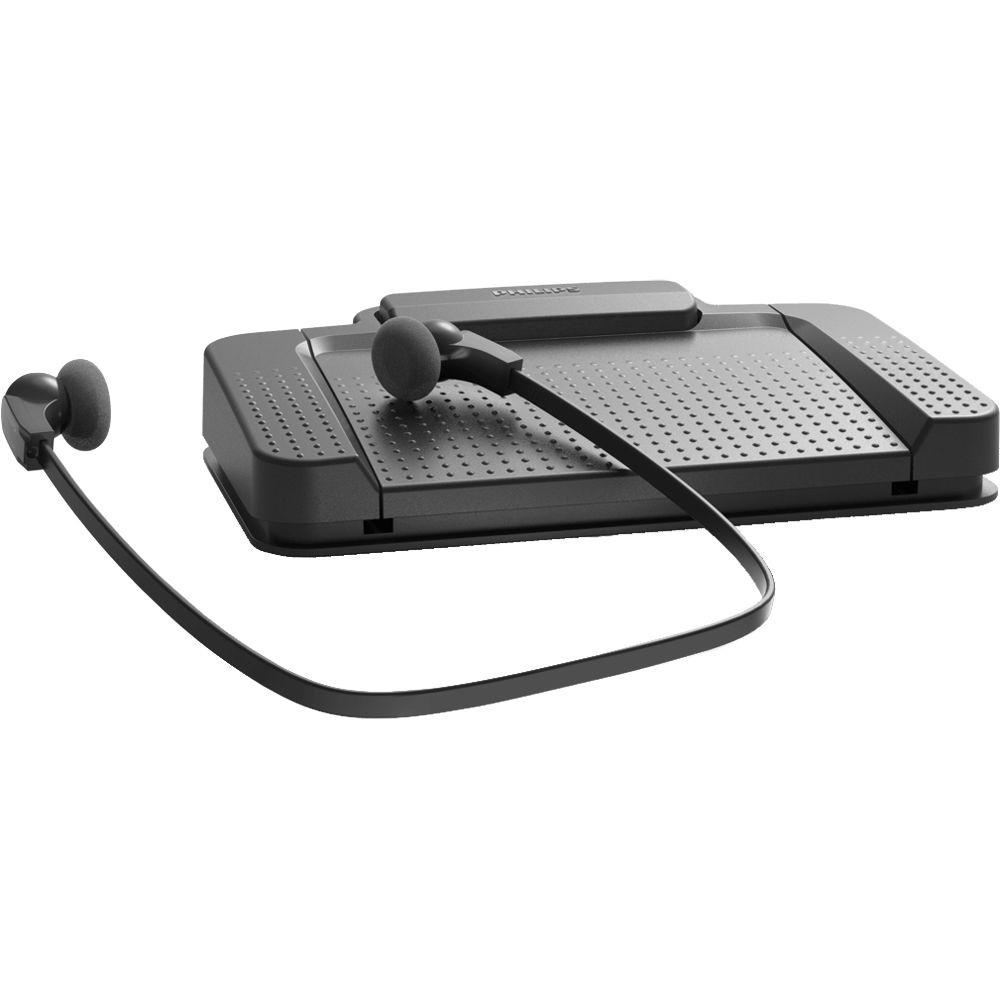

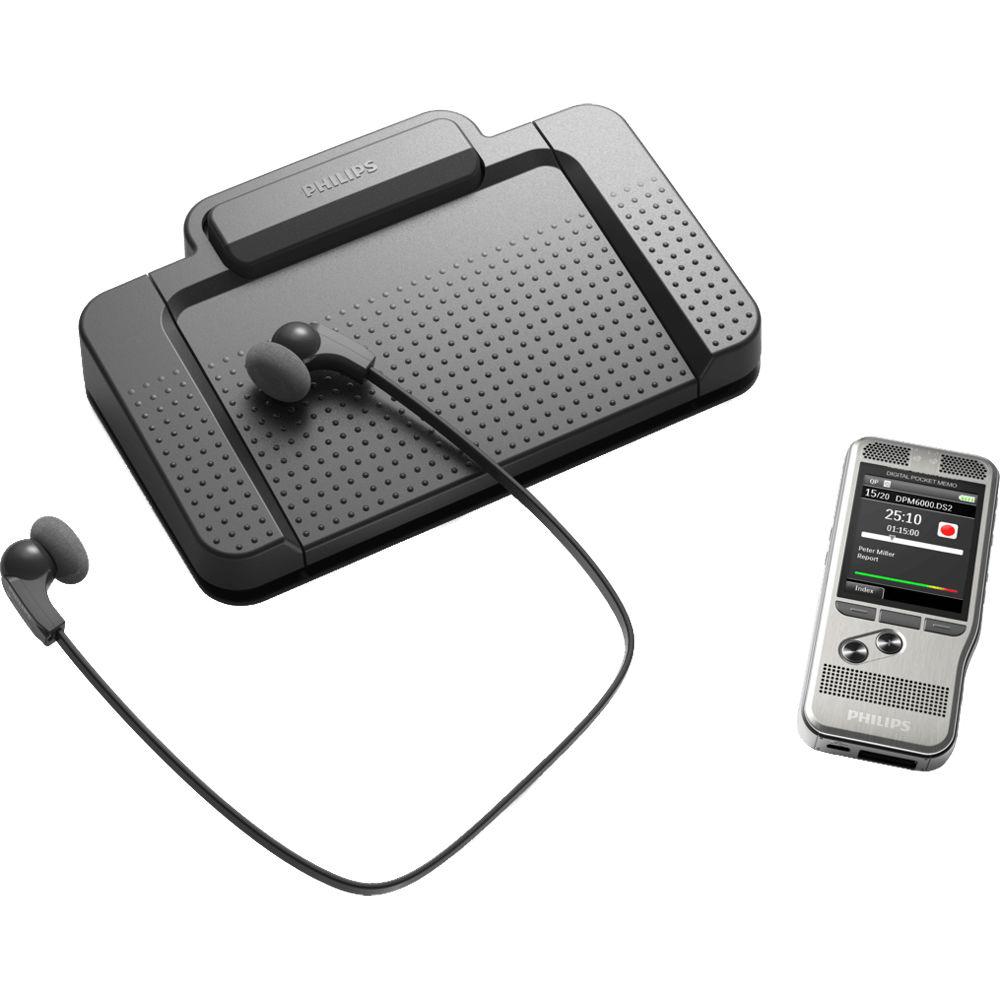

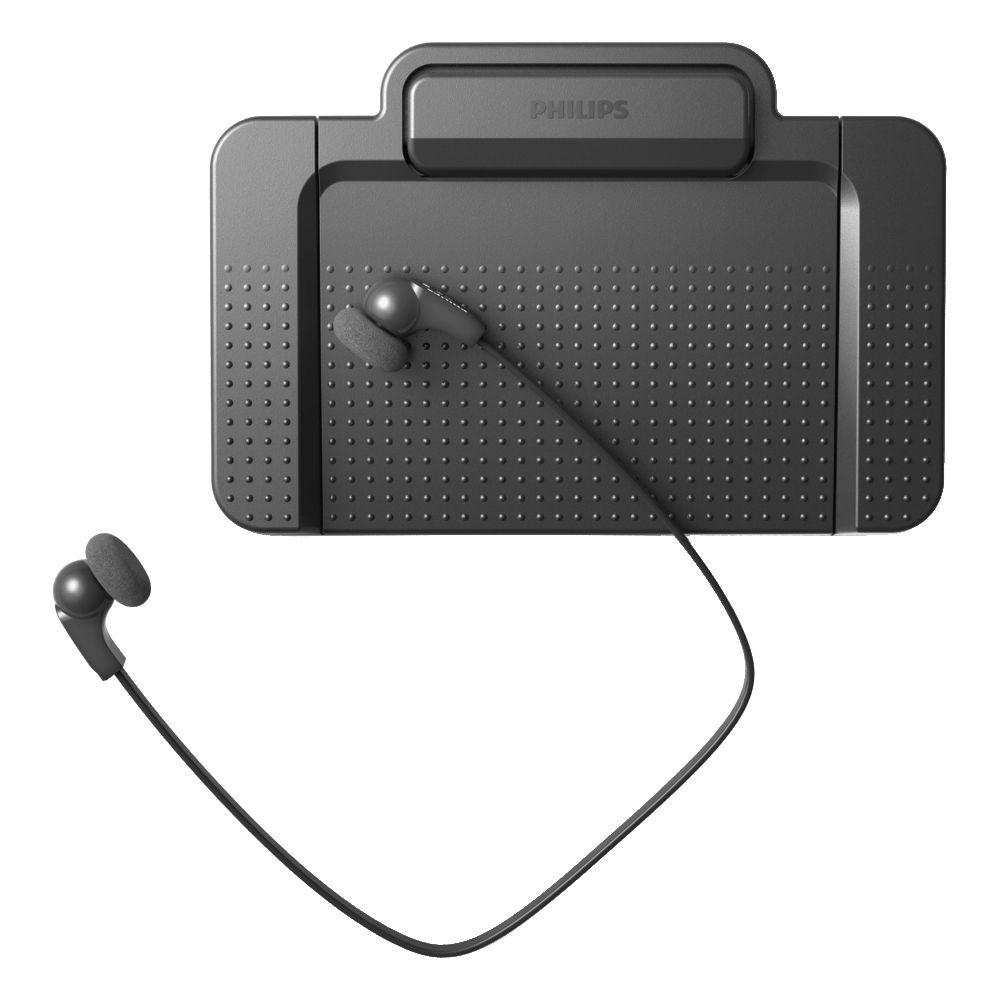

Product description The DPM6700 PocketMemo Dictation and Transcription Set from Philips includes the DPM6000 PocketMemo digital voice recorder, the ACC2330 foot control, the LFH0334 stereo headphones, and the SpeechExec Transcribe software. Featuring a lightweight, under-the-chin design with soft ear cushions, the stereo headphones are comfortable to wear and deliver high sound quality. - USB Transcription Foot Control (4-Pedal Design) The USB Transcription Foot Control from Philips allows you to work fast and more accurately by using your foot to start and pause the playback of audio files. While using it, you don't need to lift your foot; a slightly pressing with the foot tip is enough. Both of your hands are always free for typing, allowing you to transcribe efficiently even over an extended time period. The anti-slip pad at the bottom of the device ensures it grips to the floor and stays in place during use. It works great on any flooring surface including, carpet, tile, and wood. The bumps on the top surface prevent the foot from sliding off. The optional Philips SpeechExec remote device management software allows administrators to centrally manage, configure, and update Philips devices, saving both time and resources.
-
- Anti-slip pad keeps the device fixed to the floor
- Configurable pedal functions for a personalized transcription style
- Robust pedals and non-wearing magnetic contact switches
- Central configuration and management save time and resources

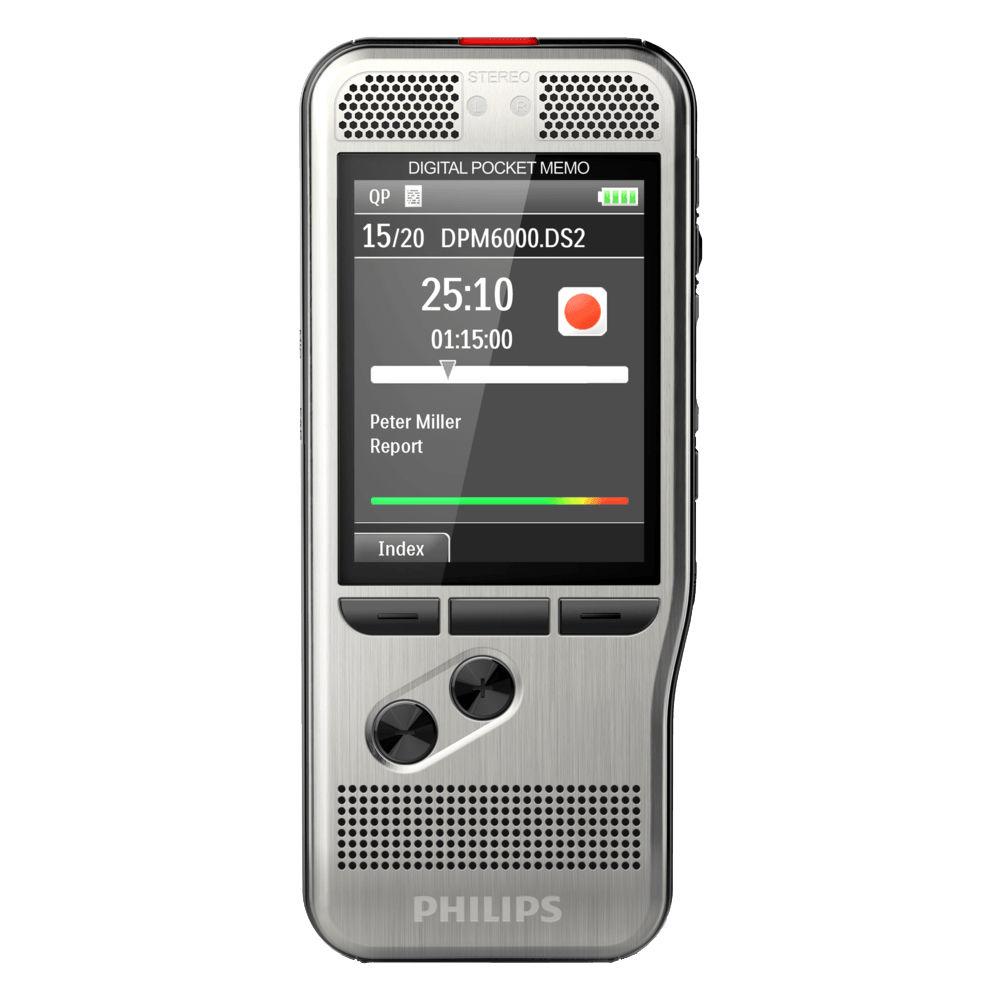

- DPM6000 PocketMemo Digital Voice Recorder with Push Button Equipped with two microphones and enclosed in a stainless steel casing, the DPM6000 PocketMemo Digital Voice Recorder from Philips is suitable for dictation activities. With a clear user interface and large full-color display, it is easy to use and offers clear images. This recorder features a 1000mAh lithium-ion ACC8100 battery that can be charged through a standard micro-USB jack. The integrated light sensor ensures extended battery life—the smart technology adjusts the brightness of the display, ensuring that your recorder will always be ready to work when you are.
Featuring push buttons, this recorder enables single-handed operation of all recording and playback functions, allowing easy and quick file editing (insert, overwrite, and append). The SpeechExec software organizes the workflow of dictation files and resulting documents, allowing you to monitor the status of your work. The DSS format also allows you to store additional information in the file header, which facilitates the organization and transcription of dictation files. - Two built-in microphones facilitate speech recognition
- Asymmetrical and ergonomic shape for easy grip
- Included priority setting option allows urgent recordings to be processed first
- Optional docking station and foot pedal for hands-free dictation and transcription even without a computer
- Memory card slot (supports up to 32GB)
- Transfers data at 6.75 MB/s (read) and 5.0 MB/s (write)
- Edit Modes: Insert (DSS), overwrite (DSS, MP3, PCM), and append (DSS, MP3, PCM)
- Built-in round, dynamic speaker
- Less than 200 mW speaker output power
- More than 200 days standby time
- Battery charges fully in 3 hours
- Lead-free soldered device is 2011/65/EU (RoHS) compliant
- Operates at 41 to 113°F and 10 to 90% humidity (non-condensing)

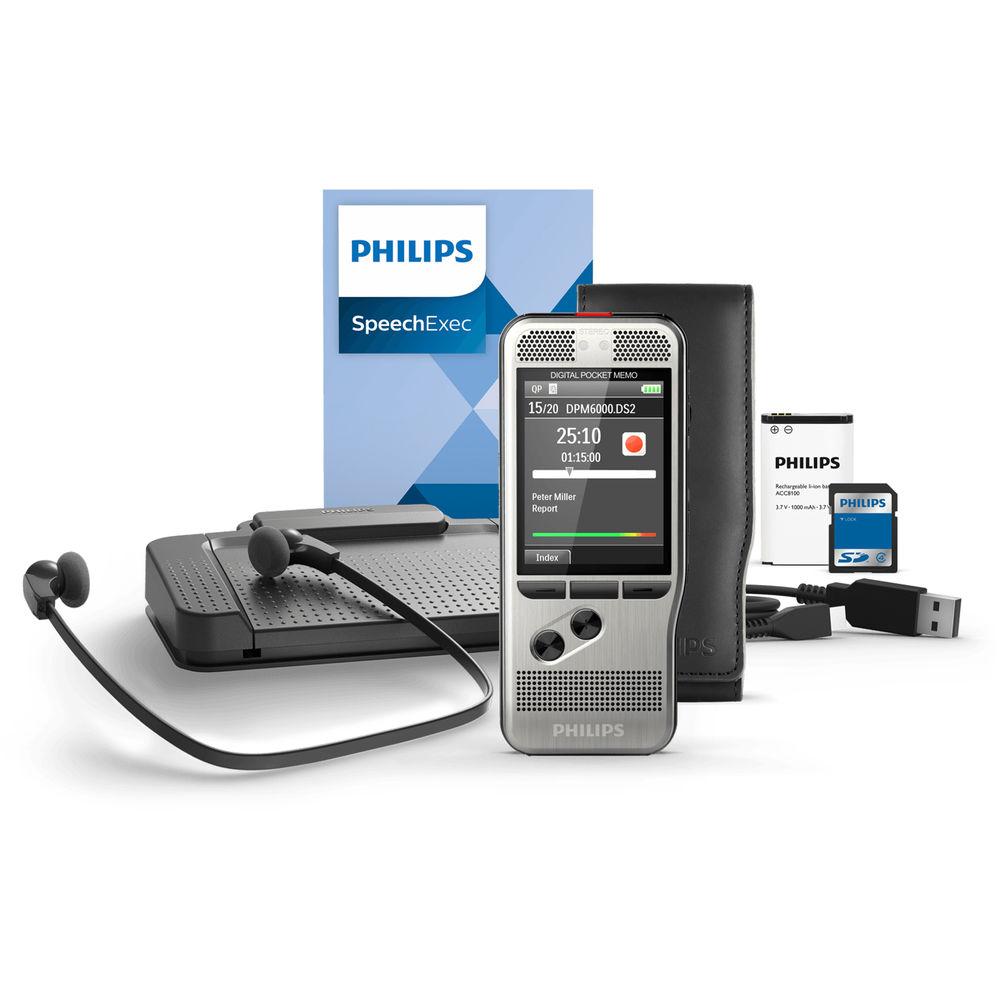

In the Box Bundle Items USB Transcription Foot Control (4-Pedal Design) xfwebazrtwabafvf DPM6000 PocketMemo Digital Voice Recorder with Push Button - ACC8100 Rechargeable Li-ion Battery for Philips DPM8000, DPM7000, and DPM6000 Series Dictation Recorders
- SpeechExec Dictate Workflow Software
Also Includes - LFH0334 Stereo Headphones
- SpeechExec Transcribe Software
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips DPM6700 PocketMemo Dictation and Transcription Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - USB Transcription Foot Control (4-Pedal Design)
| Compatibility | Philips SpeechExec Transcribe 5.0 or higher
Philips SpeechExec Pro Transcribe 5.0 or higher
Philips SpeechExec Enterprise Transcribe 2.5 or higher | | Compliance | Compliant with 2011/65/EU (RoHS)
Lead-free soldered products | | Dimensions | 7.8 x 2.1 x 6.7" (19.8 x 5.4 x 17.0 cm) | | Weight | 23 oz (650 g) | | | | Box Dimensions (LxWxH) | 7.9 x 6.7 x 2.2" | - DPM6000 PocketMemo Digital Voice Recorder with Push Button
| | | Type | Digital | | Mode | Stereo / Mono | | Recording Format | Digital Speech Standard (DSS), MP3, PCM (WAV) | | Bit-Rate | 13.7 kbps
28 kbps
192 kbps
353 kbps
705 kbps | | Sample Rate | 44.1 kHz
22.05 kHz
16 kHz
12 kHz | | Recording Time | SP Mono: 700 Hours
QP Mono: 350 Hours
MP3 Stereo: 50 Hours Recording in MP3 Format
PCM: 27 Hours
PCM Stereo: 13 Hours | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 2 Elements | | Pickup Pattern | Omni-Directional | | Frequency Response | 300 Hz - 7500 Hz | | | | Playback Formats | MP3 | | Speaker | Yes | | Speaker Size | 1.1" / 28 mm 28 mm diameter | | | | Display Size/Type | 2.4" TFT with 320 x 240 Resolution | | | | Battery Type | x Rechargeable Lithium-Ion Battery Pack | | Battery Life (approx.) | Recording: 30 Hours | | Power Adapter | No | | | | Compatible Memory Cards | SDHC
SD | | Connectors | 1/8" mini Microphone
1/8" mini Headphone | | USB | USB 2.0 (Micro-B) | | Operating System Support | Windows | | Dimensions (WxHxD) | 2.1 x 4.8 x .6" / 53.34 x 121.92 x 15.24 mm | | Weight | 4.1 oz / 116 g Including battery and memory card | | | | Box Dimensions (LxWxH) | 7.1 x 5.2 x 1.8" |
