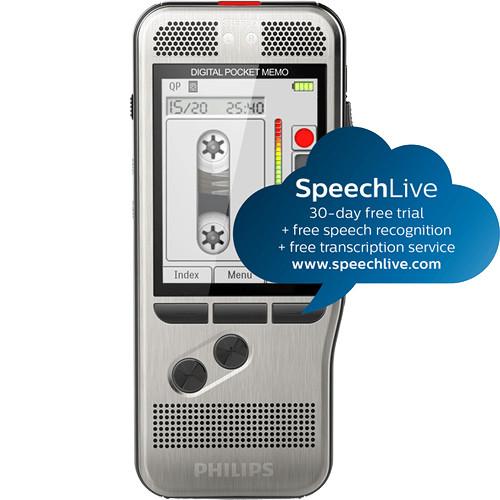

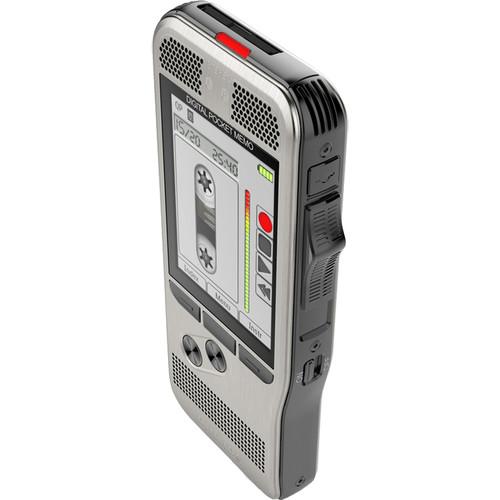

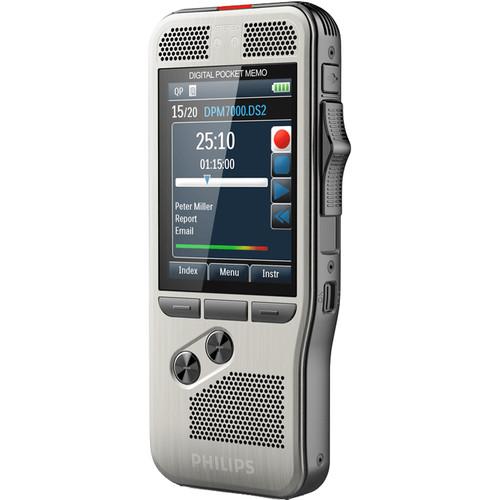

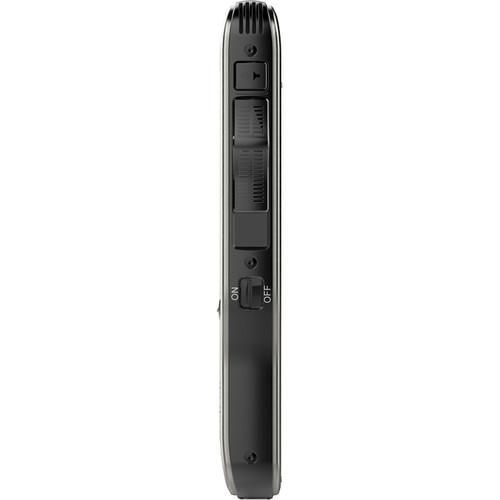

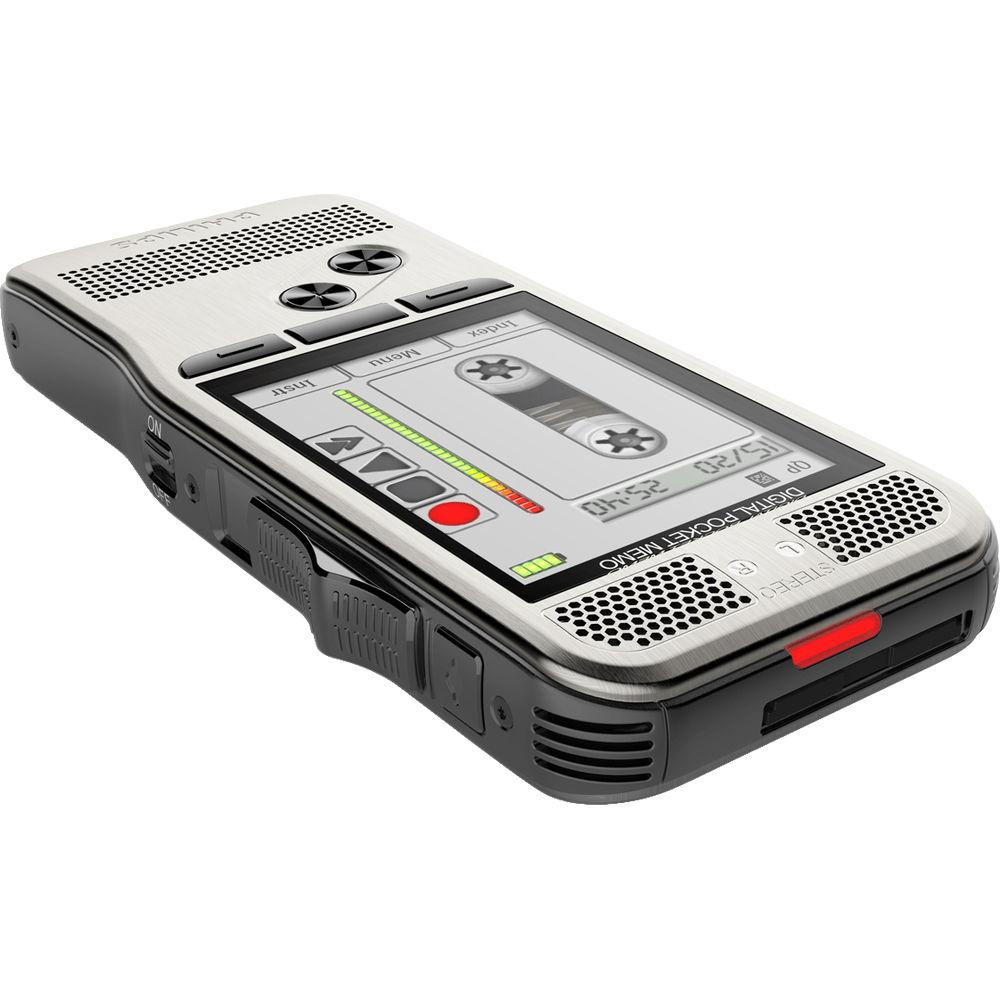

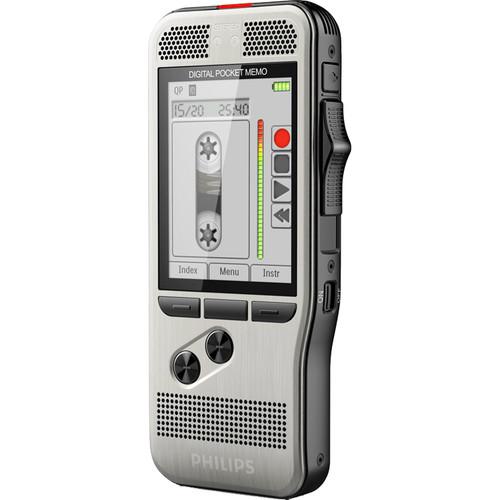

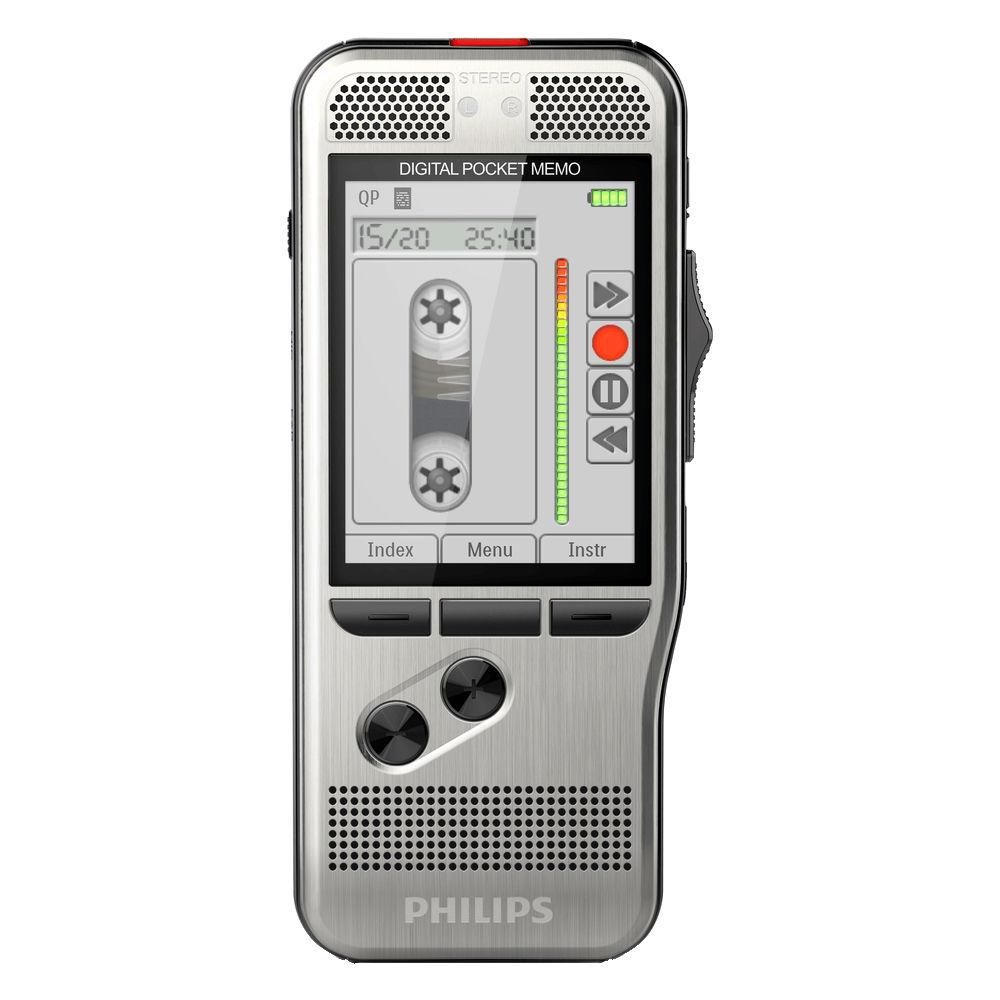

User Manual for Philips DPM7000 PocketMemo Digital Voice Recorder with Slide Switch Click to enlarge the picture
Contents of the user manual for the Philips DPM7000 PocketMemo Digital Voice Recorder
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
 |
User manual for the Philips DPM7000 PocketMemo Digital Voice Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description Equipped with two microphones and enclosed in stainless-steel casing, the DPM7000 PocketMemo Digital Voice Recorder from Philips is suitable for dictation activities. With a clear user interface and large full-color display, it is easy to use and offers clear images. This recorder features the 1000mAh lithium-ion ACC8100 battery that can be charged through a standard micro-USB jack. The integrated light sensor ensures extended battery life.
The smart technology adjusts the brightness of the display, ensuring that your recorder will always be ready. With the quick-response and ergonomic slide switch, this recorder enables single-handed operation of all recording and playback functions, allowing easy and quick file editing (insert, overwrite, and append). The SpeechExec software organizes the workflow of dictation files and resulting documents, allowing you to monitor the status of your work. The DSS format also allows you to store additional information in the file header, which facilitates the organization and the transcription of dictation files. The optional classic mode gives the user the look and feel of working with an analog device while retaining the advantages of digital technology. - Two built-in microphones facilitate speech recognition
- Asymmetrical and ergonomic shape for easy grip
- Included priority setting option allows urgent recordings to be processed first
- Optional docking station and foot pedal for hands-free dictation and transcription even without a computer
- Memory card slot (supports up to 32GB)
- Transfers data at 6.75 MB/s (read) and 5.0 MB/s (write)
- Edit modes: insert (DSS), overwrite (DSS, MP3, PCM), and append (DSS, MP3, PCM)
- More than 200 days standby time
- Battery charges fully in 3 hours
- Lead-free soldered device is 2011/65/EU (RoHS) compliant
- Operates at 41 to 113°F and 10 to 90% humidity (non-condensing)
- Classic mode gives the look of an analog device
- Light sensor extends battery life

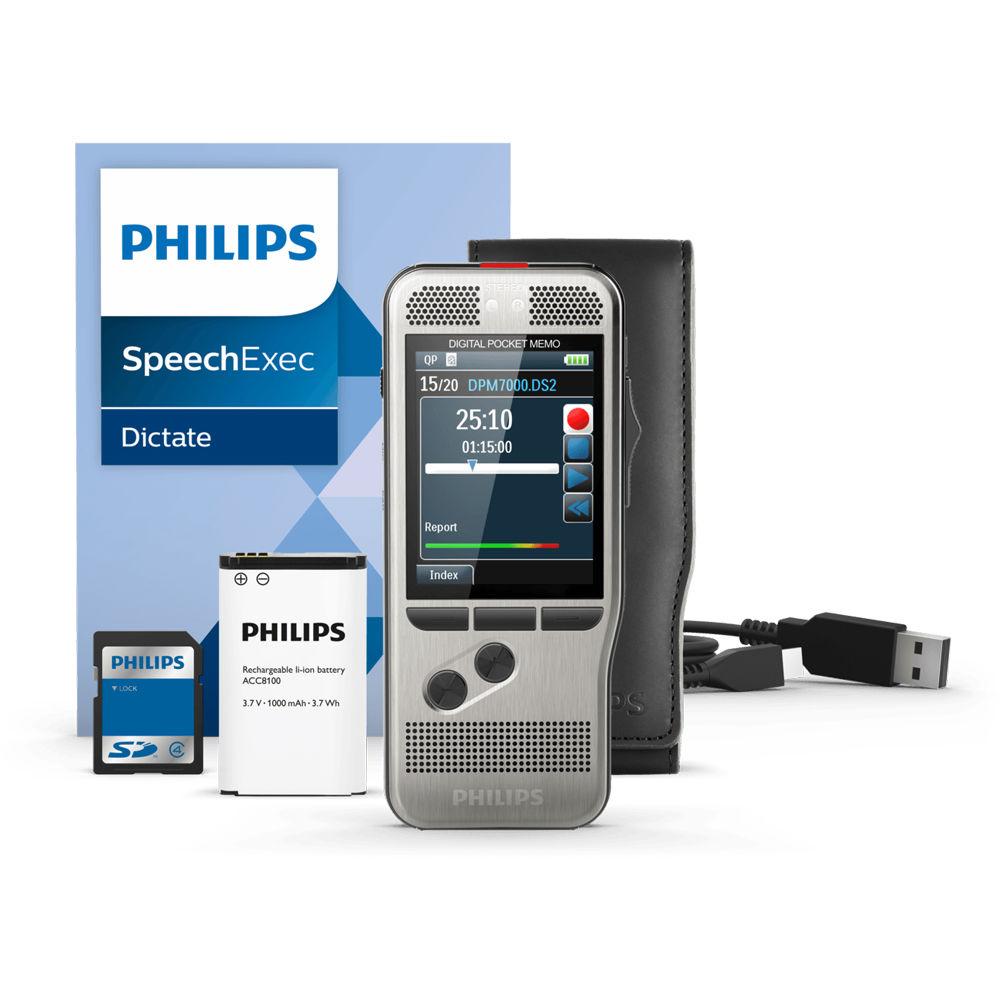

In the Box Philips DPM7000 PocketMemo Digital Voice Recorder with Slide Switch ACC8100 Rechargeable Li-ion Battery for Philips DPM8000, DPM7000, and DPM6000 Series Dictation Recorders Memory Card USB Cable Pouch SpeechExec Dictate Workflow Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips DPM7000 PocketMemo Digital Voice Recorder with Slide Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips DPM7000 Specs | | | Type | Digital | | Mode | Stereo / Mono | | Recording Format | Digital Speech Standard (DSS), MP3, PCM (WAV) | | Bit-Rate | 13.7 kbps
28 kbps
192 kbps
353 kbps
705 kbps | | Sample Rate | 44.1 kHz
22.05 kHz
16 kHz
12 kHz | | Recording Time | SP Mono: 700 Hours
QP Mono: 350 Hours
MP3 Stereo: 50 Hours Recording in MP3 Format
PCM: 27 Hours
PCM Stereo: 13 Hours | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 2 Elements | | Pickup Pattern | Omni-Directional | | Frequency Response | 300 Hz - 7500 Hz | | | | Playback Formats | MP3 | | Speaker | Yes | | Speaker Size | 1.1" / 28 mm 28 mm diameter | | | | Display Size/Type | 2.4" TFT with 320 x 240 Resolution | | | | Battery Type | x Rechargeable Lithium-Ion Battery Pack | | Battery Life (approx.) | Recording: 30 Hours | | Power Adapter | No | | | | Compatible Memory Cards | SDHC
SD | | Connectors | 1/8" mini Microphone
1/8" mini Headphone | | USB | USB 2.0 (Micro-B) | | Operating System Support | Windows | | Dimensions (WxHxD) | 2.1 x 4.8 x .6" / 53.34 x 121.92 x 15.24 mm | | Weight | 4.1 oz / 116 g Including battery and memory card | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.7 x 5.2 x 1.8" |
