User Manual for Philips DVT2710 VoiceTracer Digital Voice Recorder with Speech Recognition Software Click to enlarge the picture
Contents of the user manual for the Philips DVT2710 VoiceTracer Digital Voice Recorder
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
 |
User manual for the Philips DVT2710 VoiceTracer Digital Voice Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

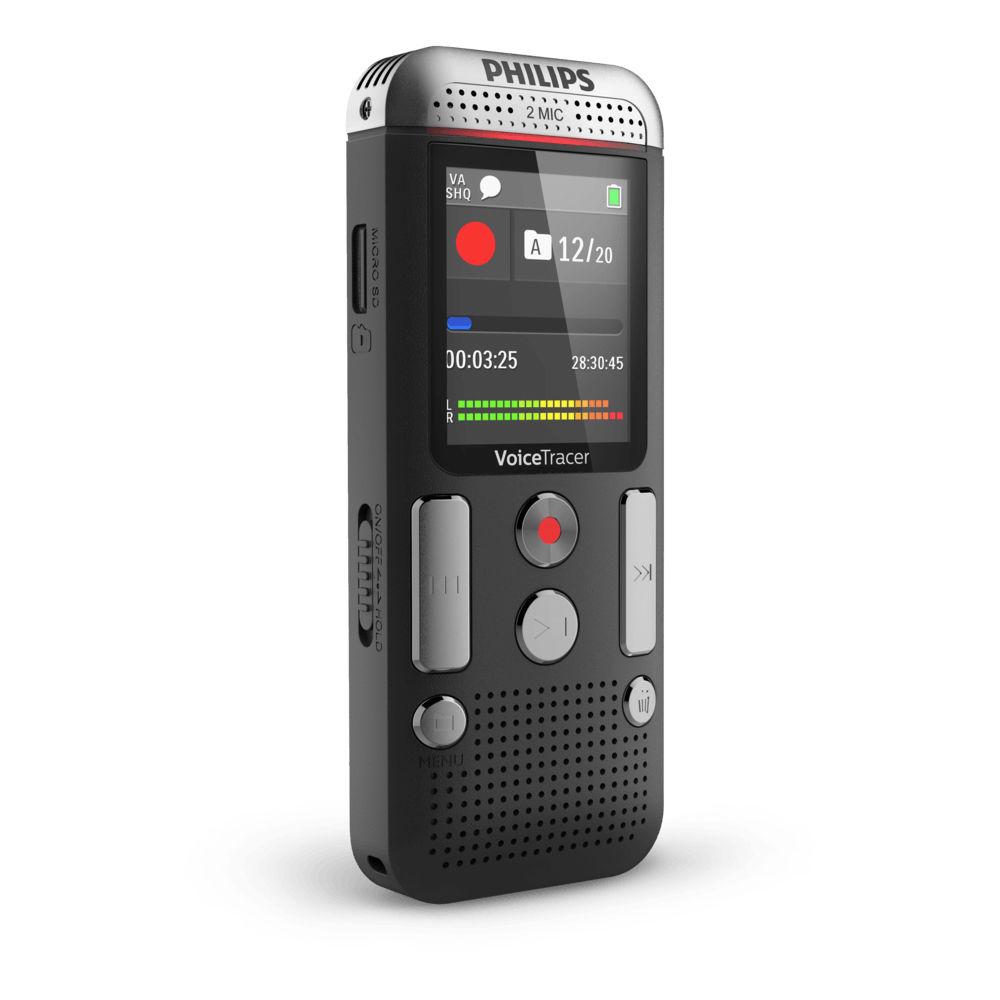

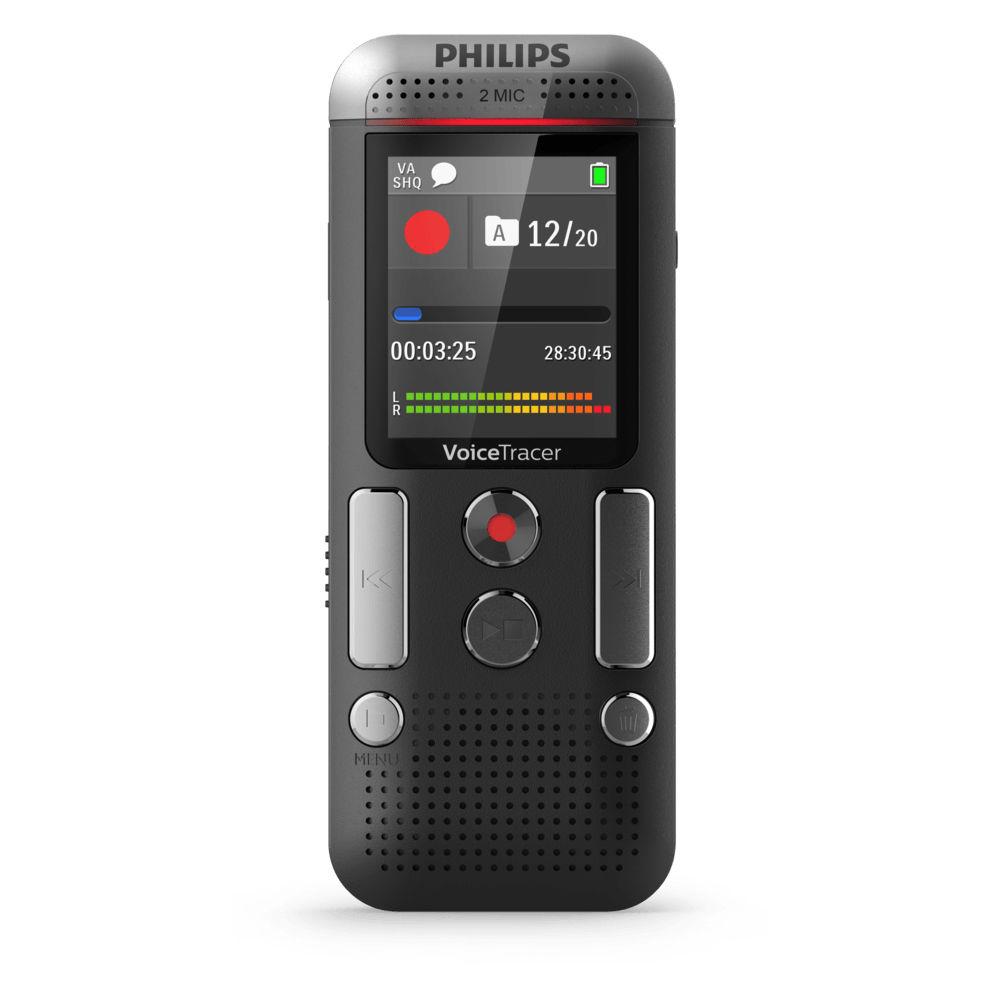

Product description The DVT2710 VoiceTracer from Philips is a portable, digital voice recorder with speech recognition software designed to provide flexible audio recording options and easy, accurate voice-to-text transcription for interviews, presentations, classes, and more. It includes Windows-compatible Dragon NaturallySpeaking speech recognition software, which converts voice recordings to text files with a transcription accuracy rate of up to 99%.Start recording at the touch of a button, or have the record function begin automatically via a timer or voice activation. Record in PCM (WAV) or MP3 format to the internal 8GB memory. A microSD slot supports up to 32GB of additional memory. The low-noise, two-mic system allows stereo recording without the use of external microphones.Recording time, battery status, stereo volume meters, and more are shown on the 1.77” backlit LCD color display. Audition files in slow, normal, or fast playback speed through the built-in 28mm speaker, or connect your favorite headphones to the 1/8” (3.5mm) jack for isolated listening.The DVT2710 VoiceTracer is powered by two AAA batteries (included), which provide up to 50 hours of use. Alternatively, its high-speed USB 2.0 interface allows you to connect it to a computer running Mac OS X, Windows, or Linux. - Basic Features
-
- Optimized for documents and notes

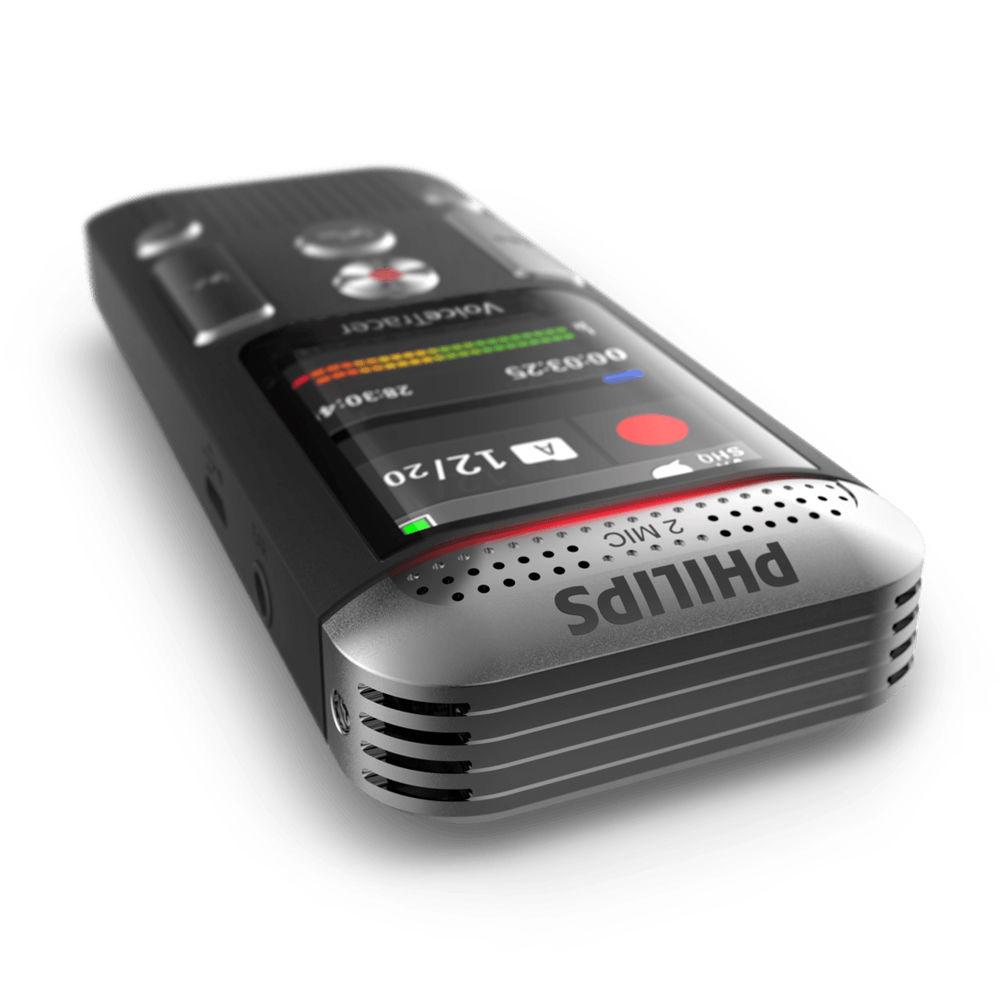

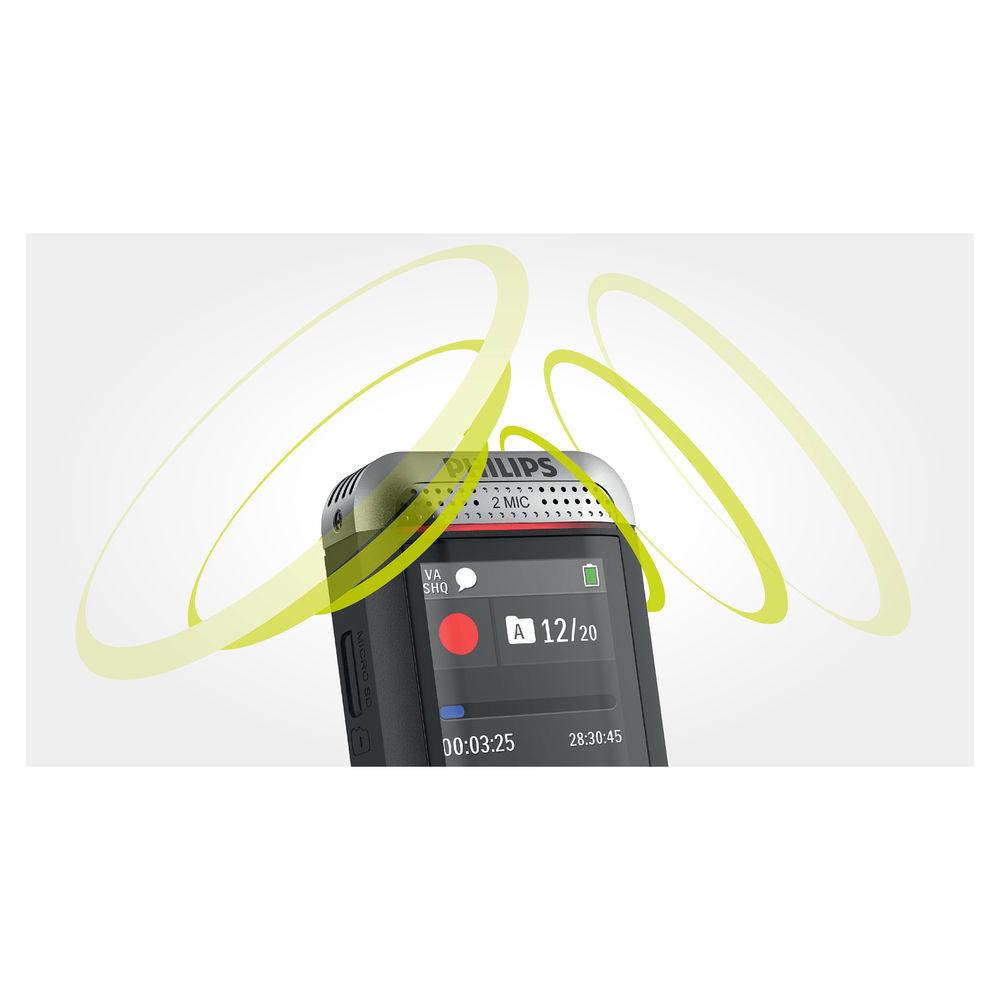

- Two built-in, low-noise microphones deliver stereo recording
- 50 Hz to 20 kHz frequency response
- Volume meters

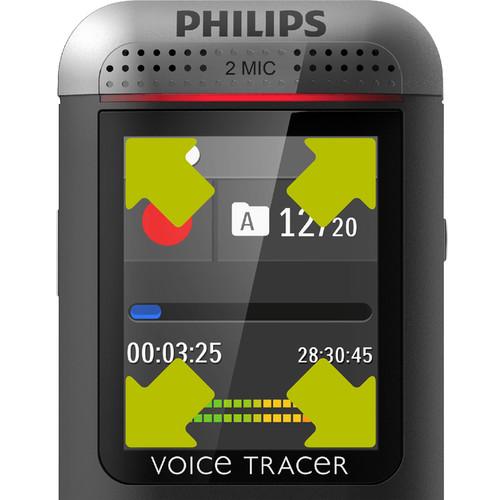

- 1.77" backlit LCD color display with resolution of 128 x 160 pixels
- Includes Windows-compatible Dragon speech recognition software for easy and accurate voice-to-text transcription
- Powered via two AAA batteries (included)
- Battery life up to 50 hours
- High-speed USB 2.0 interface
- Calendar search
- Keypad lock
- Multi-language support: English, French, German, Spanish, Italian, Russian, Polish, and Simplified Chinese
- Firmware upgradeable
- Compatible with Mac OS X, Windows, Linux
- Recording
-
- Record in PCM (WAV) or MP3 formats
- Sample rates: 16 to 44.1 kHz
- Bit rates: 8 to 1411 kbps
- Up to 2280 hours of recording time (LP mode)
- Internal 8GB memory

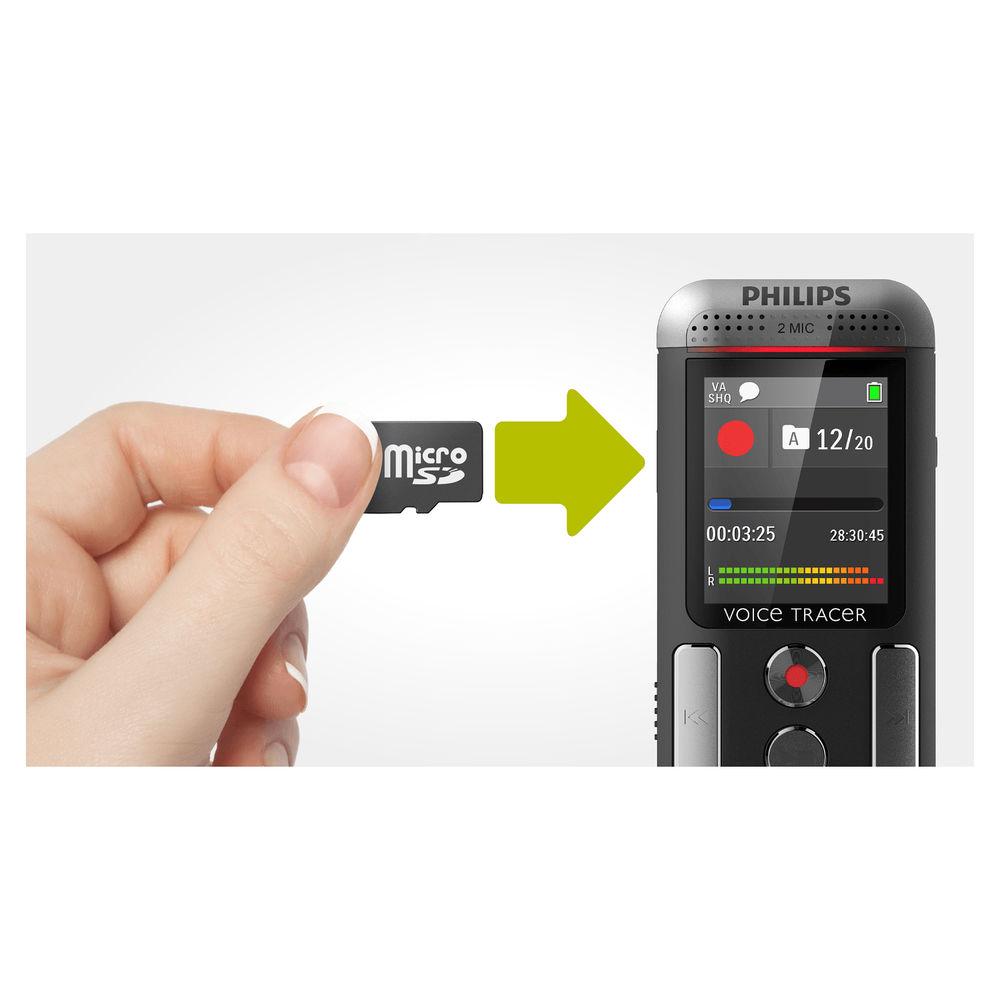

- Supports up to 32GB of additional memory via microSD card (available separately)
- One-touch recording
- Voice- or timer-activated recording
- Pre-recording function allows you to record the five seconds before pressing the Record button
- File overwrite and append mode
- Playback
-
- Built-in 28mm speaker
- 1/8" (3.5mm) headphone output
- Variable playback speed
UPC: 855971006182 In the Box Philips DVT2710 VoiceTracer Digital Voice Recorder with Speech Recognition Software DVD-ROM with Speech Recognition Software USB Cable 2 x AAA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips DVT2710 VoiceTracer Digital Voice Recorder with Speech Recognition Software in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips DVT2710 Specs | | | Type | Digital | | Mode | Stereo | | Recording Format | ADPCM (WAV), MP3 | | Bit-Depth | 16 16-bit is selected via PCM 1411 kbps recording mode | | Bit-Rate | 8 kbps - 1411 kbps 8, 64, 96, 192, and 1,411 kbps | | Sample Rate | 16 kHz - 44.1 kHz 16 kHz (LP), 22 kHz (SP), 32 kHz (HQ), and 44.1 kHz (PCM/SHQ) | | Recording Time | LP Stereo: 2280 Hours Recording in MP3 Format
SP Stereo: 284 Hours Recording in MP3 Format
HQ Stereo: 190 Hours Recording in MP3 Format
SHQ Stereo: 90 Hours Recording in MP3 Format
PCM Stereo: 12 Hours Recording in PCM (WAV) Format | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 2 Elements Configured as a stereo pair | | Frequency Response | 50 Hz - 20 kHz | | | | Playback Formats | MP3
PCM (WAV) | | Bit-Rate | MP3: 8 - 192 Kbps WAV playback is 1411 kbps (16-bit) | | Speaker | Yes | | Speaker Size | 28 mm | | Power Output | 110 mW | | Signal-to-Noise Ratio | > 60 dB | | | | Tuner | None | | Display Size/Type | 1.77" LCD Backlit with 128 x 160 Resolution | | Equalizer Settings | None | | Indicators | Low Battery, Recording, Voice Volume | | Erase Protect | None | | Message Folder | 4 (Maximum) Each of the four folders can store up to 99 files | | Voice E-Mail Function | None | | On Screen Clock | None | | Safety Lock | Yes | | Search | Calendar Search | | | | Battery Type | 2 x Alkaline AAA | | Battery Life (approx.) | Recording: 50 Hours Up to 50-hour battery life in LP record mode to the built-in memory
Up to 25-hour battery life in LP record mode to a microSD memory card | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 8 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Headphone Out | | USB | USB 2.0 (Micro-B) | | Operating System Support | Linux, Windows, macOS/OS X | | Dimensions (WxHxD) | 1.77 x 4.45 x .79" / 4.5 x 11.3 x 2 cm | | Weight | 2.79 oz / 79 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.6 x 5.3 x 1.5" |
