User Manual for Philips DVT7500 VoiceTracer Audio Recorder Click to enlarge the picture
Contents of the user manual for the Philips DVT7500 VoiceTracer Audio Recorder
- Product category: Portable Digital Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Portable Digital Recorders
 |
User manual for the Philips DVT7500 VoiceTracer Audio Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

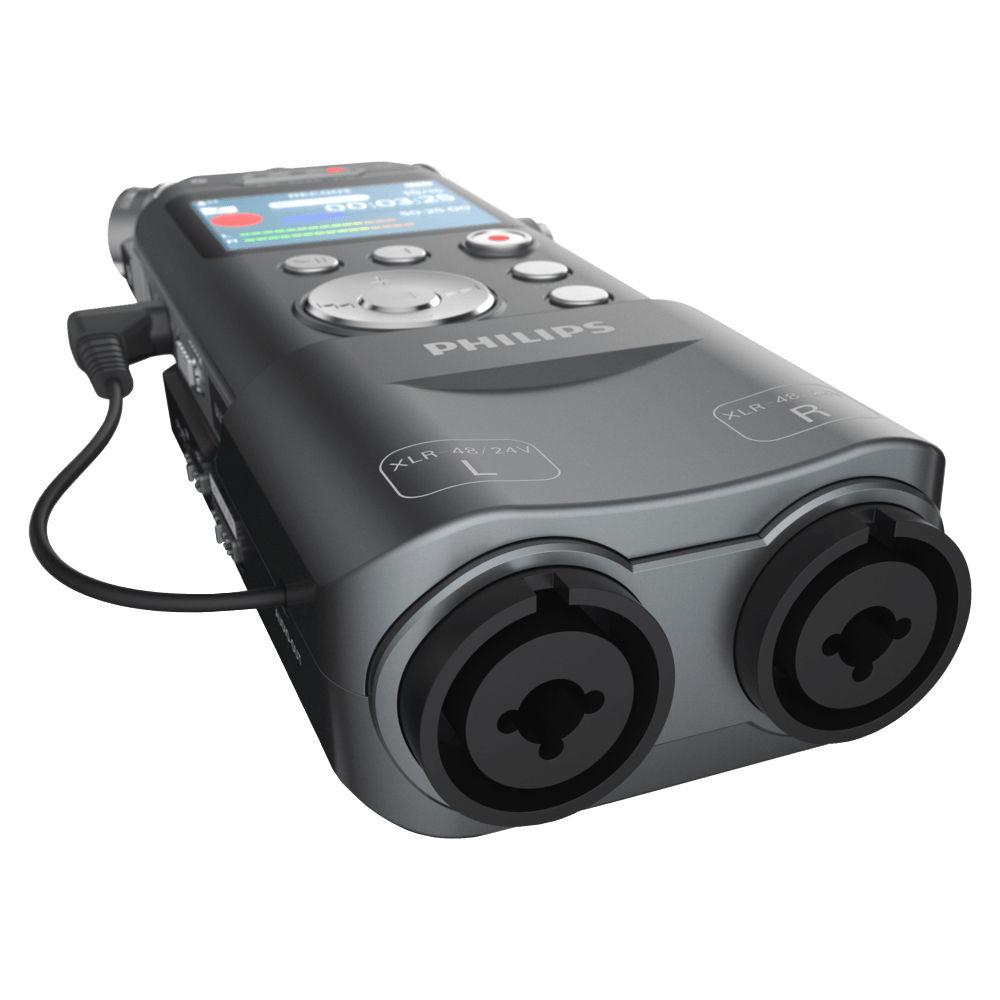

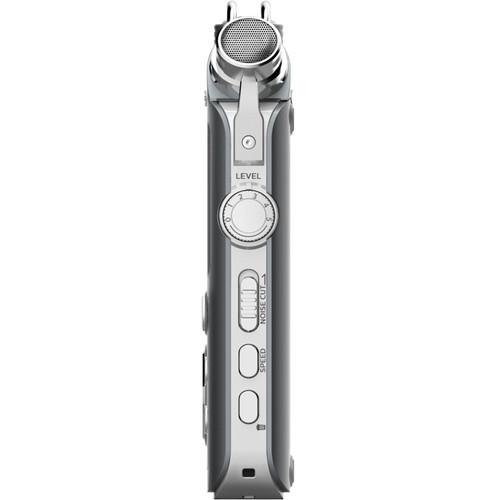

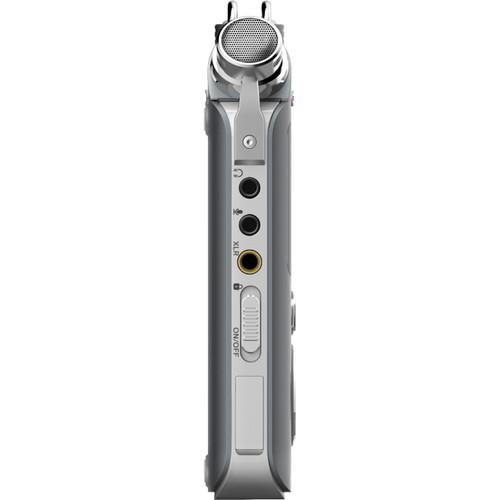

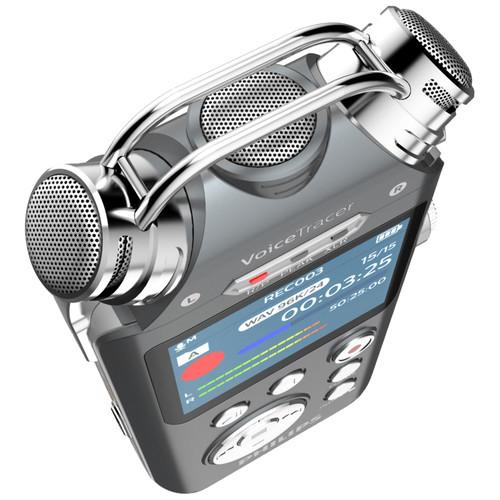

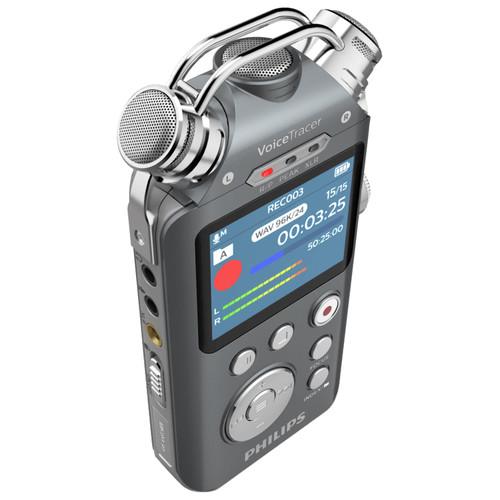

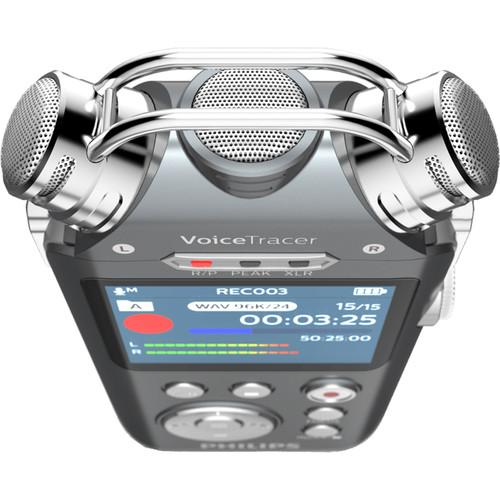

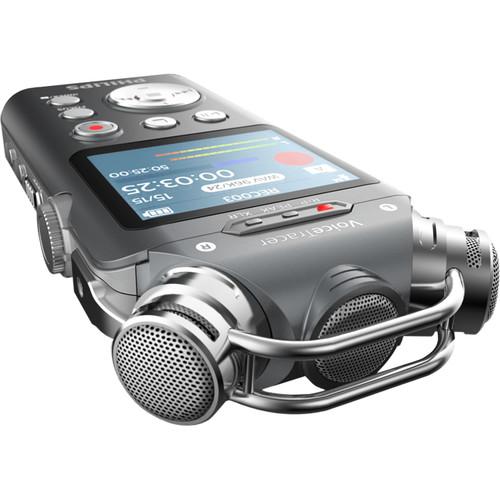

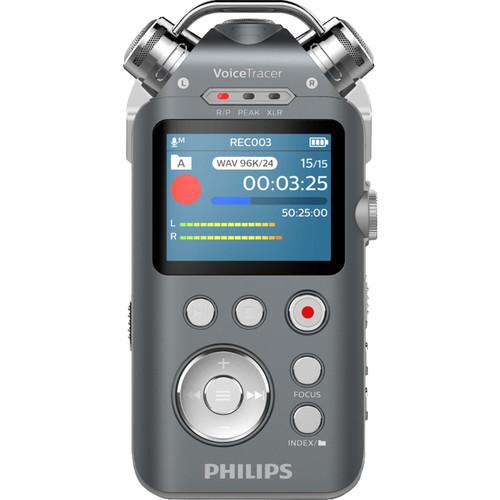

Product description Specifically geared for the audio recording of music, the VoiceTracer 7500 Audio Recorder from Philips features a three-microphone stereo recording functionality for creating either PCM or MP3 digital recordings. The unit features an internal 16GB memory that can be expanded by up to 64GB via its microSD slot. For hands-free recording, the VoiceTracer 7500 boasts a voice-activated recording feature that automatically records when you begin talking and pauses when you stop.It is plug-and-play compatible with Windows and Mac computers and transfers your files via the included USB cable. The recorder is powered by a rechargeable LiPo battery, which can keep you recording up to 30 hours at a clip. Also, you’ll find its 3.5mm line input and XLR microphone input useful, as you can use these jacks to simultaneously record your voice on an external microphone and plug your guitar directly into the recorder, making demoing material on the road simple. - On-Board Stereo Microphones
- The unit provides three microphones suspended in an orientation that picks up audio in a natural stereo spread.
- 24-Bit/96 kHz Sample Rate
- Record PCM (WAV) and MP3 files at up to 24-bit/96 kHz for high-quality recording results.
- XLR and Line-In Connectors for Recording from External Instruments and Mics
- The line-in and XLR connectors allow you to directly connect your instruments to the device, ensuring accurate recording. This is suitable for recording electric guitars or keyboards, or for connecting XLR microphones to the unit via the supplied adapter.
- Multi-Source Recording
- You can record multiple sources simultaneously using the line-in and XLR connectors. This allows you to record yourself singing while playing the guitar, for example.
- Manual Input-Level Adjustment for Better Volume Control
- You can manually adjust the input level up to -20 dB for a more controlled sound recording.
- Large Color Display
- The large color display offers sharp images, making it easier to see and read everything at a glance. The clear user interface supports five languages.
- 16GB Internal Capacity and microSD Card Slot
- 16GB internal memory storage and a microSD memory card slot—supporting up to 64 GB of additional memory—provides much in the way of file storage.
- Rechargeable LiPo Battery
- The high-capacity LiPo battery can be charged through a standard micro-USB jack. This guarantees battery life for recording up to 30 hours.
- Plug and Play in Windows and macOS/OS X
- Thanks to Plug and Play in Windows and macOS/OS X, you can quickly access your recordings without installing any additional software. The recorder is automatically displayed as a removable drive once it's connected to your computer via USB. It can also be used as a convenient way to store, back up, and share files.
- Tripod-Mountable for Convenience
- Use the tripod thread at the back of the device to position the device at exactly the right height and angle.
UPC: 855971006267 In the Box Philips DVT7500 VoiceTracer Audio Recorder XLR Connectors 3.5mm Line-In Cable Windscreen USB Cable Pouch Limited 1-Year Warranty User Manual PDF 4.2mbyabcxxysxuyuryuwwzwzrdfefbcavxtwwyfvr Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips DVT7500 VoiceTracer Audio Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips DVT7500 Specs | | | Type | Digital | | Mode | Stereo | | Recording Format | MP3, PCM (WAV) | | Bit-Depth | 16
24 | | Bit-Rate | 1024 kbps - 4068 kbps
128 kbps - 192 kbps | | Sample Rate | 32 kHz - 96 kHz | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 2 Elements | | Frequency Response | 20 Hz - 20 kHz | | | | Playback Formats | MP3
WMA
PCM (WAV)
AAC Also FLAC, APE, and OGG | | Speaker | Yes | | Power Output | 2 W | | Signal-to-Noise Ratio | > 80 dB | | | | Battery Type | 1 x Built-In Rechargeable Lithium-Ion Polymer Battery | | Battery Life (approx.) | Recording: 30 Hours | | | | Internal Memory | Installed: Flash Memory - 16 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Microphone In
1/8" mini Female Microphone In
1/8" mini Female Headphone Out XLR connection available via adapter and through apposite 1/8" mini input | | USB | USB 2.0 (Micro-B) | | Operating System Support | Windows, macOS/OS X | | Dimensions (WxHxD) | 4.92 x .87 x 2.54" (125 x 22 x 64.5 mm) | | Weight | 5.9 oz (167 g) | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.6 x 6.2 x 2.8" |
