User Manual for Philips DVT8010 VoiceTracer Digital Voice Recorder with Boundary Layer Microphone Click to enlarge the picture
Contents of the user manual for the Philips DVT8010 VoiceTracer Digital Voice Recorder
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
|
User manual for the Philips DVT8010 VoiceTracer Digital Voice Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|
Product description The DVT8010 VoiceTracer from Philips is a portable, digital voice recorder designed to provide flexible, high-quality audio recording options and plug-and-play computer integration for meetings, interviews, conversations, and more. It features three built-in microphones and automatic adjustment of audio-quality recording settings. Its automatic zoom functionality delivers focused, directional sound pickup, ideal for distant sources. It includes an external condenser microphone, which delivers 360-degree sound pickup and requires no stand, due to its omnidirectional polar patter and boundary layer design.Start recording at the touch of a button, or have the record function begin automatically via a timer or voice activation. Record in PCM (WAV) or MP3 format to the internal 8GB memory. A microSD slot supports up to 32GB of additional memory. The low-noise, three-mic system allows stereo recording without the use of external microphones. A 1/8" (3.5mm) mic input is provided for connection of an external microphone, such as the supplied electret condenser microphone. The AutoAdjustPlus algorithm analyzes incoming audio, then automatically chooses audio settings such as microphone sensitivity, wind filter, and noise reduction. 3Mic AutoZoomPlus technology suppresses surrounding noises for improved source clarity. A motion sensor automatically selects the appropriate microphone for each situation.Recording time, battery status, stereo volume meters, and more are shown on the 1.77” backlit LCD color display. Audition files in slow, normal, or fast playback speed via the built-in 28mm speaker, or connect your favorite headphones to the 1/8” (3.5mm) jack for isolated listening.The DVT8010 VoiceTracer is powered by a built-in, rechargeable LiPo battery, which provides up to 50 hours of use. Alternatively, its high-speed USB 2.0 interface allows you to connect it to a computer running Mac OS X, Windows, or Linux. The included wireless remote offers convenient control of record, pause, and stop functions. - Basic Features
-
- Optimized for meetings

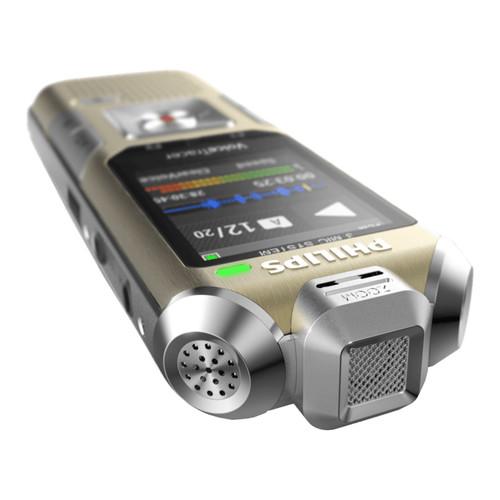

- Three built-in, high-sensitivity microphones deliver stereo recording with low noise
- 50 Hz to 20 kHz frequency response

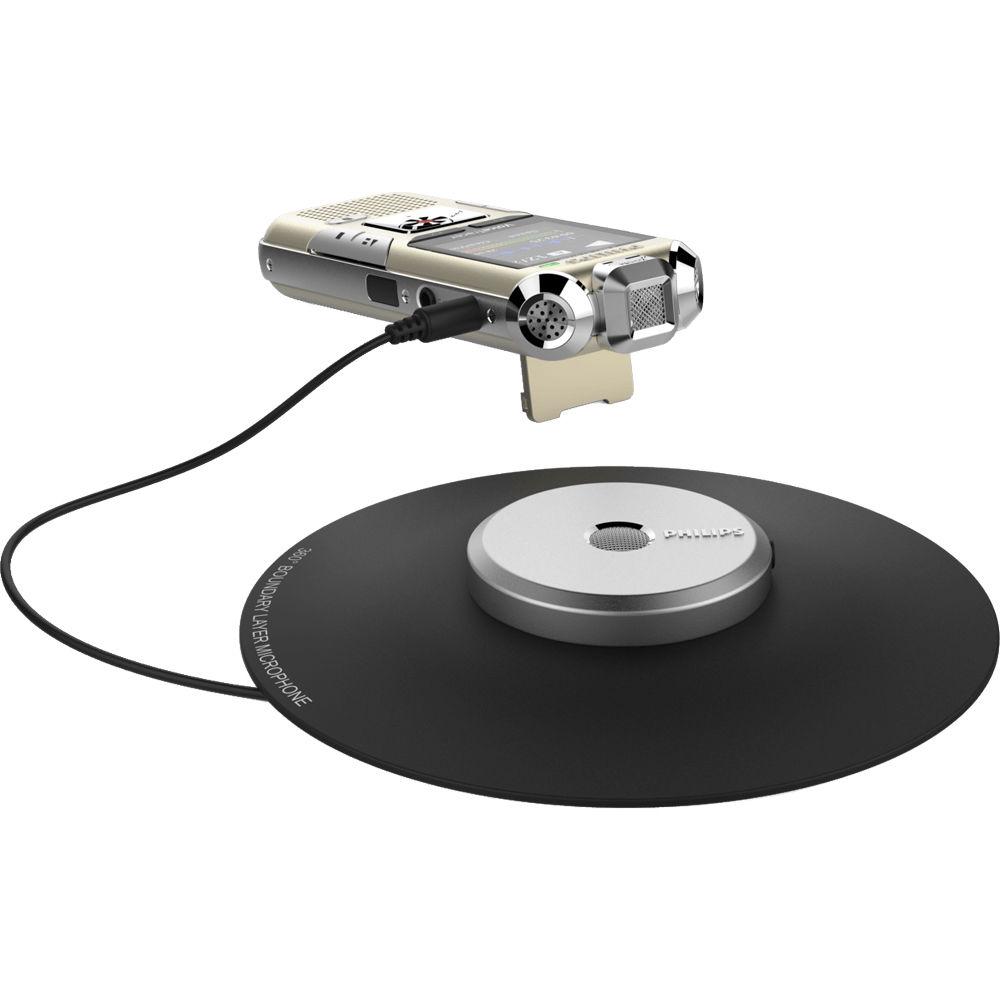

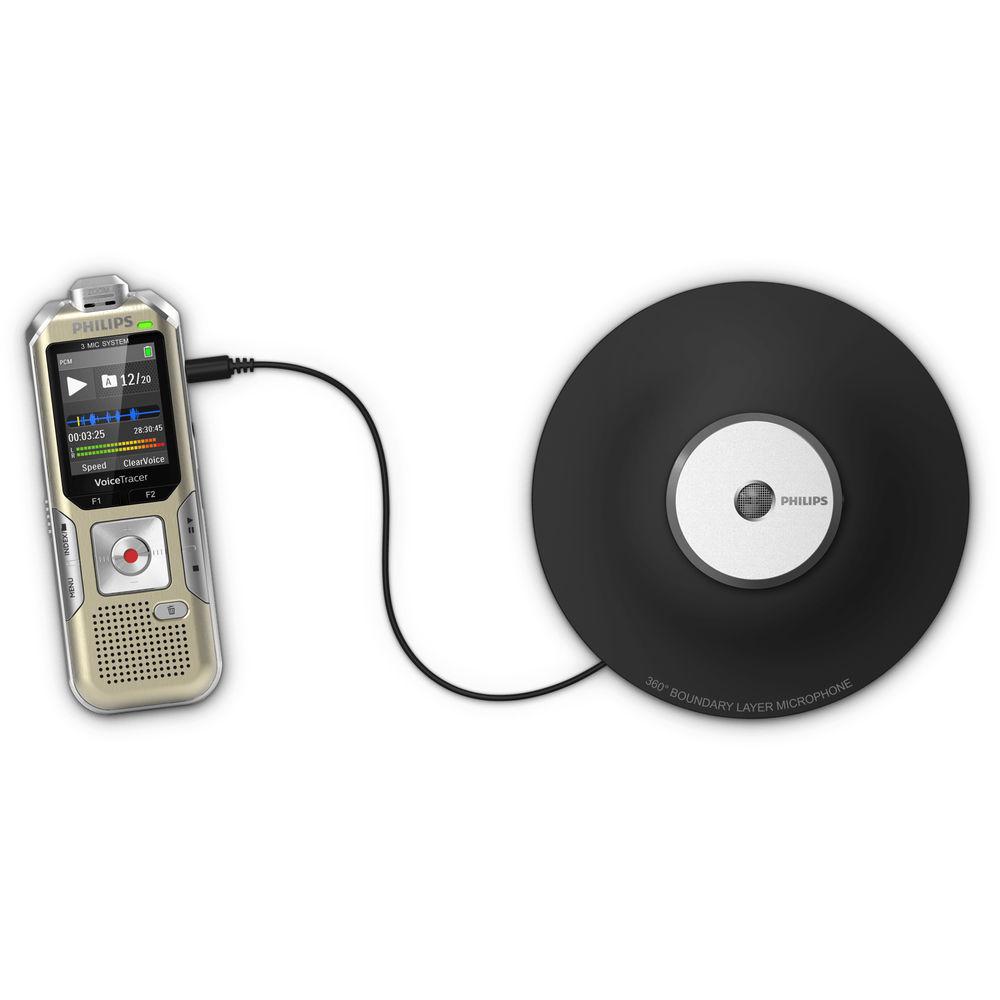

- Included external electret condenser microphone provides 360-degree sound pickup, due to its omnidirectional, boundary layer design
- Volume meters

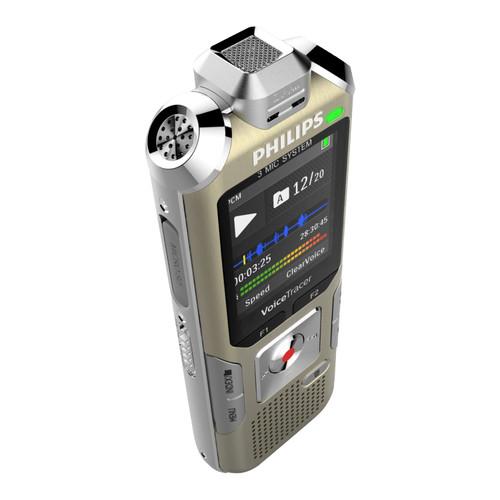

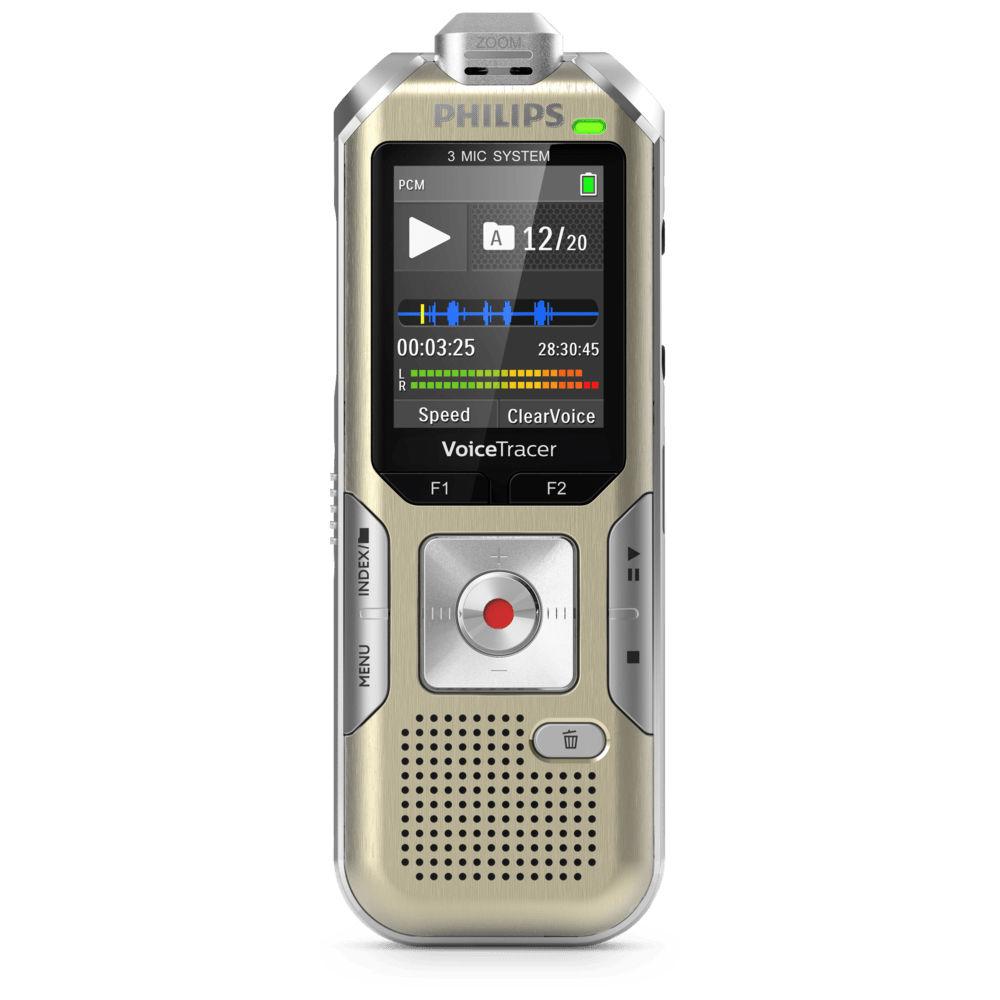

- 1.77" backlit LCD color display with resolution of 128 x 160 pixels
- Powered via built-in, rechargeable LiPo battery
- Battery life up to 50 hours
- High-speed USB 2.0 interface
- Calendar search
- Keypad lock
- Multi-language support: English, French, German, Spanish, Italian, Russian, Polish, and Simplified Chinese
- Firmware upgradeable
- Compatible with Mac OS X, Windows, Linux
- Durable metal shell
- Recording
-
- Record in PCM (WAV) or MP3 formats
- Sample rates: 16 to 44.1 kHz
- Bit rates: 8 to 1411 kbps
- Up to 2280 hours of recording time (LP mode)
- Internal 8GB memory
- Supports up to 32GB of additional memory via microSD card (available separately)
- One-touch recording
- Voice- or timer-activated recording
- Pre-recording function allows you to record the five seconds before pressing the Record button
- AutoAdjustPlus algorithm analyzes incoming audio, then automatically chooses audio settings such as microphone sensitivity, wind filter, and noise reduction

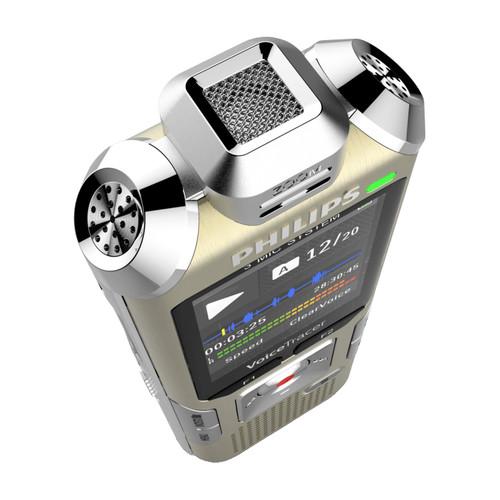

- 3Mic AutoZoomPlus technology suppresses surrounding noises for improved source clarity, and a motion sensor automatically selects the appropriate microphone for each situation
- File overwrite and append mode
- Playback
-
- Built-in 28mm speaker

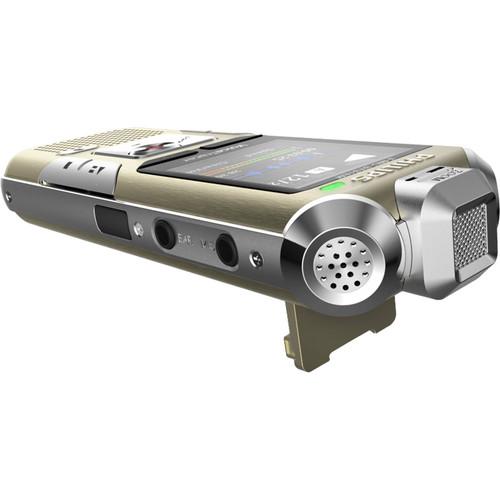

- 1/8" (3.5mm) headphone output
- Variable playback speed
- Supports MP3, WMA, and WAV
- Jazz, Pop, and Classic equalizer presets
- ID3 tag support
- External Microphone
-
- Type: electret condenser microphone
- Design: boundary layer microphone
- 30 Hz to 18 kHz frequency response
- Sensitivity: -38 dBV
- Cable length: 6.5' (2m)
- Connector: 1/8" (3.5mm)
- Impedance: approximately 2.2 kOhms @ 1 kHz
- Phantom supply voltage: 1.5 to 5V/0.5mA
- Dimensions (W × D × H): 13 × 13 × 1.8 cm (5.1 × 5.1 × 0.7")
- Weight: 108g (3.8 oz)
UPC: 855971006243 In the Box Philips DVT8010 VoiceTracer Digital Voice Recorder with Boundary Layer Microphone Meeting Electret Condenser Microphone Stereo Headphones Wireless Remote Control USB Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips DVT8010 VoiceTracer Digital Voice Recorder with Boundary Layer Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips DVT8010 Specs | Type | Digital | Mode | Stereo | Recording Format | ADPCM (WAV), MP3 | Bit-Depth | 16 16-bit is selected via PCM 1411 kbps recording mode | Bit-Rate | 8 kbps - 1411 kbps 8, 64, 96, 192, and 1,411 kbps | Sample Rate | 16 kHz - 44.1 kHz 16 kHz (LP), 22 kHz (SP), 32 kHz (HQ), and 44.1 kHz (PCM/SHQ) | Recording Time | LP Stereo: 2280 Hours Recording in MP3 Format SP Stereo: 284 Hours Recording in MP3 Format HQ Stereo: 190 Hours Recording in MP3 Format SHQ Stereo: 90 Hours Recording in MP3 Format PCM Stereo: 12 Hours Recording in PCM (WAV) Format | One-Click Recording | Yes | Voice Activated Recording | Yes | Microphone Type | Internal Stereo - 3 Elements External Stereo - 1 Elements | Microphone Sensitivity | High | Pickup Pattern | Omni-Directional Internal Mic: Not specified by manufacturer External Mic: Omnidirectional (boundary layer) | Frequency Response | 50 Hz - 20 kHz 30 Hz - 18 kHz Internal Mic: 50 Hz - 20 kHz External Mic: 30 Hz - 18 kHz | | Playback Formats | MP3 PCM (WAV) WMA | Bit-Rate | MP3: 8 - 320 Kbps WMA: 48 - 320 Kbps WAV playback is 1411 kbps (16-bit) | Speaker | Yes | Speaker Size | 28 mm | Power Output | 110 mW | Signal-to-Noise Ratio | > 60 dB | | Tuner | Frequency Range: 87.5 - 108.0 MHz Station Presets: 20 Auto Digital Tuning: Yes Tuner Bands: FM Stereo | Display Size/Type | 1.77" LCD Backlit with 128 x 160 Resolution | Equalizer Settings | Classical, Jazz, Pop | Indicators | Low Battery, Recording, Voice Volume | Erase Protect | None | Message Folder | 4 (Maximum) Each of the four folders can store up to 99 files | Voice E-Mail Function | None | On Screen Clock | None | Safety Lock | Yes | Search | Calendar Search | | Battery Type | 1 x Built-In Rechargeable Lithium-Ion Polymer Battery | Battery Life (approx.) | Recording: 50 Hours Up to 50 hours battery life in LP record mode to the built-in memory Up to 25 hours battery life in LP record mode to a microSD memory card | Power Adapter | No | | Internal Memory | Installed: Flash Memory - 8 GB | Compatible Memory Cards | microSD | Connectors | 1/8" mini Female Headphone Out 1/8" mini Female Microphone In | USB | USB 2.0 (Micro-B) | Operating System Support | Linux, Windows, macOS/OS X | Dimensions (WxHxD) | 1.77 x 4.92 x .71" / 4.5 x 12.5 x 1.8 cm | Weight | 3 oz / 85 g | | Package Weight | 0.85 lb | Box Dimensions (LxWxH) | 6.4 x 5.3 x 2.0" |
