User Manual for Philips MSR Gold FastFit Lamp Click to enlarge the picture
Contents of the user manual for the Philips MSR Gold FastFit Lamp
- Product category: Metal Halide & HMI Lamps Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Metal Halide & HMI Lamps
|
User manual for the Philips MSR Gold FastFit Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

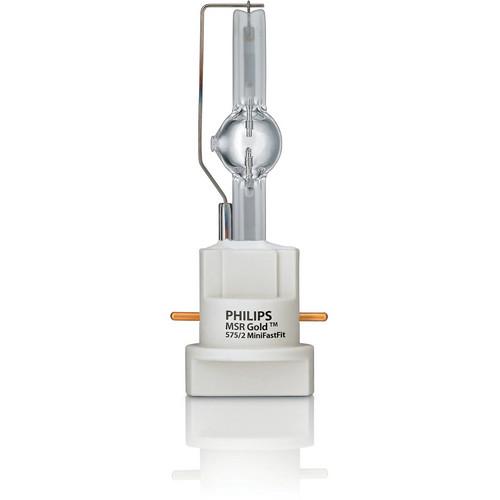

Product description The MSR Gold FastFit Lamp from Philips provides high beam intensity of white light for an illuminating performance. Its gold-plated caps provide high heat protection and prevent premature failure. The P3 technology enables use at high temperatures and in any position, thus extending the lamp life and consistency of high-quality light output. The FastFit design allows easy and quick switching between lamp technologies. - Can be used in any operating position
- Used for entertainment purposes
- Dimmable with a life of 750 hour to 50%
Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips MSR Gold FastFit Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

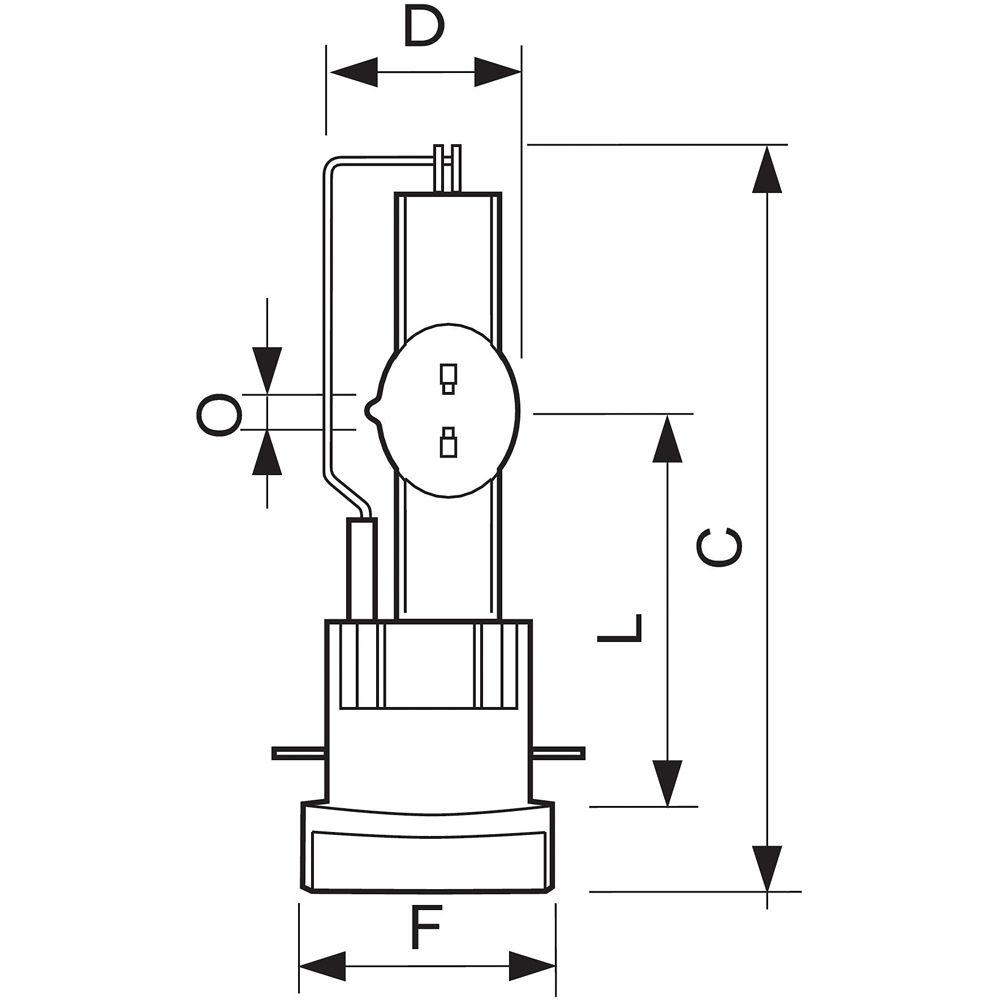

Technical parametersPhilips 245621 Specs Color Rendering Index | 75 Ra8 | Color Temperature | 7,500˚K | Chromaticity | X Co-ordinate: 298 Y Co-ordinate: 322 | Luminous Flux | Minimum: 41,800 Lm Nominal: 50,000 Lm | Luminous Efficacy | 71 Lm/W | Watts | 700 W | Current | 10.2 A | Supply Voltage | Ignition: 198 V minimum | Temperature | Pinch: 932ºF (500ºC) maximum Bulb: 1,742ºF (950ºC) maximum | Overall Length | 4.4" (112.0 mm) maximum | Diameter | 0.91" (23.2 mm) maximum | Width | 1.61" (41.0 mm) | Light Center Length | Minimum: 2.51" (64.0 mm) Nominal: 2.55" (65.0 mm) Maximum: 2.59" (66.0 mm) | Arc Length | 0.14" (3.80 mm) | | Package Weight | 0.45 lb | Box Dimensions (LxWxH) | 7.5 x 4.2 x 3.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
