User Manual for Philips MSR1200 HR HMI Lamp Click to enlarge the picture
Contents of the user manual for the Philips MSR1200 HR HMI Lamp
- Product category: Metal Halide & HMI Lamps Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Metal Halide & HMI Lamps
|
User manual for the Philips MSR1200 HR HMI Lamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

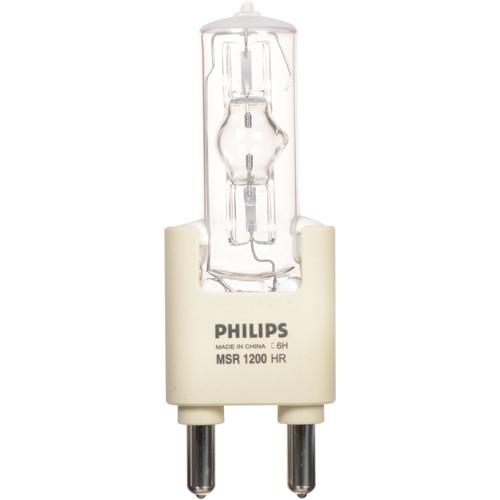

Product description This is a Philips MSR1200 HR HMI Lamp (1,200W/100V). This highly efficient bulb features hot restrike, a color temperature of 6,000K and an average life of 1,000 hours. - Product Features
-
- Philips Pinch Protection
- MSR filling
- Optimal discharge tubes geometry
- High efficacy
- Single ended lamp concept
- Product Benefits
-
- Enables use at higher temperatures in any burning position.
- Perfect daylight color due to 6,000K temperature with excellent color characteristics required for the set
- No arc movement
- High lumen output
- High beam intensity
- Hot re-ignition is possible ensuring the availability of the light at any time.
- Longer lifetime, fewer early failures, consistent performance over time
- Luminaires
-
- Must only be operated in closed luminaires, because of the high internal working pressure
- Luminaires must block the emitted UV radiation, with no radiation spill through ventilation slots
Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips MSR1200 HR HMI Lamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips MSR1200/HR Specs | Code | MSR 1200 HR | | Application | Stage and studio fixtures | | Watts | 1,200 | | Amps | 13.8 | | Volts | 90 - 240 (depending on optional ballast) | | Color Temperature | 6,000K | | Average Life Hours | 750 | | Approx. Lumens | 11,000 | | Base Type | G38 | | Efficiency | lm/W: 91 | | CRI | 95 | | Burning Position | Any | | Dimensions | Diameter: 1.57" (40 mm) max.
MOL: 7.9" (200 mm) max.
MOD: 2.6" (67 mm) max. LCL: 4.25" (108 mm) max. | | | | Package Weight | 1.06 lb | | Box Dimensions (LxWxH) | 12.2 x 5.75 x 4.65" |
