Product description

  • PPX3614

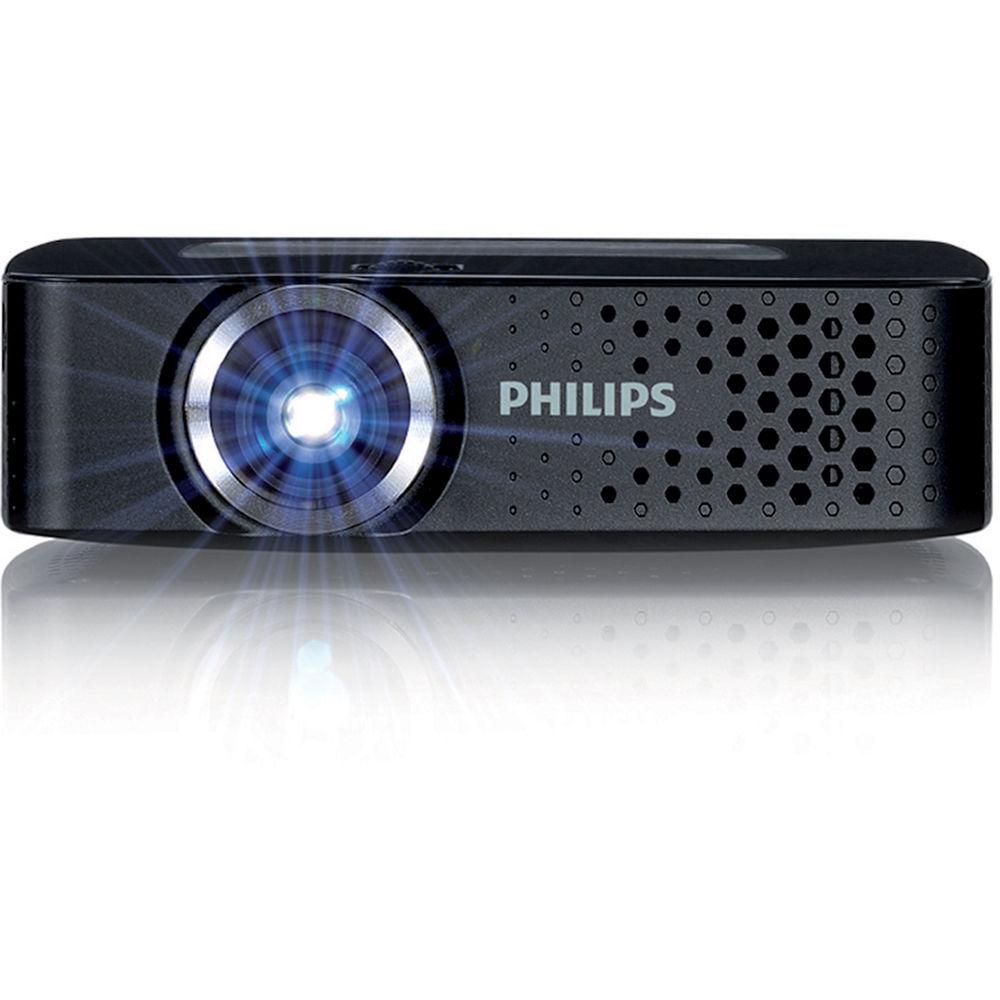

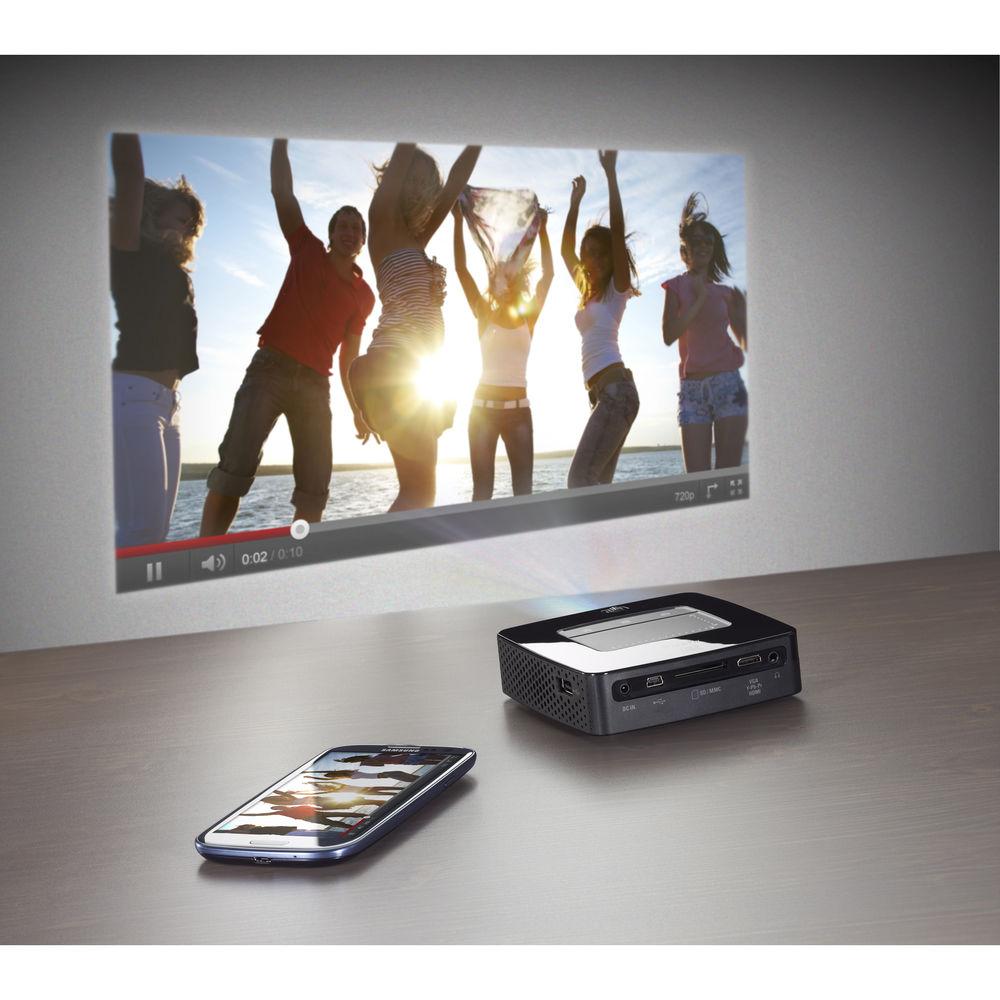

Enjoy larger-than-life multimedia on the go with the Philips PicoPix PPX3614/F7 140-Lumen FWVGA DLP Pico Projector with Wi-Fi. Able to project an image up to 120" diagonal, this projector puts out up to 140 lumens of brightness when plugged in and up to 70 lumens when running on its internal battery. Its LEDs have an operating life of approximately 30,000 hours and deliver an 854 x 480 native resolution thanks to its DLP imager.

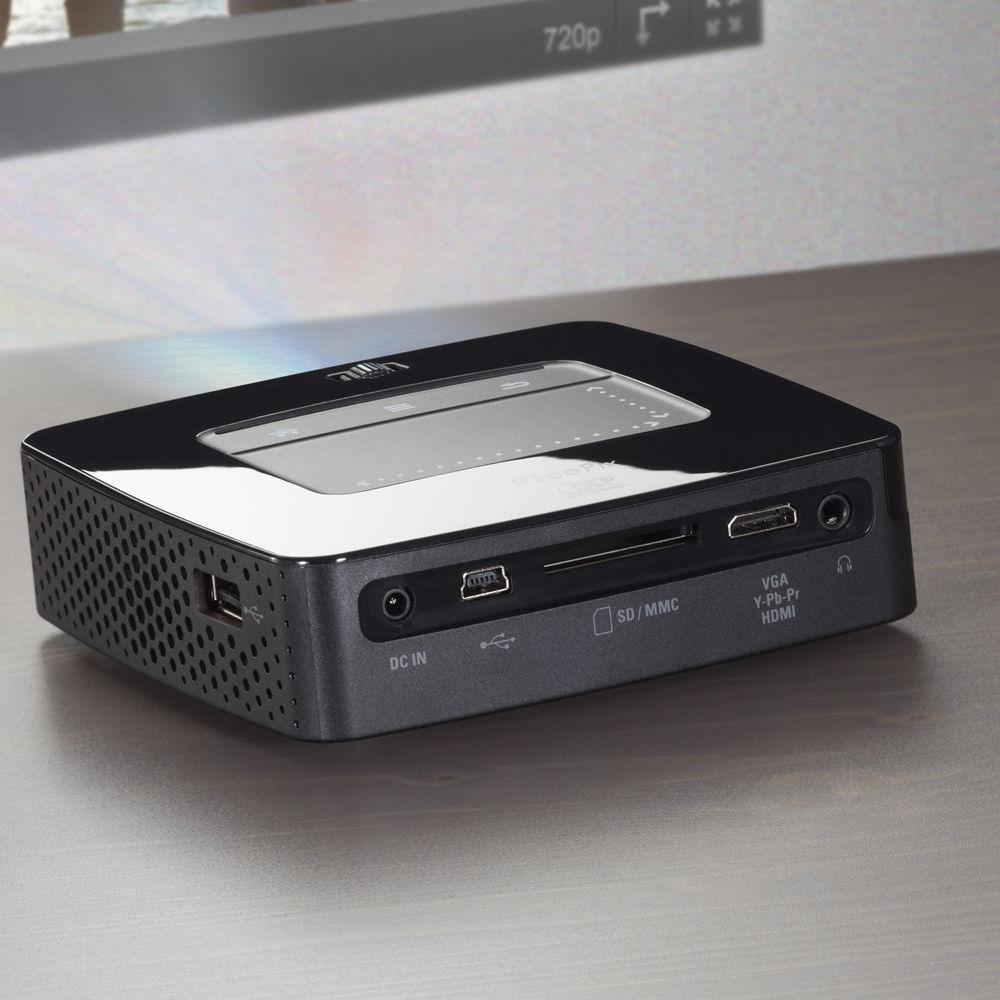

The PPX3614/F7 has a 1W sound bar, eliminating the need for external audio. It also has an onboard mini-HDMI port, 3.5mm A/V port, SD and SDXC card slot, USB port, and mini-USB port, as well as a headphone jack and standard tripod socket. Included with the projector is a remote control, AC adapter, carrying case, mini-USB to USB cable, and a mini-HDMI to HDMI cable.
    Integrated Wi-Fi
  • The PicoPix PPX3614/F7 comes with 802.11 b/g/n Wi-Fi built in, letting you connect to wireless networks to surf the web and share content.
    DLNA
  • Wirelessly connect to your DLNA-compatible mobile devices over Wi-Fi to project videos, photos, presentations, or documents.
    Built-In Browser
  • Thanks to its Android 2.3.1 operating system, the PicoPix offers an integrated web browser that lets you surf over Wi-Fi without connecting to another mobile device.
    Personal Hotspot
  • When no Wi-Fi network is available, the PicoPix PPX3614/F7 can set up its own network to connect to DLNA-compatible devices.
    Connectivity Options
  • The PicoPix can play media via HDMI, component, composite, or VGA, including 1080p full HD video. AV, component, composite, and VGA sources may require optional adapters.
    Play from SD and USB
  • The integrated multimedia player supports common audio and video formats. You can insert a USB flash drive or SD card to play media or use the PicoPix's 4GB of internal memory.
    Touchpad

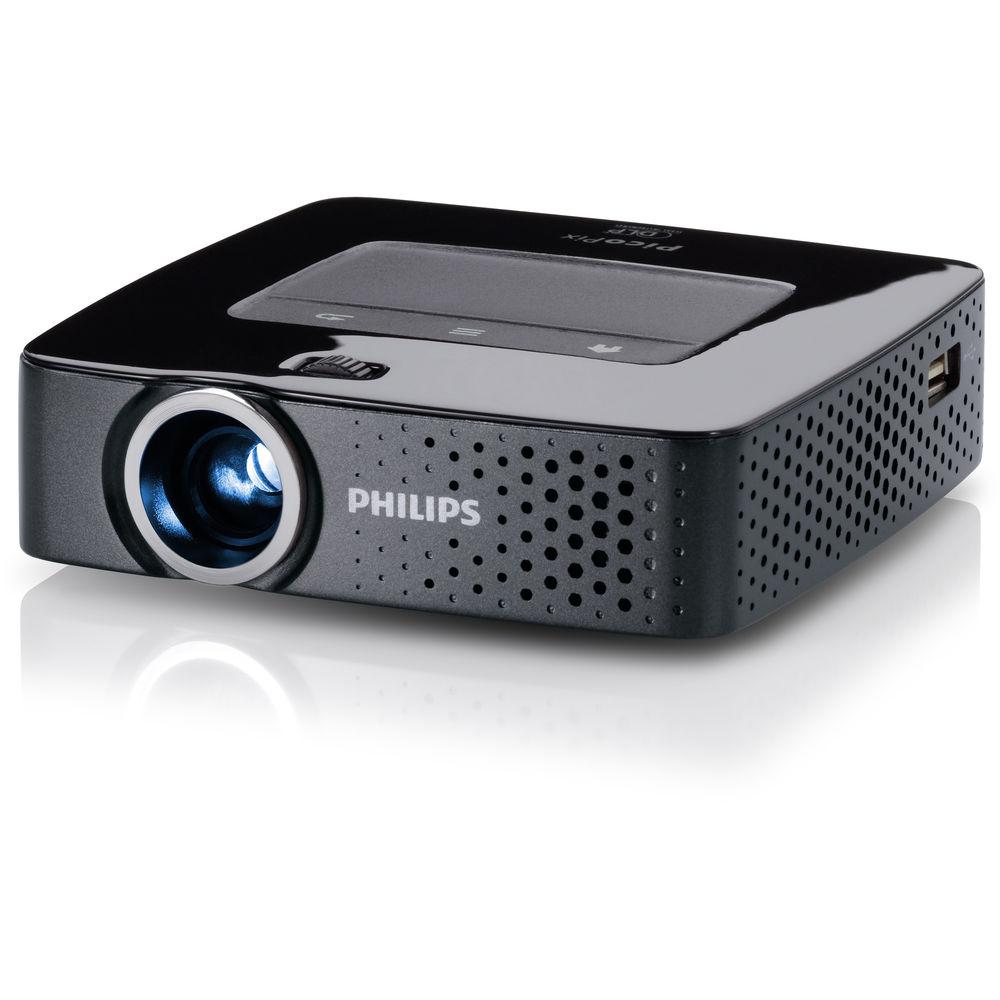

  • The top of the PicoPix PPX3614/F7 features a touchpad that lets you navigate the projector's interface. Alternatively, connect a USB mouse to the USB port on the projector's side.
    Battery
  • The PicoPix's 1800mAh internal battery can project images for up to two hours on a single charge in standard mode or up to 1.5 hours in bright mode. It can recharge in as little as two hours when powered off and plugged into an outlet.
UPC: 609585244221 In the Box Philips PicoPix PPX3614/F7 140-Lumen FWVGA DLP Pico Projector with Wi-Fi
  • Remote Control
  • Carrying Case
  • AC Adapter
  • mini-USB Cable
  • HDMI Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Philips PicoPix PPX3614 F7 140-Lumen FWVGA DLP Pico Projector with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Philips PPX3614 Specs

    Display System DLP
    Native Chip Resolution 854 x 480 (FWVGA)
    Max Brightness 140 Lumens
    70 Lumens
    Aspect Ratio 16:9
    Contrast Ratio 1000:1
    Scan Horizontal: 31 to 69 kHz
    Vertical: 56 to 85 kHz
    Focus Manual
    Throw Distance 1.6 - 16.4' / 0.488 - 4.999 m
    Projection Size 12 - 120" / 30.48 - 304.80 cm
    Inputs/Outputs 1 x Mini HDMI Audio/Video (Input)
    1 x USB Type-A Female
    1 x Mini-USB Type-B Female (Input/Output)
    1 x
    1 x 1/8" (3.5 mm) Mini Audio/Video
    1 x 1/8" (3.5 mm) Mini Audio (Output)
    1 x Power (Input)
    Internal Storage 4.0GB
    Wireless LAN / Wi-Fi Yes, Built-in
    Expected Lamp Life Medium Brightness: 30,000 Hours
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Humidity: 15 - 85%
    Storage
    32 to 113°F (0 to 45°C)
    Humidity: 15 - 85%
    Dimensions (W x H x D) 4.1 x 4.1 x 1.2" / 10.4 x 10.4 x 3.0 cm Unpacked
    7.5 x 7.5 x 3.2" / 19.1 x 19.1 x 8.1 cm Packed
    Weight 10.02 oz / 284 g Unpacked, without accessories
    2.36 lb / 1.07 kg Packed
    Package Weight 1.9 lb
    Box Dimensions (LxWxH) 7.559 x 7.48 x 3.228"
