User Manual for Philips VoiceTracer 2510 Digital Recorder Click to enlarge the picture
Contents of the user manual for the Philips VoiceTracer 2510 Digital Recorder
- Product category: Handheld Voice Recorders Philips
- Brand: Philips
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Philips Handheld Voice Recorders
 |
User manual for the Philips VoiceTracer 2510 Digital Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Philips product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Philips user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Philips product will considerably shorten its lifespan!
|

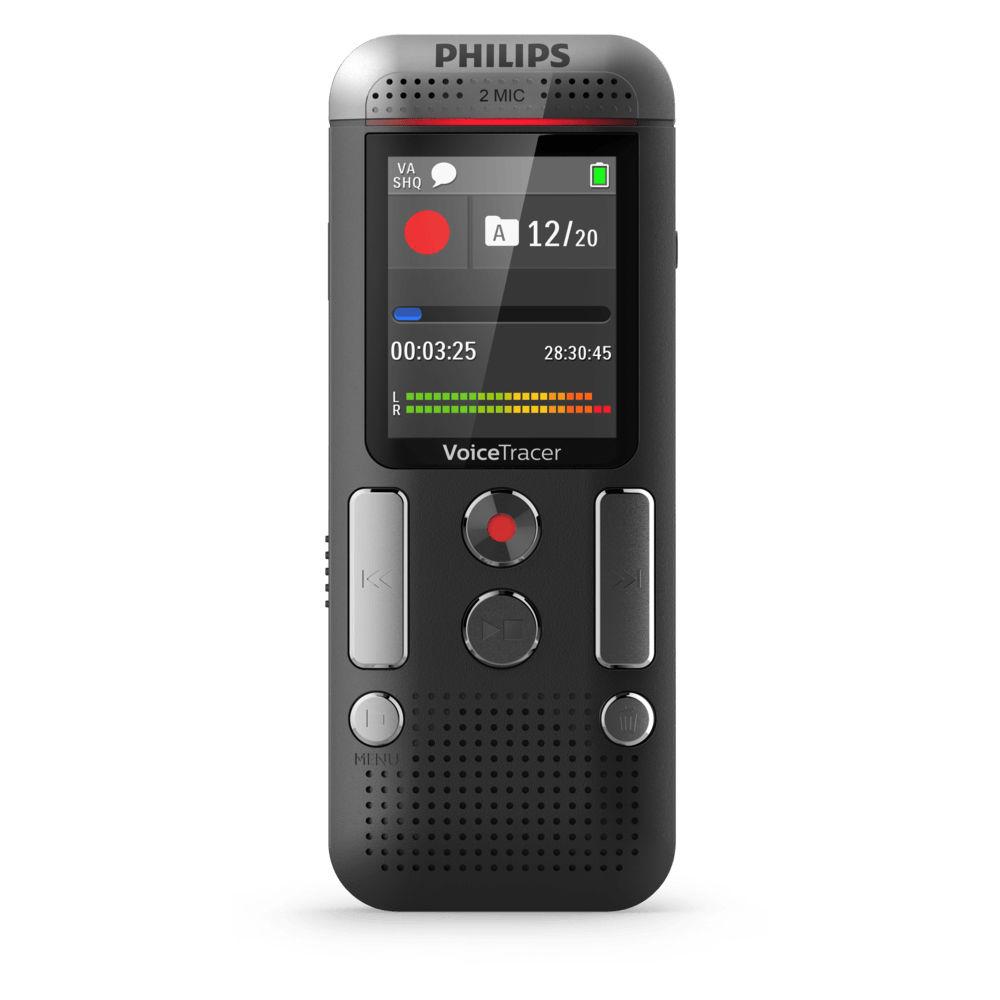

Product description The Philips VoiceTracer 2510 Digital Recorder lets you record notes and documents on the go. It supports both PCM and MP3 recording formats, which enable you to utilize a variety of bit-rates ranging from 8 to 1411 kbps. The VoiceTracer's other features include 8GB of built-in NAND flash memory, a microSD card slot that supports up to 32GB cards, a micro-USB 2.0 port for high-speed data transfers, and a 3.5mm headphone output. For added convenience in the field, a built-in 110mW front speaker facilitates immediate playback of recent voice recordings. The VoiceTracer 2510 also supports hands-free operation thanks to its voice-activated recording feature. When voice activation is engaged, the device will automatically begin recording as soon as it detects a voice. When that voice stops, the recording stops. If the voice begins again, the recording will begin again until the feature is switched off. The VoiceTracer 2510 is equipped with an easy-to-read 1.77" LCD color display and instant one-touch recording that lets you start a recording even when the device is powered off—just hold down the record button for a moment, and when the unit turns on it will instantly start recording. Other features include a keypad lock that protects your files, noise-reduction technology, and support for up to 10 index marks per file. - 2-Mic Stereo Recording
- The two built-in stereo microphones are designed to deliver clear voice recordings and reduce background noise, even in loud environments. High-quality recording is essential for clear playback and accurate speech-recognition results.
- MP3 Recording for Clear Playback and Easy File Sharing
- Capture your recordings in popular MP3 format, which allows you to play back your files virtually anywhere and simply share them with others.

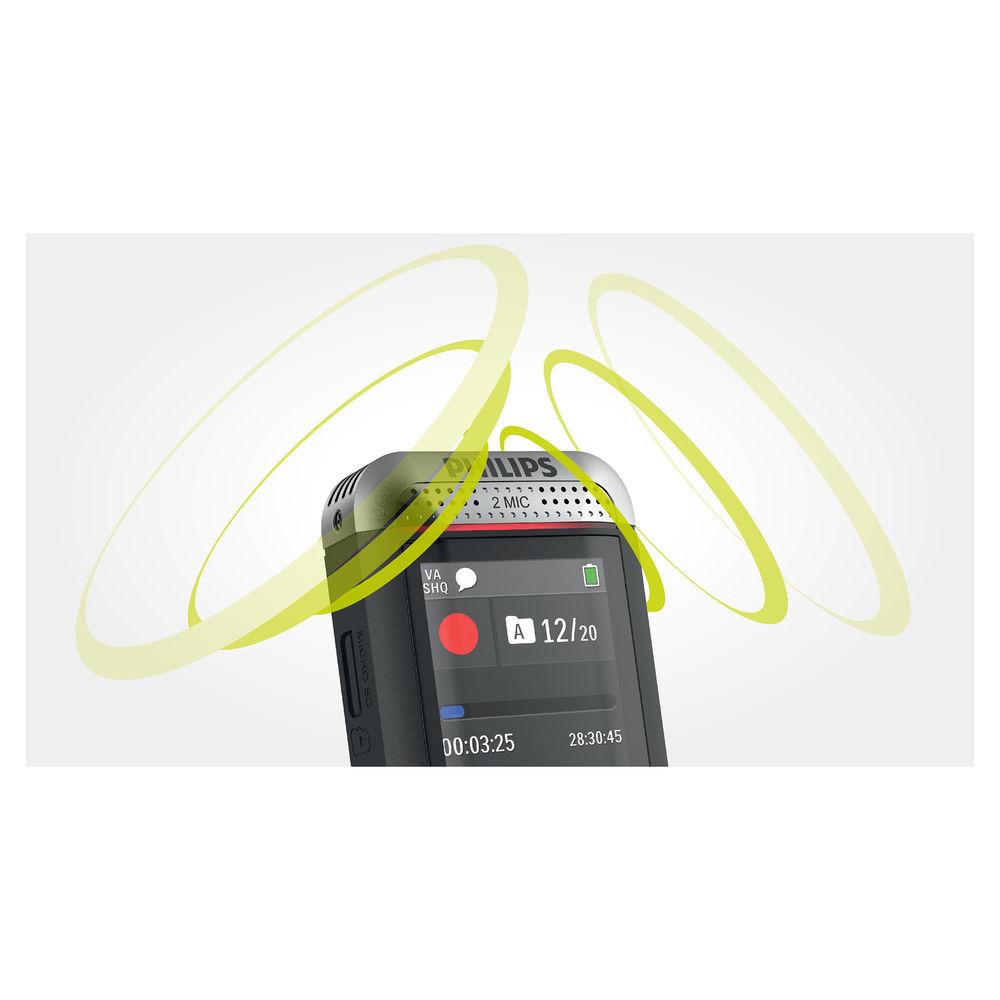

- Voice Activation for Hands-Free Recording
- Voice-activated recording is a convenient feature for hands-free recording. When enabled, recording will start automatically when you begin speaking. Recording pauses when you stop and resumes automatically when you begin speaking again.
- One-Touch Operation for Instant Recording
- Simply press and hold the record button to power up the device and start recording instantly, keeping your eyes and mind focused on the moment, not the device.
- Windows, Mac, and Linux Support
- Thanks to plug-and-play in Windows, Mac, and Linux, you can quickly access your recordings without installing any additional software. The recorder is automatically displayed as a removable drive once it's connected to your computer via USB. It can also be used as a convenient way to store, back up, and share files.

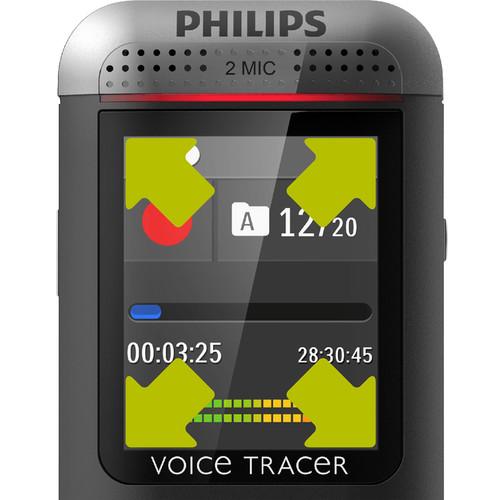

- Large Color Display
- The large color display offers sharp images, making it easier to see and read everything at first glance. The clear user interface supports eight languages and is optimized for easy, intuitive operation.
- 8GB of Internal Memory for up to 88 Days of Recording
- Capture and store up to 88 days of continuous recording thanks to the 8GB of internal memory.

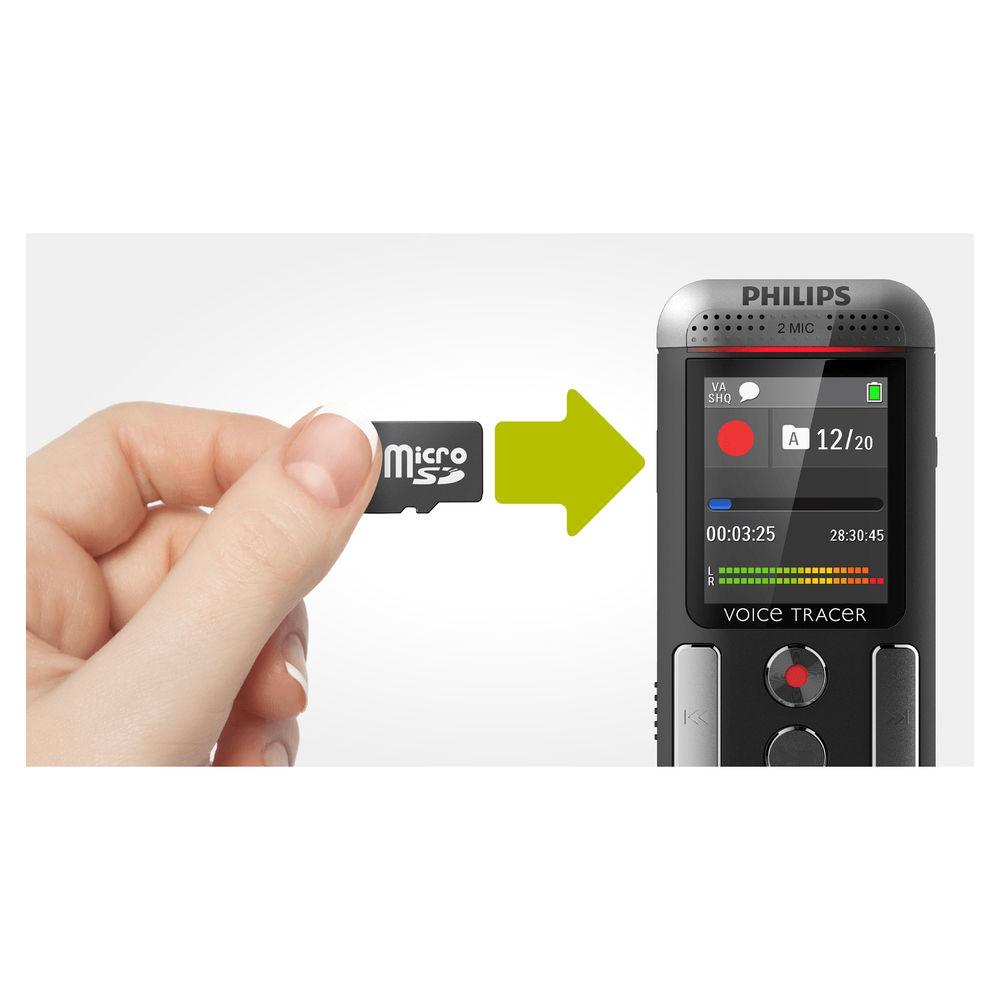

- microSD memory card
- Virtually unlimited recording and storage capacity thanks to a microSD memory card slot supporting up to 32GB of additional memory.
- Calendar Search
- A time stamp with the date and time is added to every recording, allowing you to easily navigate through your library and find files. Finding recordings is quick and easy.
UPC: 855971006168 In the Box Philips VoiceTracer 2510 Digital Recorder 2 x AAA Batteries USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Philips VoiceTracer 2510 Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhilips DVT2510 Specs | | | Type | Digital | | Mode | Stereo | | Recording Format | MP3, PCM (WAV) | | Bit-Rate | 1411 kbps
192 kbps
96 kbps
64 kbps
8 kbps | | Sample Rate | 44.1 kHz
32 kHz
22 kHz
16 kHz | | Recording Time | HQ Mono: 190 Hours
SP Mono: 284 Hours
LP Mono: 2280 Hours
SHQ Mono: 90 Hour
PCM Mono: 12 Hours | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo | | Microphone Sensitivity | Manual SENS Setting | | Frequency Response | 50 Hz - 20 kHz | | | | Playback Formats | WAV
MP3 | | Speaker | Yes | | Speaker Size | 1.1" / 28 mm | | Power Output | 110 mW | | Signal-to-Noise Ratio | > 60 dB | | | | Display Size/Type | 1.77" LCD Backlit with 112 x 112 Resolution | | Indicators | Power, Low Battery, Recording, Voice Volume | | Erase Protect | Yes | | Voice E-Mail Function | None | | On Screen Clock | Yes | | Safety Lock | Yes | | Search | Easy Search | | | | Battery Type | 2 x AAA | | Battery Life (approx.) | Recording: 50 Hours | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 8 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Headphone Out | | USB | USB 2.0 (Micro-B) | | Operating System Support | Linux, Windows, macOS/OS X | | Dimensions (WxHxD) | 1.77 x 4.45 x .79" / 45 x 113 x 20 mm | | Weight | 2.79 oz / 79 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 6.9 x 5.3 x 1.4" |
