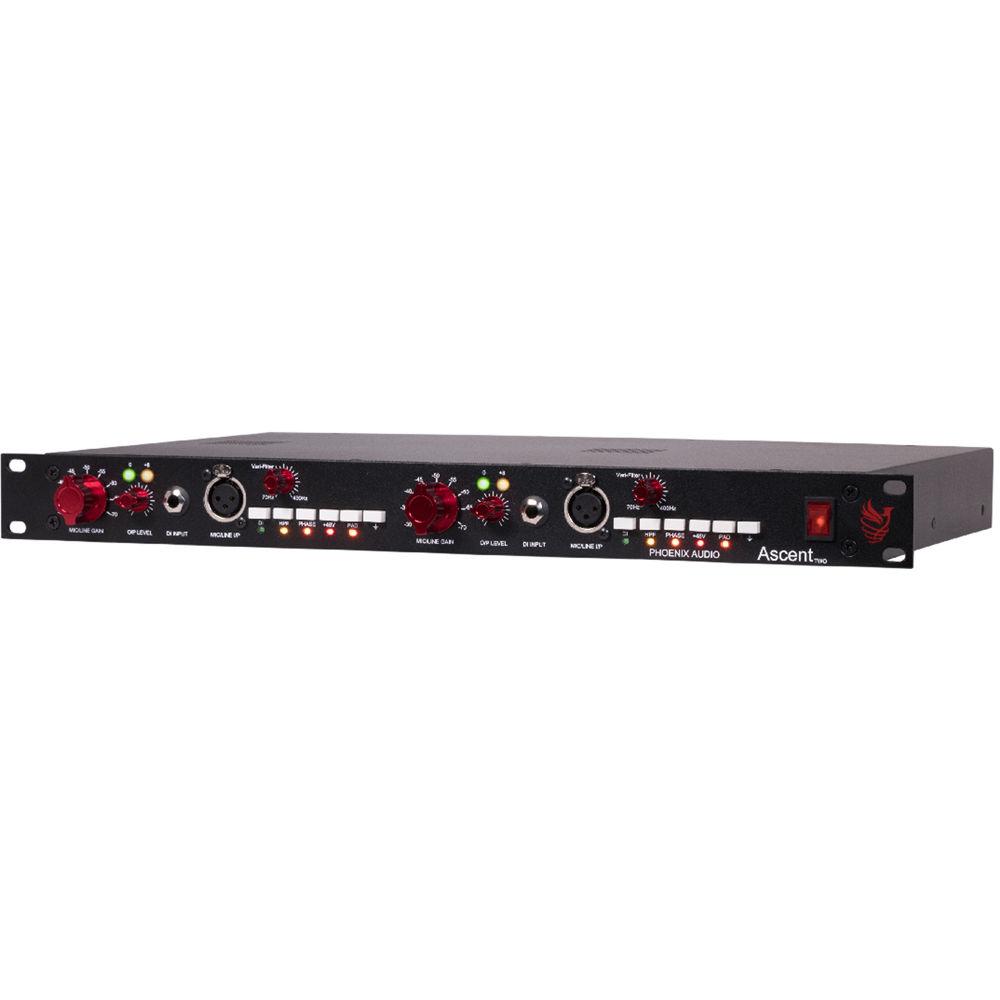

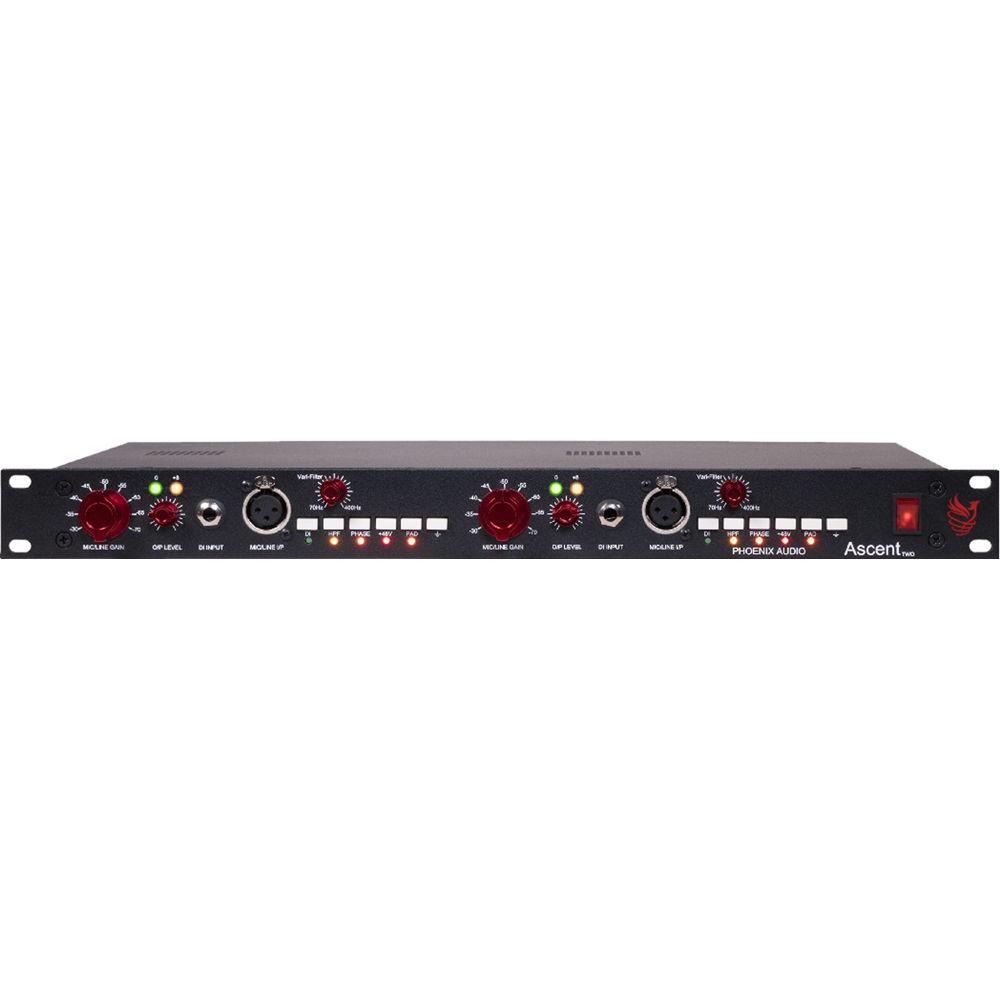

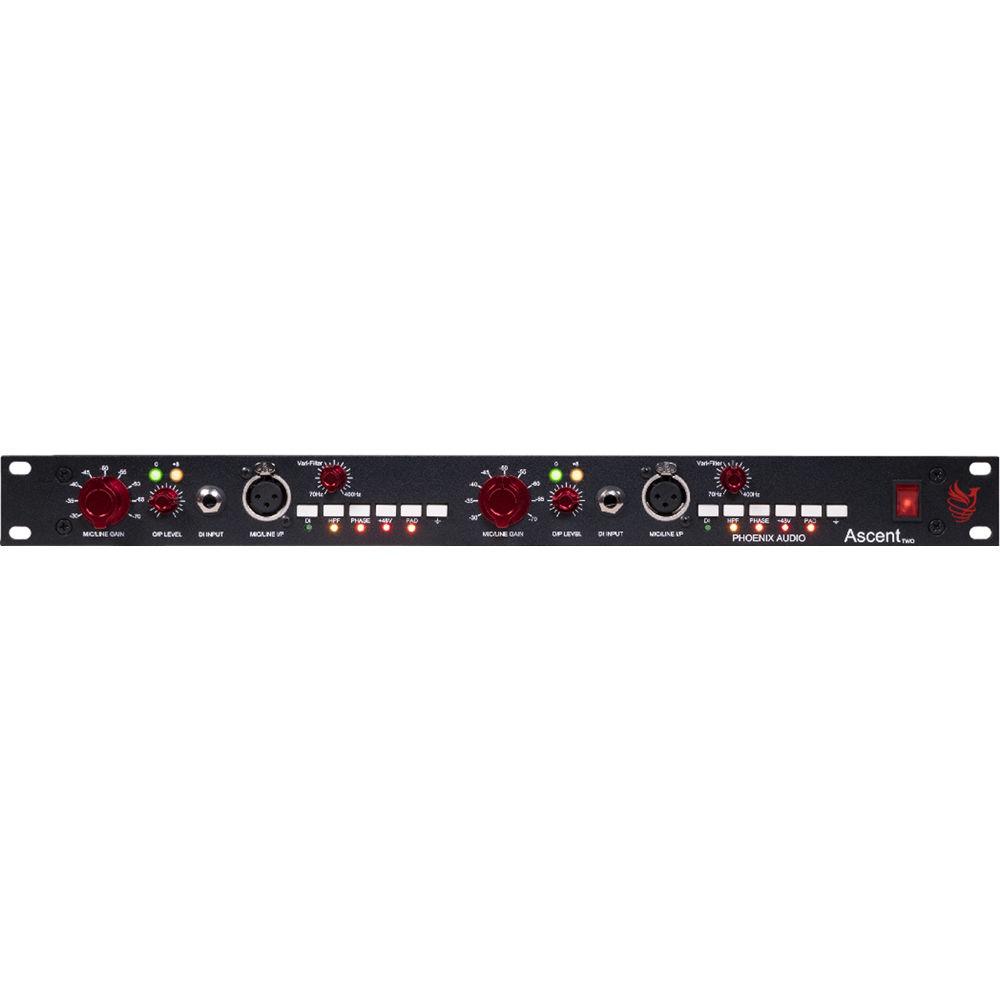

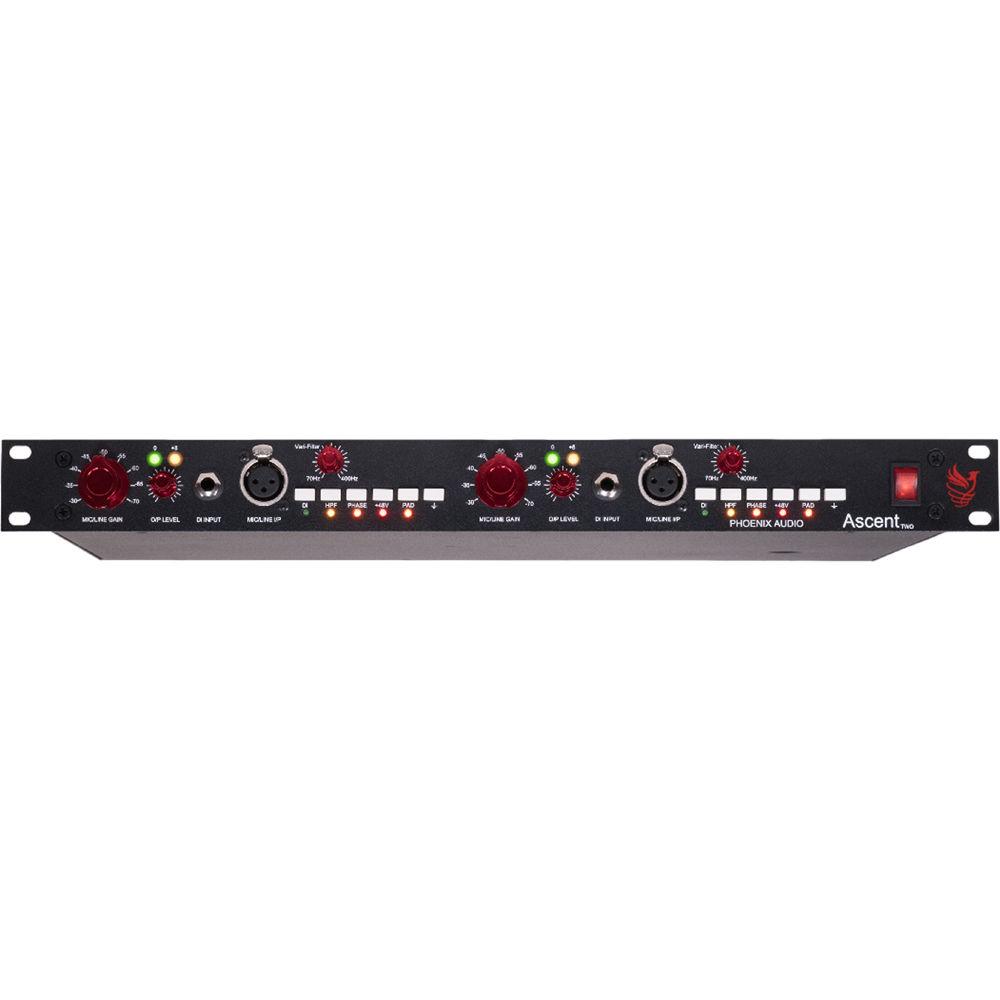

User Manual for Phoenix Audio Ascent Two Class-A Dual-Mono Microphone Preamplifier DI Click to enlarge the picture
Contents of the user manual for the Phoenix Audio Ascent Two Class-A Dual-Mono
- Product category: Microphone Preamps Phoenix Audio
- Brand: Phoenix Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phoenix Audio Microphone Preamps
 |
User manual for the Phoenix Audio Ascent Two Class-A Dual-Mono contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phoenix Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phoenix Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phoenix Audio product will considerably shorten its lifespan!
|
Product description The Ascent Two Class-A Dual-Mono Microphone Preamplifier/DI from Phoenix Audio takes a modern approach to Class-A circuit design and delivers a wide range of tones without sacrificing the beloved vibe of true Class-A design. The dual-mono mic preamp can be used with all microphones including ribbons and dynamic mics to drive the output stage for a vast range of pure Class-A tones—from bold clarity to vintage warmth in broadcast TV or recording studio applications.Featuring a -15 dB input pad, LED gain metering, and push buttons for high-pass filter, phase reverse, and 48V phantom power, the Ascent Two dual-microphone preamplifier offers a frequency response of 20 Hz to 20 kHz. Other features include: two XLR and two TRS 1/4" DI input connectors, two XLR and two TRS 1/4" outputs. Additionally, the Vari-Filter controls allow you to control and shape tones of all types. - Versatile, Modern Class-A Mic Preamp/DI
- The Ascent Two Mic Preamp/DIs take a modern approach to Class-A circuit design that delivers a wide range of tones without sacrificing the beloved vibe of true Class-A design. The Ascent circuit can go from ultra-clean sounds suitable for audiophile recordings all the way to the warm, saturated tones reminiscent of the UK's most heralded vintage designs.
- Hi-Fi Transformerless Mic Input Stage
- The mic preamp's electronically-balanced, transformerless mic input circuit delivers fast transients and the full-frequency spectrum (from sub-bass to the highest air band), while still delivering the full, warm, and smooth characteristics that make engineers love Class-A mic preamps. Boldly outperforming transformer-based designs in both the frequency response and slew rate, the Ascent delivers articulate, punchy, and full-bodied input signals, allow you to drive the output stage for a vast range of pure Class-A tones, from bold clarity, to vintage warmth, and to everything in-between.
- Transformer-Balanced Output Stage
- The DB694 output transformer is coupled to Phoenix's proprietary, fully discrete DSOP-2 output amplifier. The DSOP-2 is a direct descendent of the venerable TF1 amp, which Phoenix's head designer, David Rees, developed as an upgrade for vintage Neve modules. Going beyond the TF1, the DSOP-2 is the pinnacle of Class-A output circuit design, offering up a smooth transition from ultra-clean to beautifully saturated tones.
- Ultra-High Impedance DI Circuit
- The Ascent Two mic pre series includes very high input impedance DI circuits (10 MOhm), remarkably featuring no FETs on any channel. This design means that guitar and bass pickups are not loaded, allowing the natural sound of both modern and vintage instruments to shine and enhance the sound, and sparkle and growl as if they were plugged into your favorite amp. Synths, drum machines, and even laptops can likewise be sweetened by the Ascent's DI.
- Easy and Intuitive in The Studio
- Working with a clean, robust, electronically balanced input signal, the Ascent Two Mic Preamp/DI makes dialing in your exact sound easy, intuitive, and quick. By working the familiar stepped input gain control (up to 70 dB alone) and the -30 dB pad against the variable output fader (which provides an additional 10 dB of gain), you can dial in your preferred tones without having to consider an overly complex gain architecture. It's all about driving the versatile DSOP-2 output stage to your exacting tastes, whatever they may be in any given moment.
- Vari-Filter Control
- Powerful variable high-pass filter from 70 Hz to 400 Hz allowing you the ability to control and shape tones of all types.
UPC: 757440437490 In the Box Phoenix Audio Ascent Two Class-A Dual-Mono Microphone Preamplifier/DI AC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phoenix Audio Ascent Two Class-A Dual-Mono Microphone Preamplifier DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

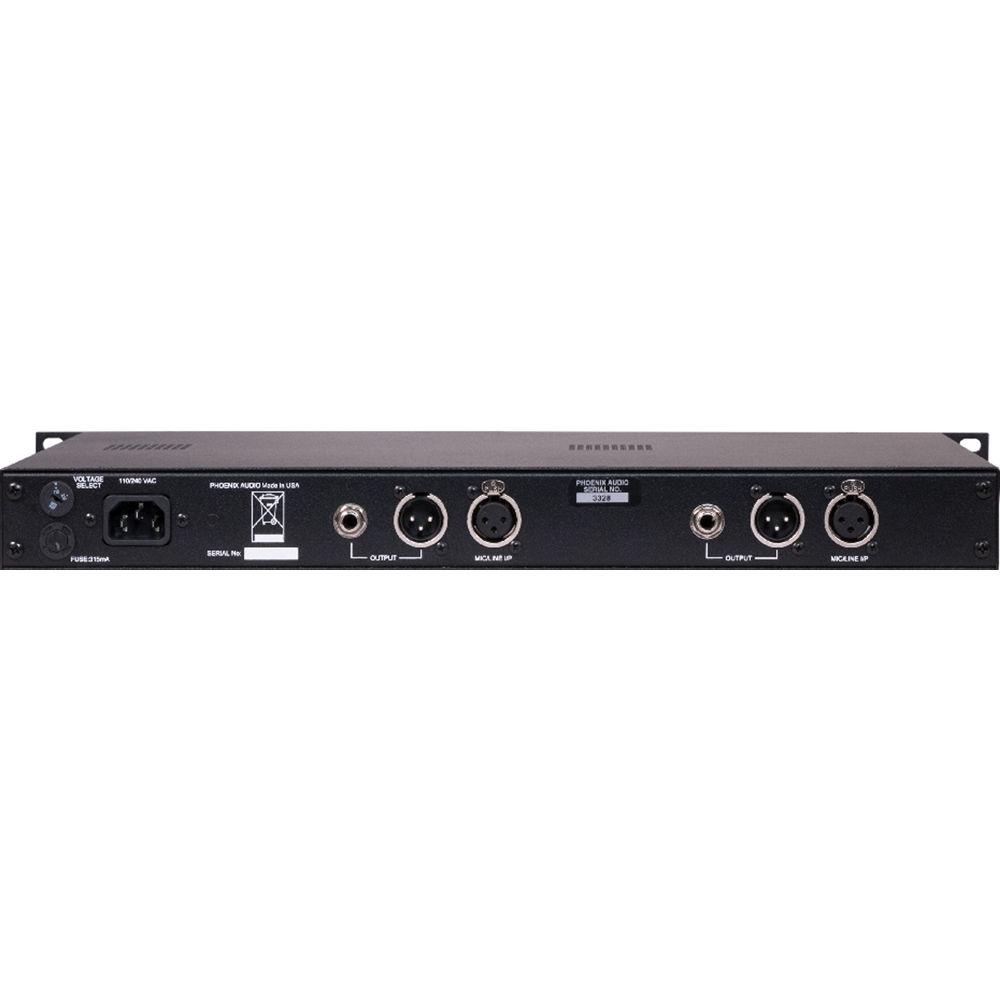

Technical parametersPhoenix Audio Ascent Two Specs | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Maximum Output | +26 dBu at 1 kHz | | Noise | -90 dB at 20 Hz to 20 kHz | | Output Connectors | 2 XLR 2 TRS, 1/4" / 6.3 mm | | Mic Input | 2 XLR, Class-A, Transformerless Balanced Mic Input Stage
| | Microphone Impedance | 10 kOhms | | Transformer Outputs | Balanced Class-A DSOP-2 | | Ground Lift | 2 Push-Button Switches | | Gain Range | Mic Input: -30 to -70 in 5 dB Steps with 10 dB More Available on the Fader | | Gain Reduction | 15 dB Push-Button Pad Switch (Mic Input Only) | | Input Impedance | 10 MOhm, DI | | Gain Meter | 2-LED Metering (Green = 0 dB, Red= +8 dB, Corresponding to 4 and 6 on a PPM Meter) | | Phantom Power | 2 +48 V On/Off Push-Button Switches | | High-Pass Filter | 2 On/Off Push-Button Switches | | Vari-Filter Control | 70 Hz to 400 Hz on a 21 Position Detented Control | | Phase Reverse | 2 Push-Button Switches | | Frequency Response | Mic Input Stage: 0.4 dB at 40 Hz, -0.3 dB at 25 kHz
DI Input Stage: 0.3 dB at 40 Hz, -0.5 dB at 25 kHz | | Headroom | +26 dB on Mic-Pre Stage | | DI Stage Gain | Maximum of 30 dB | | Power | 110/240 V Mains Voltage | | Rack Size | 1 RU | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
