User Manual for Phoenix Audio Nimbus DI Click to enlarge the picture
Contents of the user manual for the Phoenix Audio Nimbus DI
- Product category: Direct Boxes Phoenix Audio
- Brand: Phoenix Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phoenix Audio Direct Boxes
 |
User manual for the Phoenix Audio Nimbus DI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phoenix Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phoenix Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phoenix Audio product will considerably shorten its lifespan!
|

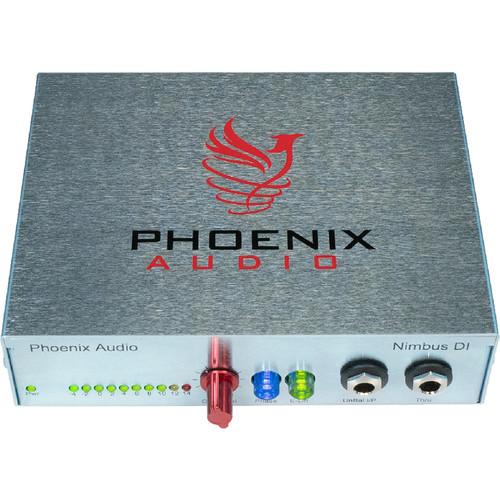

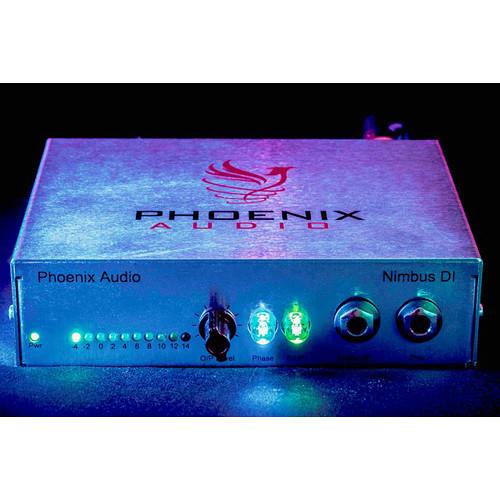

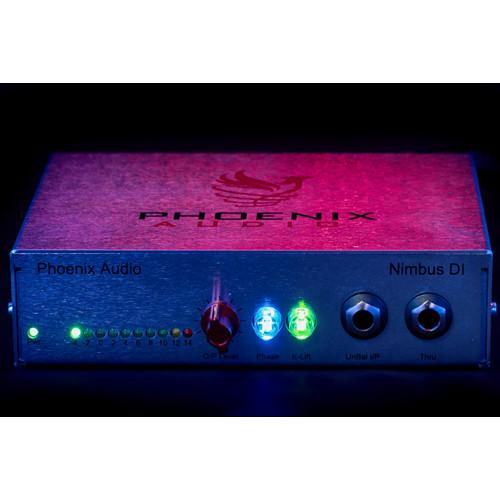

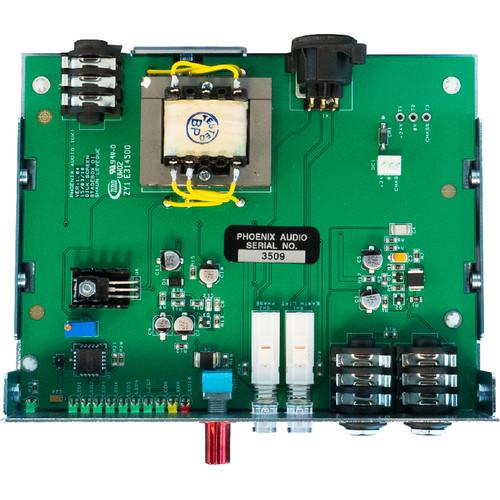

Product description The Nimbus DI from Phoenix Audio is a fully discrete Class-A circuit design, all hand-wired with military-grade silver connections into a rugged and portable steel box. The transformerless ultrahigh-impedance input stage can be used to deliver full-bodied audio for guitars, basses, synths, and drum machines in recording studio and live stage applications.The Nimbus DI's output stage uses Phoenix Audio's own DSOP-2 output amp designed by Dave Rees for the TF1 amp (which he developed for use in vintage Neve modules). The custom-wound DB694 transformer offers enormous headroom. The DSOP-2 can be driven to taste. Deliver more gain to achieve a saturated sound, back off for a cleaner hi-fi sound, or choose any flavor in-between.In addition, the DI is equipped with a 1/4" (TS) input jack, a 1/4" (TS) through jack, and XLR and 1/4" (TS) output jacks. The easily recalled stepped gain control makes dialing in your exact sound a breeze. - Phoenix's famous Class-A, discrete, transformerless input stage, offering ultrahigh-impedance (10 MOhms) inputs
- Class-A, discrete DSOP-2 output with custom-wound DB694 transformer
- Detented output pot with a gain range of 30 dB

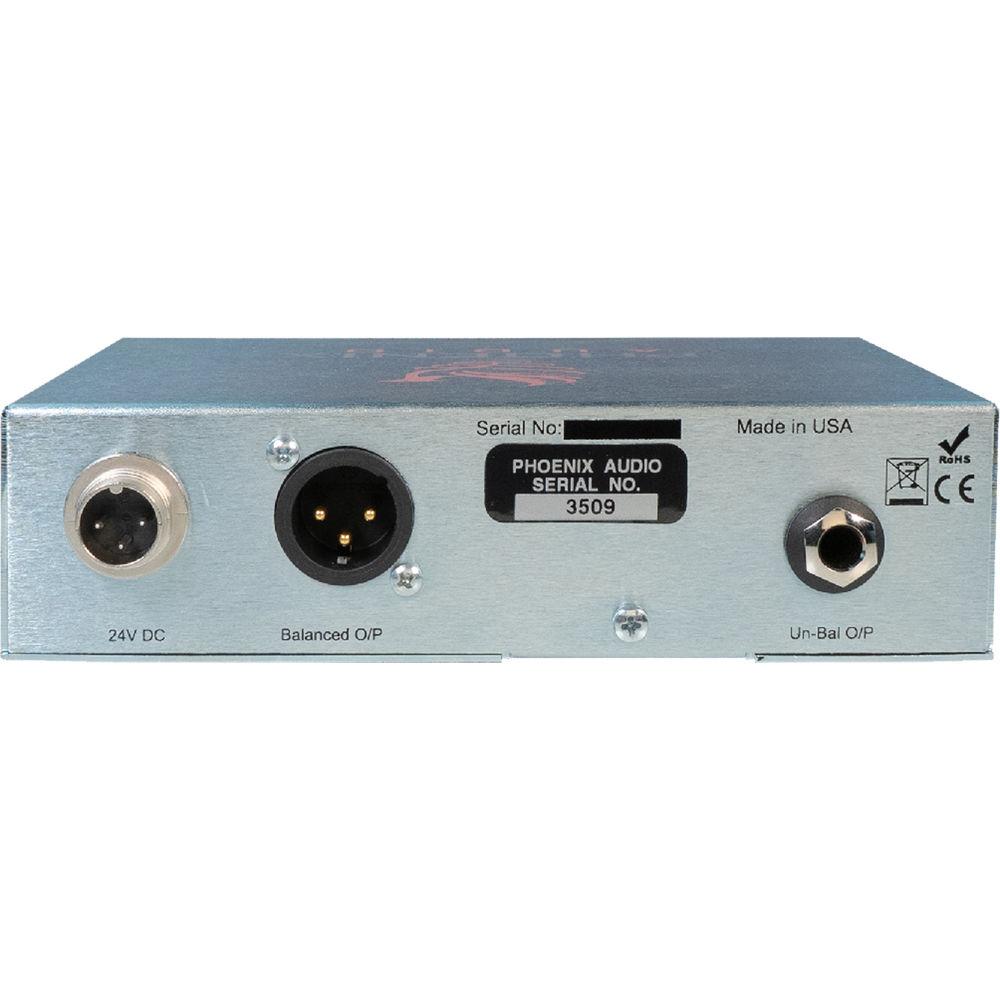

- XLR and 1/4" jack (TS) outputs on rear panel

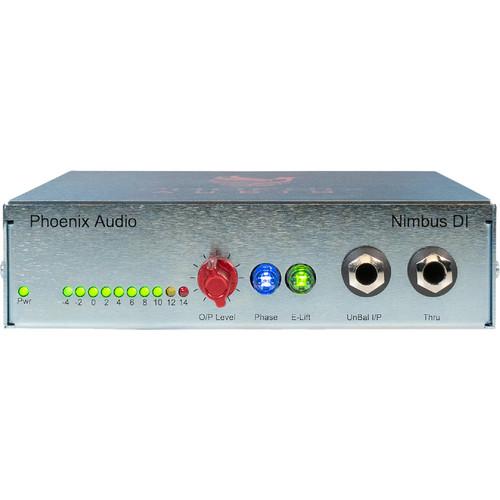

- 1/4" input (TS) and through jacks on front panel
- LEDs with 10-position output metering
UPC: 757440437513 In the Box Phoenix Audio Nimbus DI Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phoenix Audio Nimbus DI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhoenix Audio NIMBUS Specs | Frequency Response | 20 Hz to 20 kHz ± 0.5 dB | | Gain Range | 30 dB | | Headroom | + 26 dB (Typical) | | Maximum Output | +26 dBu @ 1 kHz | | Noise | -90 dB @ 22 Hz to 22 kHz | | PSU | External Lockable, 110-240 VAC (Switchable) Input, 24 VDC Output | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
