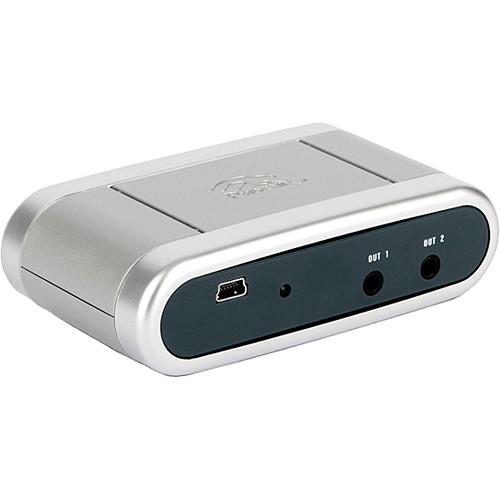

User Manual for Phoenix Audio Technologies MT107E HD Single-Channel 16kHz Echo-Canceling System Click to enlarge the picture
Contents of the user manual for the Phoenix Audio Technologies MT107E HD Single-Channel
- Product category: Audio Conferencing Phoenix Audio Technologies
- Brand: Phoenix Audio Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phoenix Audio Technologies Audio Conferencing
|
User manual for the Phoenix Audio Technologies MT107E HD Single-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phoenix Audio Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phoenix Audio Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phoenix Audio Technologies product will considerably shorten its lifespan!
|
Product description The MT107E HD Single-Channel 16kHz Echo-Canceling System from Phoenix Audio is a DSP-based unit designed to remove noise picked up by microphones in standard to complex audio conferencing environments. It utilizes your own microphone and loudspeakers to create a complete audio conferencing solution. Phoenix Audio Technologies' proprietary full duplex, echo-canceling, noise-canceling, and AGC algorithms prevent gating and the loss of critical information, and provide 16 kHz of clear HD audio.Input Level (mic/line/6dB boost), Phantom Power Supply (sold separately), and Output Level (mic/line) are the parameters of the MT107E HD Echo-Canceling System that can be controlled, modified and stored in the unit via the SDK graphic utility software. The SDK is a free utility, compatible with Windows, available for download on Phoenix Audio's website. The SDK communicates with the MT107E HD unit through a standard USB connection. Note: The Phoenix Audio SDK graphic utility software is available at: http://www.phnxaudio.com/support/download - Analog output through a standard 3.5mm jack
- Digital output through USB connection
- Controllable input level and phantom power supply (via free SDK)
- Both microphone and far-end inputs connect through standard 3.5mm stereo audio jacks
- Powered via USB (AC/DC converter with USB connector is sold separately)
UPC: 854969001338 In the Box Phoenix Audio Technologies MT107E HD Single-Channel 16kHz Echo-Canceling System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phoenix Audio Technologies MT107E HD Single-Channel 16kHz Echo-Canceling System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhoenix Audio Technologies MT107E HD Specs | Sampling Frequency | 32 kHz | | Bandwidth | 100 Hz to 16 kHz | | Echo Cancellation | Two levels of echo-canceling aggressiveness
Three echo-canceling speeds (via free SDK)
Tail Length controllable up to 240 ms | | Noise Reduction | Three levels of Noise Reduction: 8 dB (low), 14 dB (medium), and 20 dB (high) (via free SDK) | | Residual Noise | Suppressed to room level to prevent pumping noise | | Filter | Preset Color Filters: 8 (for both the output and speaker signal) | | Delay | 10 ms | | Input | 2 x 3.5 mm stereo Inputs
CONNECTIVITY:
Microphone input is connected to "IN 2"
Units are preset to line level with 6dB boost and phantom power off
Far-end input is connected to "IN 1"
Connect your system speakers output into this jack
Units are preset to line level
Note: Far-end input will be received through the USB channel if active
The following input settings for IN 1 and IN 2 are available through the SDK:
Mic level (280 mV peak-to-peak)
Line level (4 V peak-to-peak)
Additional 6 dB boost
Optional 3 V phantom power supply (sold separately) | | Output | 2 x 3.5 mm Outputs
CONNECTIVITY:
Output to room speakers is through "OUT 1"
Units are preset to line level
Far-end output to system is through "OUT 2"
Units are preset to line level
Note: Far-end output will be transmitted through the USB channel if active
The following output settings for OUT 1 and OUT 2 are available through the SDK:
Mic level (200 mV peak-to-peak)
Line level (2 V peak-to-peak) | | USB | USB In/Out and Power | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.5 x 6.6 x 1.7" |
