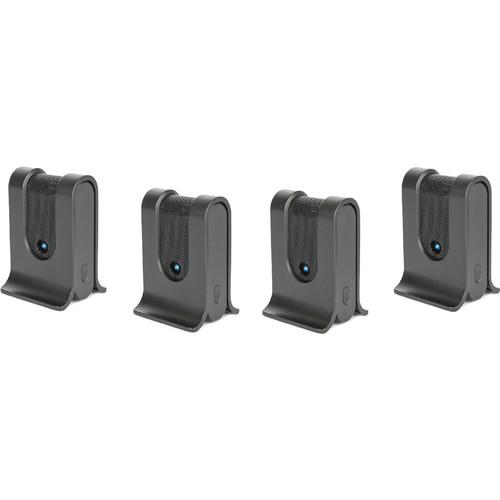

User Manual for Phoenix Audio Technologies MT435 Raven XLR Microphone Click to enlarge the picture
Contents of the user manual for the Phoenix Audio Technologies MT435 Raven XLR
- Product category: Audio Conferencing Phoenix Audio Technologies
- Brand: Phoenix Audio Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phoenix Audio Technologies Audio Conferencing
|
User manual for the Phoenix Audio Technologies MT435 Raven XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phoenix Audio Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phoenix Audio Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phoenix Audio Technologies product will considerably shorten its lifespan!
|
Product description The 4 pack of MT435 Raven XLR Microphones from Phoenix Audio are designed for use with all Phoenix Audio Technologies Ocotpus models.These microphones feature XLR connections and are small in size and have good pick-up capabilities, which makes them suitable for use in large conference rooms, classrooms, and training rooms, webinars and web conferences, and depositions. - Omni-directional microphone
- 25.0' (7.6m) attached cable
UPC: 854969001215 In the Box Phoenix Audio Technologies MT435 Raven XLR Microphone (4-Pack) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phoenix Audio Technologies MT435 Raven XLR Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhoenix Audio Technologies MT435 Specs | Element | Omni-directional front electret condenser microphone | | Polar Pattern | Omni-directional | | Frequency Response | 50 to 12,000 Hz | | Maximum Input Sound Level | 120 dB SPL | | Sensitivity | -36 + 3 dB re 1v at 1 Pa | | Signal to Noise Ratio | 60 dB | | Output Connector | XLR | | Phantom Power Requirements | 24 V, 590 Ω, 10 mA
48 V, 6.8 kΩ, 10 mA | | Cable | 25" (7.62 m) KL08301ABK01D | | Dimensions (W x H x D) | 4.50 x 2.72 x 1.50" (114.30 x 69.09 x 38.10 mm) | | Weight | Pack: 4.85 lb (2.20 kg) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 17.25 x 13.0 x 2.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
