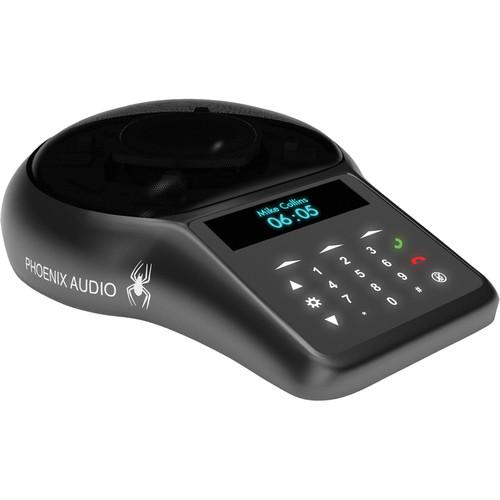

The MT505 Spider USB and SIP/IP Telephone from Phoenix Audio is an SIP/IP conference phone that provides USB and SIP/IP bridging for both audio and video conferencing applications in boardrooms, conference rooms, and executive offices. It features a 4 microphone beamforming array that helps provide full duplex communication, while its integrated DSP offers echo cancellation, noise reduction, and de-reverb functionality, in addition to providing automatic gain control. Note: The MT505 is an SIP/IP telephone and cannot be used for making analog phone calls.
PSTN telephony & USB soft codec connectivity to address both video conferencing and audio conference meetings. The Spider also support a three-way call bridge between both interfaces to provide maximum flexibility
The user interface is incorporated through LED lights discreetly placed throughout the unit. The Spider comes to life when it is in action and displays only the needed functions depending on the specific scenario
Four microphone beamforming array
Full duplex communication
Automatic gain control
Bridging between USB and SIP/IP
Echo Cancelling
LED lit control buttons
Noise Reduction
Supports PoE ( Power over Ethernet)
De-reverb
Dual audio/video platforms
DSP-based algorithms
Daisy chainable
Directional LED lighting
Recording utility for Windows computers
UPC: 854969001253 In the Box Phoenix Audio Technologies MT505 Spider USB and SIP/IP Telephone
USB Cable
48V Power Supply International AC Adapter
Ethernet Cable
Telephone Cable
Limited 2-Year Warranty
Table of Contents
Upload User Manual
Have you got an user manual for the Phoenix Audio Technologies MT505 Spider USB and SIP IP Telephone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters
Phoenix Audio Technologies MT505 Specs
Connections
SIP/IP with USB interface (mini B) 1/8" (3.5 mm) DIN, 4-pole for external microphone and speaker connection Ethernet daisy chain expandability of up to 14 units
Power Consumption
150 mA from 48 V AC/DC adapter or via POE supply
Frequency Response
50 Hz to 16 kHz
Latency
10 ms
Broadcast Level
92 dB SPL @ 1 m (5 W RMS)
Bridging Features
3-way bridging capability
Noise Cancellation
> 10 dB
Duplex Mode
100% full duplex with no attenuation
Performance
Conforms to ITU-TG.167
Echo Cancellation
Acoustic Echo Cancellation: > 40 dB/s
Microphone
4x directional microphones
Algorithm
Beam-forming algorithm
Adjustments
Automatic Voice-Level Adjustment
VoIP
SIP-RFC 3261, SDP-RFC 2327 SIP over TCP/UDP, Redundancy, Digest Authentication, PRACK, Early Media
Web Server for configuration and management, configuration update via FTP, TFTP, HTTP, HTTPS, DHCP options (66, 67, 160, 12, 77, 42)
Dimensions (Ø x H)
7 x 1.9" (177.8 x 48.3 mm)
Weight
2 lb (1 kg)
Package Weight
4.3 lb
Box Dimensions (LxWxH)
15.7 x 12.7 x 3.1"
